0.0300" x .045" LOC 3-Flute Ball Nose Carbide End Mill, 1/8" Shank | K063
0.0300" x .045" LOC 3-Flute Ball Nose Carbide End Mill, 1/8" Shank | K063
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

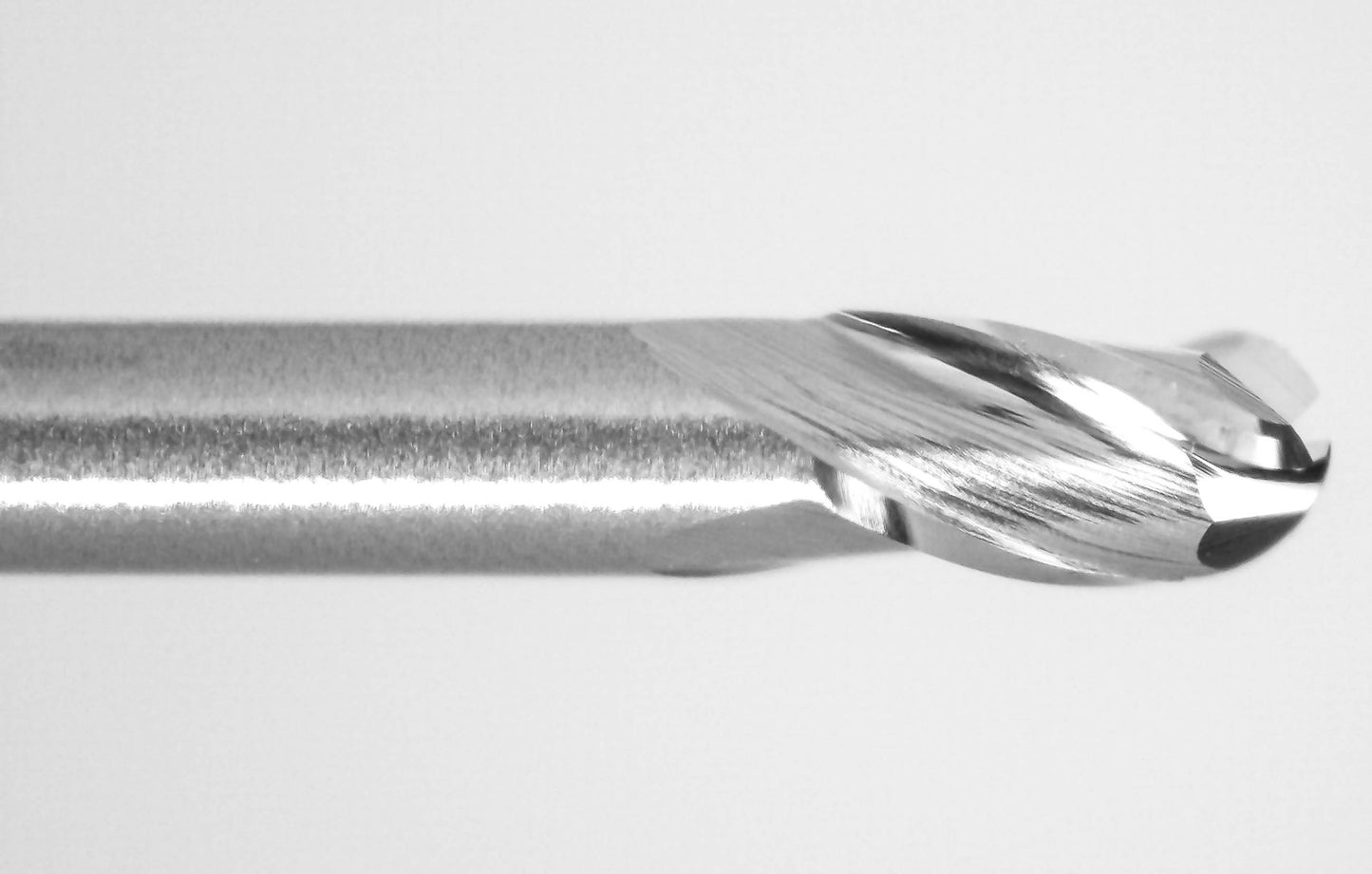

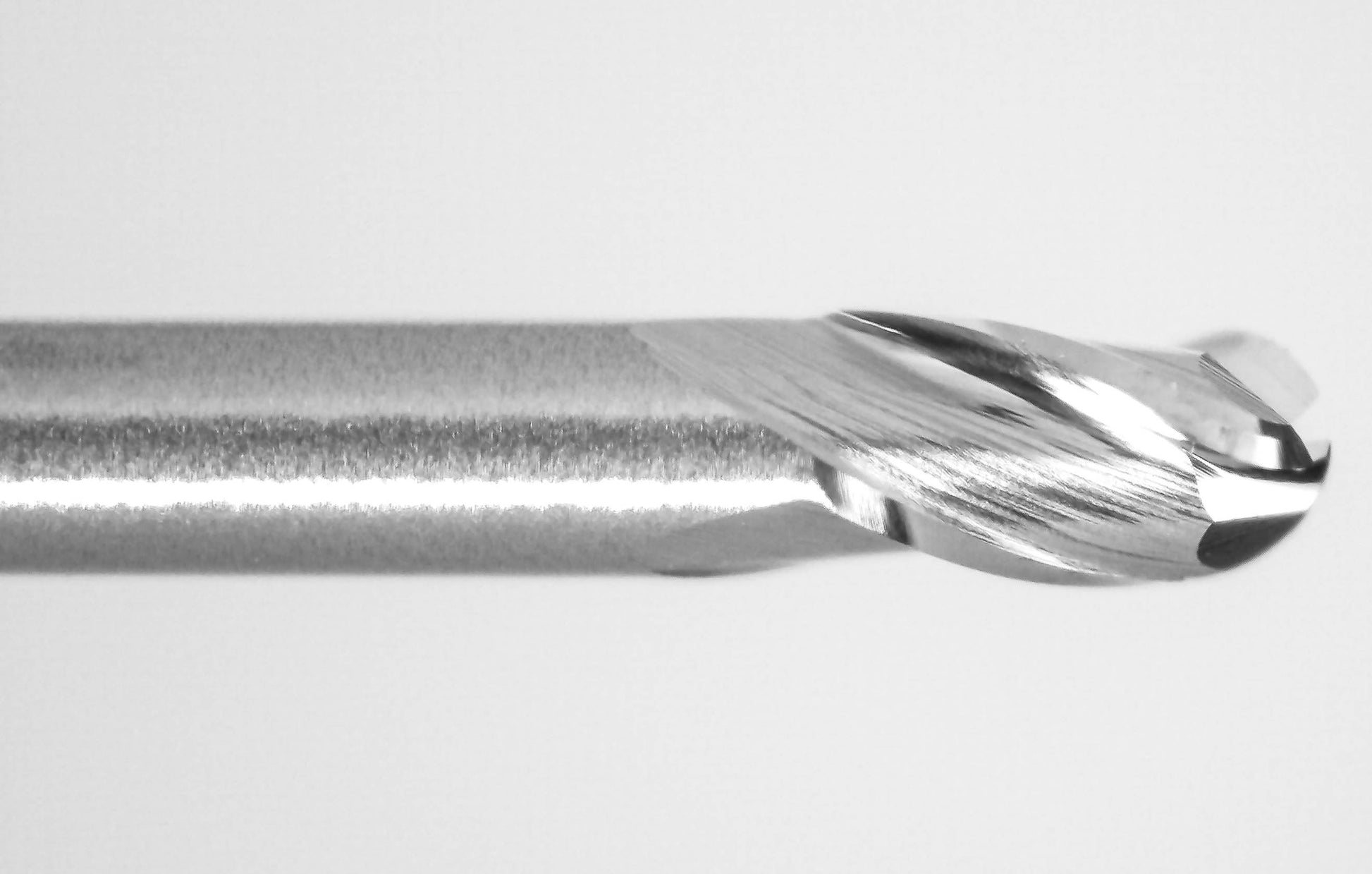

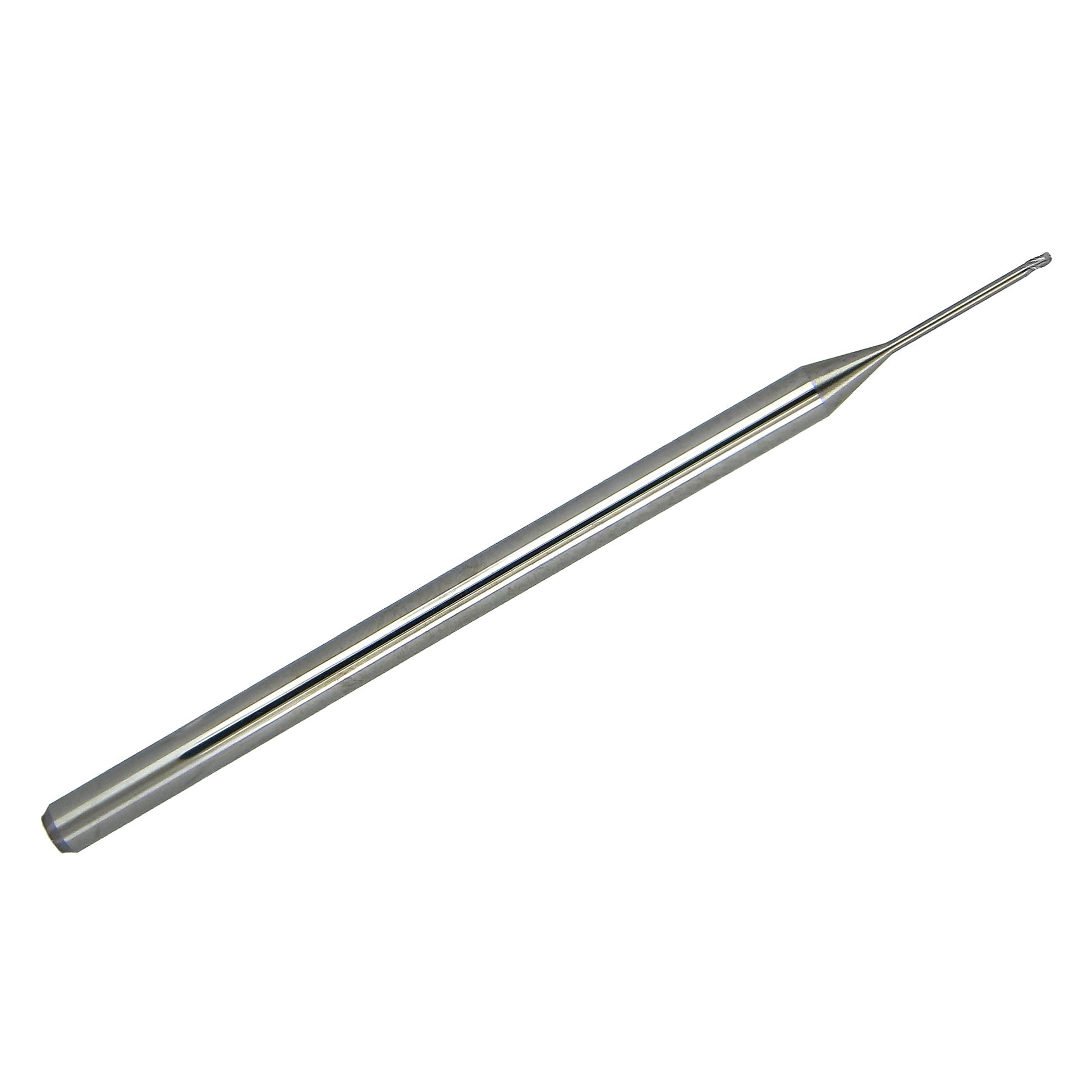

This 0.030" (0.76mm) 3-flute ball nose carbide end mill from Kyocera is manufactured from micro-grain solid carbide and features an extended reach neck design for machining deep or restricted areas in precision CNC milling operations.
Ball nose end mills are commonly used for 3D contour milling, micro-machining, mold work, and fine surface finishing. The rounded cutting tip allows smooth transitions when machining small features and complex curved geometries.
The bright (uncoated) carbide finish provides extremely sharp cutting edges ideal for machining aluminum, plastics, graphite, and other non-ferrous materials. The 3-flute geometry offers an excellent balance of rigidity and chip evacuation, while the extended neck length allows access to deeper features with reduced holder interference.
Manufacturer: Kyocera
Manufacturer Part Number: 1755-0300.375
Country of Origin: United States
Typical Applications
- Micro CNC milling
- 3D contour machining
- Mold and die work
- Precision engraving and detailing
- Machining aluminum and non-ferrous materials
Benefits
- Ball nose geometry for smooth 3D surface finishing
- 3 flutes provide a balance of rigidity and chip evacuation
- Extended reach neck allows machining deeper features
- Micro-grain carbide construction for strength and durability
- Center cutting design allows plunge milling capability

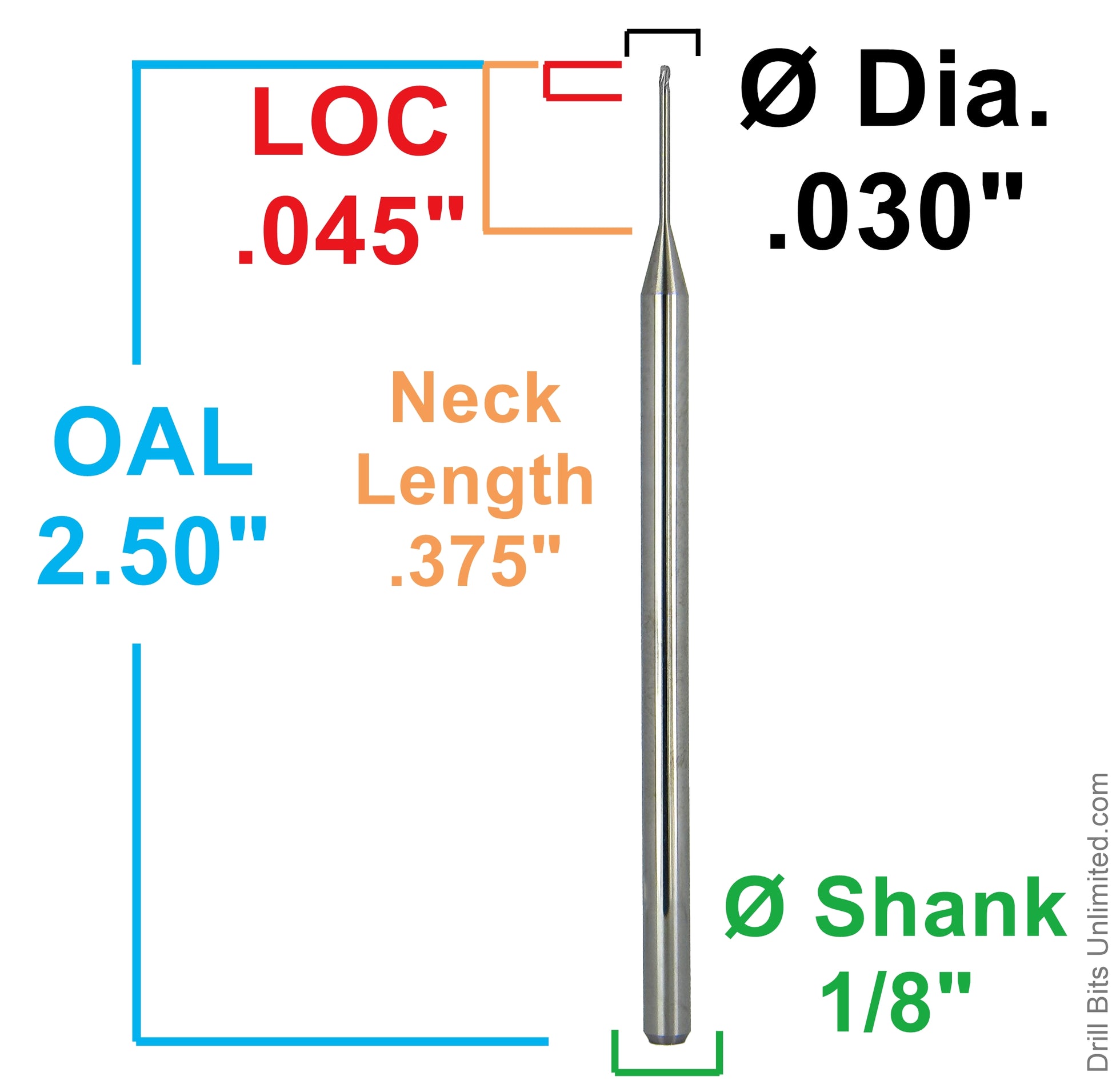

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Ball Nose End Mill |
| List Number | 1755 |
| Milling Diameter | 0.0300" |
| Length of Cut (LOC) | 0.0450" |
| Neck Length | 0.3750" |
| Neck Diameter | 0.0280" |
| Overall Length | 2.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
