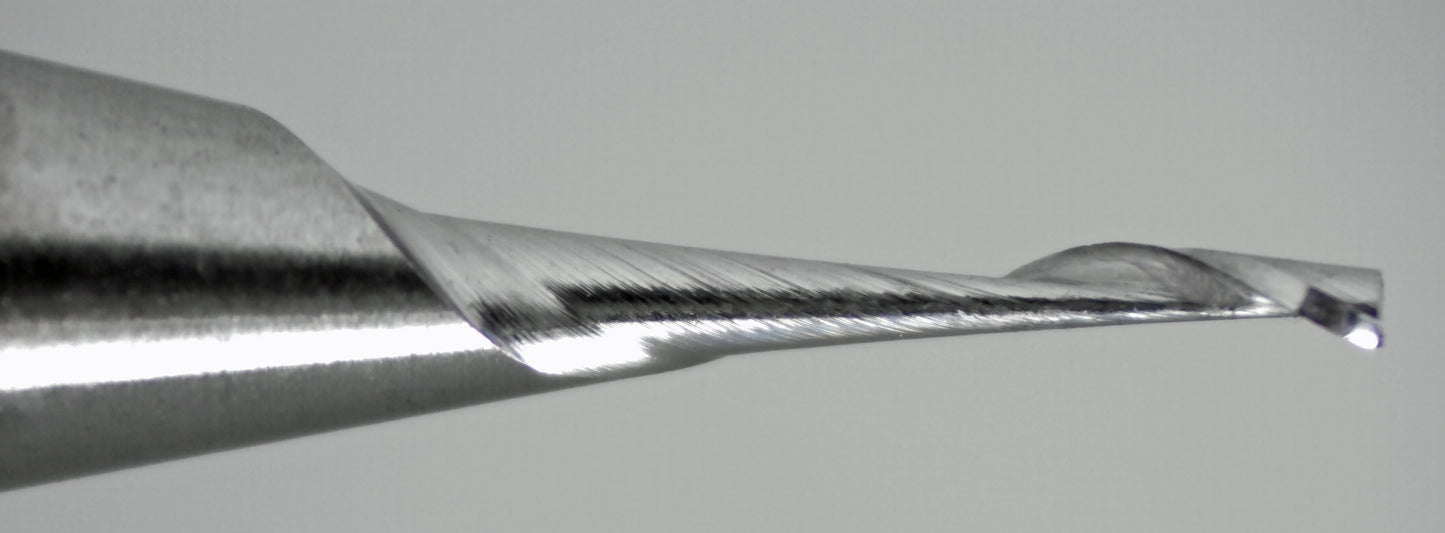

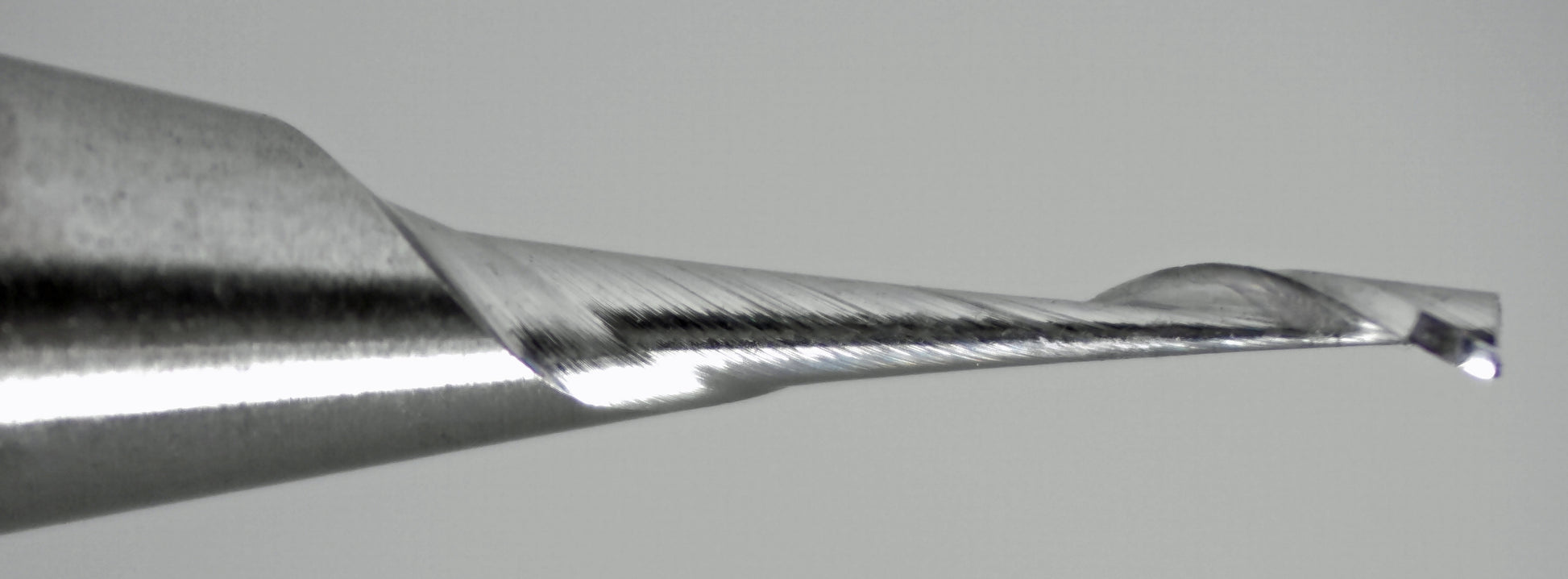

0.0315" (1/32") x .120" LOC 1-Flute Square End Carbide End Mill, 1/8" Shank | Lightly Used LUM-E

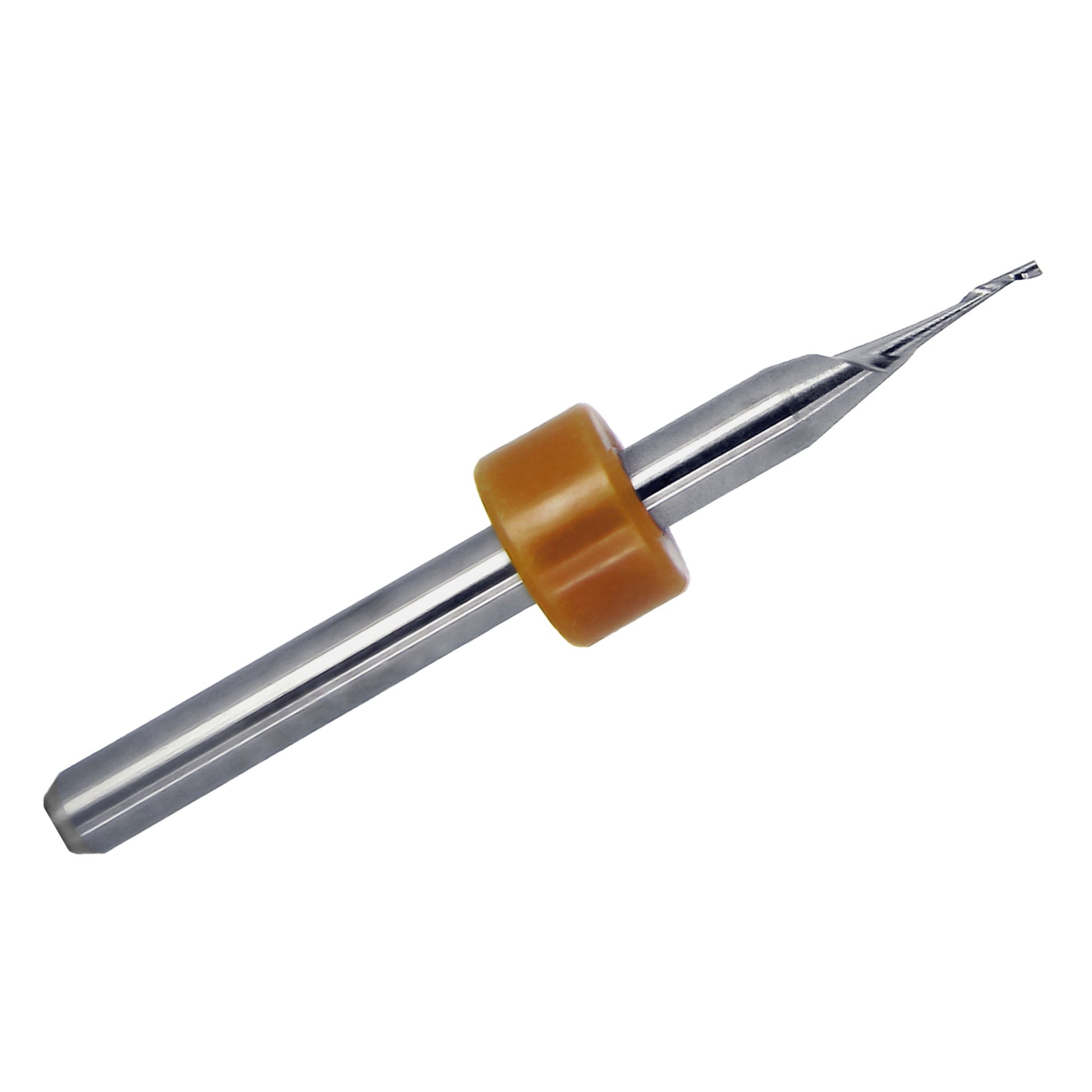

Lightly used 0.0315" / 1/32" single-flute square end carbide end mill with a .120" length of cut, 1/8" shank, and 1.50" overall length. This small-diameter carbide end mill is a good value option for hobby use, prototyping, testing, backup tooling, short-run jobs, and light industrial applications.

Each tool is lightly used, cleaned, and inspected. Because these are used cutting tools, minor cosmetic marks or handling wear may be present, but the tool should still have plenty of usable life remaining.

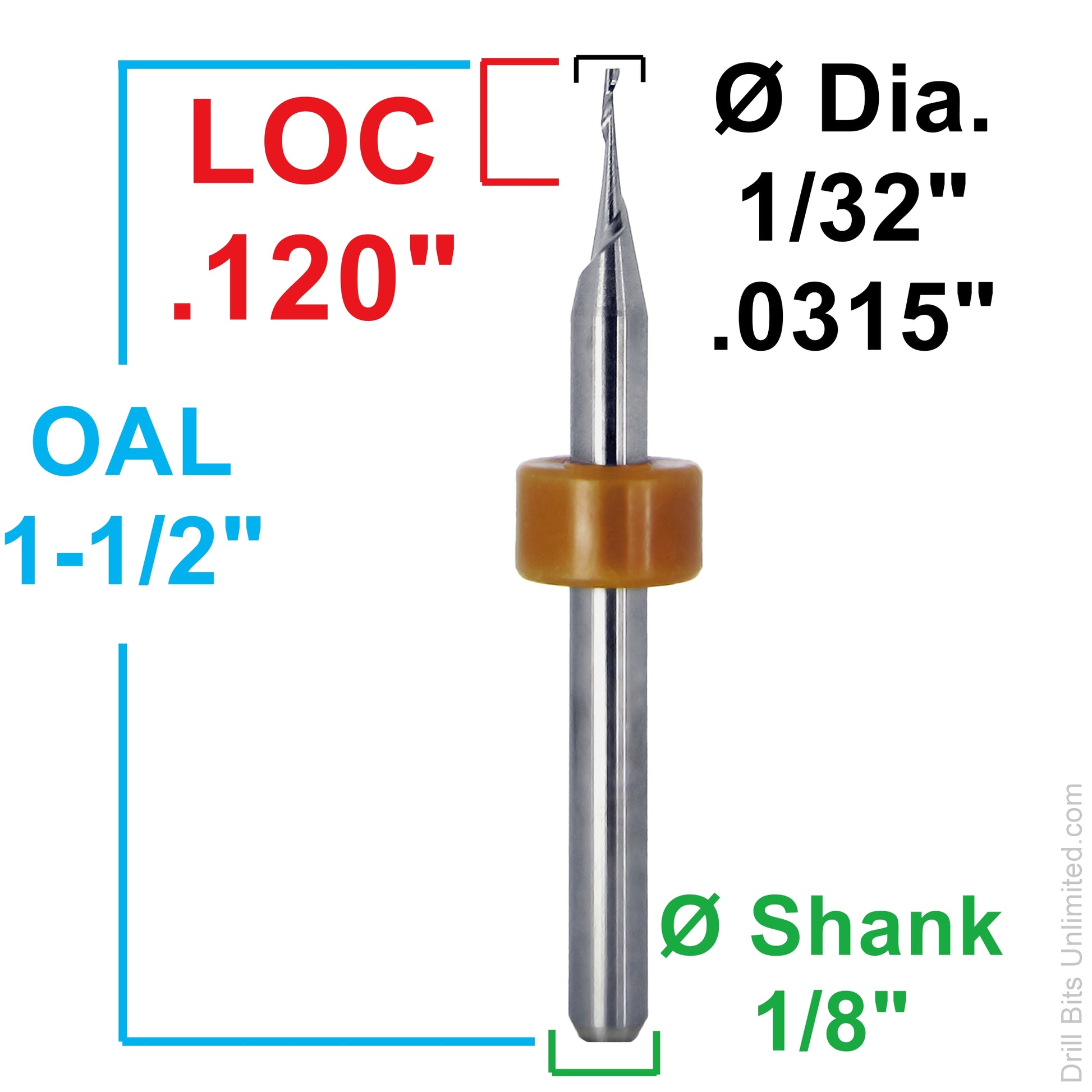

• Tool type: Single-flute carbide end mill
• End style: Square end
• Diameter: 0.0315" / 1/32"
• Length of cut: .120"
• Shank: 1/8"
• Condition: Lightly used, cleaned, and inspected

Common Uses

• Small CNC milling and routing work
• Plastic, wax, and soft non-ferrous material machining
• Fine detail work, small slots, pockets, and profiles
• Prototyping, test cuts, and backup tooling

Benefits

• Single-flute design provides good chip clearance in small-diameter cutting applications
• Square end geometry is suitable for flat-bottom cuts, slots, and profiling
• Solid carbide construction provides rigidity and wear resistance
• Lower-cost lightly used option compared with new tooling
