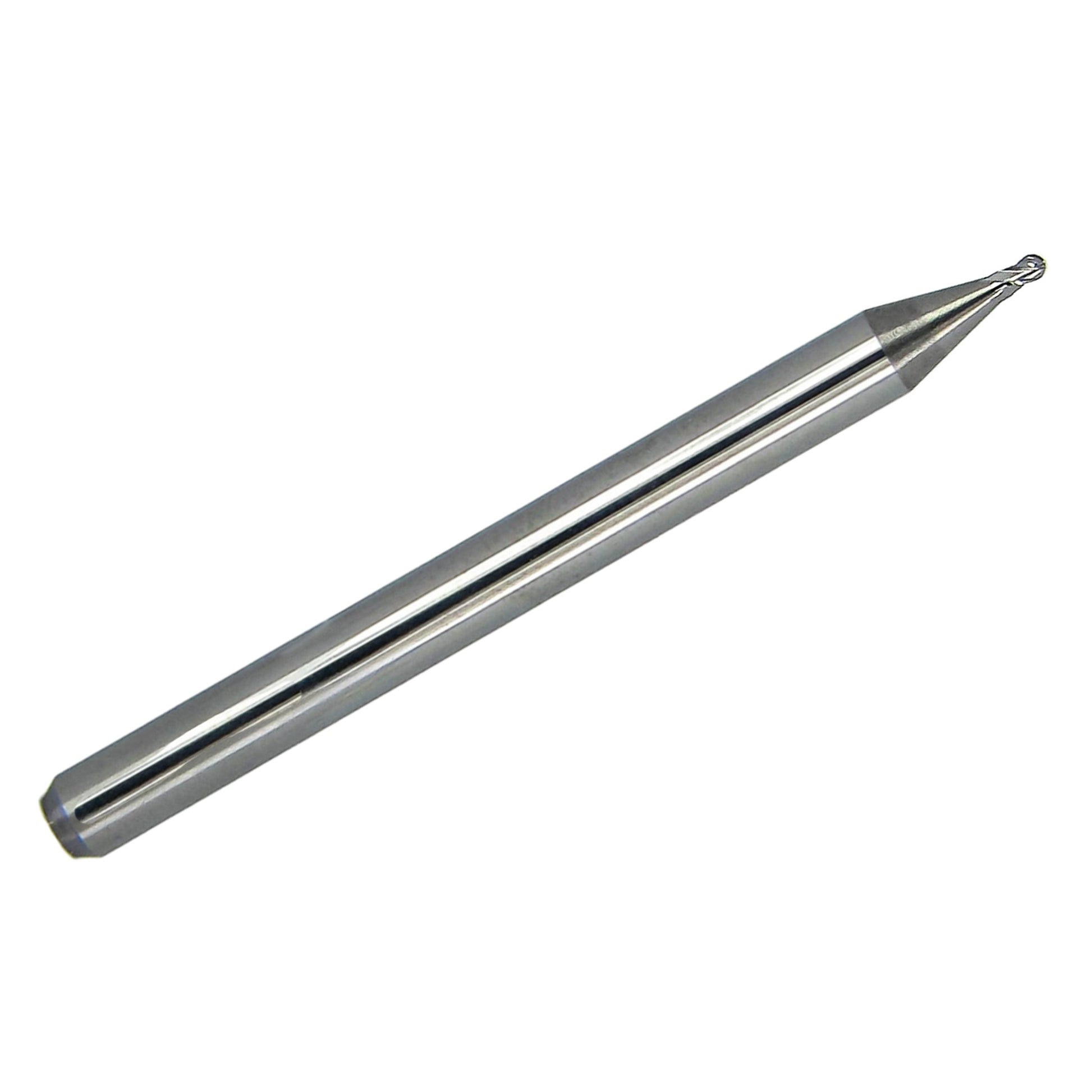

0.036" (0.91mm) Ball Nose Carbide End Mill 4-Flute Kyocera 1835-0360.054 K065

This 0.036" (0.91mm) 4-flute ball nose carbide end mill from Kyocera is manufactured from micro-grain solid carbide and designed for precision CNC milling operations requiring fine detail and smooth surface finishes.

Ball nose end mills are commonly used for 3D contour milling, mold work, engraving, and finishing operations. The rounded cutting tip allows smooth transitions when machining curved surfaces and intricate features.

The bright (uncoated) carbide finish provides extremely sharp cutting edges ideal for machining aluminum, plastics, graphite, and other non-ferrous materials. The 4-flute design increases rigidity and helps produce excellent surface finishes during light finishing passes.

Manufacturer: Kyocera

Manufacturer Part Number: 1835-0360.054

Country of Origin: United States

Typical Applications

• 3D contour milling
• Mold and die work
• Precision engraving
• Micro machining
• Finishing aluminum and non-ferrous materials

Benefits

• Ball nose geometry for smooth 3D surface finishing
• 4 flutes increase rigidity and improve surface finish
• Micro-grain carbide for durability and edge retention
• Center cutting design allows plunge milling
• Bright finish provides extremely sharp cutting edges

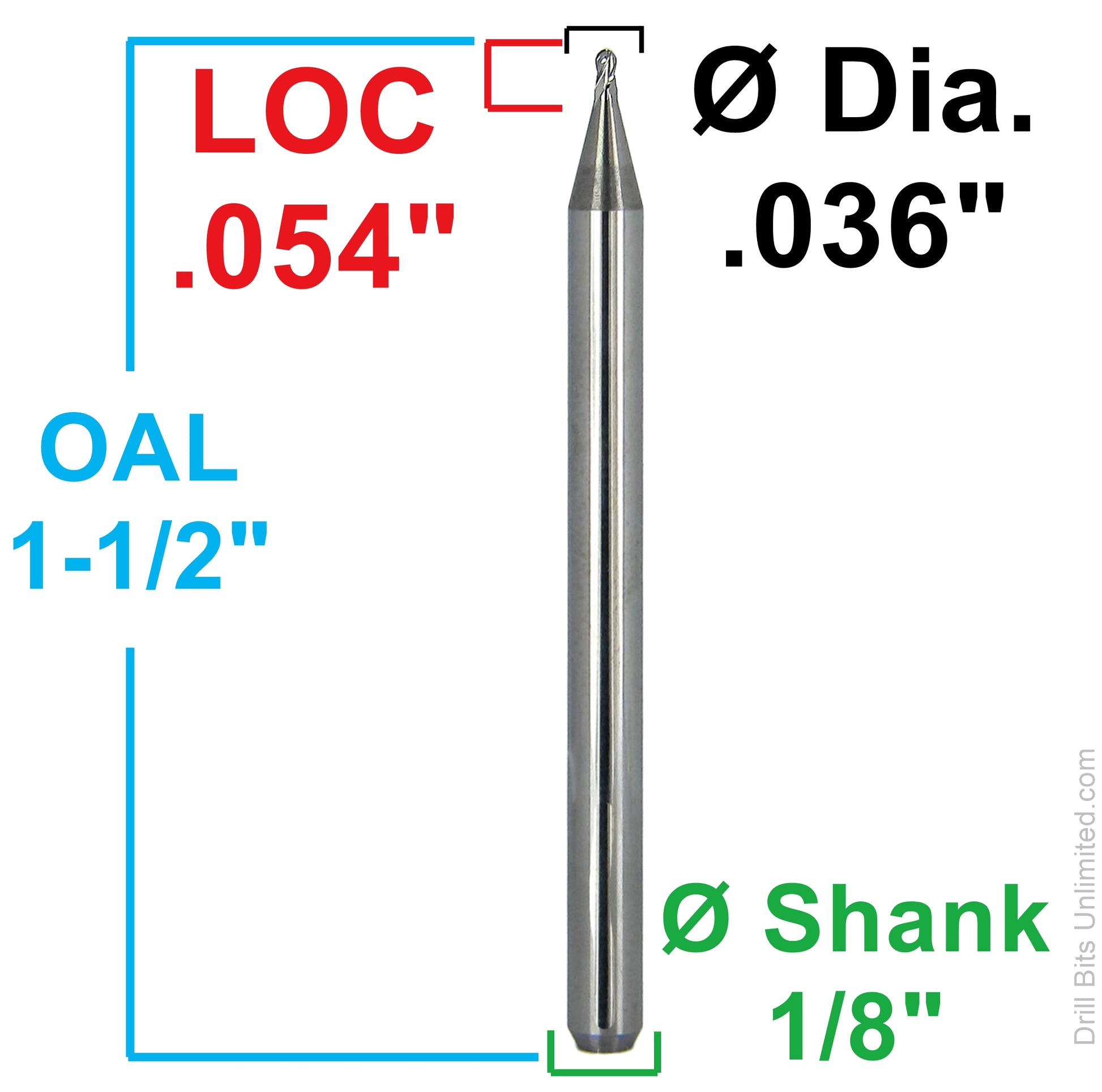

Specifications
