0.0394" / 1.00mm Single-Flute Carbide End Mill, Square End, 4mm LOC, 1/8" Shank | Lightly Used 10 Pc URO101

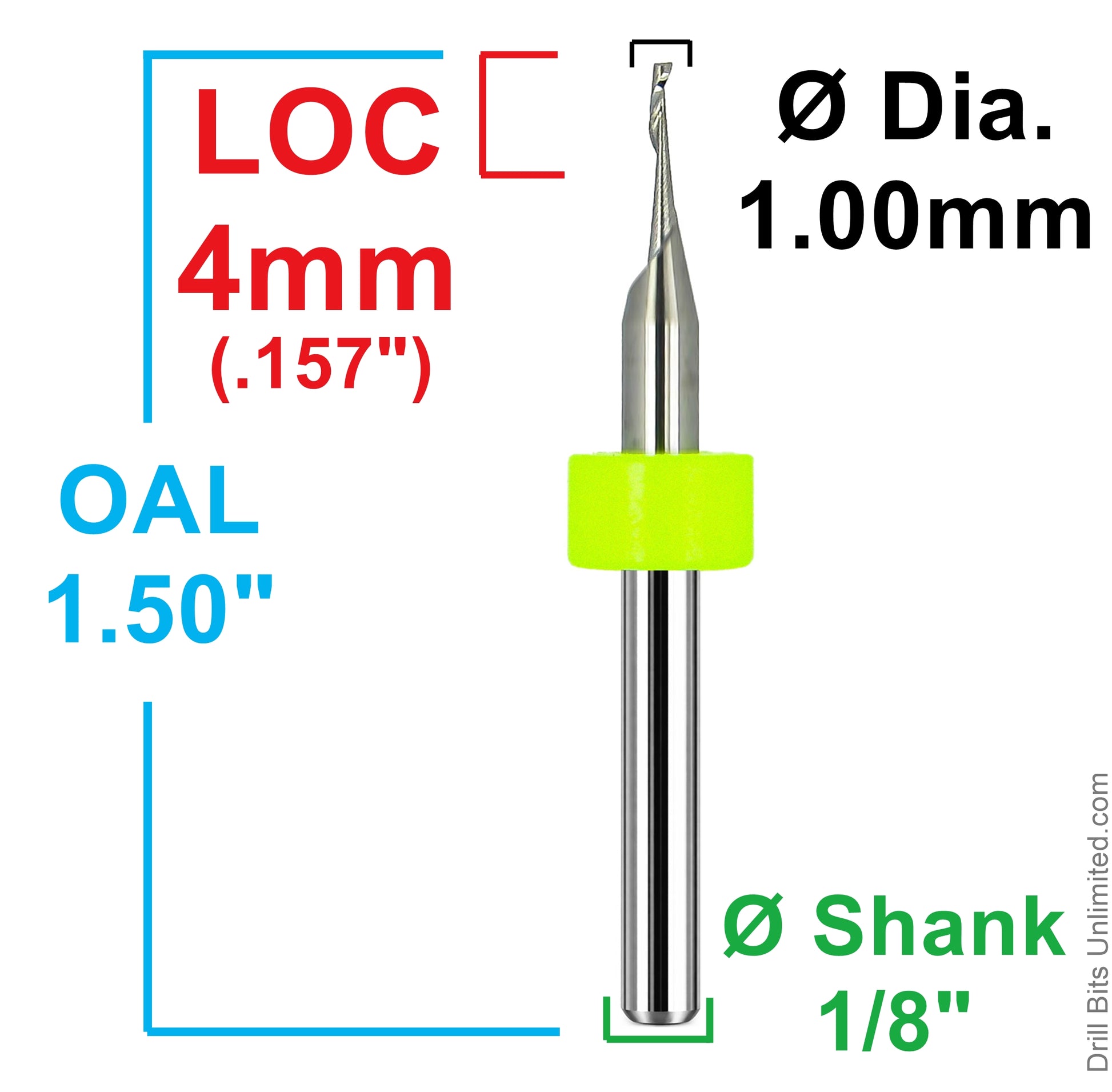

This lightly used 10-piece single-flute carbide end mill set includes 0.0394" / 1.00mm solid carbide end mills with a 4mm / .157" LOC, 1.50" overall length, and a 1/8" shank.

These end mills are lightly used, cleaned, and inspected. They are a practical value option for hobby use, prototyping, testing, backup tooling, short-run jobs, and light-duty CNC applications.

• Geometry: Single-flute spiral design supports chip evacuation in lighter-duty cutting applications.
• End type: Square end is suitable for slotting, profiling, contouring, and general milling work.
• Cut direction: Up-cut design supports chip evacuation and bottom-edge cut quality.
• Common material use: Aluminum, brass, copper, plastics, acrylic, and other softer non-ferrous materials.

Common Uses

• Aluminum machining
• Brass and copper cutting
• Plastic and acrylic machining
• Soft non-ferrous material work
• Profiling, contouring, and light slotting
• Testing, prototyping, hobby CNC work, and short-run jobs

Benefits

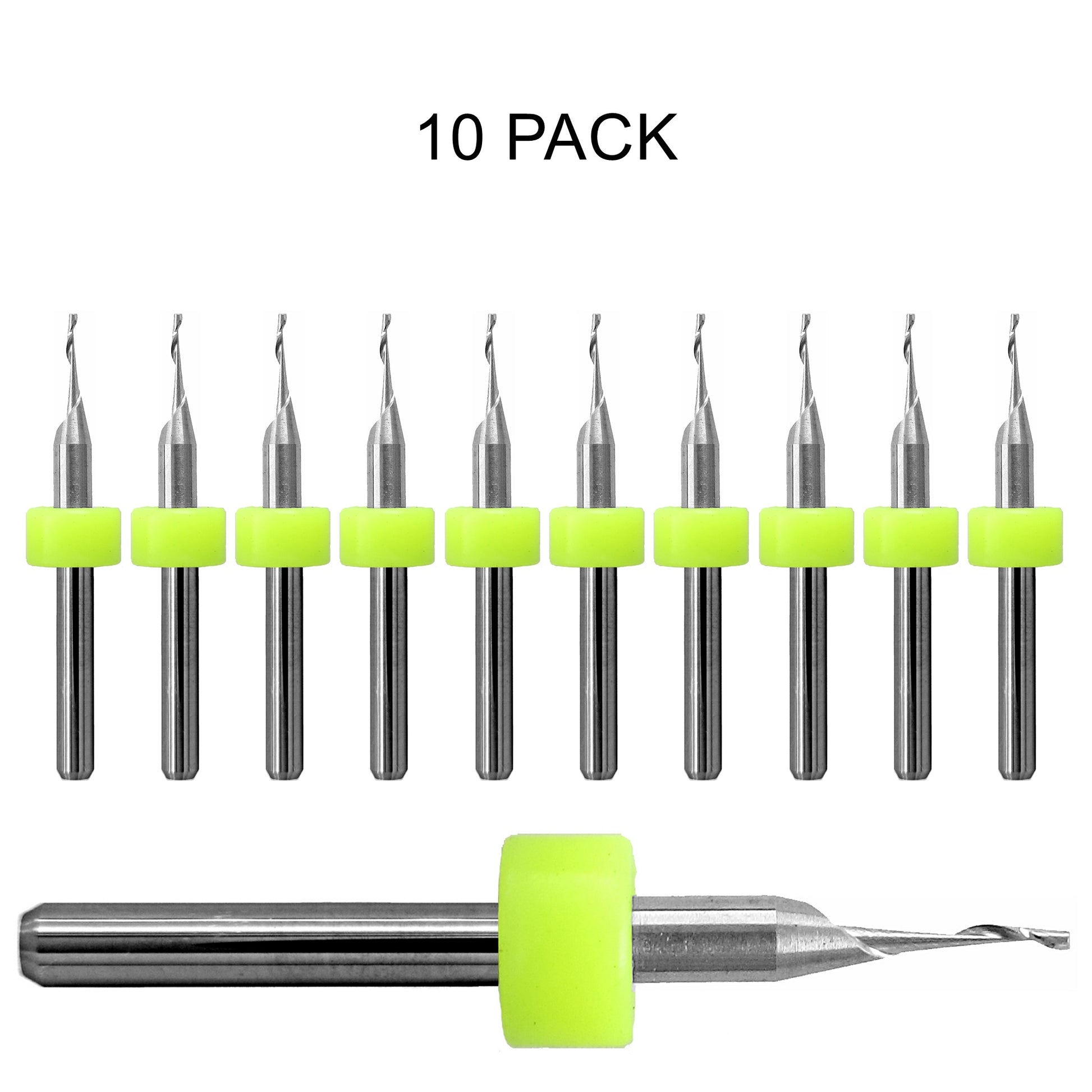

• 10-piece value pack of lightly used, cleaned, and inspected carbide end mills
• Single-flute design supports chip evacuation in small-diameter cutting applications
• Up-cut geometry helps clear chips efficiently and can improve bottom-edge cut quality
• Square end is useful for slotting, profiling, and general milling work
• Small 1.00mm cutting diameter is useful for fine-detail CNC work
• Solid tungsten carbide construction provides rigidity for a small-diameter cutter
• 1/8" shank fits many compact CNC routers and spindles

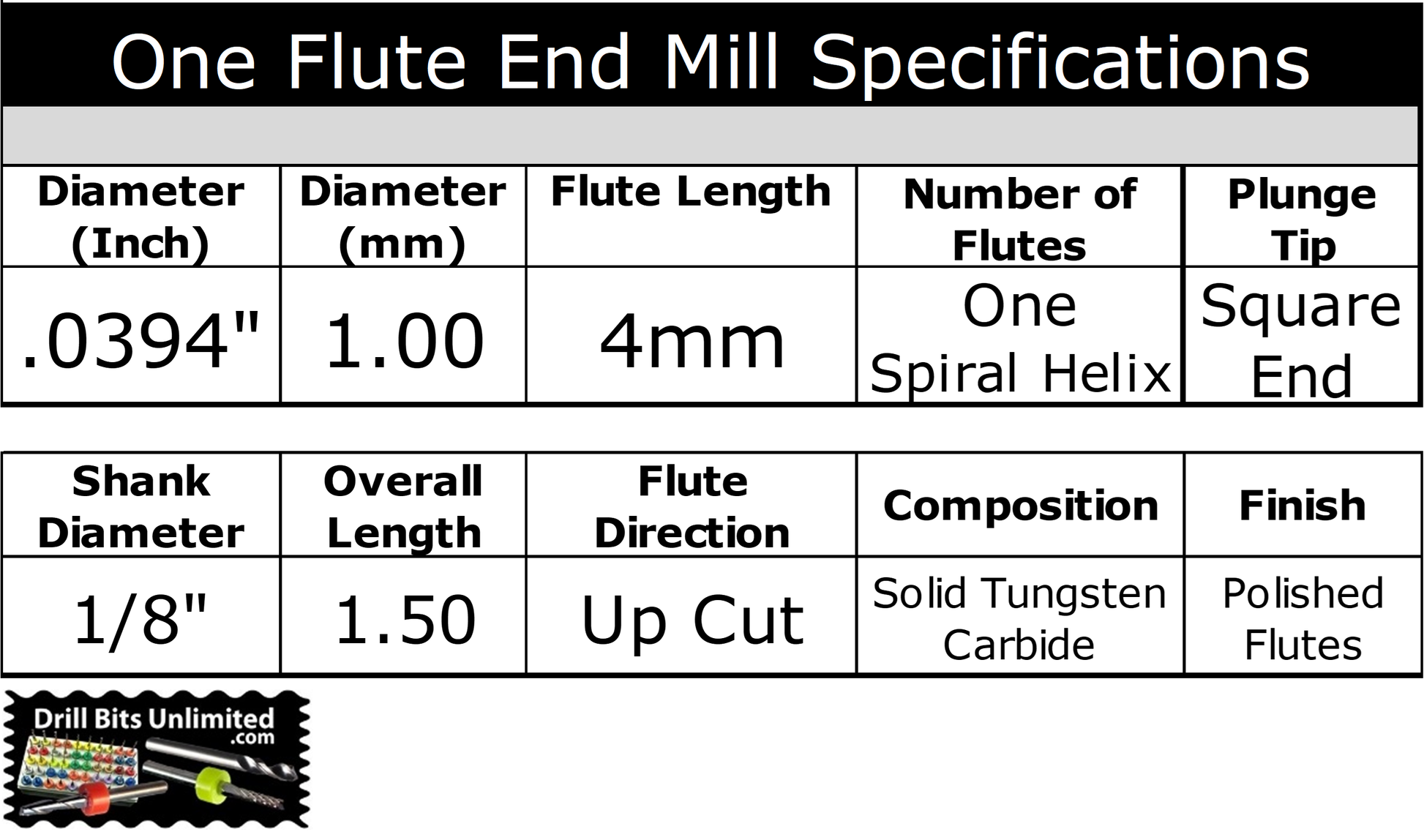

Specifications

End type: Square End — suitable for slotting, profiling, contouring, and general milling work.
