0.0400" x .480" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K187
0.0400" x .480" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K187
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

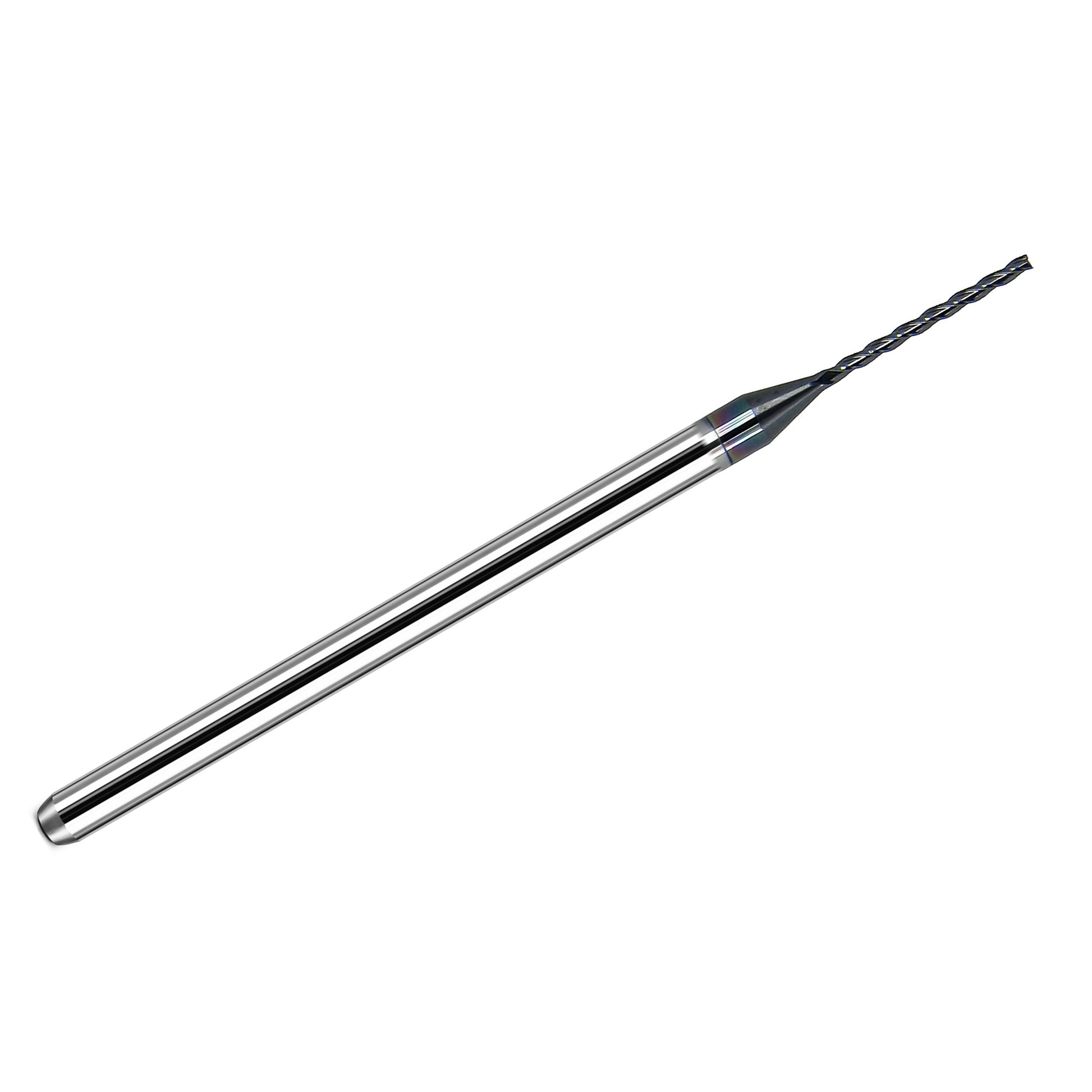

This .0400" 3-flute square end carbide end mill is manufactured by Kyocera from micro grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.
This tool is part of the Kyocera Series 1710 standard-length square end mill line for general purpose machining. The square end geometry is ideal for slotting, profiling, side milling, and shoulder work where a flat-bottom cut and sharp internal corners are needed.

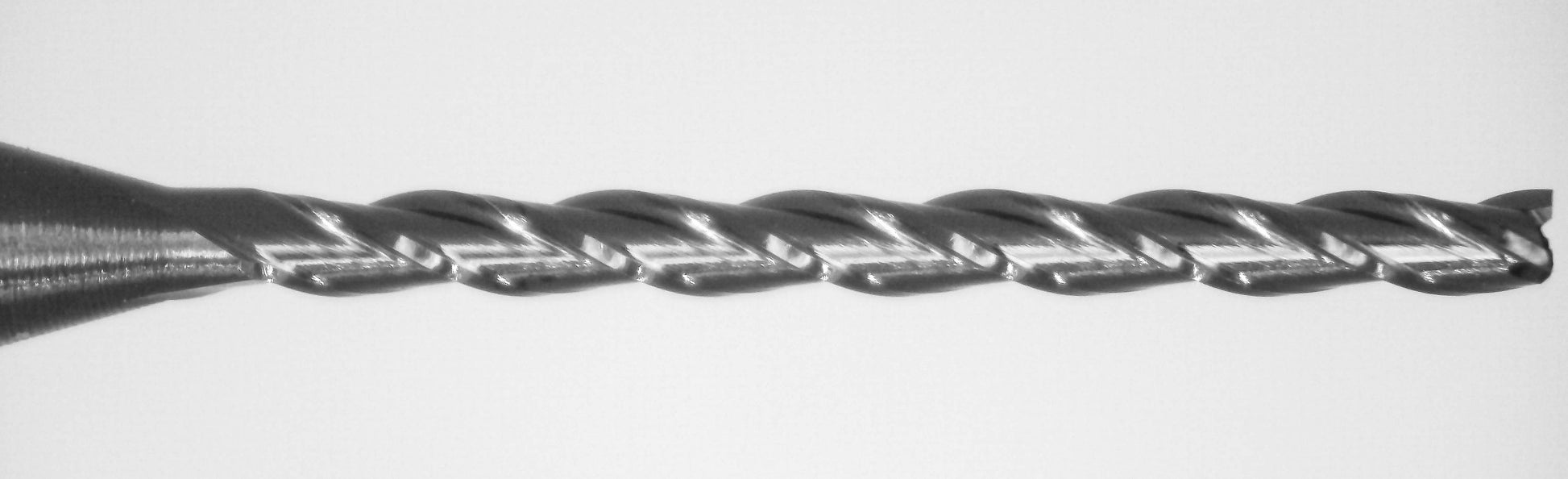

With its 3-flute geometry, 30° helix, and relatively long .4800" length of cut for this diameter, this tool offers a strong balance of chip evacuation, rigidity, and reach. The AlTiN coating helps improve tool life in more demanding materials and higher-heat cutting conditions.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1710-0400L480
Country of Origin: United States
Typical Applications
- Slotting and side milling
- Profiling and shoulder milling
- General-purpose CNC machining
- Precision milling in small features
- Applications requiring longer flute reach at small diameter
Benefits
- Square end geometry for flat-bottom cuts and sharp corners
- 3 flutes balance chip evacuation and rigidity
- AlTiN coating improves wear resistance and heat performance
- Micro grain carbide supports edge retention and precision
- Longer flute length helps reach deeper features at small diameter

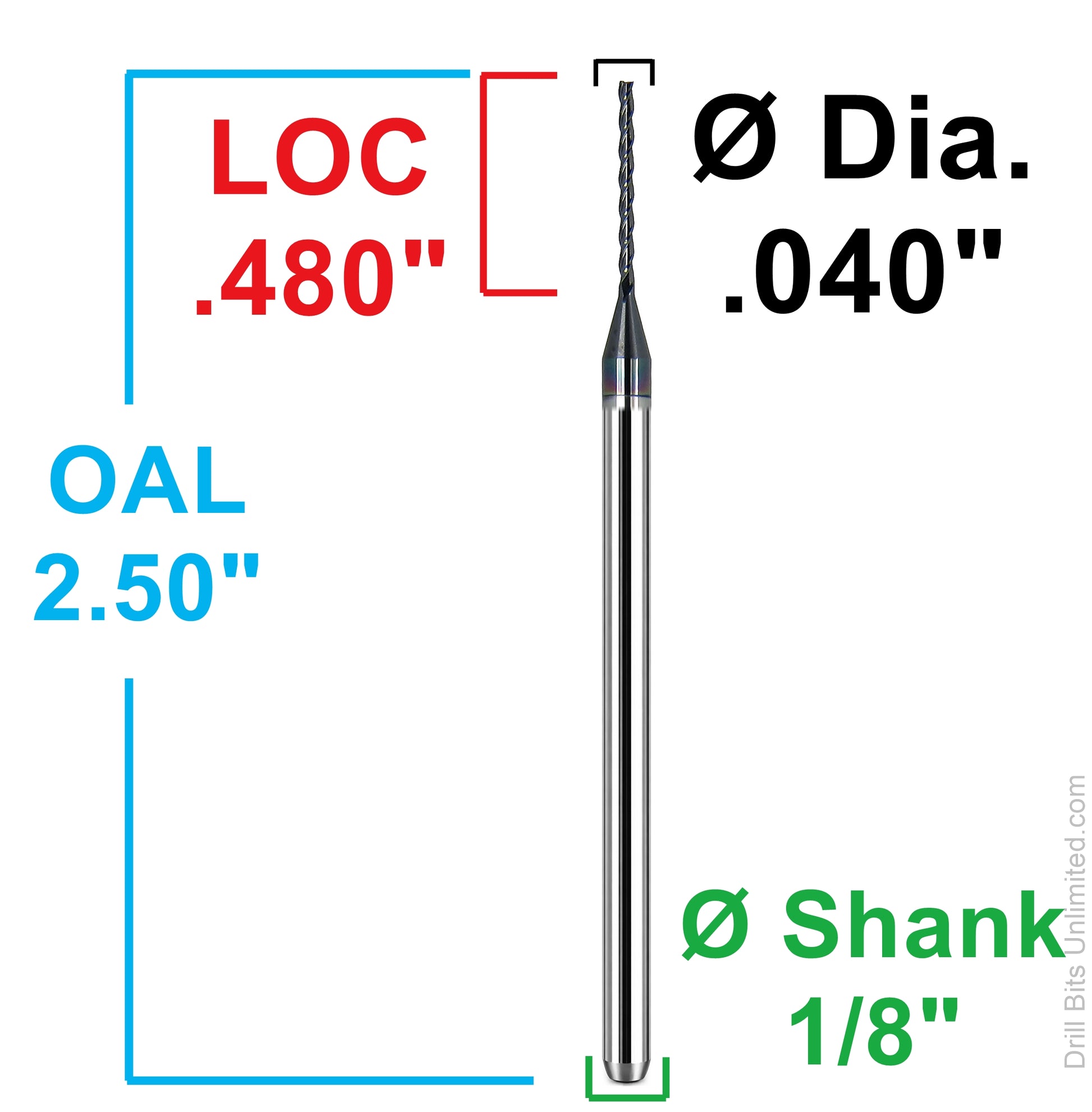

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| Series | 1710 |
| Milling Diameter | 0.0400" |
| Length of Cut (LOC) | 0.4800" |
| Overall Length | 2.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | General Purpose Machining |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened Material (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
