0.0410" (1.05mm) x .123" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K166
0.0410" (1.05mm) x .123" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K166
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

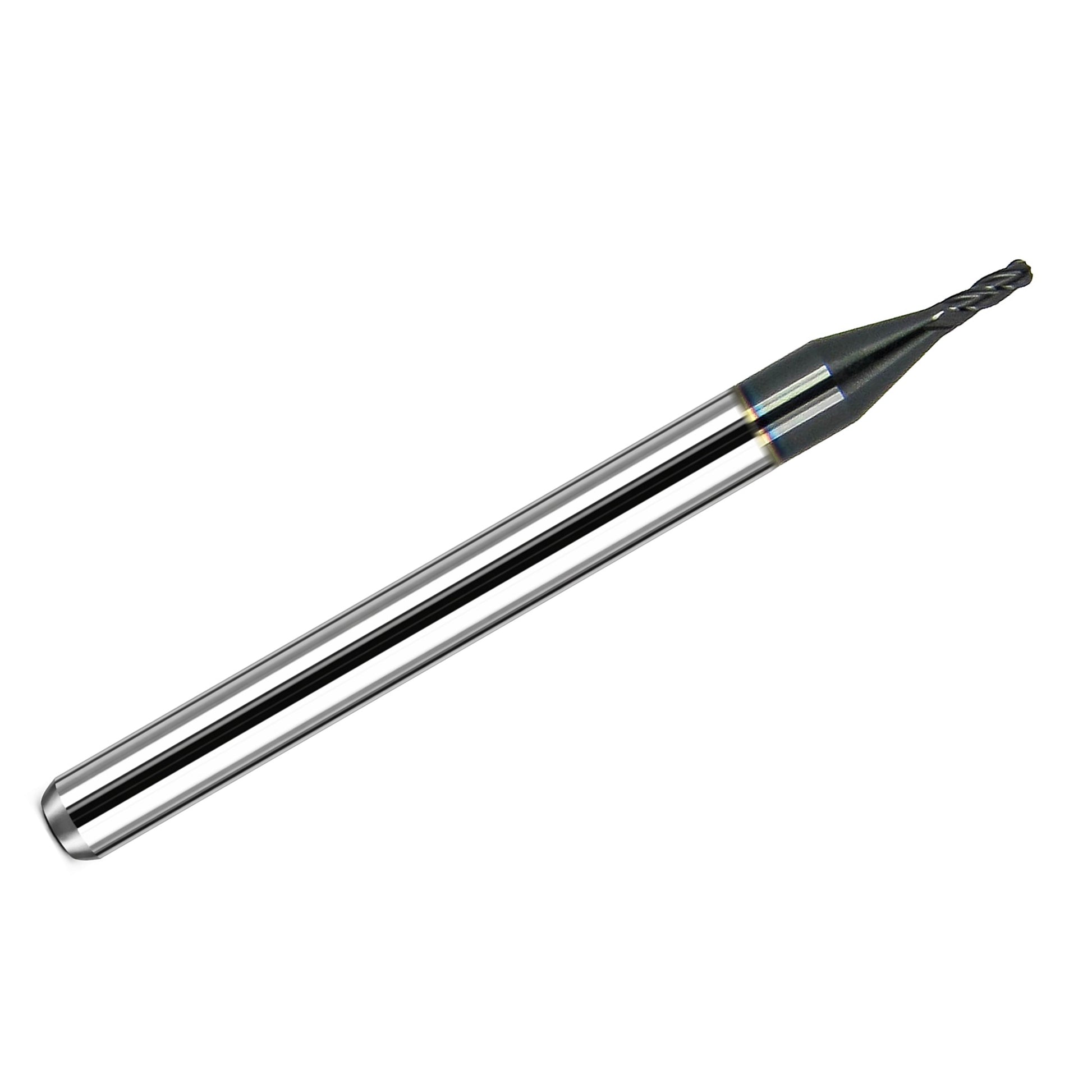

This .0410" 4-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.

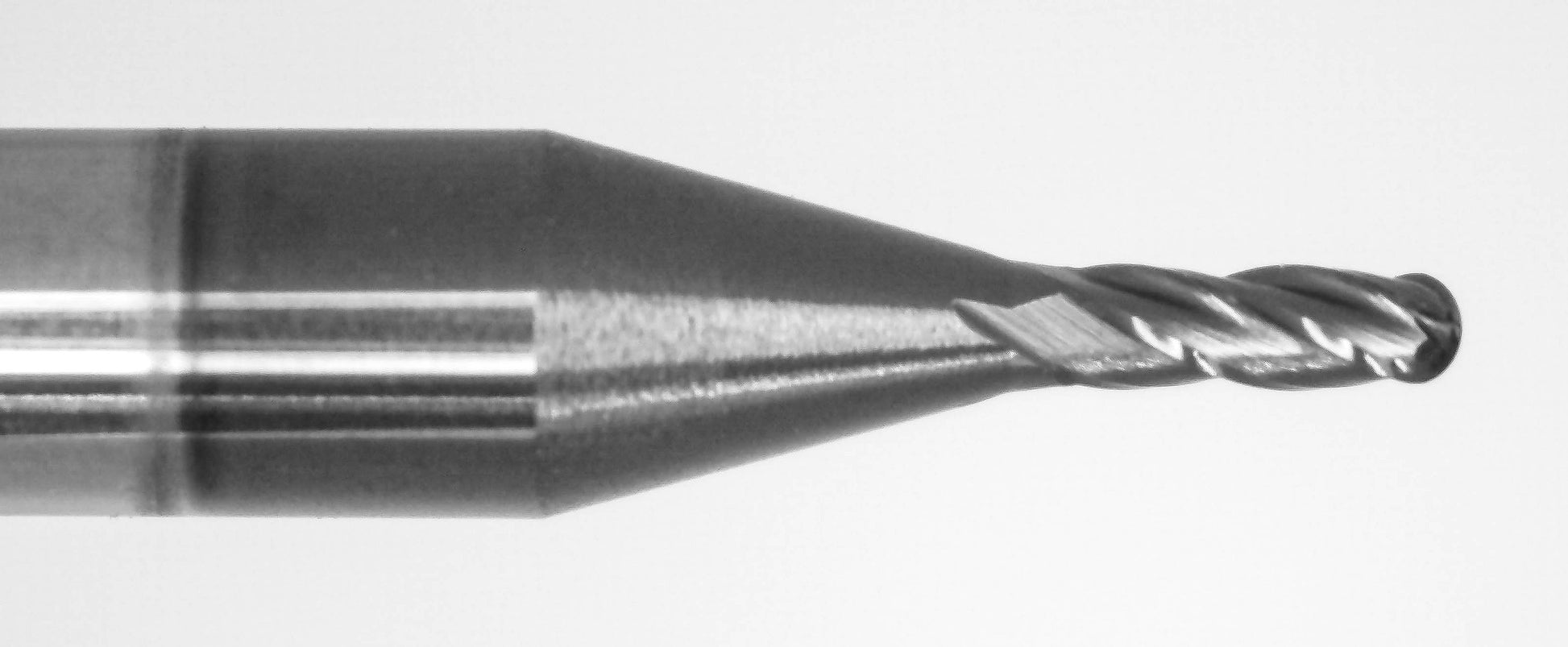

Ball nose end mills are ideal for 3D contouring, profiling, and fine finishing work. The rounded cutting tip helps produce smooth blends on curved surfaces, detailed features, and other precision machined profiles.
Because this tool has an AlTiN-coated finish, it is better suited for more demanding machining conditions where added heat resistance and improved tool life are important. This tool is well suited for steel, stainless steel, cast iron, and hardened materials.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1825-0410L123
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profiling and finishing
- Fine-detail CNC machining
- Precision micro-machining
- Ball nose milling in steels and hardened materials
Benefits
- Ball nose geometry for smooth contouring and profiling
- 4 flutes provide improved rigidity and finish quality
- AlTiN coating improves wear resistance and heat performance
- Sub-micron carbide supports edge retention and precision
- 30° helix promotes smooth cutting action

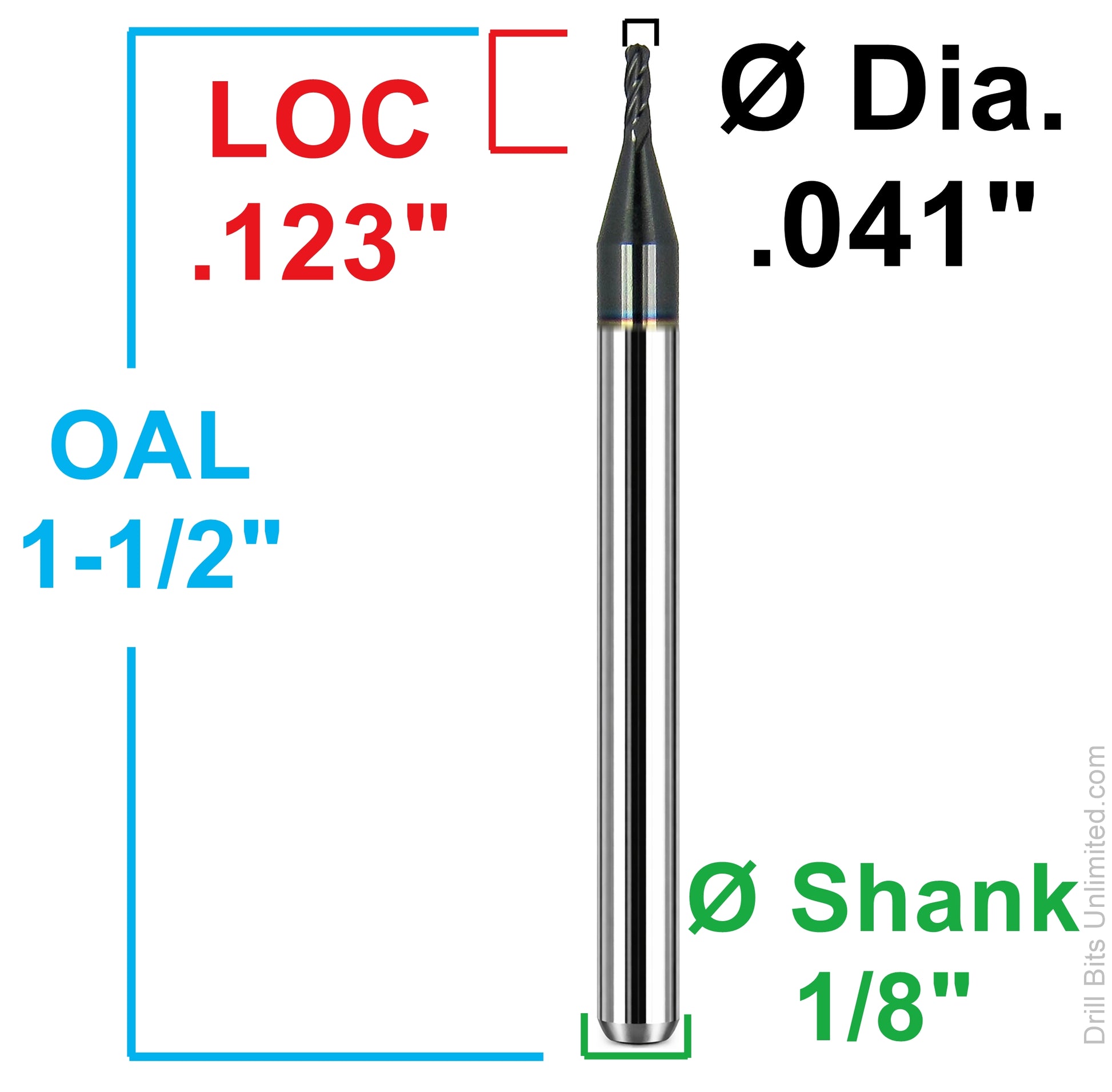

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1825 |
| Milling Diameter | 0.0410" |
| Length of Cut (LOC) | 0.1230" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Sub-Micron Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Direction | Right Hand |
| Application | Profiling / Contouring / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened Material (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
