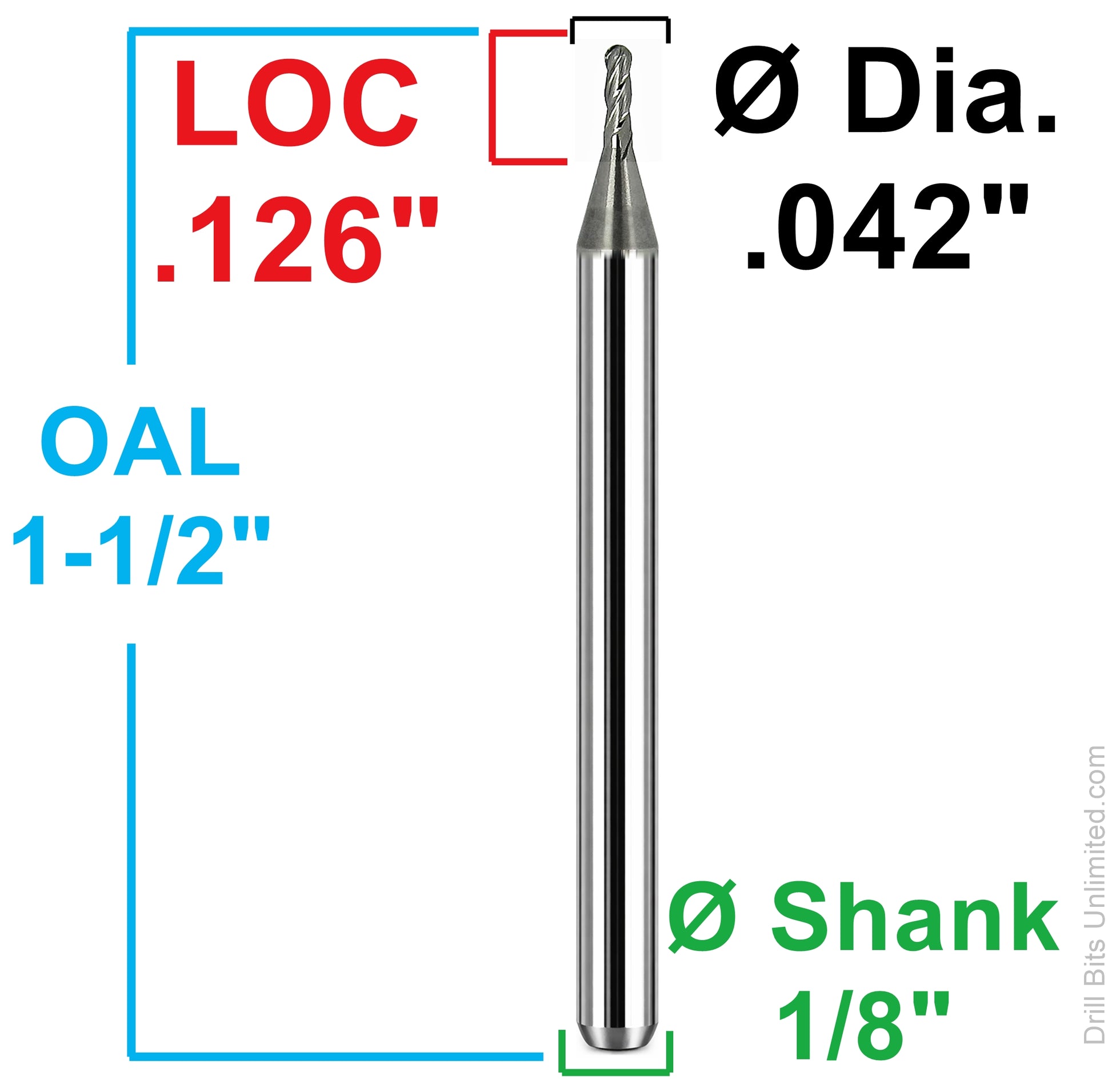

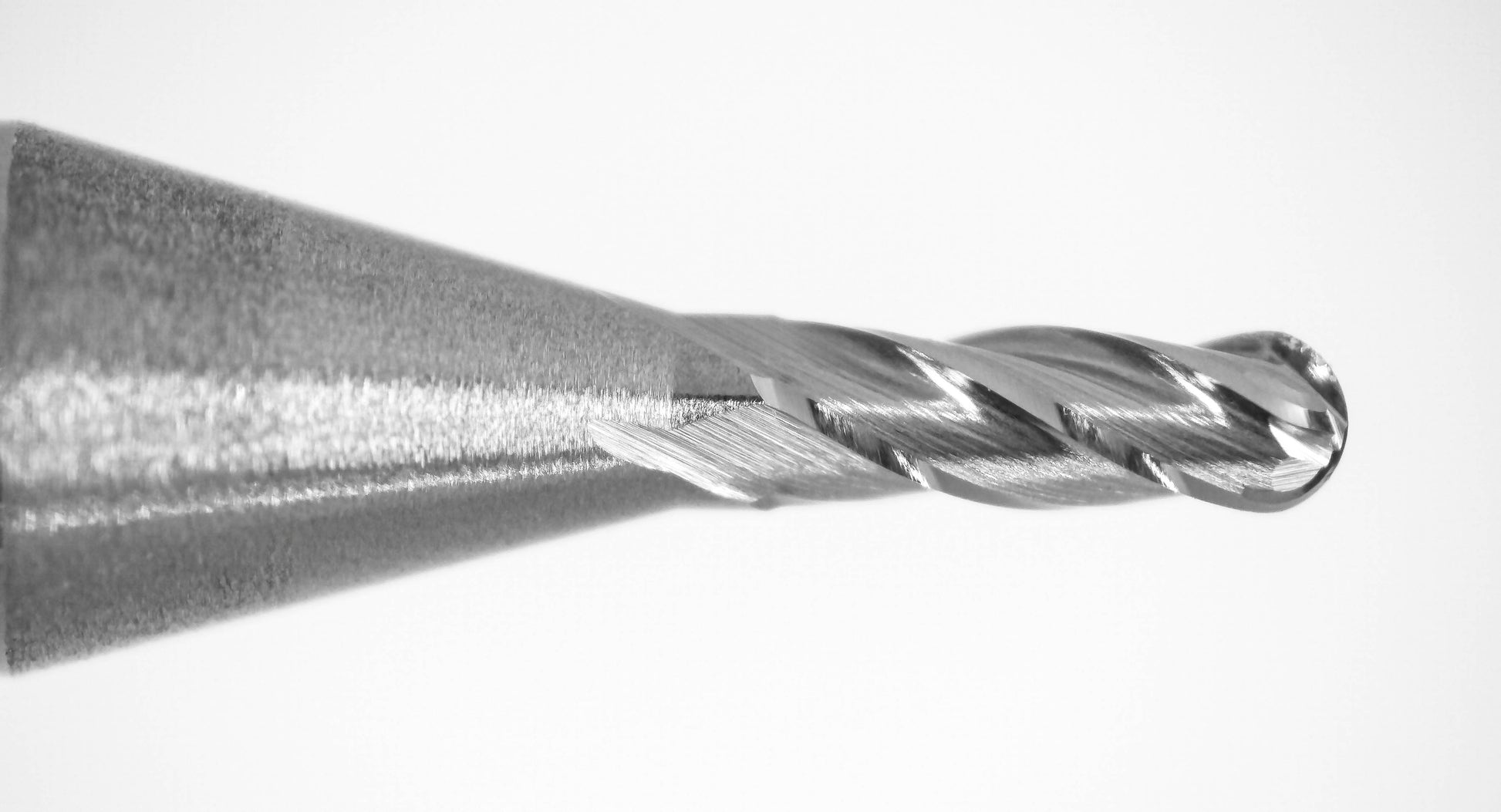

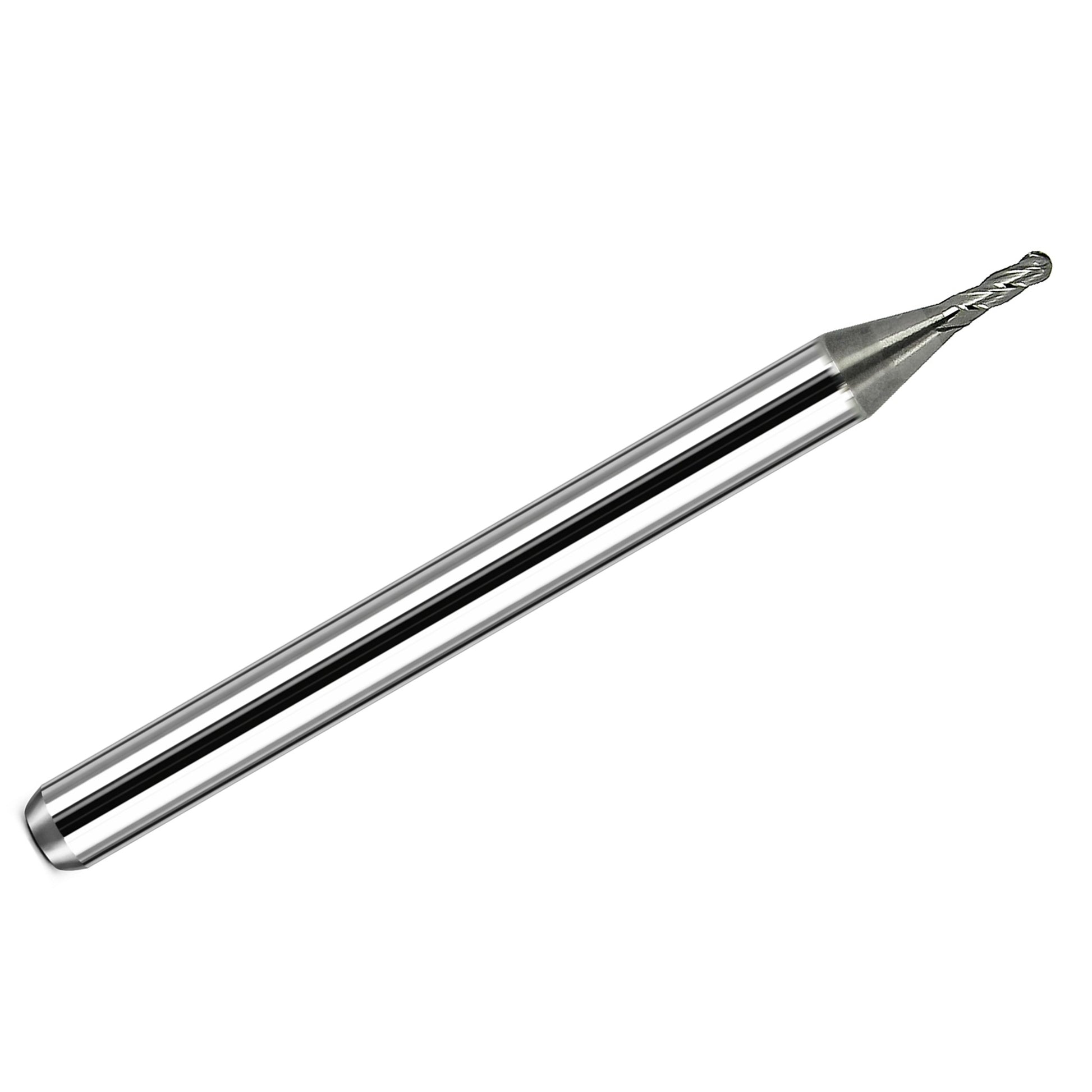

Kyocera .0420" 4-Flute Ball Nose Carbide End Mill, 1/8" Shank, Uncoated K153

This .0420" 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a bright uncoated finish for precision CNC machining applications where a sharp cutting edge and fine surface finish are important.

Ball nose end mills are ideal for 3D contouring, profiling, and fine finishing work. The rounded cutting tip helps produce smooth blends on curved surfaces, detailed features, and other precision machined profiles.

Because this tool has a bright (uncoated) finish, it is best suited where coating is not required and where a sharp, precise cutting edge is preferred. This tool is especially well suited for non-ferrous materials and other precision micro-machining and finishing operations.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1825-0420.126

Country of Origin: United States

Typical Applications

• 3D contour milling
• Profiling and finishing
• Fine-detail CNC machining
• Precision micro-machining
• Non-ferrous material machining

Benefits

• Ball nose geometry for smooth contouring and profiling
• 4 flutes provide improved rigidity and finish quality
• Micro-grain carbide offers good wear resistance and edge retention
• 30° helix supports smooth cutting action
• Bright uncoated finish for sharp cutting performance

Specifications
