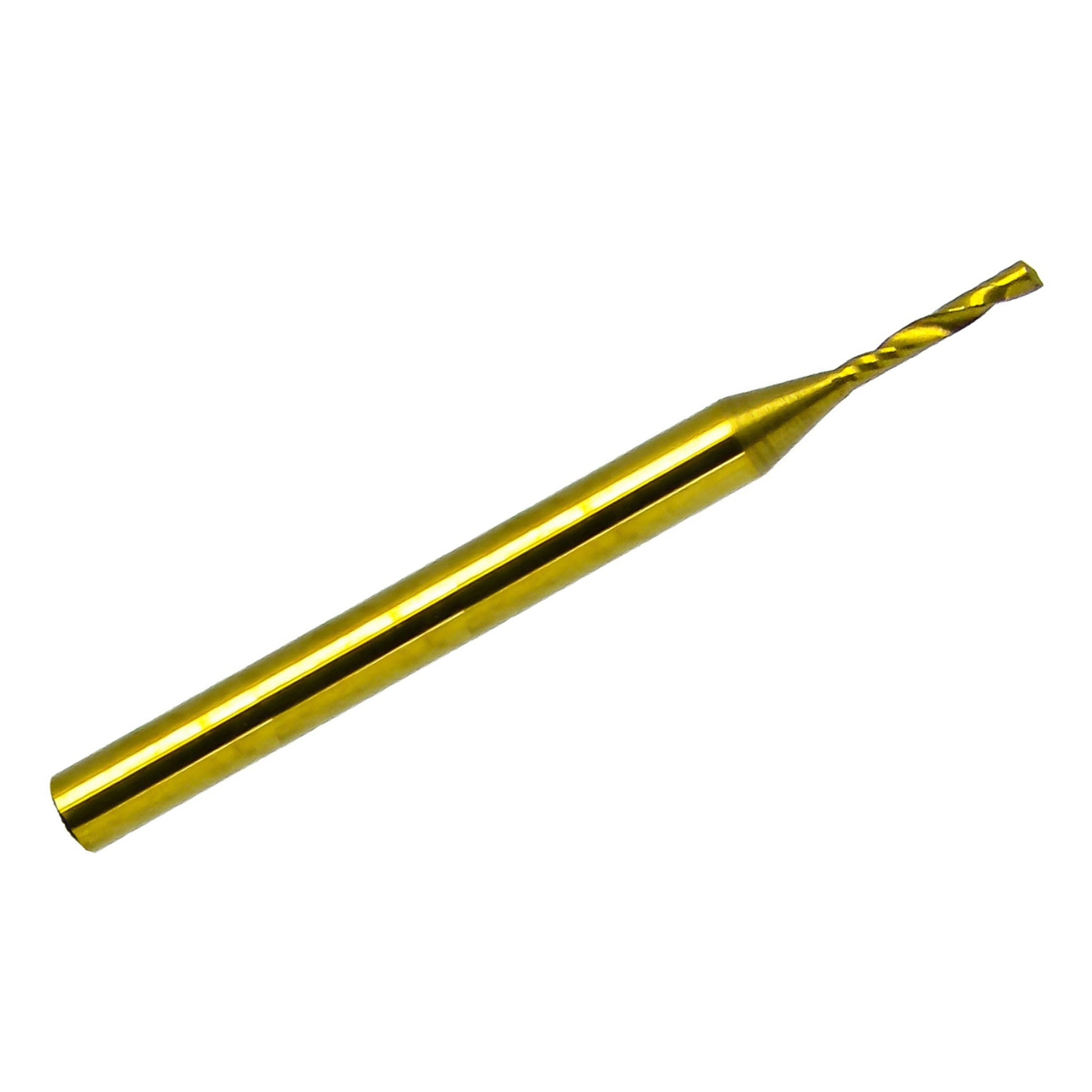

0.0472" (1.2mm) x 6mm LOC TiN Coated Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank | MO-110
0.0472" (1.2mm) x 6mm LOC TiN Coated Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank | MO-110
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 3% off |
| 25 + | 5% off |
| 50 + | 8% off |
| 100 + | 10% off |
Couldn't load pickup availability

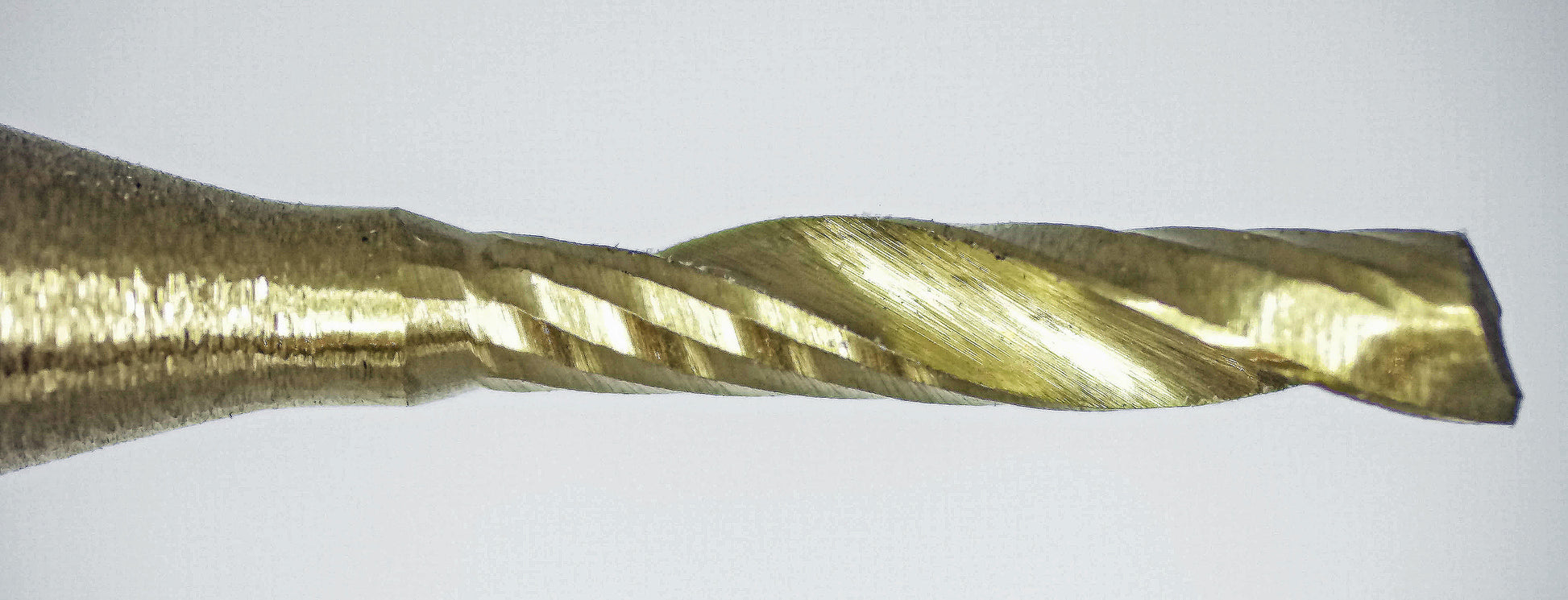

This .0472" (1.20mm) single O-flute carbide end mill features a titanium coated finish and is designed for clean, efficient cutting in materials that benefit from fast chip evacuation and reduced recutting.
The O-flute geometry makes this tool especially well suited for aluminum, acrylic, plastic, and other soft non-ferrous materials. Its flute form helps evacuate chips efficiently while supporting smoother edge quality in lighter-duty precision milling applications.
With a 6mm length of cut, 1.50" overall length, and 1/8" shank, this tool is a practical choice for detailed CNC work, slotting, profiling, and contouring where a small diameter cutter is needed.
Typical Applications
- Aluminum milling
- Acrylic and plastic cutting
- Profiling and contouring
- Slotting and edge finishing
- Light-duty CNC machining in soft materials
Benefits
- Single O-flute geometry helps improve chip evacuation
- Titanium coating supports wear resistance
- Good choice for aluminum and plastics
- Small diameter for fine-detail machining
- 1/8" shank fits common precision toolholders

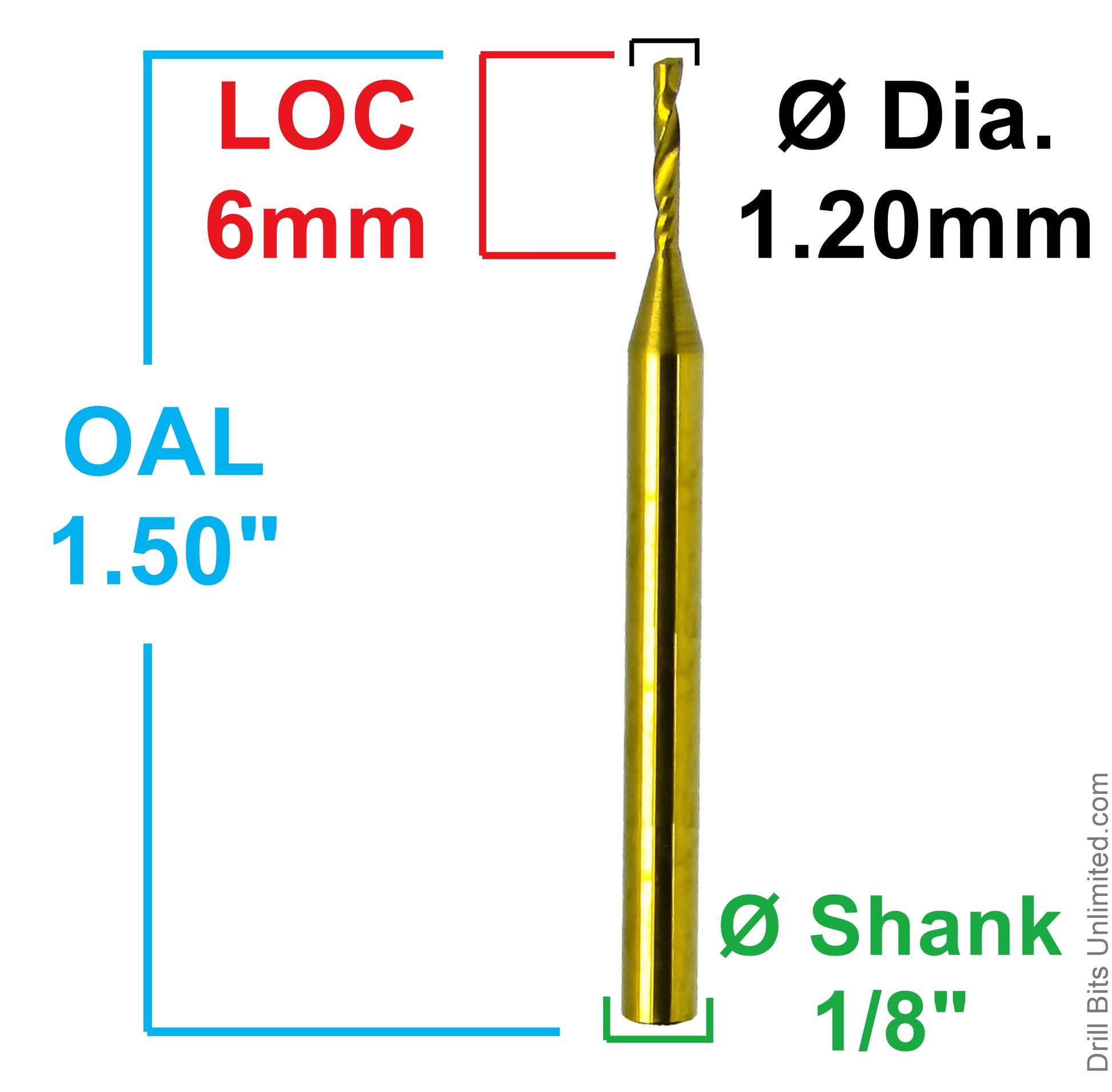

Specifications
| Tool Type | Single O-Flute Carbide End Mill |
| Cutting Diameter | .0472" (1.20mm) |
| Length of Cut (LOC) | 6mm |
| Overall Length | 1.50" |
| Shank Diameter | 1/8" |
| Flute Count | 1 |
| Geometry | O-Flute |
| Coating | Titanium Coated |
| Material | Carbide |
| Cut Direction | Up Cut |
| Applications | Aluminum, Acrylic, Plastic, Soft Non-Ferrous Materials |
| SKU | M128 |
