0.050" (1.27mm) Chip Breaker Carbide Router .550" LOC Drill Point 1/8" Shank R154
0.050" (1.27mm) Chip Breaker Carbide Router .550" LOC Drill Point 1/8" Shank R154
Couldn't load pickup availability

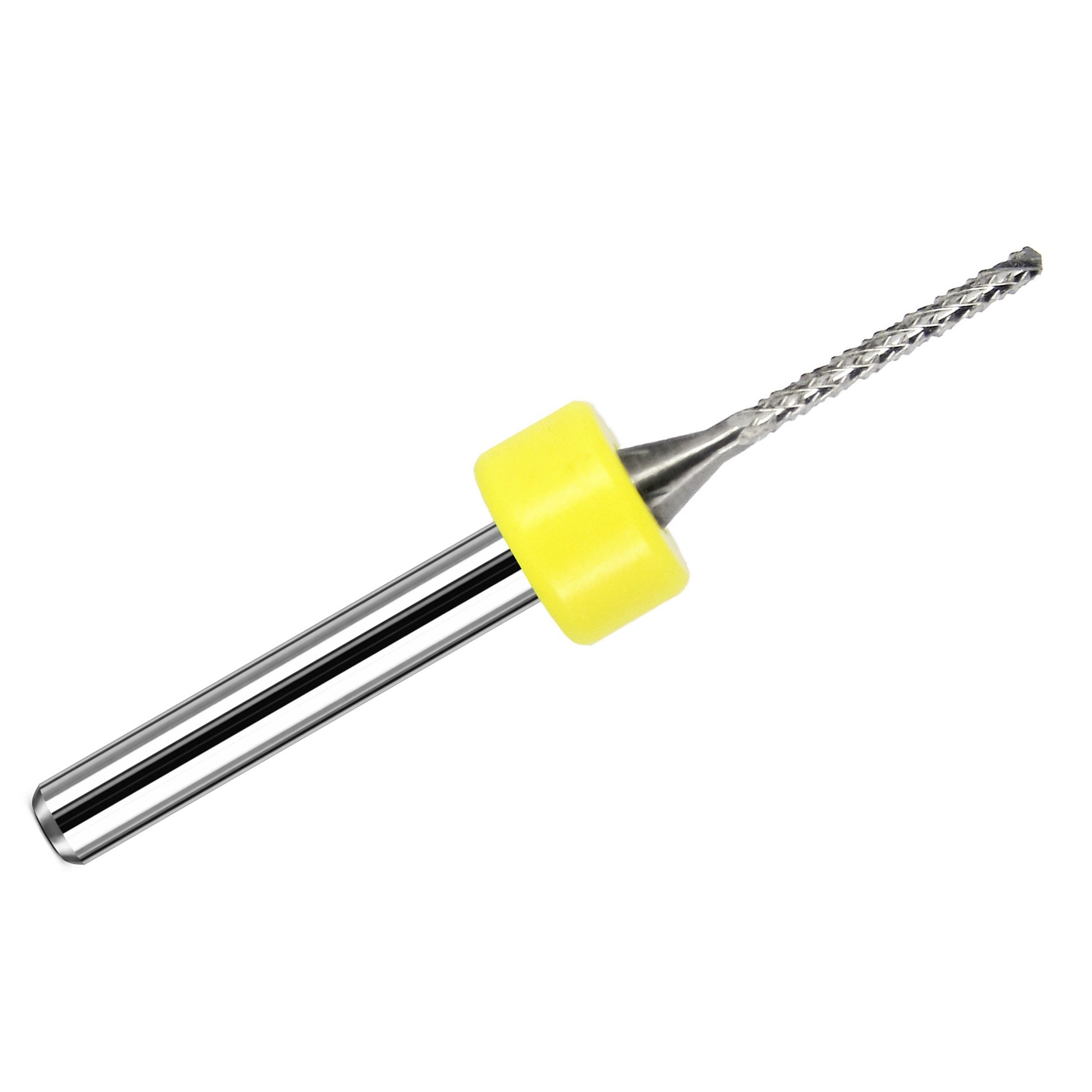

This chip breaker carbide router features a 0.050" (1.27mm) cutting diameter, a long .550" LOC, 1-1/2" overall length, and a 1/8" shank, making it ideal for deeper routing applications in abrasive composite materials.
The chip breaker geometry uses a segmented cutting edge designed to break chips into smaller pieces, helping improve chip evacuation, reduce clogging, and minimize heat buildup during cutting.
Not sure whether a chip breaker or diamond flute router is right for your application? Compare chip breaker vs diamond flute routers →
Designed for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers stable cutting performance and extended tool life in demanding applications.
For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →
The up-cut design promotes efficient chip evacuation and improves bottom-edge cut quality, making it well-suited for through-cuts and deeper routing passes.
This tool features a drill point tip, providing added strength for repeated plunging and improved durability when entering denser or layered materials.
The extended .550" LOC allows for deeper cutting capability while maintaining chip control, making this tool ideal for thicker materials and longer cutting passes.
👉 View Chip Breaker Router Feed & Speed Chart
Typical Applications
- PCB routing (FR-4, G10)
- Fiberglass and phenolic laminate cutting
- Carbon fiber routing
- Thicker composite material cutting
- Deep routing and slotting operations
Benefits
- Chip breaker geometry improves chip control and reduces clogging
- Efficient chip evacuation reduces heat buildup and tool wear
- Up-cut design improves bottom-edge cut quality
- Drill point tip provides strength for plunging applications
- Extended .550" LOC enables deeper cutting capability
- Solid carbide construction ensures durability

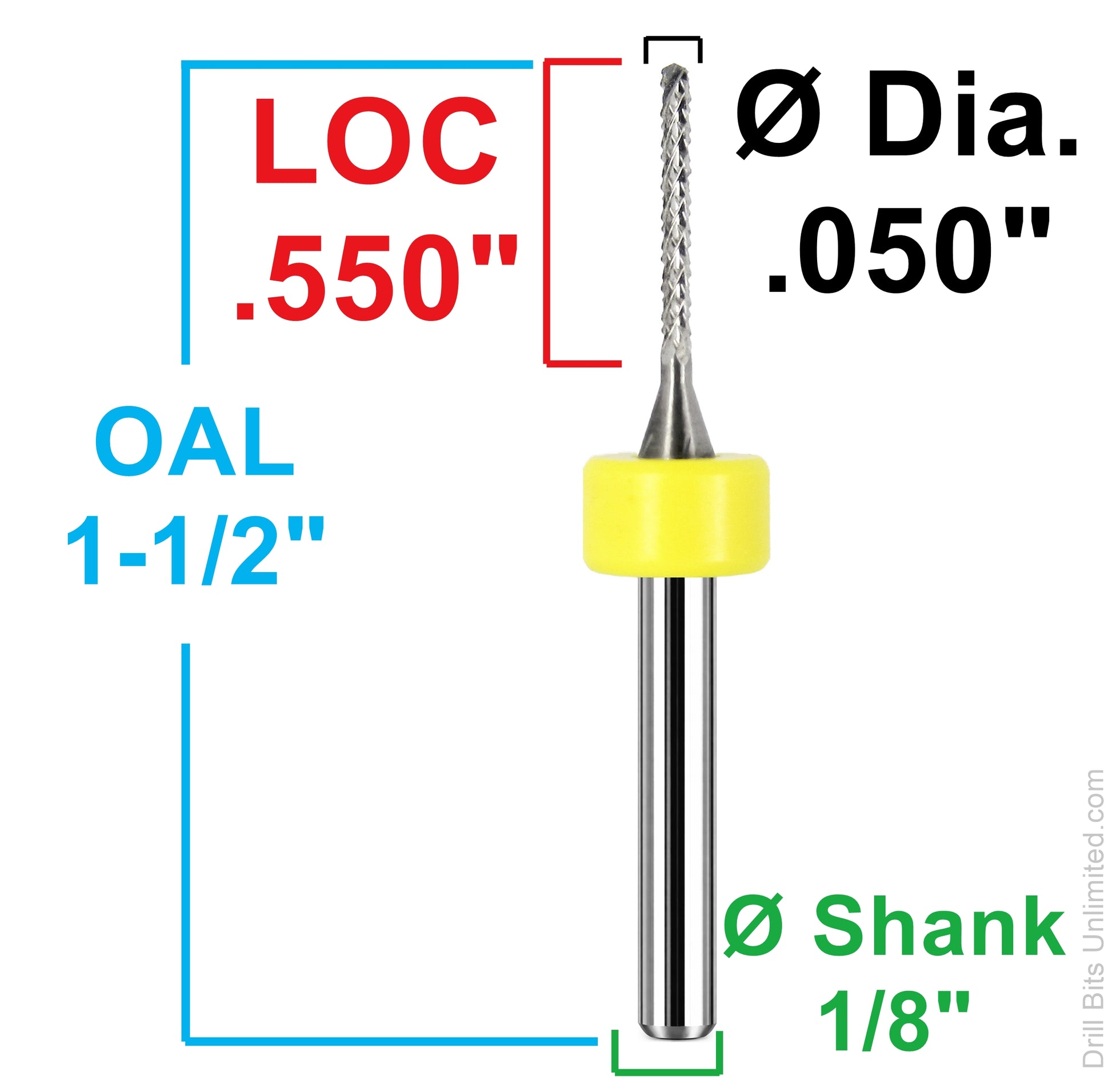

Specifications
| Tool Type | Carbide Router |
| Geometry | Chip Breaker |
| Tip Style | Drill Point |
| Cut Direction | Up Cut |
| Cutting Diameter | 0.050" (1.27mm) |
| Length of Cut (LOC) | .550" |
| Overall Length | 1-1/2" |
| Shank Diameter | 1/8" |
| Material | Solid Tungsten Carbide |
| Manufacturer | Kyocera |
| Country of Origin | USA |
Tip style: Drill Point — reinforced tip for repeated plunging in denser materials.
