0.0512" (1.30mm) Kyocera Chip Breaker PCB Router, .260" LOC, Drill Point, Up-Cut, 1/8" Shank | R154A

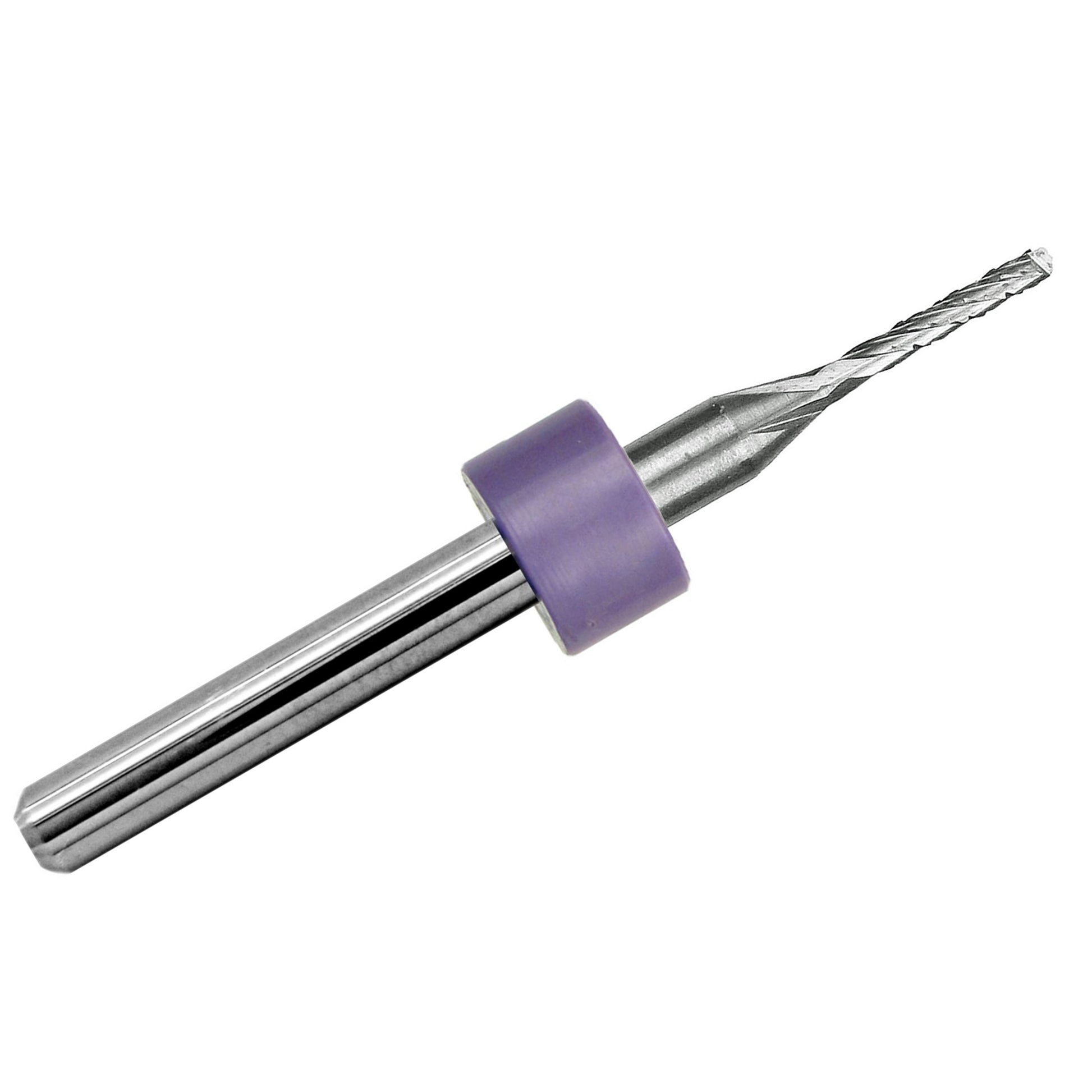

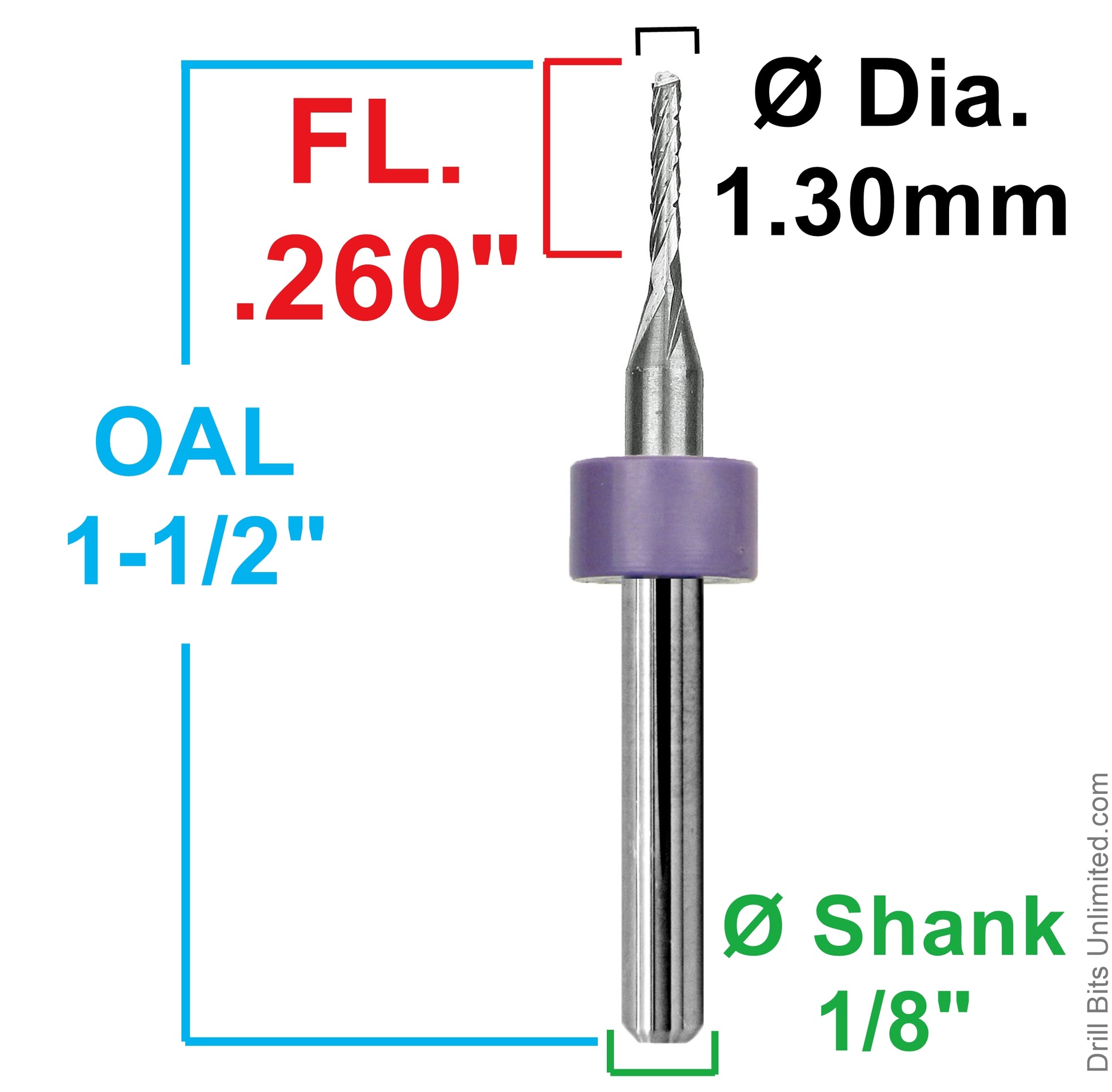

This Kyocera 1.30mm (.0512") chip breaker carbide PCB router features a .260" (approximately 6.60mm) length of cut, drill-point tip, up-cut spiral, 1/8" shank, and 1.50" overall length. Manufactured from solid tungsten carbide, it is designed for precision routing of FR-4, G10, fiberglass, phenolic laminates, and other rigid composite materials.

The spiral chip breaker geometry uses interrupted cutting edges to break chips into smaller fragments during machining. Combined with the up-cut design, this helps improve chip evacuation and reduce debris accumulation when routing abrasive PCB materials.

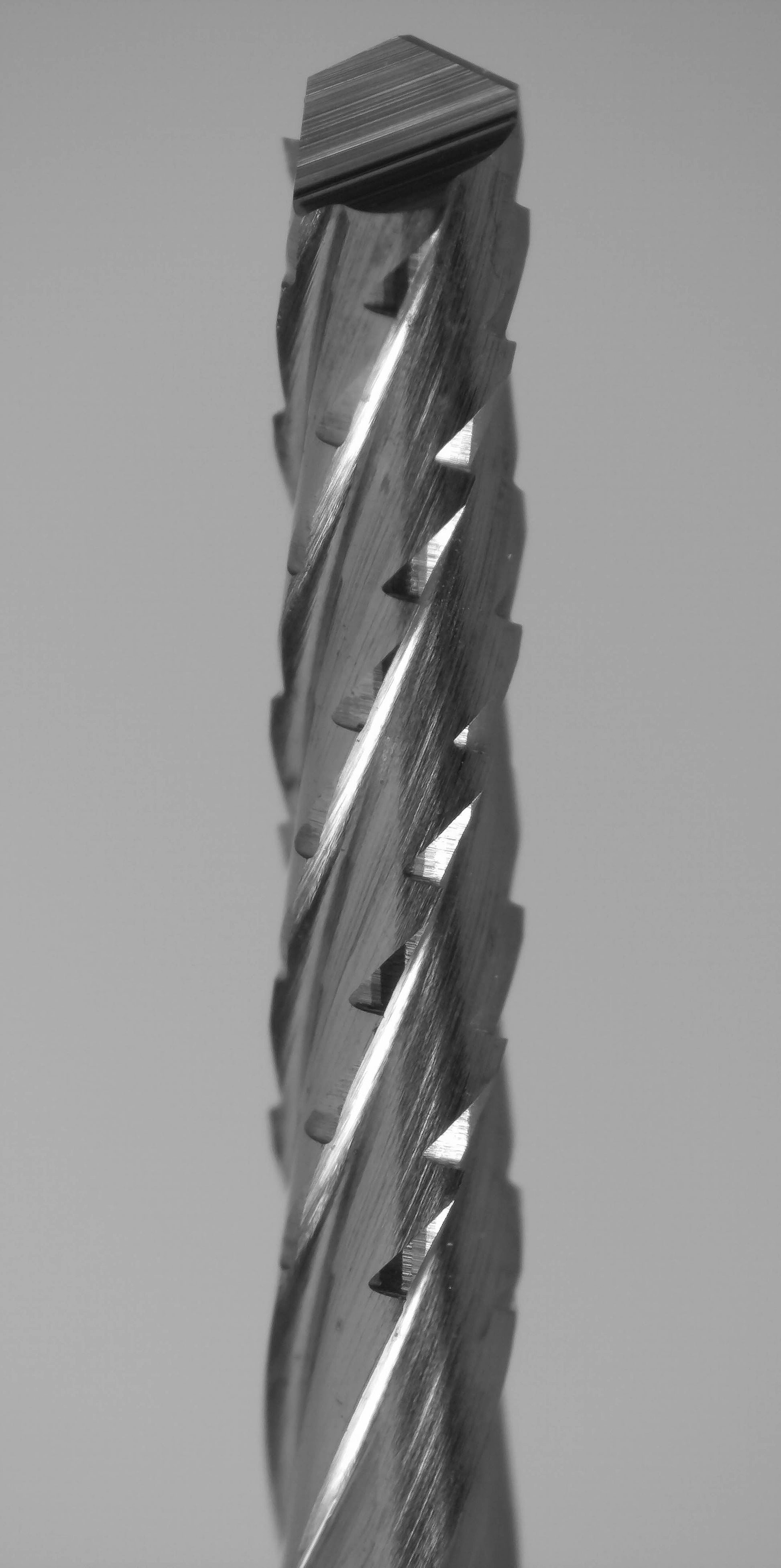

Chip Breaker Geometry and Drill-Point Tip

• Spiral chip breaker: Helps control chip formation and promote efficient debris removal.
• Up-cut spiral: Directs chips upward and away from the cutting zone.
• Drill-point tip: Provides pointed entry geometry for controlled plunge operations using appropriate cutting parameters.
• .260" LOC: Provides cutting reach for PCB profiling, slots, and routing suitably supported composite materials.
• Solid carbide: Provides rigidity and wear resistance for precision machining.

The drill-point configuration is useful where controlled entry into the workpiece is required. Use appropriate plunge feeds, rigid workholding, and minimal tool runout to help prevent cutter damage.

Not sure which router geometry is best for your application? Compare Chip Breaker vs. Diamond Flute PCB Routers →

Typical Applications

• PCB outline routing and circuit board profiling
• FR-4 and G10 fiberglass laminates
• Phenolic laminate cutting
• Slots and internal PCB contours
• Precision routing of rigid composite materials
• Controlled plunge-entry applications

Carbon fiber and highly abrasive materials: Extended machining of abrasive composites can accelerate wear on uncoated carbide. For demanding production applications, consider a compatible diamond-coated router.

Explore Diamond-Coated Routers →

Specifications

Feeds, Speeds and Tool Handling

See our Chip Breaker Router Feed & Speed Chart → for general machining guidance.

Use the recommended parameters as starting points and adjust for the material, spindle runout, machine rigidity, cutting depth, and tool condition. Avoid excessive lateral loading and aggressive plunging.

Sold individually. Price is per router bit.
