Drill Bits Unlimited

0.0551" (1.40mm) x .195" LOC 2-Flute Up-Cut Square End Carbide End Mill, 1/8" Shank | M110

0.0551" (1.40mm) x .195" LOC 2-Flute Up-Cut Square End Carbide End Mill, 1/8" Shank | M110

Regular price $6.49 USD
Regular price Sale price $6.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

1.40mm (.0551") 2-Flute Up-Cut Square End Carbide End Mill – M110

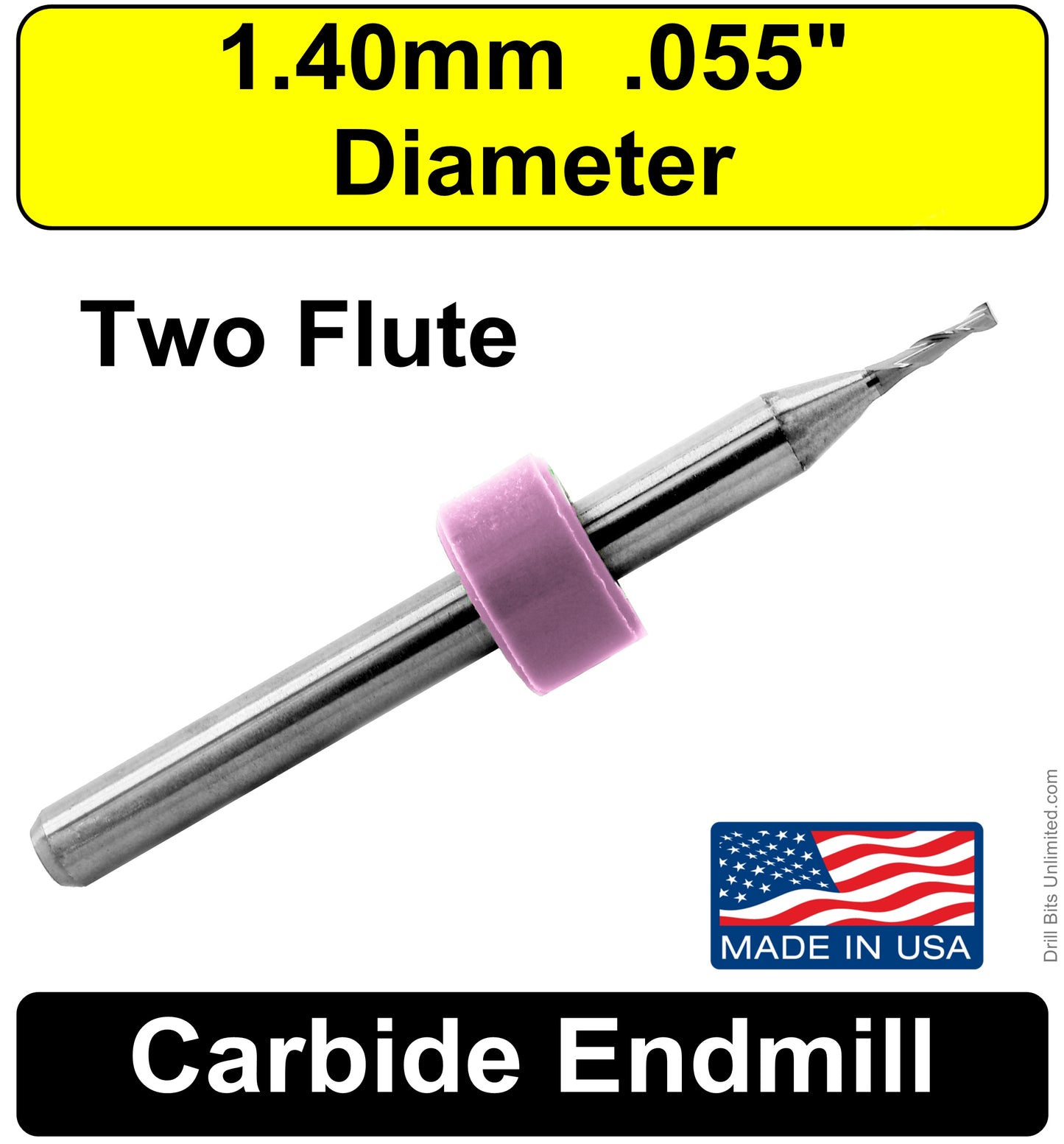

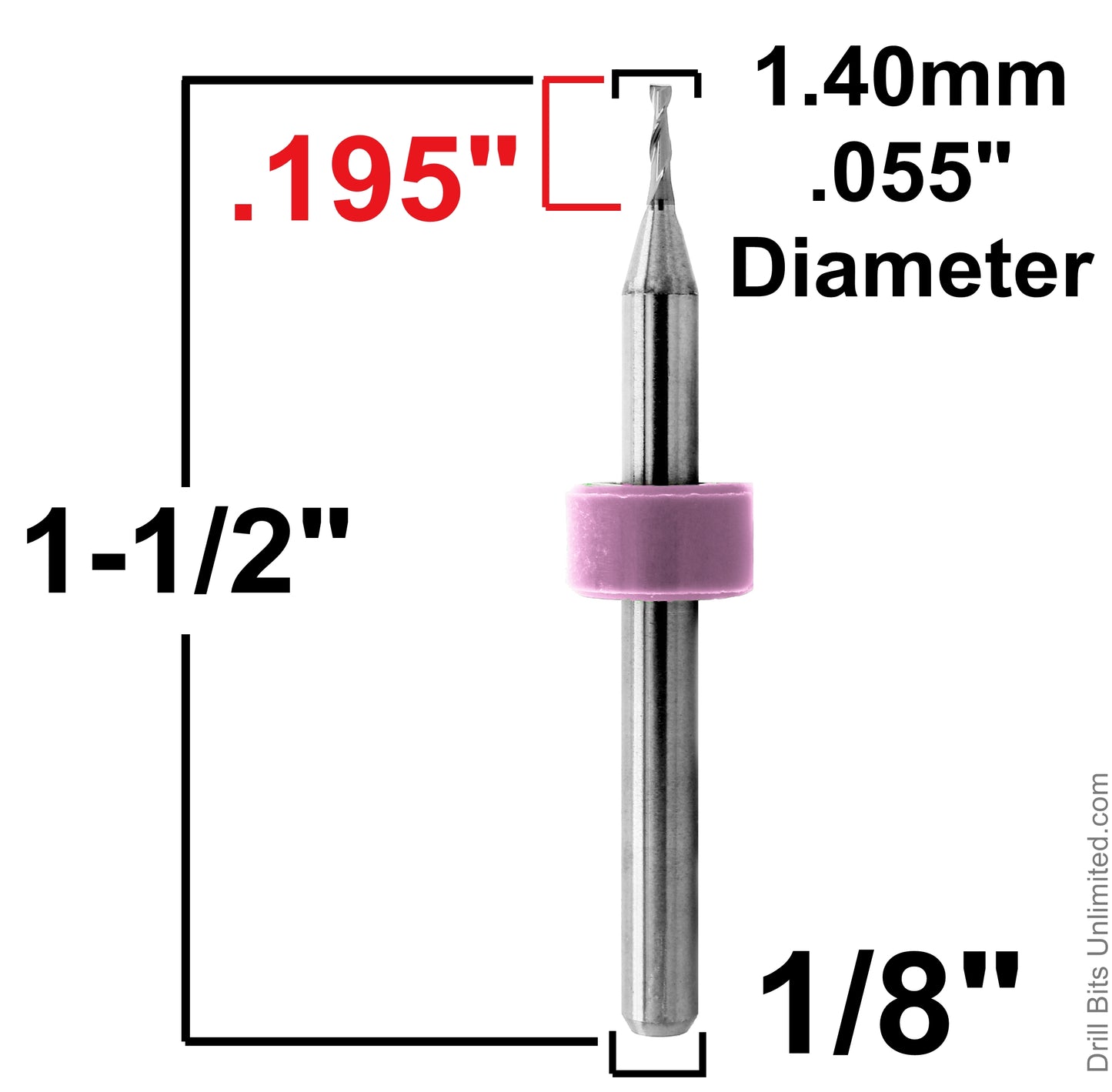

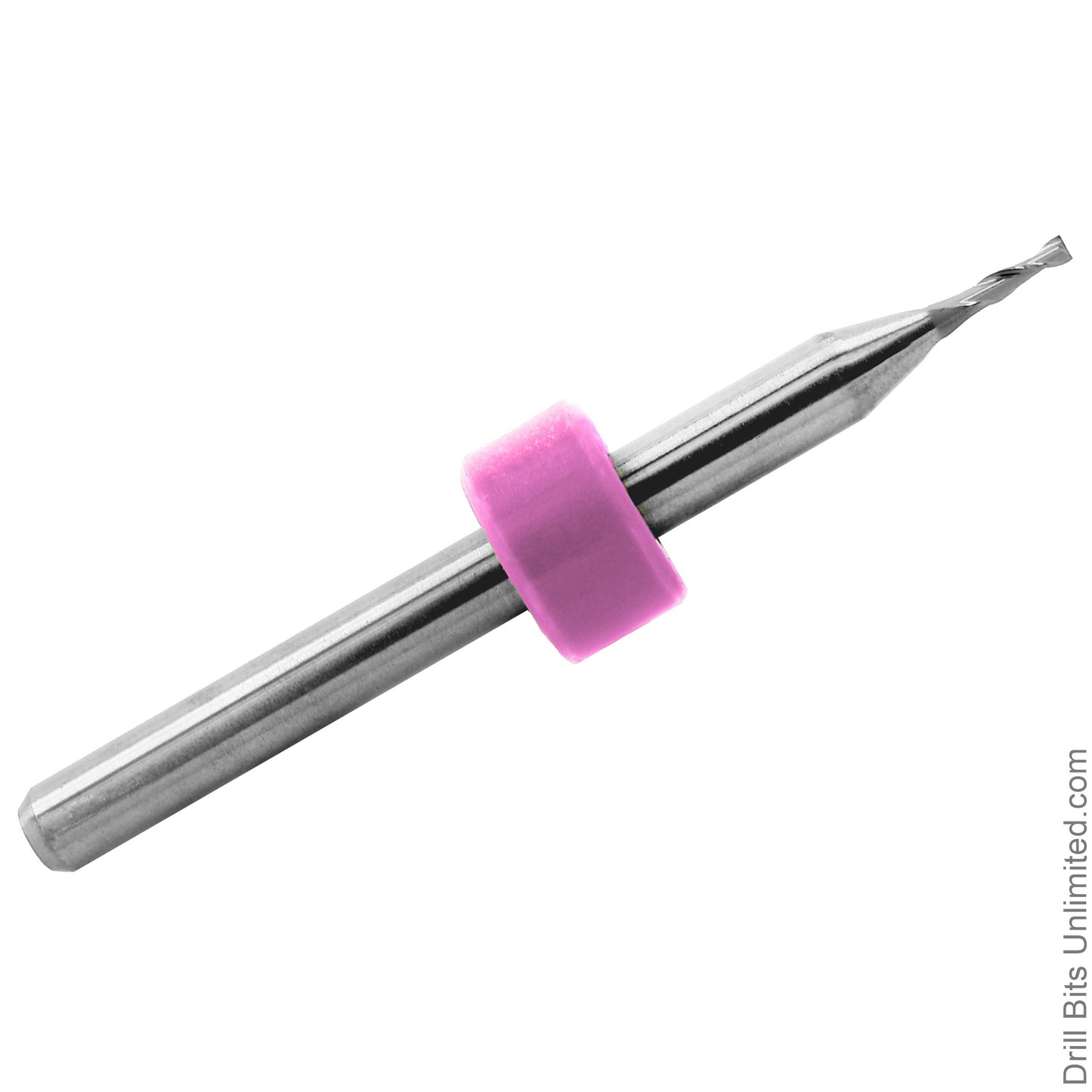

This Kyocera solid carbide precision end mill features a 1.40mm (.0551") cutting diameter, .195" length of cut, 2-flute up-cut square end geometry, 1.50" overall length, and a standard 1/8" shank. It is designed for precision CNC milling, narrow slotting, profiling, contouring, and detailed machining where small, accurate cutting features are required.

Manufactured by Kyocera under part number 1600.0551.195, this solid carbide end mill combines a small cutting diameter with approximately 5mm of flute length for machining features that require additional cutting reach.

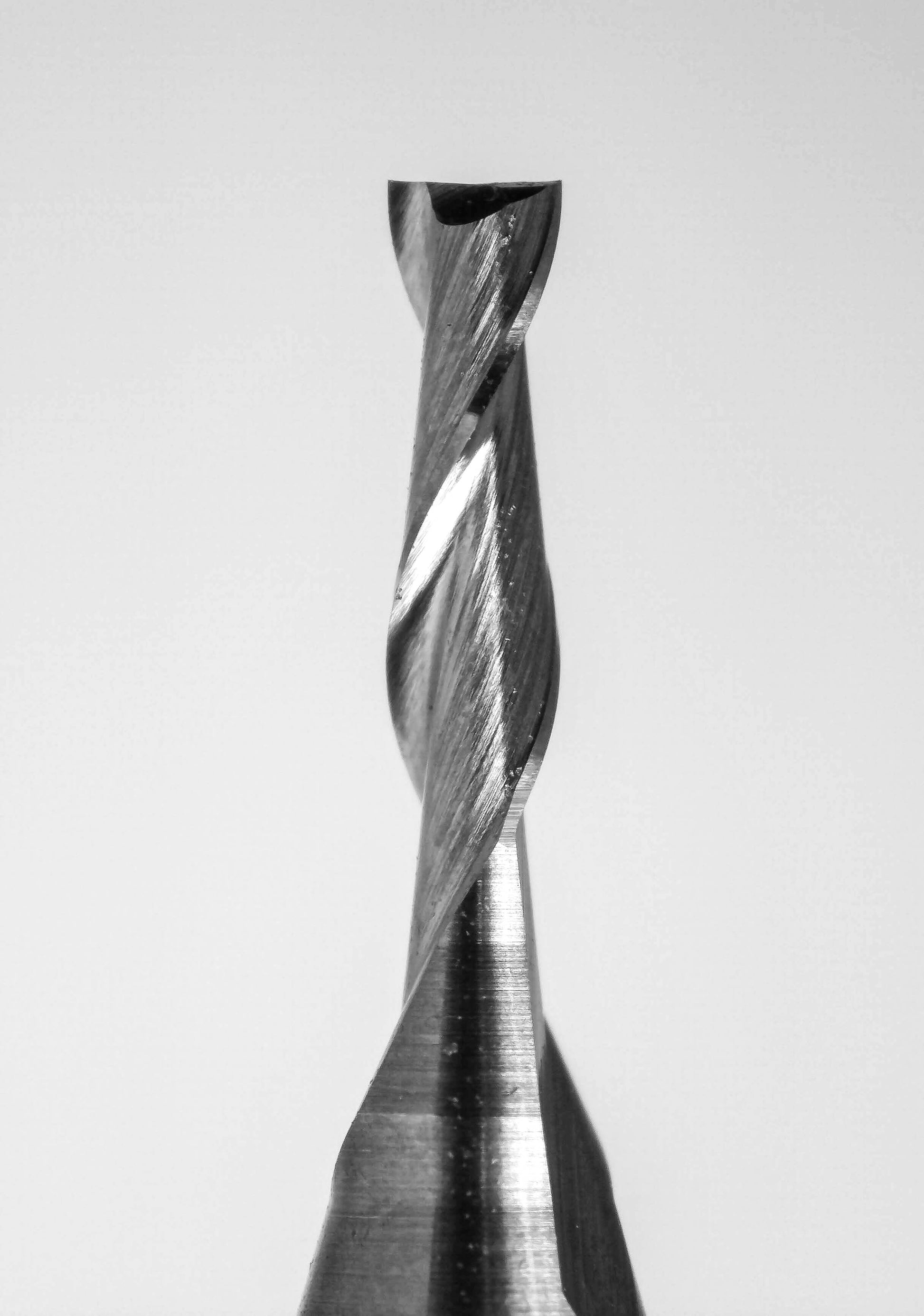

The 2-flute up-cut spiral geometry helps evacuate chips upward and away from the cutting area during machining. The square end geometry is useful for slots, pockets, profiles, contours, and flat-bottom features.

Its .195" flute length provides cutting reach for narrow slots and profiles requiring greater depth than shorter-flute cutters. Appropriate feeds, speeds, cutting engagement, and tool runout control are important when using small-diameter end mills with longer cutting sections.

Solid tungsten carbide construction provides rigidity and wear resistance for precision machining. This tool can be used for detail cutting in plastics, acrylic, wood, fiberglass, composites, and selected soft non-ferrous metals such as aluminum and brass when suitable machining conditions are maintained.

Common Applications

  • Precision CNC milling and fine-detail machining
  • Narrow slotting, profiling, and contouring
  • Small pockets and flat-bottom features
  • PCB milling and circuit board machining
  • Plastic and acrylic machining
  • Fine engraving and intricate detail cutting
  • Wood and miniature model-making applications
  • Fiberglass and composites with suitable cutting parameters
  • Selected non-ferrous metals, including aluminum and brass, under controlled machining conditions

Features & Benefits

  • 1.40mm (.0551") diameter: Suitable for narrow slots, miniature components, and precision CNC detail work.
  • Kyocera solid carbide construction: Provides rigidity and wear resistance for precision machining.
  • .195" flute length: Offers useful cutting reach for narrow slots, profiles, and pockets.
  • 2-flute geometry: Provides two cutting edges with room for chip evacuation.
  • Up-cut spiral flutes: Help evacuate chips upward and away from the cutting area.
  • Square end: Suitable for slots, pockets, profiles, contours, and flat-bottom cuts.
  • 1/8" shank: Compatible with suitable precision CNC collets and toolholders.

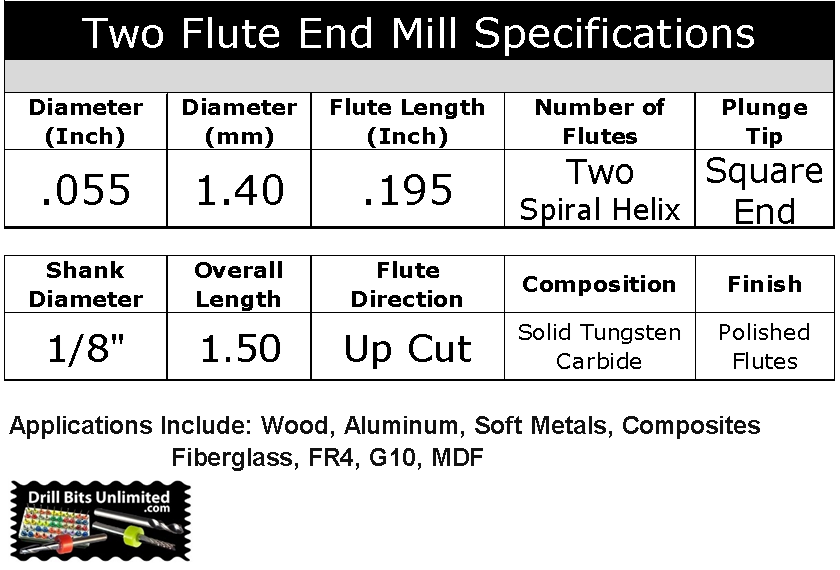

Specifications

Manufacturer Kyocera
Manufacturer Part Number 1600.0551.195
SKU M110
Tool Type Solid Carbide Precision End Mill
Condition New
Cutting Diameter 1.40mm / .0551"
Length of Cut / Flute Length .195"
Flutes 2
End Style Square End
Cut Direction Up Cut
Overall Length 1.50"
Shank Diameter 1/8" (3.175mm)
Material Solid Tungsten Carbide
Finish Polished Flutes

Additional Specialty Applications

This 1.40mm carbide end mill may also be useful for instrument makers, luthiers, model makers, jewelry work, miniature components, and other precision applications requiring narrow CNC cuts.

For instrument-related grooves and fret-slotting applications, always verify the required slot width, cutting depth, material suitability, machine rigidity, and tool runout. See our CNC Fret Slotting End Mills Collection for additional tooling options.

Important Machining Considerations

This 1.40mm end mill requires appropriate precision machining conditions, particularly when utilizing its full .195" flute length. Use rigid workholding, precision toolholding, minimal spindle runout, suitable spindle speeds, conservative cutting depths, and carefully selected feed rates.

Its up-cut geometry helps remove chips from the cutting area, but excessive cutting forces, chip accumulation, or tool deflection may cause premature breakage.
