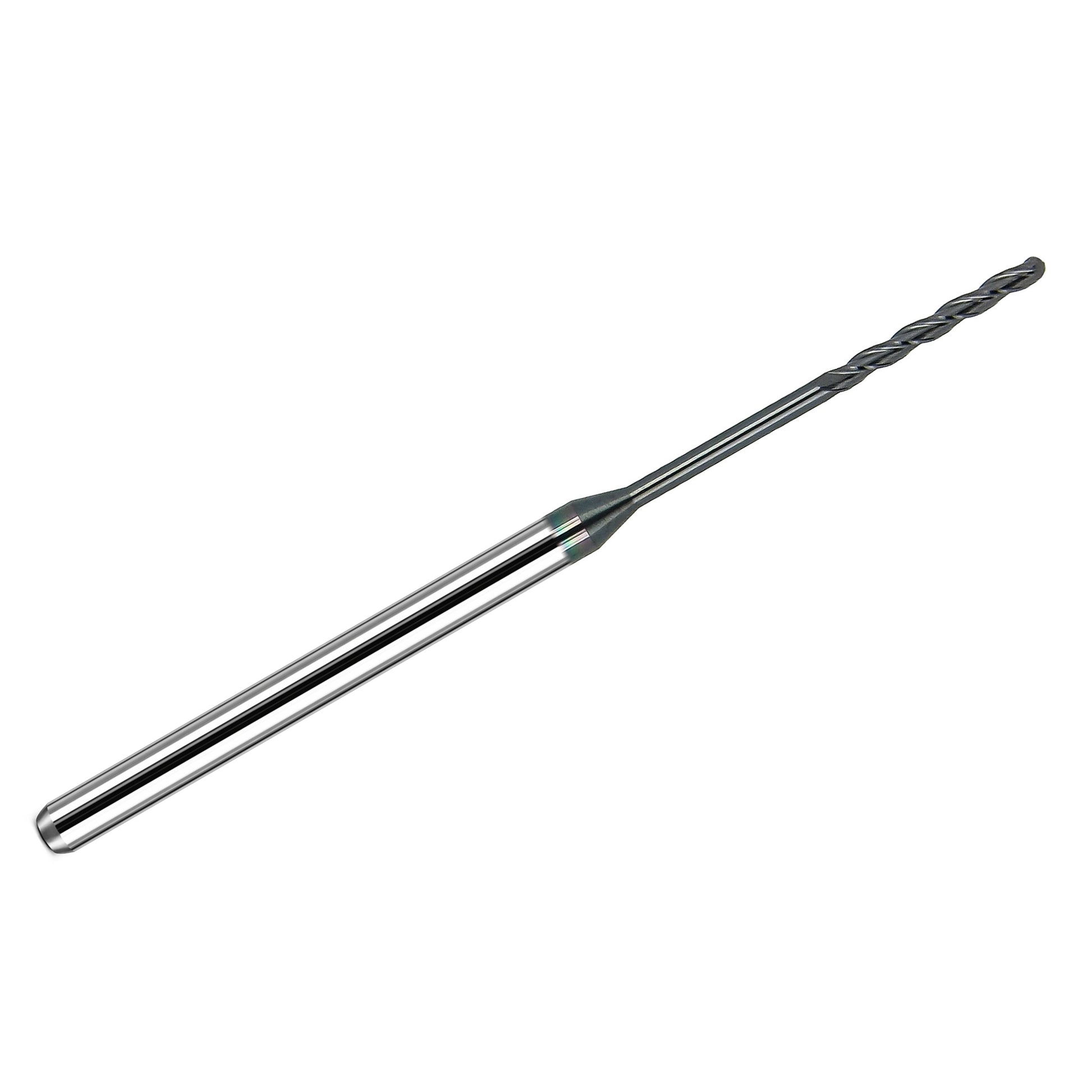

0.0600" Kyocera 3-Flute Ball Nose Carbide End Mill, Extended Reach, AlTiN Coated, 1/8" Shank, USA Made K164

This .0600" 3-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.

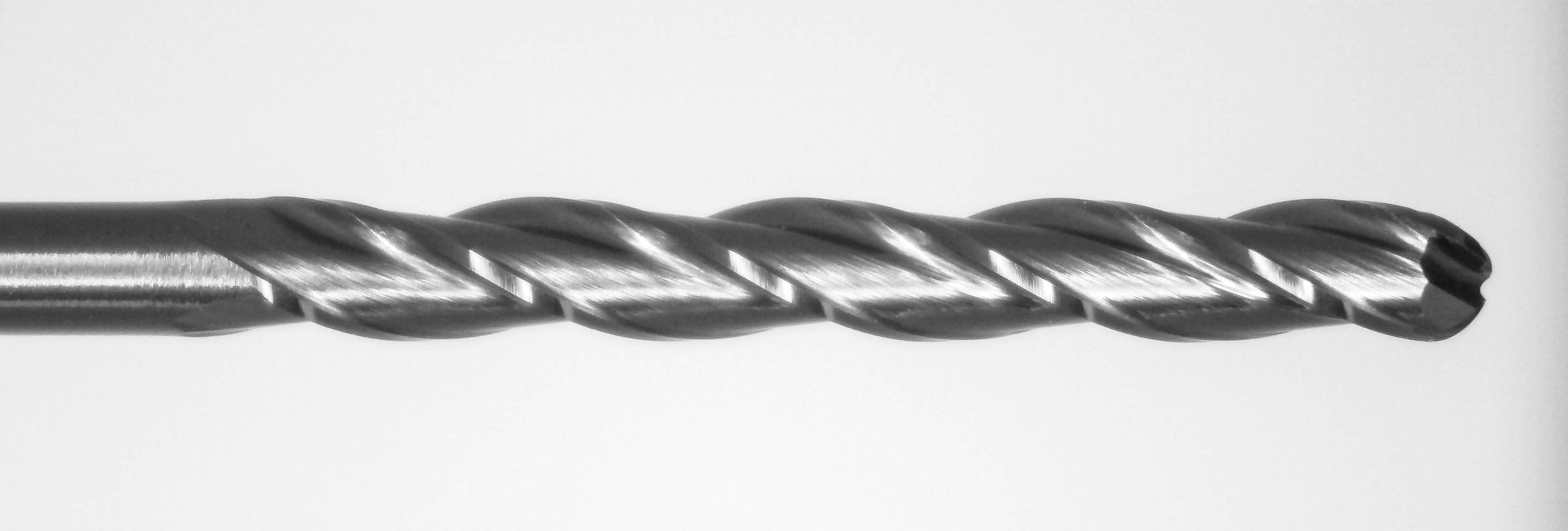

This tool is part of the Kyocera Series 1745 extended reach line and is designed for 3D contouring, profiling, detail work, and finish milling where added reach is needed without sacrificing precision. The ball nose tip allows smooth machining of curved surfaces and fine features.

Its extended reach necked design helps improve access in deeper or hard-to-reach areas, while the 3-flute geometry and 30° helix provide a strong balance of rigidity, finish quality, and chip control. The AlTiN coating improves tool life in tougher materials and higher-heat cutting conditions.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1745-0600L1000

Country of Origin: United States

Typical Applications

• 3D contour milling
• Profiling and finish machining
• Fine-detail CNC machining
• Extended-reach milling in deeper features
• Precision work in steels, stainless, and hardened materials

Benefits

• Ball nose geometry for smooth contouring and profiling
• Extended reach necked design improves access in deeper features
• 3 flutes provide a balance of rigidity and finish quality
• AlTiN coating improves wear resistance and heat performance
• Sub-micron carbide supports edge retention and precision

Specifications
