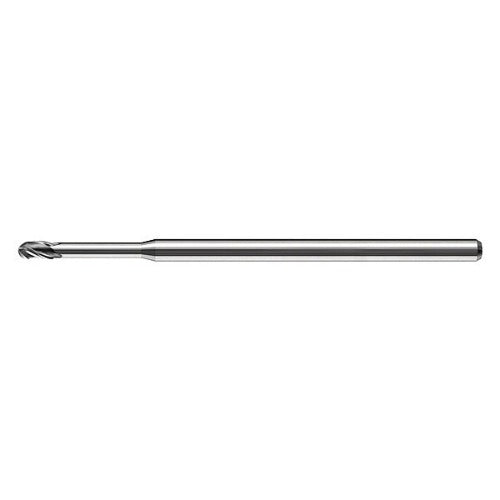

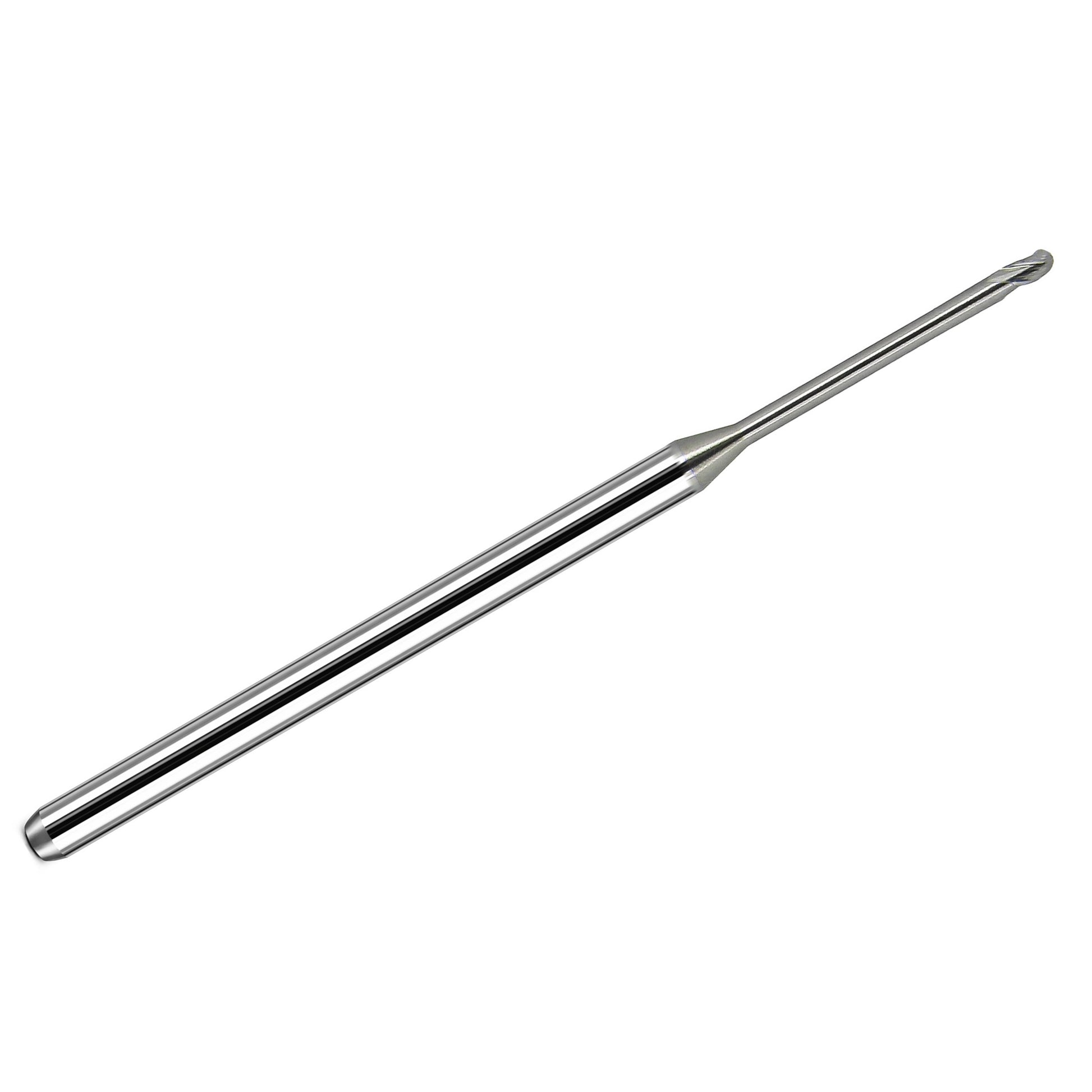

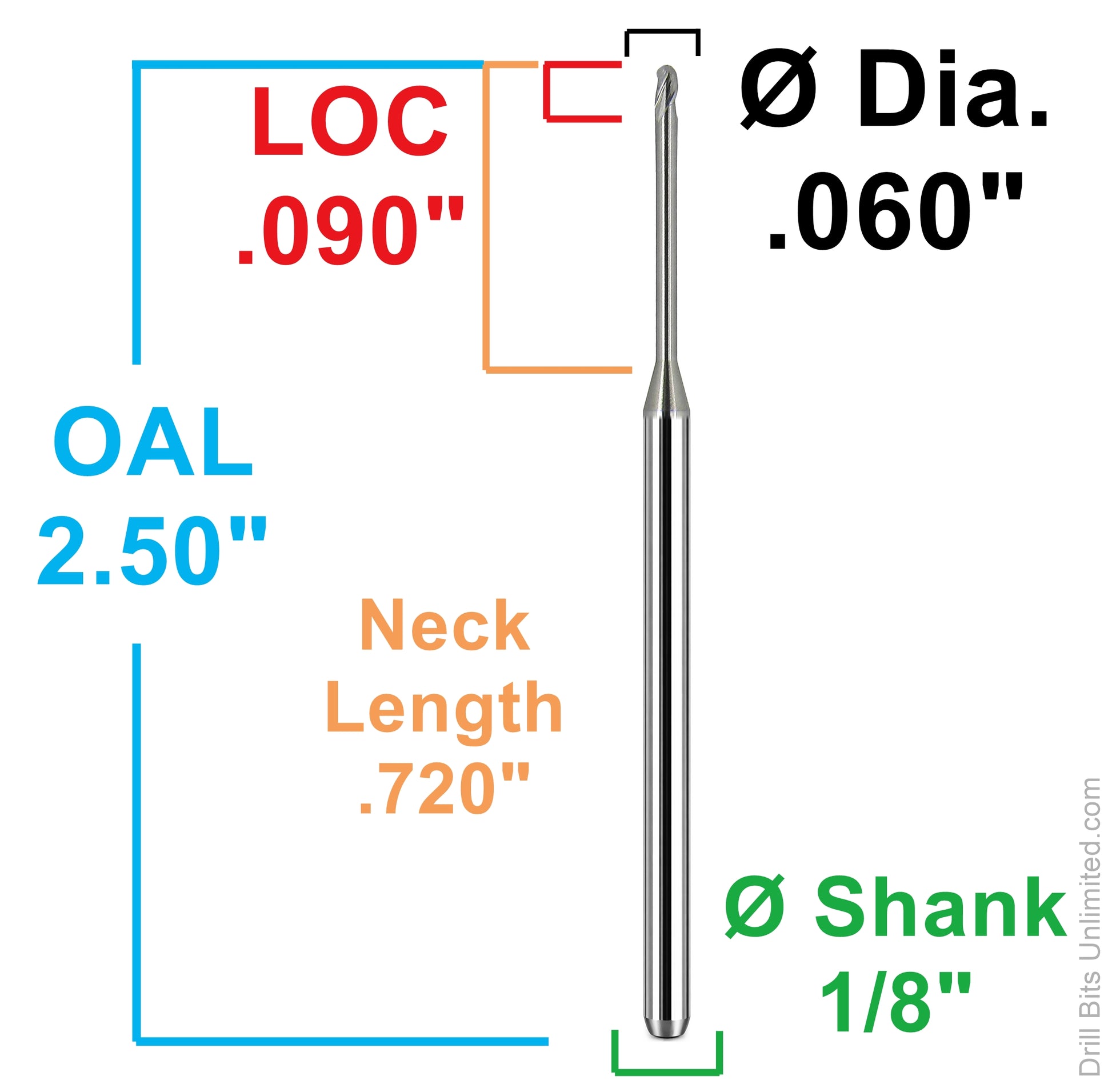

0.0600" x .090" LOC 3-Flute Ball Nose Carbide End Mill, 1/8" Shank | K211

This 0.0600" 3-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and is part of the Series 1755 extended reach stub length line for precision CNC milling.

This tool combines a stub-length cutting section with an extended reach neck, making it a strong choice for applications where added reach is needed while still maintaining better rigidity than a longer full-diameter flute design. The ball nose tip is ideal for contouring, profiling, blended surfaces, and fine finishing work.

With its 3-flute geometry, this tool offers a balance of edge strength, finish quality, and material removal in precision milling applications. The extended neck design also helps improve access in deeper features and around walls where extra clearance is needed.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1755-0600.720

Country of Origin: United States

Typical Applications

• 3D contour milling
• Profiling and finishing
• Extended reach machining
• Fine-detail CNC milling
• Ball nose milling where added neck clearance is needed

Benefits

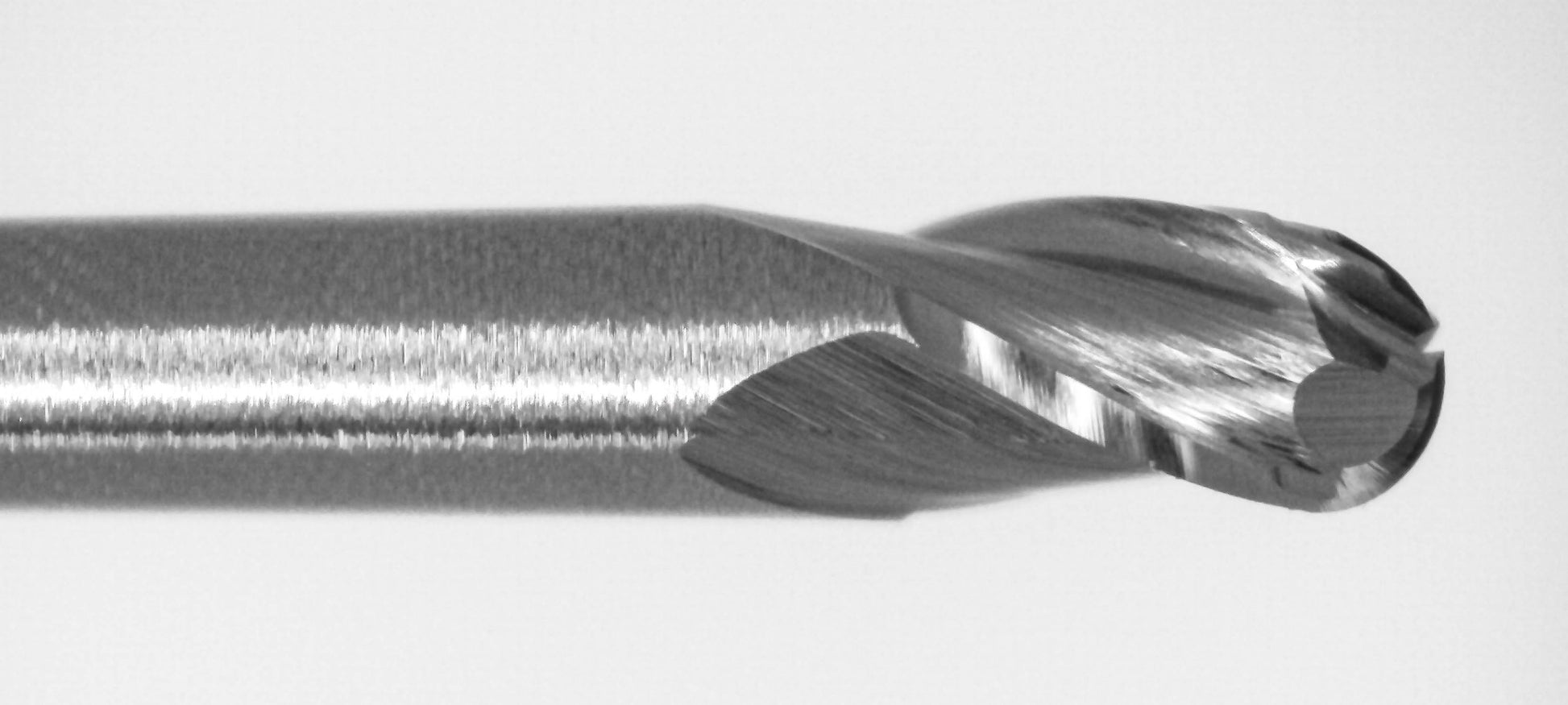

• Ball nose geometry for smooth contouring and profiling
• Extended reach stub length design improves access
• Shorter cutting section helps maintain rigidity
• 3 flutes balance finish quality and cutting performance
• Sub-micron carbide supports wear resistance and edge retention

Specifications

👉 View End Mill Feed & Speed Calculator
