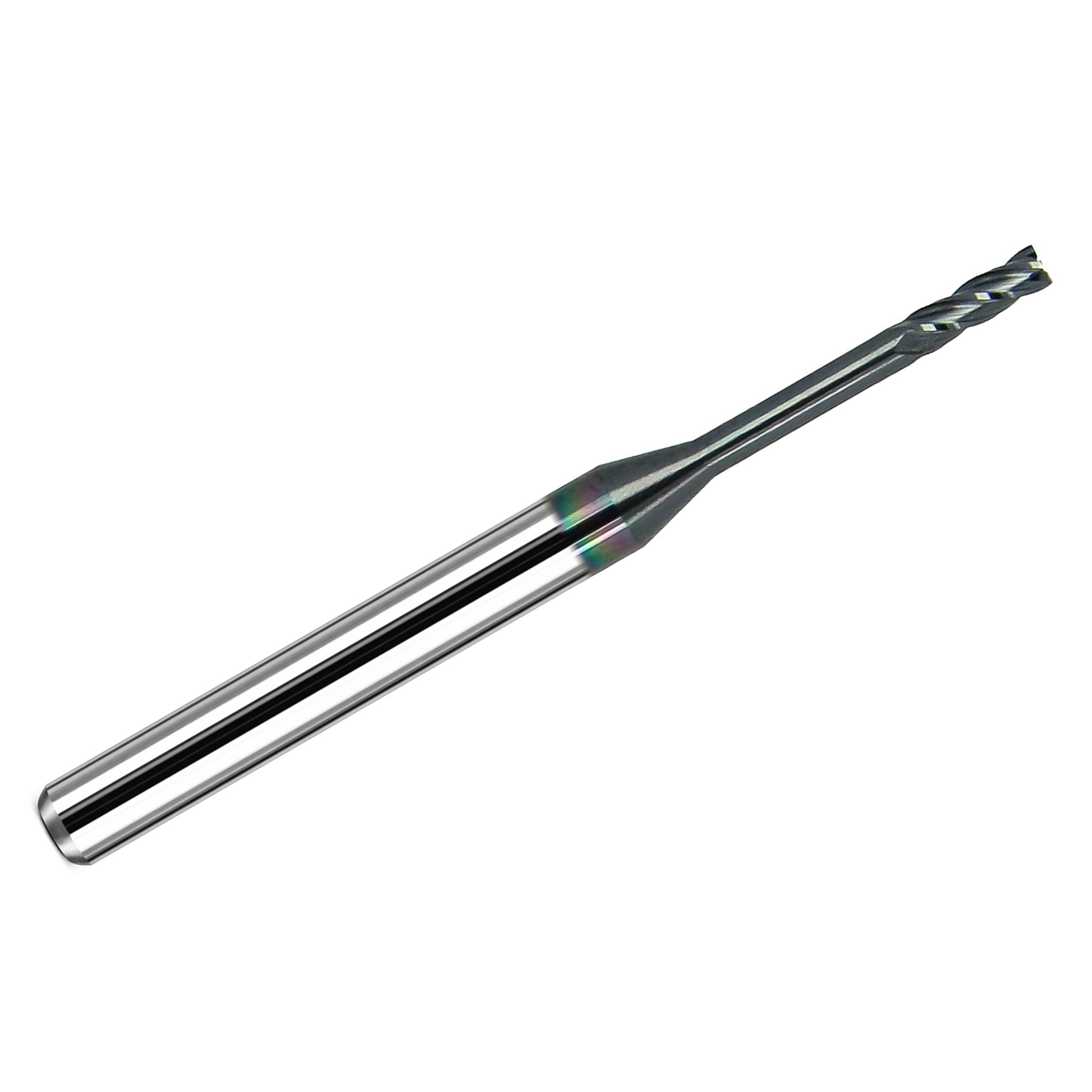

0.0600" Kyocera .0600" 4-Flute Extended Reach Square End Carbide End Mill, AlTiN Coated, 1/8" Shank, USA Made, 1840-0600L500 K189

This .0600" 4-flute extended reach square end carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.

This tool is part of the Kyocera Series 1840 extended reach square end mill line for deep reach milling. The square end geometry is ideal for slotting, profiling, side milling, and shoulder work where a flat-bottom cut and sharp internal corners are needed.

Its extended reach necked design helps improve access in deeper or restricted features, while the 4-flute geometry and 30° helix provide a strong balance of rigidity and finish quality. The AlTiN coating helps improve tool life in more demanding materials and higher-heat cutting conditions.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1840-0600L500

Country of Origin: United States

Typical Applications

• Slotting and side milling
• Profiling and shoulder milling
• Deep reach milling in narrow features
• Precision CNC machining
• Applications requiring longer reach with a square end geometry

Benefits

• Square end geometry for flat-bottom cuts and sharp corners
• Extended reach necked design improves access in deeper features
• 4 flutes provide rigidity and finish quality
• AlTiN coating improves wear resistance and heat performance
• Sub-micron carbide supports precision and edge retention

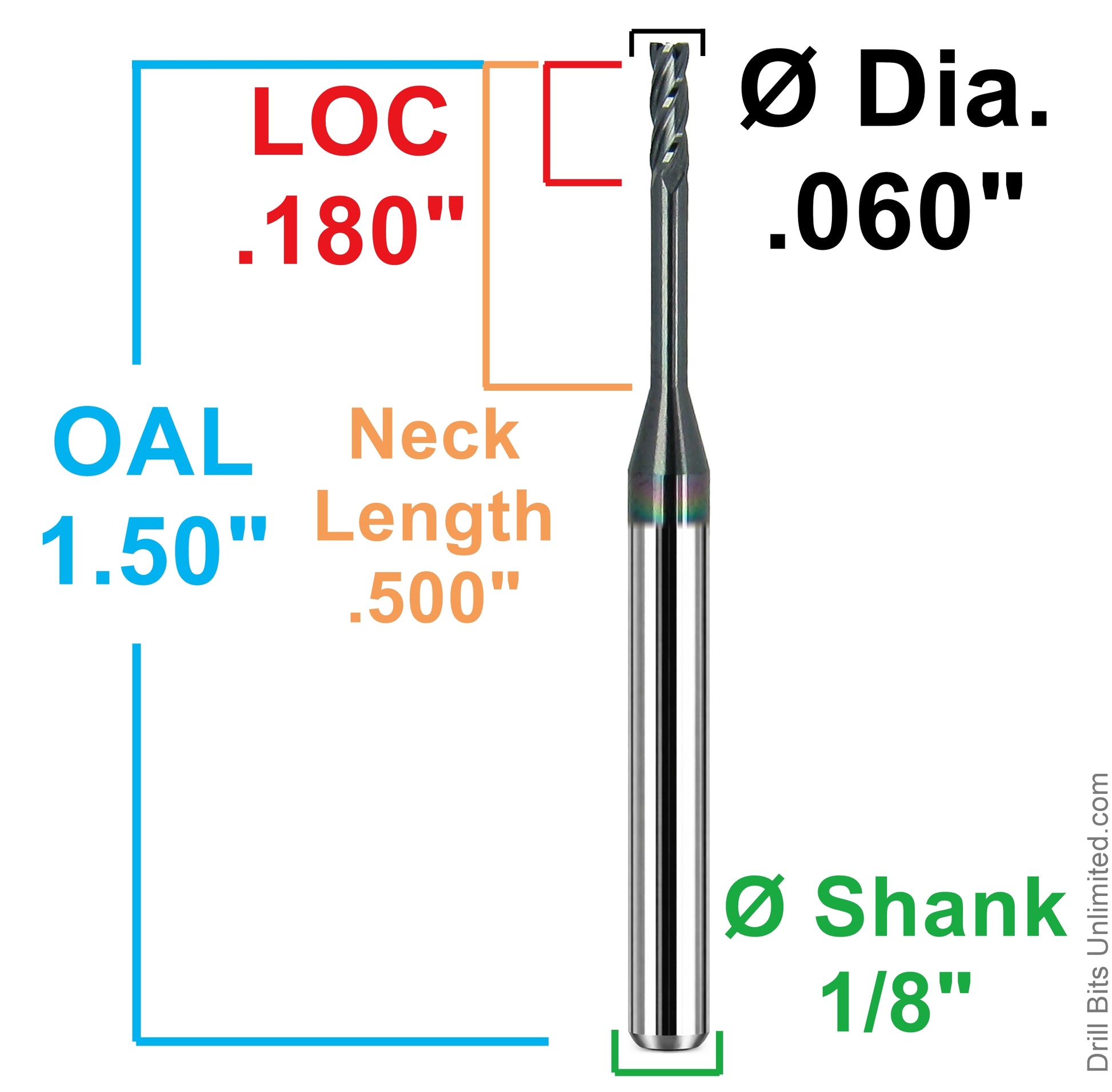

Specifications
