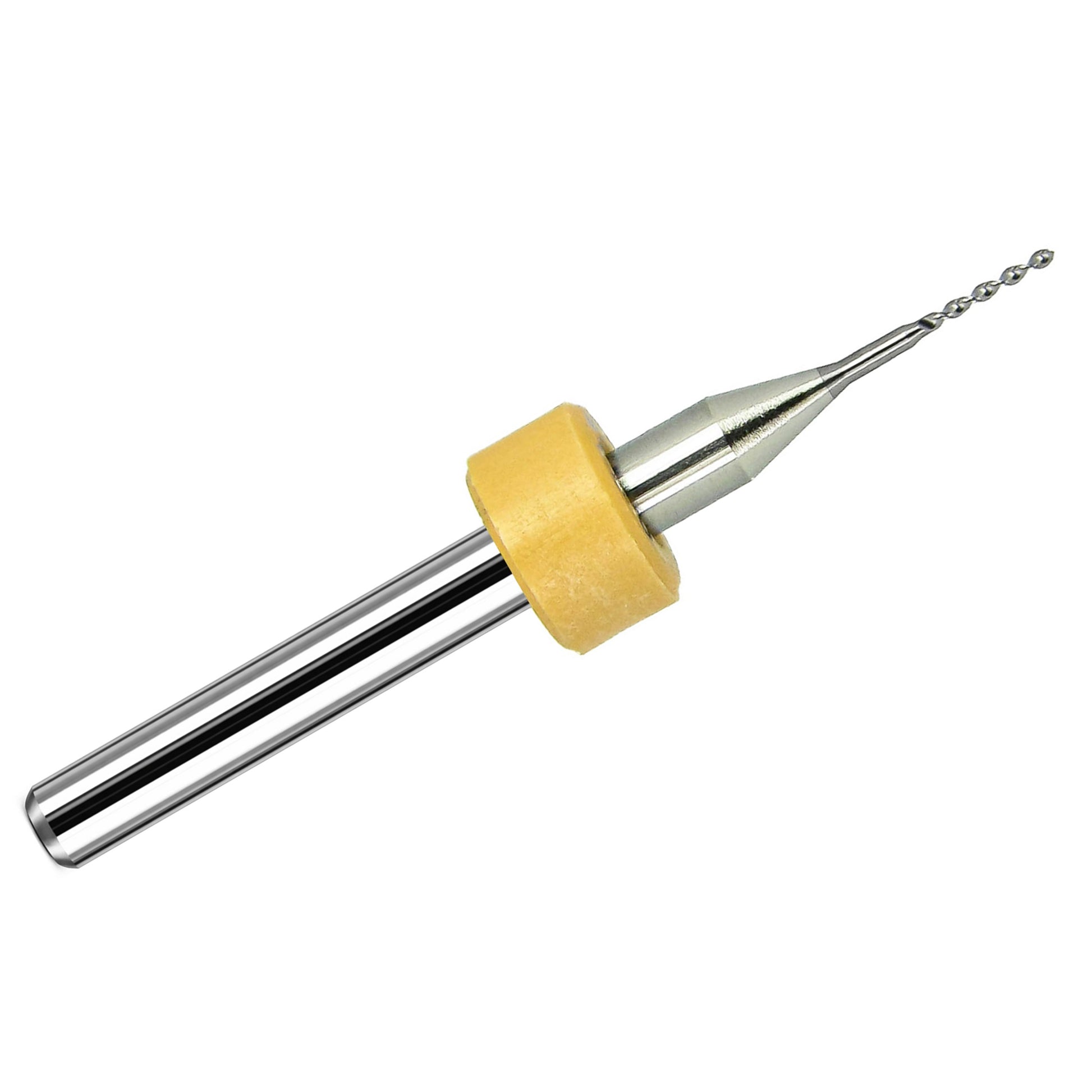

0.60mm (.0236") PCB Back Drill, Solid Carbide, 150° Point, 1/8" Shank – Kyocera 240.0236.197A2 K209

This 0.60mm (.0236") solid carbide PCB back drill by Kyocera is designed for controlled-depth drilling in printed circuit boards. Back drills are commonly used to remove unused plated-through-hole stub material in multilayer PCBs, helping reduce signal reflection and improve performance in high-speed electronic applications.

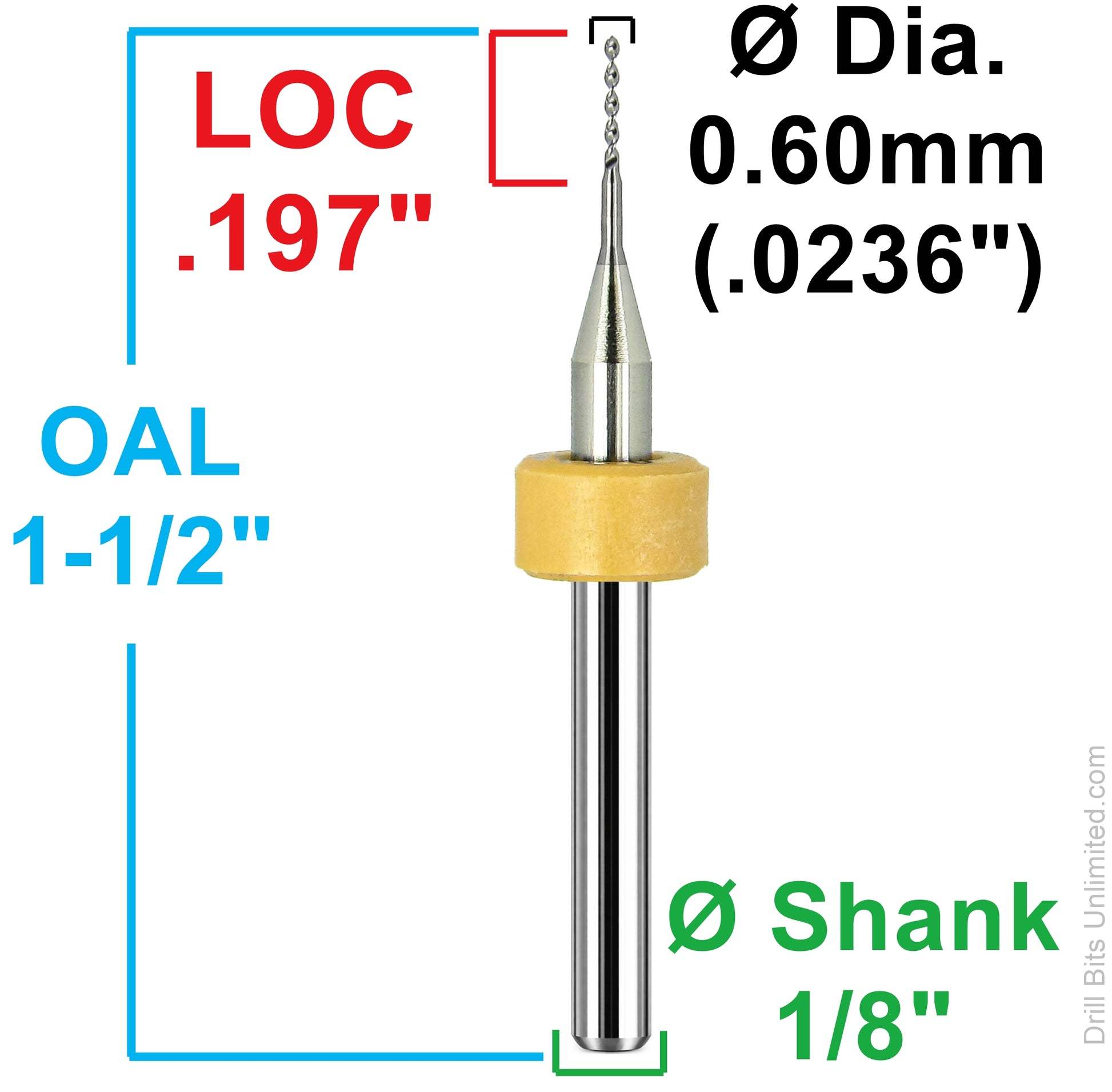

This USA-made drill features a 150° point, .197" length of cut, 1.50" overall length, and a 1/8" shank. Its solid carbide construction helps provide the rigidity and wear resistance needed for precision PCB drilling operations.

Manufacturer Part Number: 240.0236.197A2

Specifications:

• Tool Type: PCB Back Drill
• Diameter: 0.60mm (.0236")

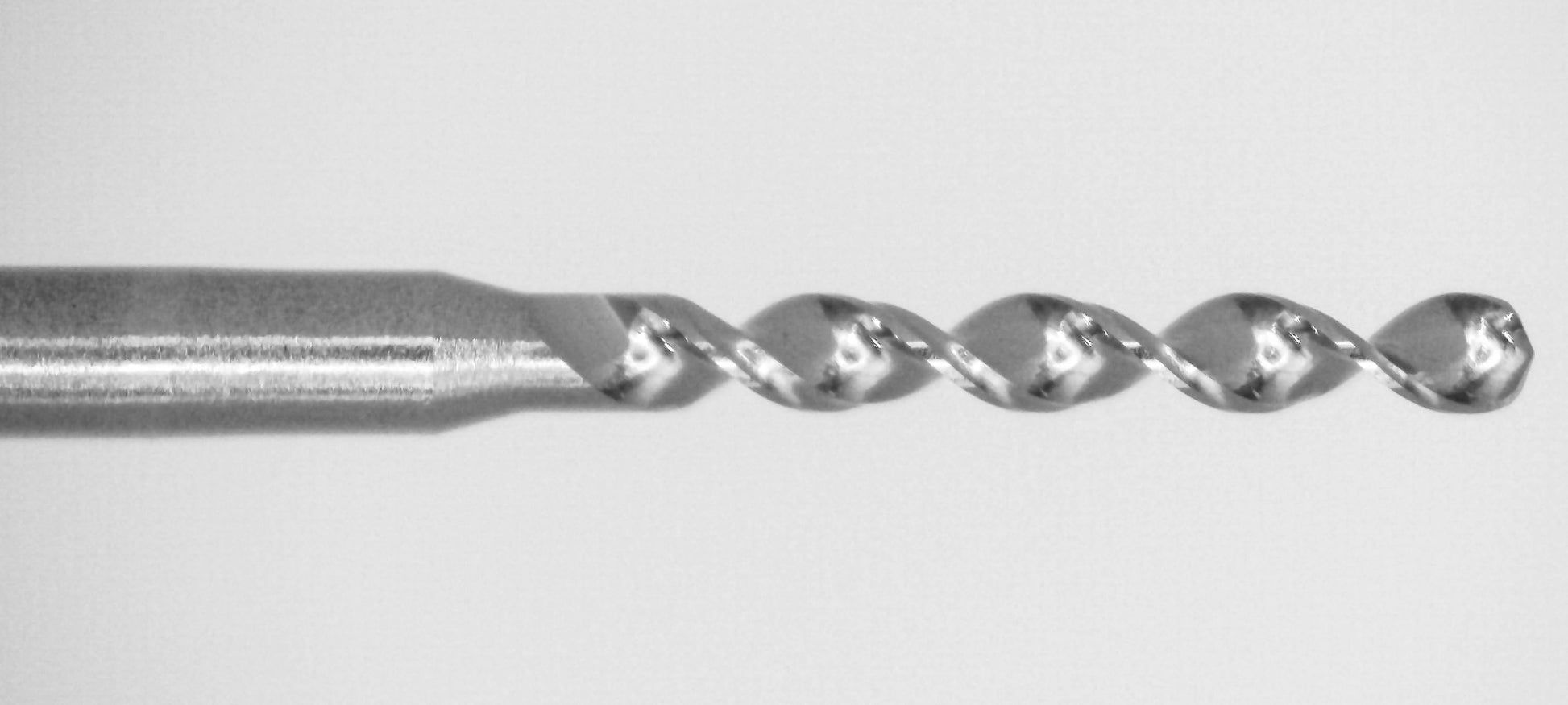

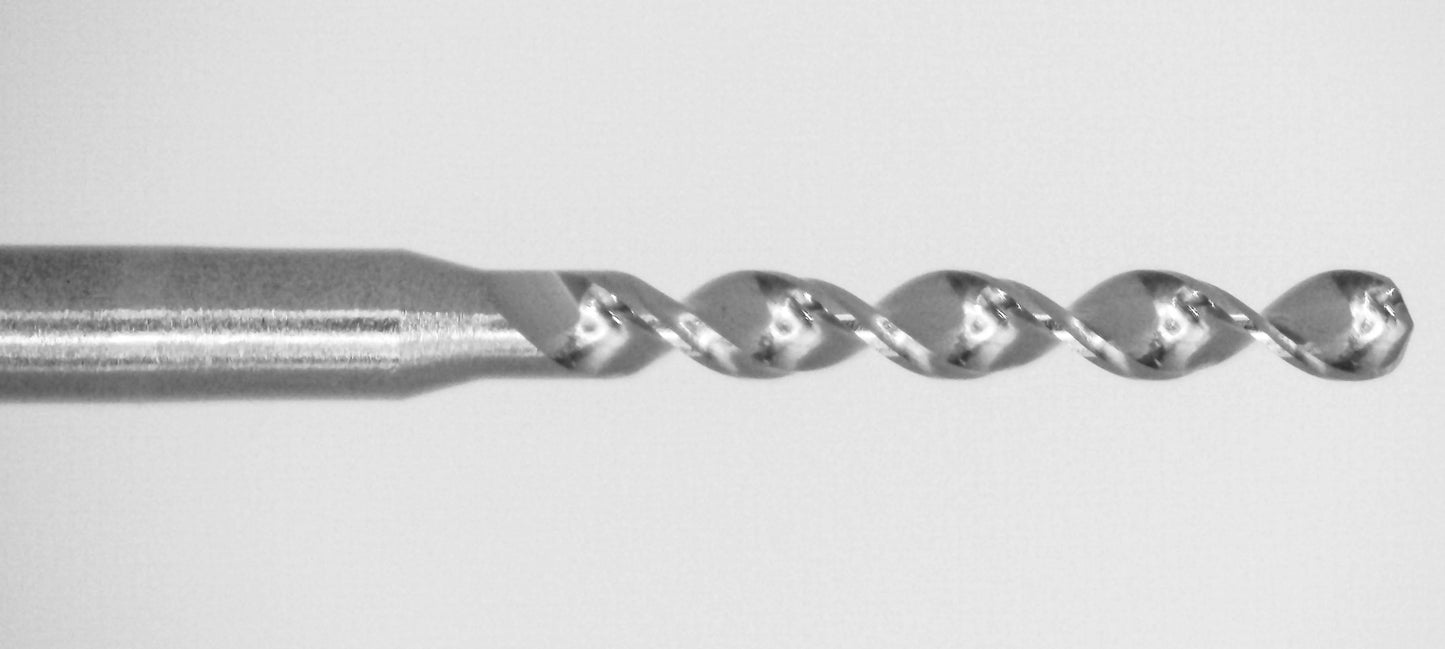

• Point Angle: 150°
• Length of Cut: .197"
• Overall Length: 1.50"
• Shank Diameter: 1/8"
• Material: Solid Carbide
• Country of Origin: USA
• Quantity: 1

Ideal for PCB fabrication and other electronics manufacturing applications requiring precise controlled-depth back drilling.
