0.0625" (1/16") x .158" LOC 2-Flute Drill Point Carbide End Mill, 1/8" Shank | M2-130
0.0625" (1/16") x .158" LOC 2-Flute Drill Point Carbide End Mill, 1/8" Shank | M2-130
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 8% off |
| 50 + | 12% off |
| 100 + | 14% off |
Couldn't load pickup availability

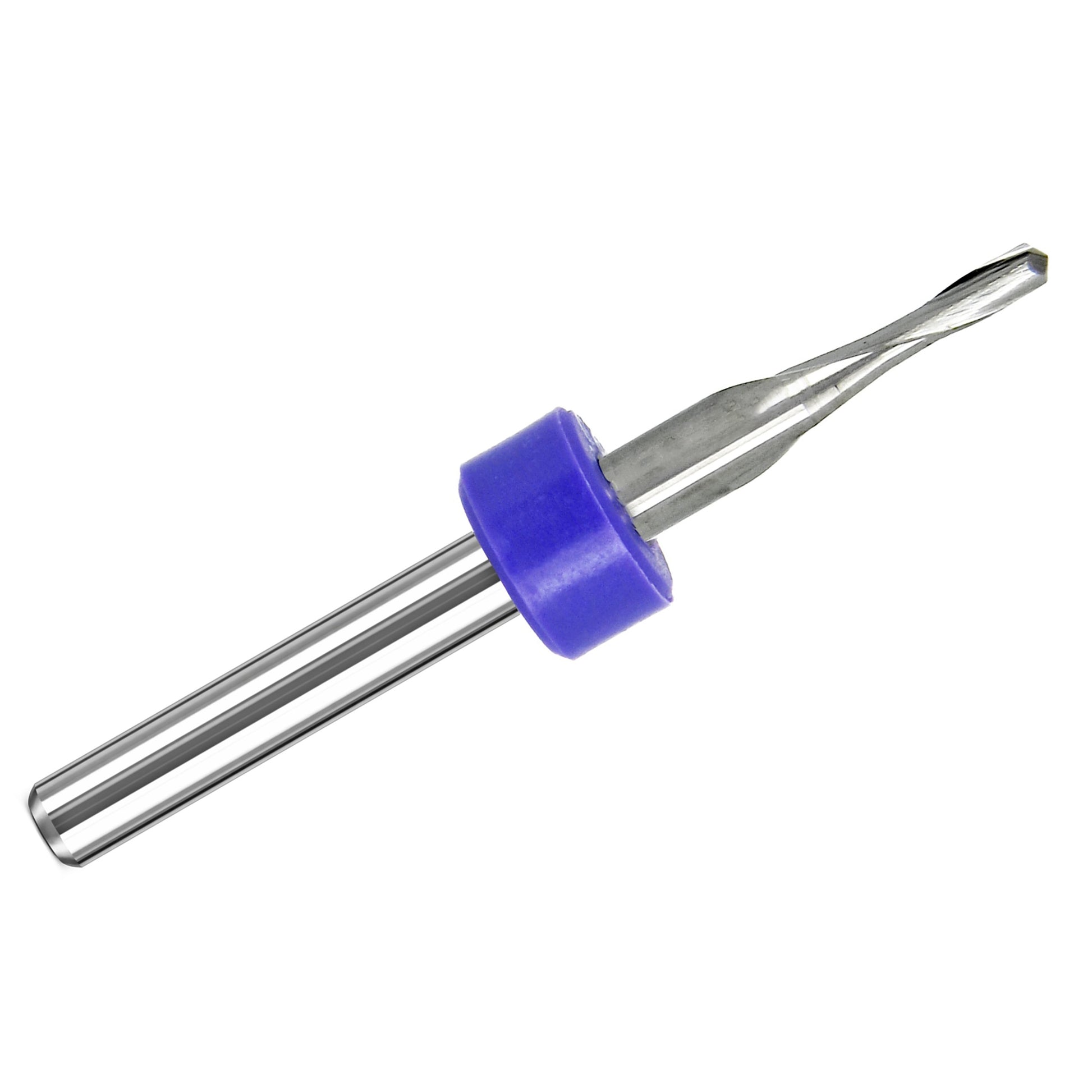

0.0625" / 1/16" 2-flute carbide end mill with .158" LOC and standard 1/8" shank.
This solid carbide end mill is designed for precision CNC machining in aluminum, soft metals, and suitable non-ferrous materials. The 2-flute geometry provides a practical balance of cutting strength and chip clearance for small-diameter milling work.

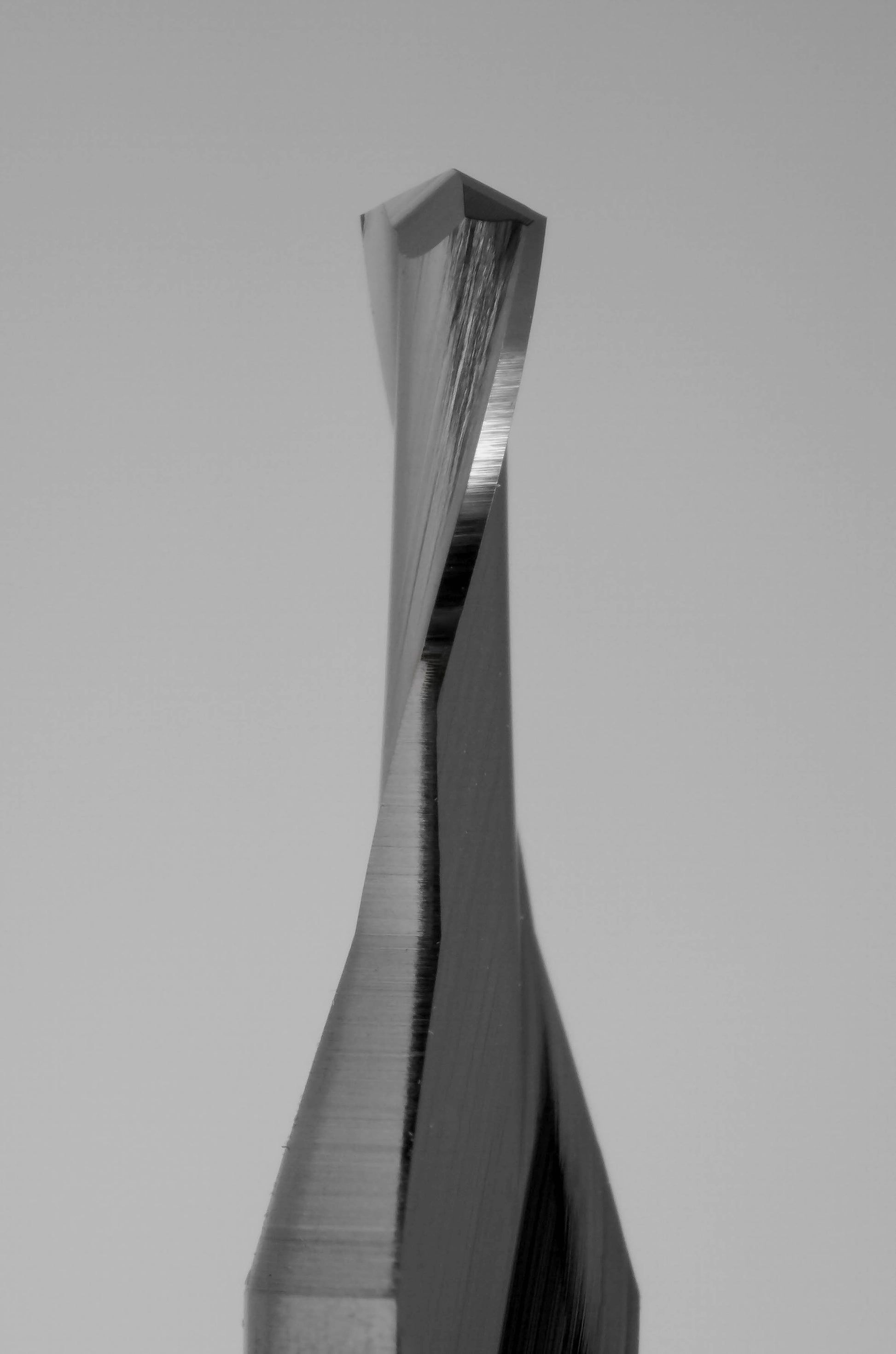

The up-cut flute direction helps evacuate chips efficiently, while the drill-point tip supports controlled plunging and entry into the workpiece.
Common Applications
- Aluminum machining
- Soft non-ferrous metal work
- Brass and copper cutting
- Small slots, pockets, and profiles
- Light CNC milling, hobby work, and prototype machining
Benefits
- 2-flute geometry supports chip evacuation in aluminum and soft metals
- Up-cut flute direction helps pull chips away from the cut
- Drill-point tip supports controlled plunge entry
- Small 1/16" cutting diameter for detail work and compact features
- Solid carbide construction provides rigidity for precision CNC use
- Standard 1/8" shank fits many compact CNC routers and precision collet setups

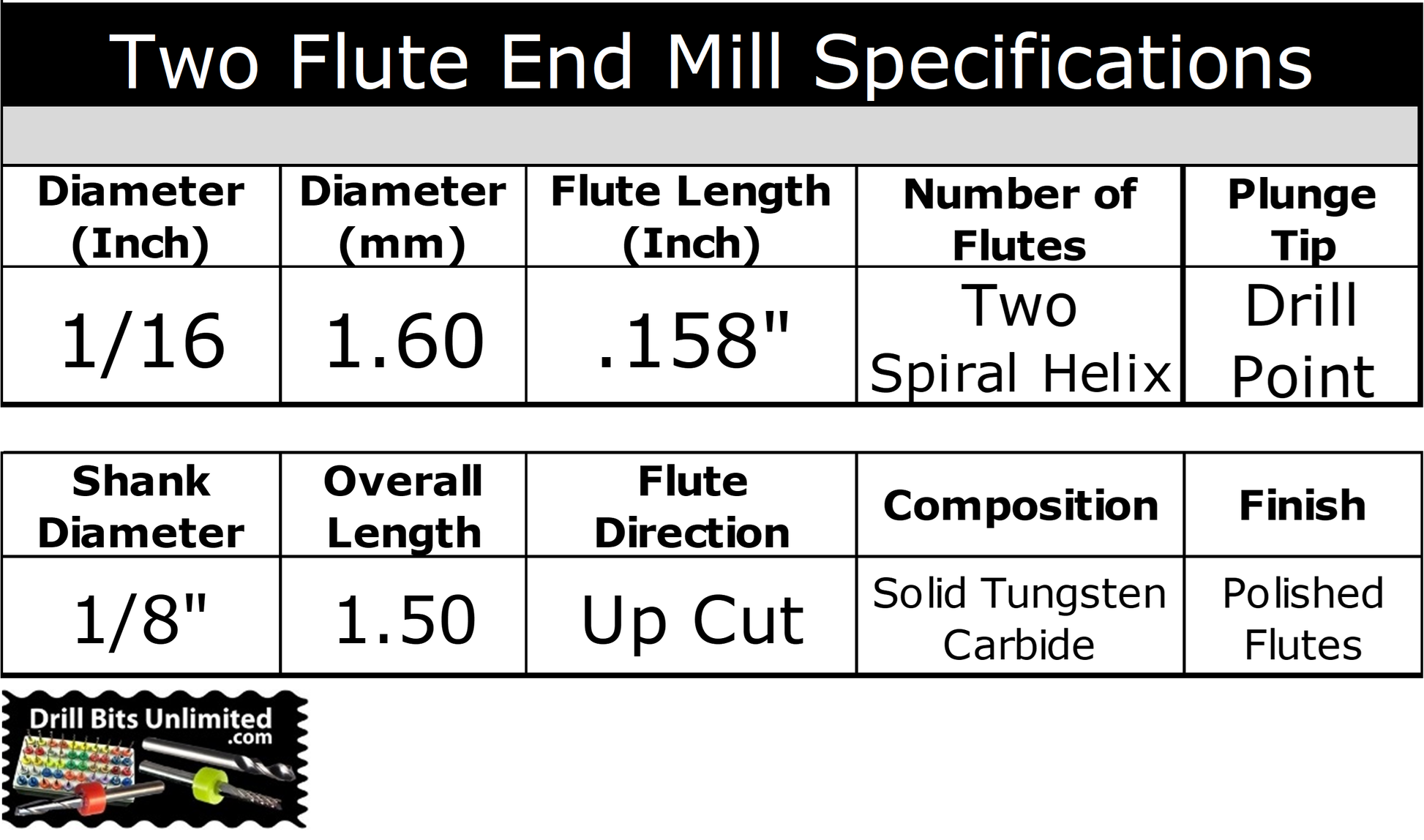

Specifications
| Manufacturer Part Number / SKU | M115 |
|---|---|
| Tool Type | Solid Carbide End Mill |
| Condition | New |

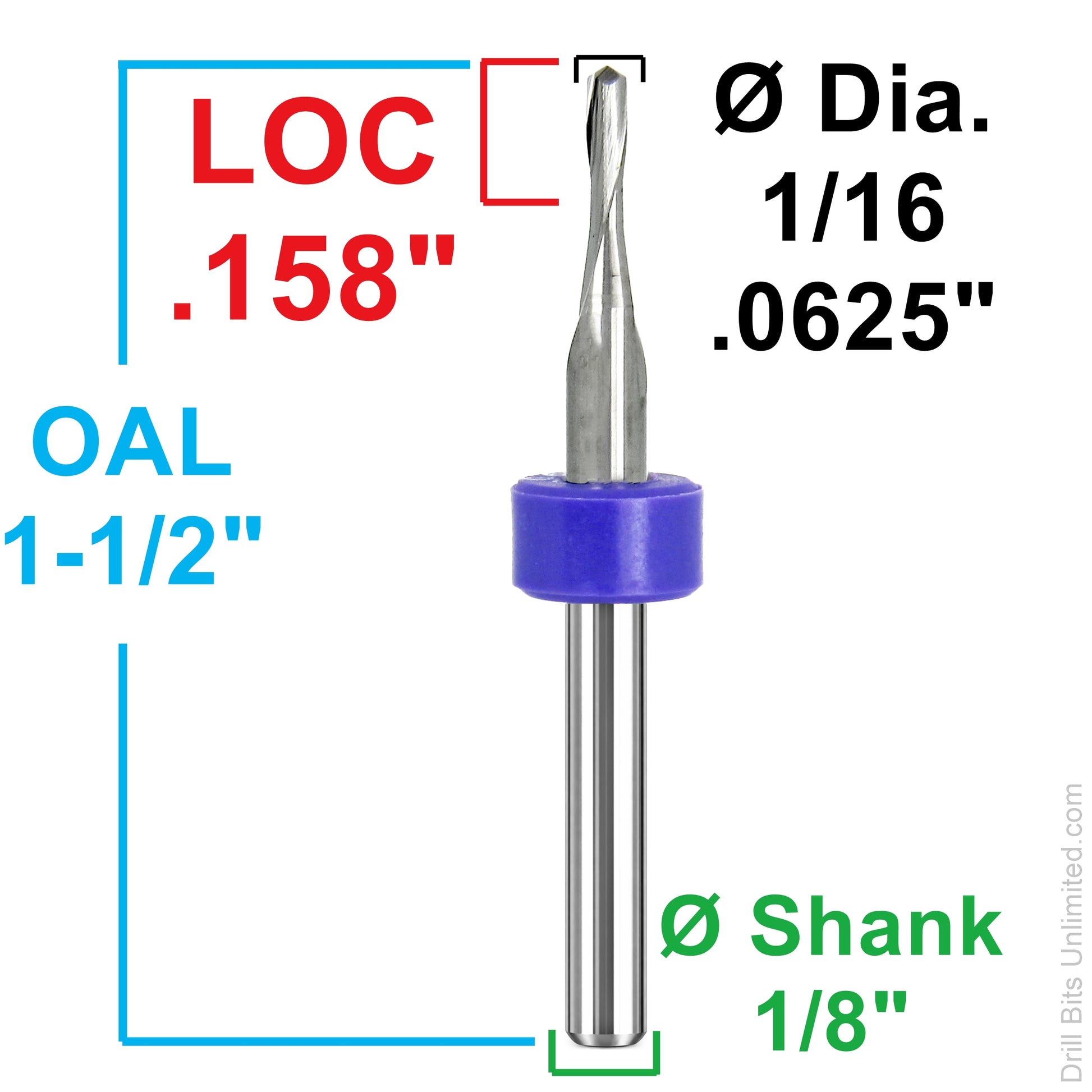

| Cutting Diameter | 0.0625" / 1/16" / 1.60 mm |
| Flutes | 2 |
| LOC | 0.158" |
| Shank Diameter | 1/8" |
| Overall Length | 1.50" |
| Flute Direction | Up Cut |
| Cutting Direction | Right Hand |
| Flute Type | Two-Flute Spiral |
| Helix Angle | 13° |

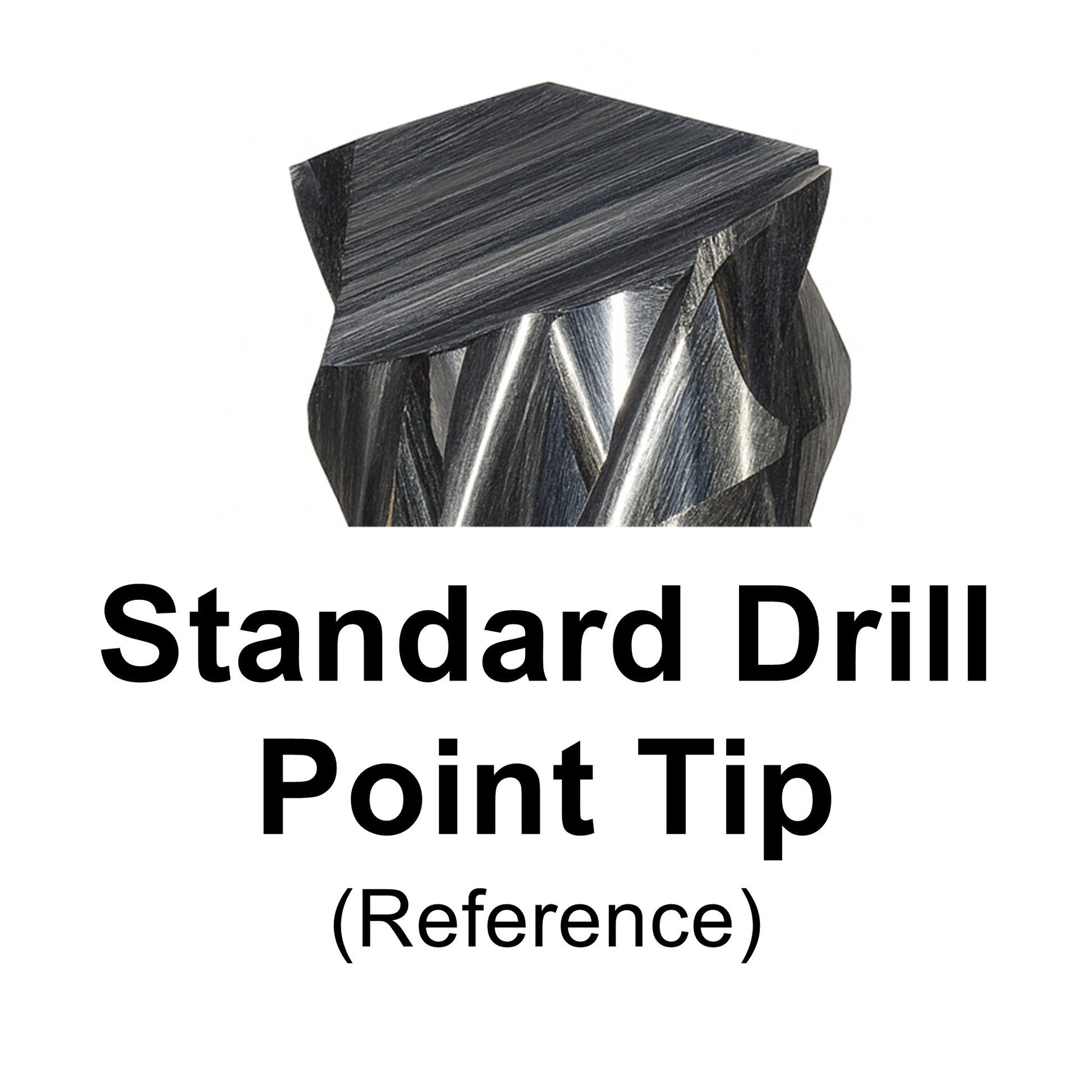

| Tip Style | Drill Point |
| Center Cutting | Yes |
| Material | Solid Tungsten Carbide |
| Finish / Coating | Bright / Uncoated |
Aluminum cutting note: For best results in aluminum and soft metals, use proper chip clearing, suitable lubrication or air blast where appropriate, and conservative starting feeds and speeds for your machine setup.
See our carbide end mill feed and speed calculator →
Shop 2-flute carbide end mills here: 2-flute end mills →
Former SKU / item number: M155
