0.0625" (1/16") Kyocera Chip Breaker PCB Router, .315" LOC, Fish Tail, Up-Cut, 1/8" Shank | R160

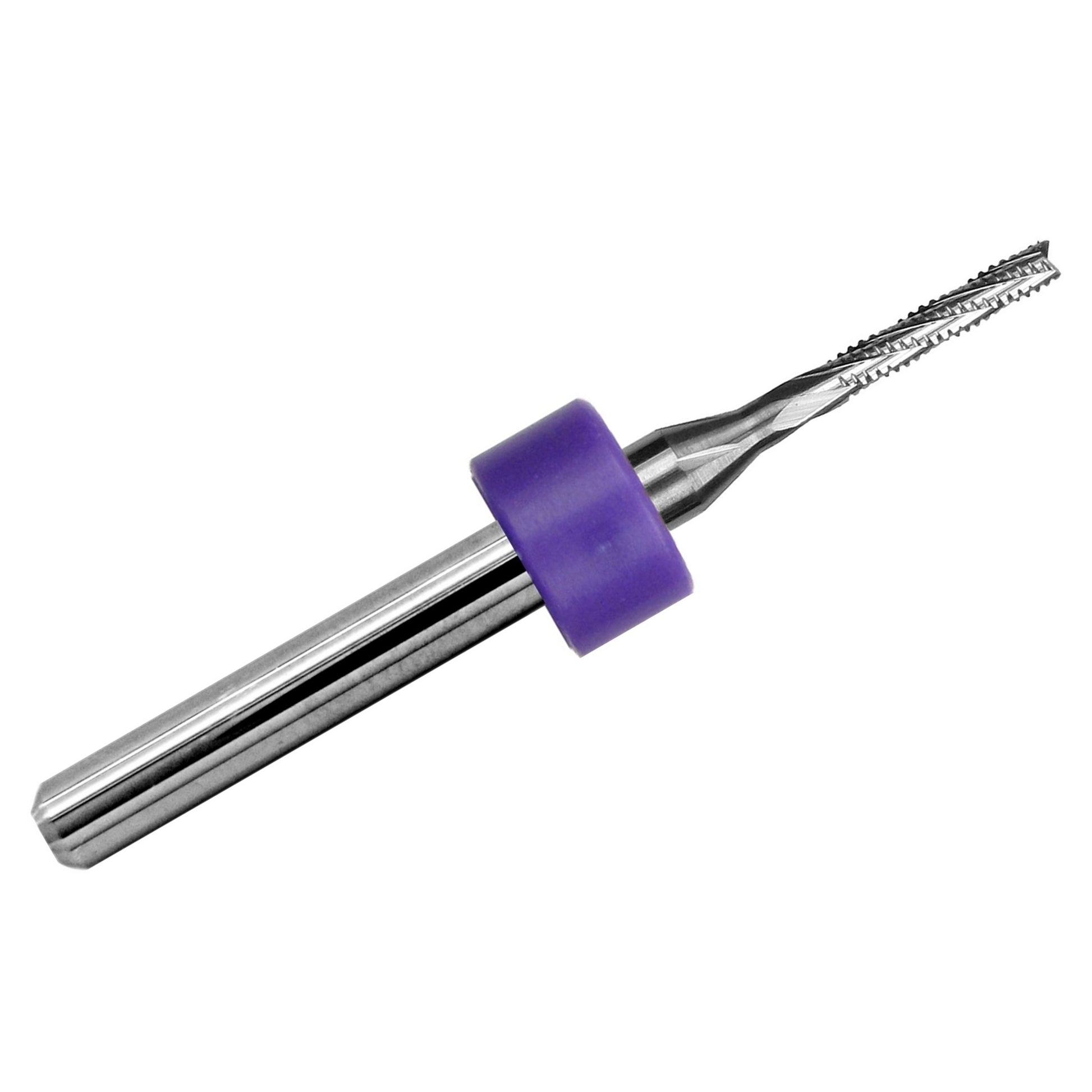

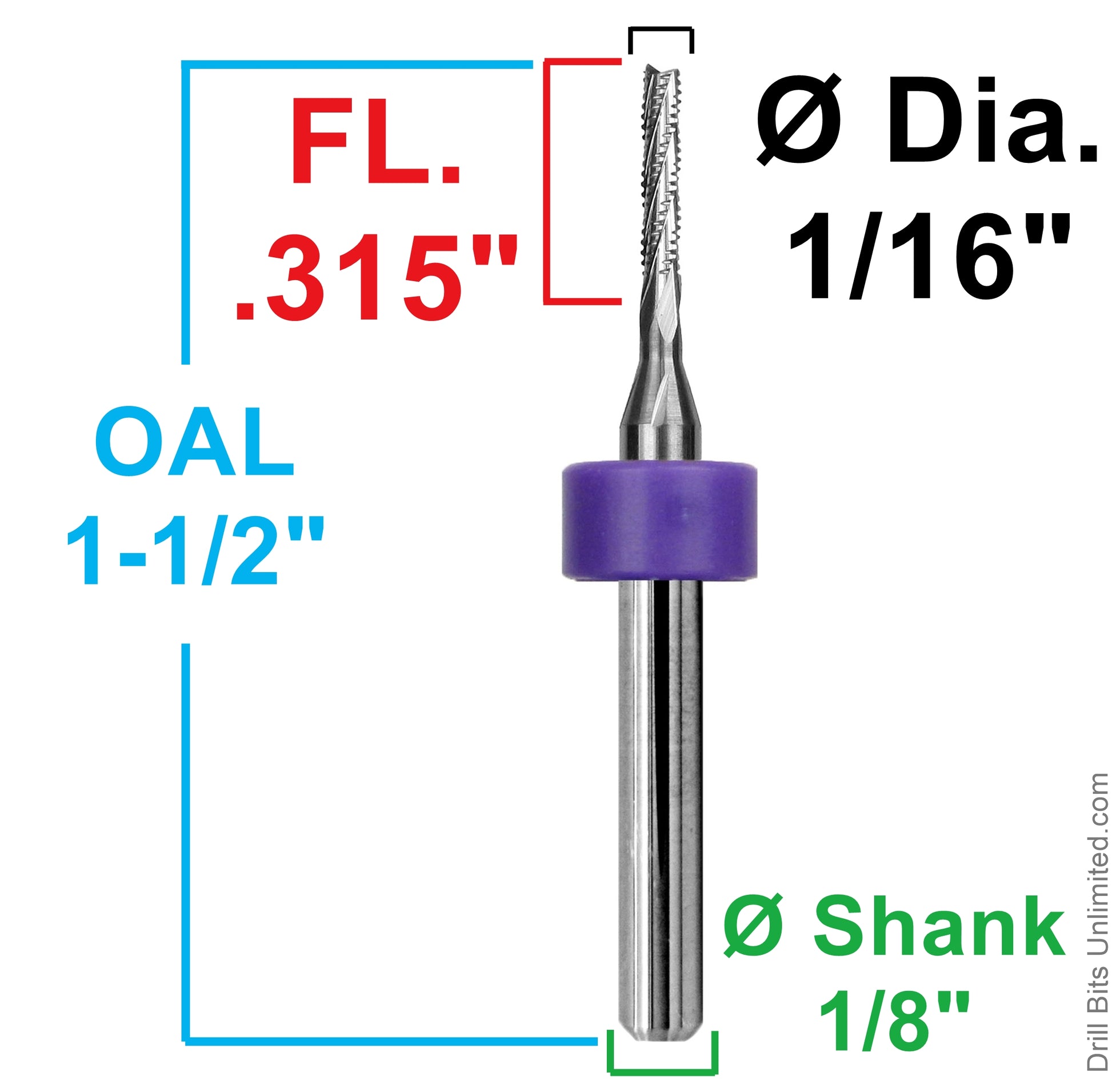

This Kyocera 0.0625" (1/16") chip breaker carbide PCB router features an .315" (8.00mm) length of cut, fish-tail tip, up-cut spiral, 1/8" shank, and 1.50" overall length. The diameter is approximately 1.59mm, commonly designated 1.60mm.

Manufactured from solid tungsten carbide, this precision router is designed for machining FR-4, G10, fiberglass, phenolic laminates, and other rigid composite materials.

Chip Breaker Geometry and Fish-Tail Tip

• Spiral chip breaker: Interrupted cutting edges help break chips into smaller fragments and reduce debris accumulation.
• Up-cut spiral: Directs chips upward and away from the cutting zone for efficient chip evacuation.

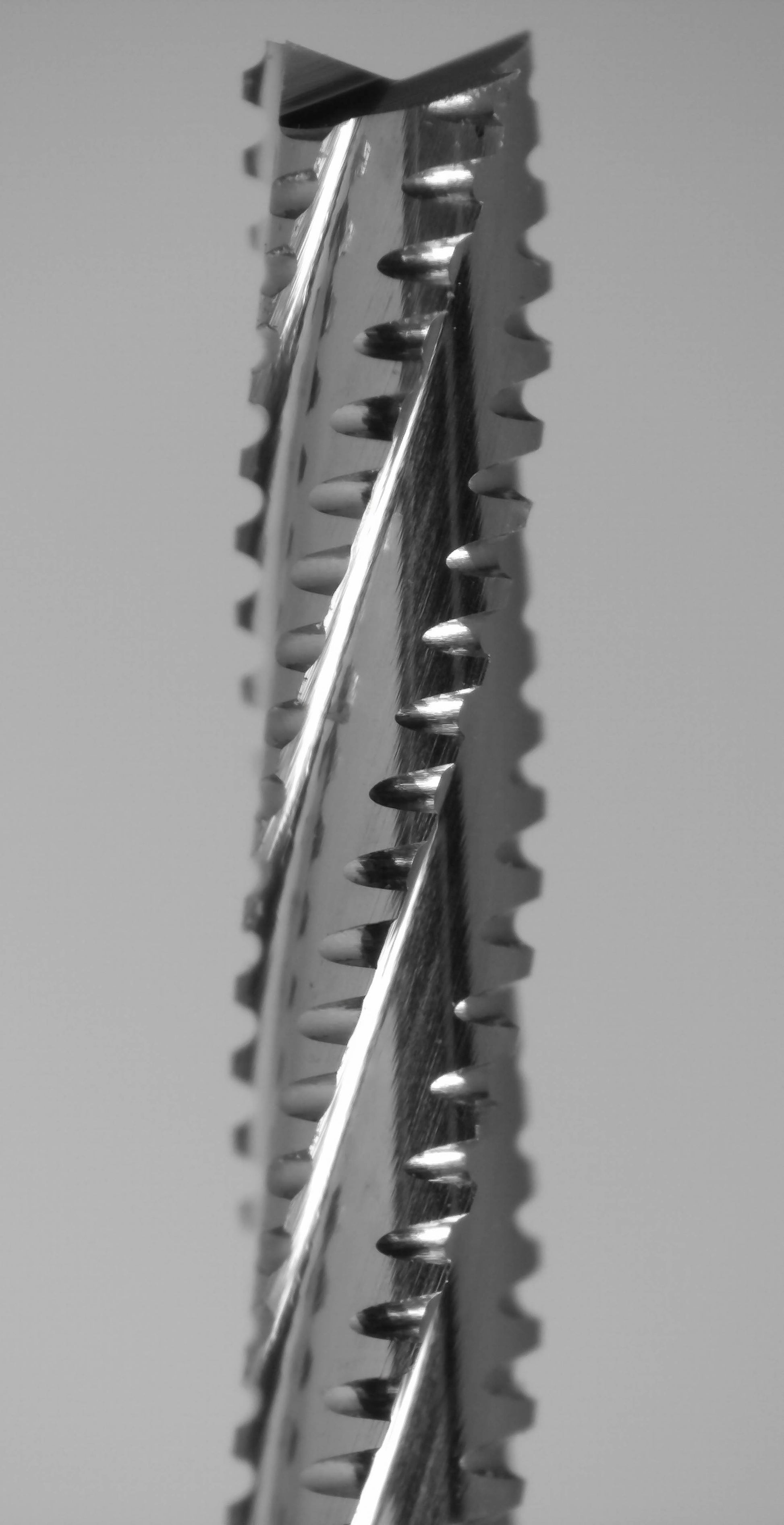

• Fish-tail tip: Provides end-cutting geometry for PCB profiling and through-cutting, helping minimize exit-side breakout with proper workpiece support.
• .315" LOC: Provides 8mm of cutting length for board outlines, slots, and composite routing.
• Solid carbide: Provides rigidity and wear resistance when machining abrasive laminates.

The fish-tail configuration is particularly useful for PCB outline routing and through-cutting where edge quality matters. Appropriate backing material and controlled cutting conditions help minimize splintering and laminate damage.

Need a drill-point tip? Our R159 Drill-Point Chip Breaker Router → offers the same diameter and cutting length with a different tip geometry.

Not sure which router geometry is best for your application? Compare Chip Breaker vs. Diamond Flute PCB Routers →

Typical Applications

• PCB outline routing and depaneling
• FR-4 and G10 fiberglass laminates
• Phenolic laminate cutting
• Precision slots and internal PCB contours
• Through-cutting rigid fiberglass sheets
• Selected carbon fiber composite routing applications

Carbon fiber and highly abrasive materials: Extended machining of abrasive composites can accelerate wear on uncoated carbide. For demanding production applications, consider a suitable diamond-coated router.

Explore Diamond-Coated Routers →

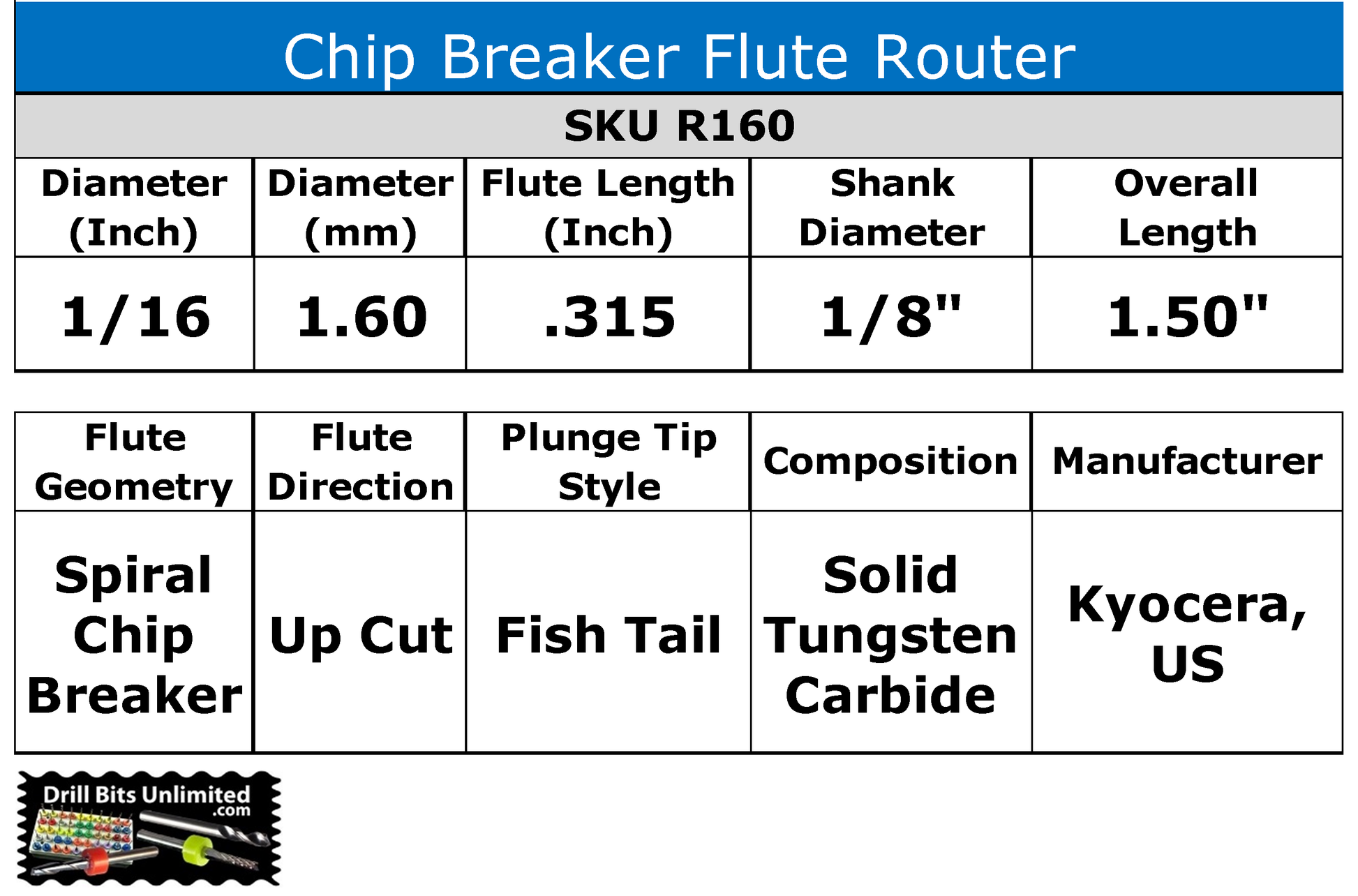

Specifications

Feeds, Speeds and Tool Handling

See our Chip Breaker Router Feed & Speed Chart → for general machining guidance.

Adjust cutting parameters for the material, spindle runout, cutting depth, and workholding. Avoid aggressive plunging and excessive lateral loading.

Sold individually. Price is per router bit.
