0.0750" (1.91mm) x .112" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K046
0.0750" (1.91mm) x .112" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K046
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

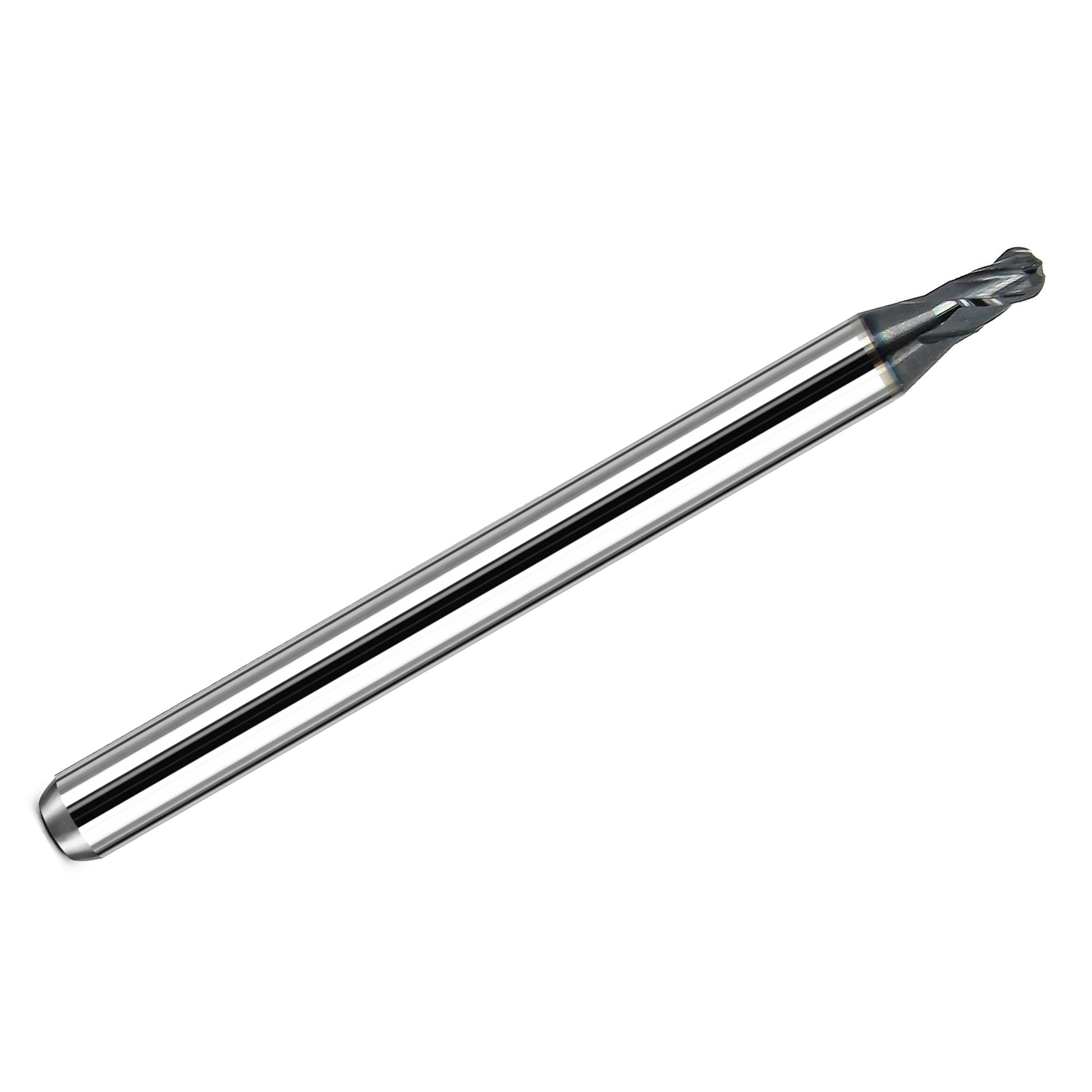

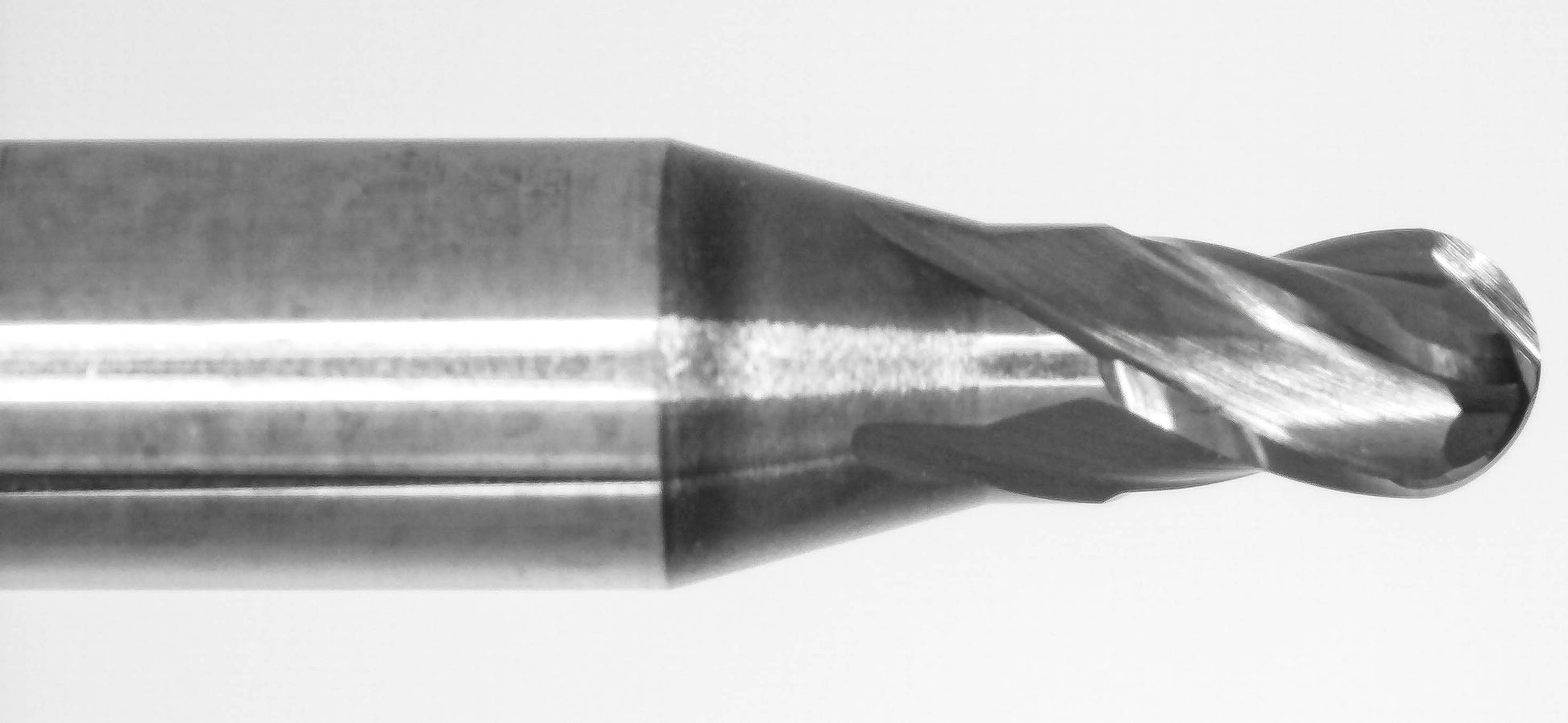

This 0.075" (1.91mm) 4-flute ball nose carbide end mill features a durable AlTiN coating and precision-ground cutting geometry designed for high-performance CNC machining of steels and other difficult materials.
Ball nose end mills are commonly used for 3D contour milling, mold and die work, and complex surface finishing. The rounded cutting tip allows smooth transitions and fine surface finishes when machining curved geometries and detailed features.
The AlTiN coating provides excellent heat resistance and wear protection, making this tool well suited for machining steel, stainless steel, hardened steel, cast iron, and super alloys at higher cutting speeds.
Manufacturer Part Number: 1835-075L112
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die machining
- Precision surface finishing
- Machining curved geometries
- High-speed CNC machining
Benefits
- Ball nose geometry produces smooth 3D surface finishes
- 4 flutes provide strength and improved surface quality
- AlTiN coating increases heat resistance and tool life
- Solid micro-grain carbide construction for rigidity
- Center-cutting design allows plunging and ramping

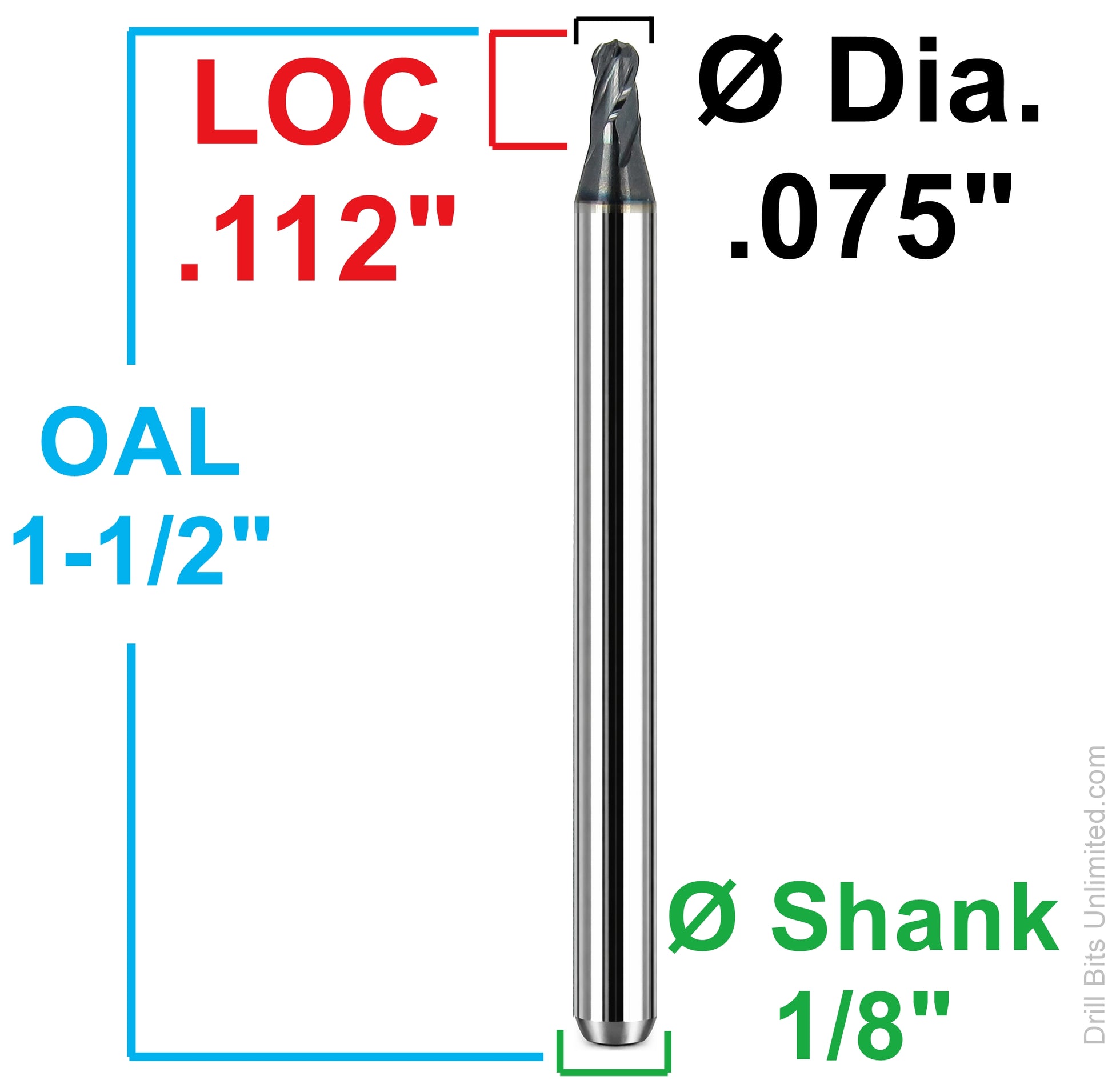

Specifications
| Tool Type | Ball Nose End Mill |
| Diameter | 0.0750" (1.91mm) |
| Flutes | 4 |
| Helix Angle | 30° |
| Length of Cut | 0.1120" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Material | Solid Micro-Grain Carbide |
| Coating | AlTiN |
| Cutting Direction | Right Hand |
| Cutting Style | Center Cutting |
| Compatible Materials | Steel, Stainless Steel, Hardened Steel, Cast Iron, Super Alloys |
| Country of Origin | United States |
