0.0850" 3-Flute Ball Nose Carbide End Mill – AlTiN – Kyocera USA K032
0.0850" 3-Flute Ball Nose Carbide End Mill – AlTiN – Kyocera USA K032
Couldn't load pickup availability

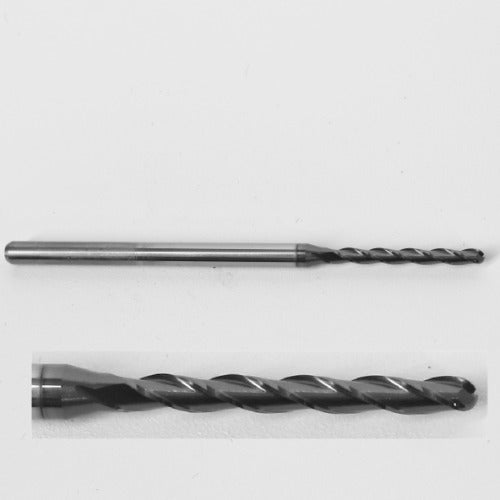

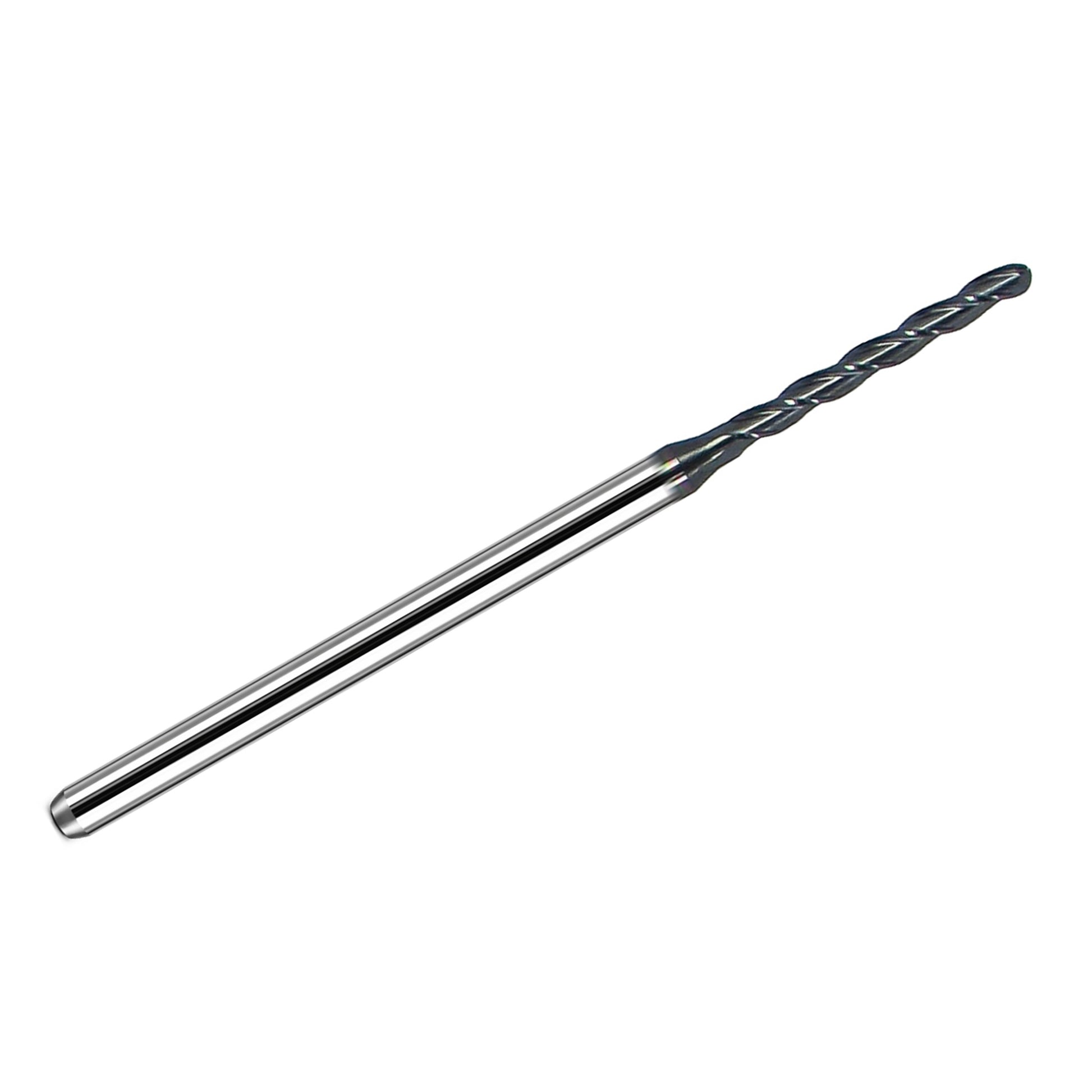

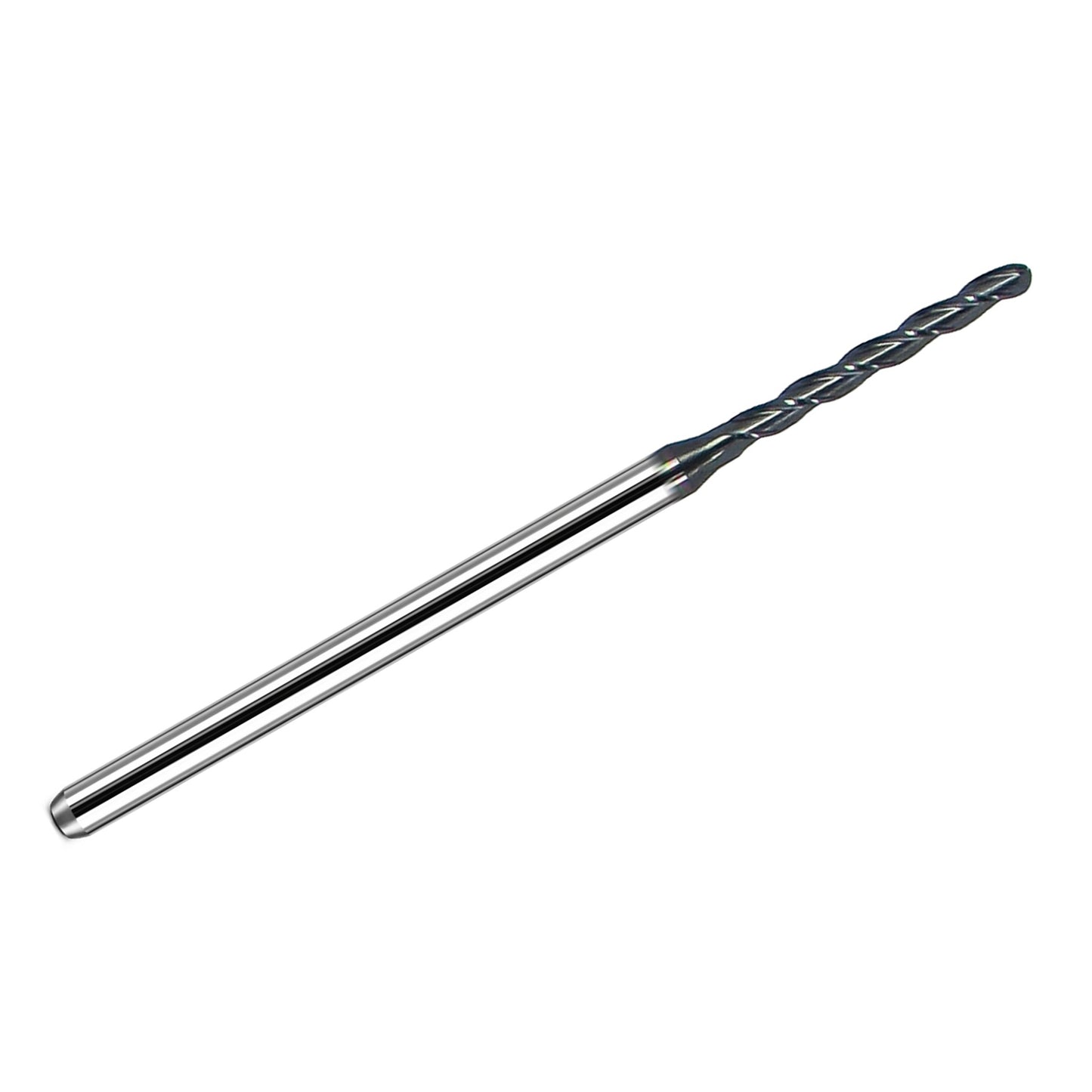

This 0.085" 3-flute ball nose carbide end mill from Kyocera features a durable AlTiN coating for improved wear resistance, heat protection, and longer tool life in demanding CNC applications.
The ball nose geometry is ideal for 3D contouring, profiling, blending, and finishing operations. Its 3-flute design offers a strong balance of rigidity, chip evacuation, and smooth cutting performance.
This tool is well suited for machining steel, stainless steel, cast iron, and superalloys, making it a strong choice for precision mold work, detailed contours, and general finishing passes where a ball profile is required.
Manufacturer: Kyocera
Manufacturer Part Number: 1725-0850L750
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profile milling
- Finishing curved surfaces
- Blending toolpaths
- Mold and die detail work
- Precision CNC milling in harder materials
Benefits
- Ball nose tip for smooth 3D contours and radiused profiles
- AlTiN coating improves heat resistance and wear life
- 3-flute design balances chip evacuation and rigidity
- Solid carbide construction for precision and strength
- Made in USA by Kyocera

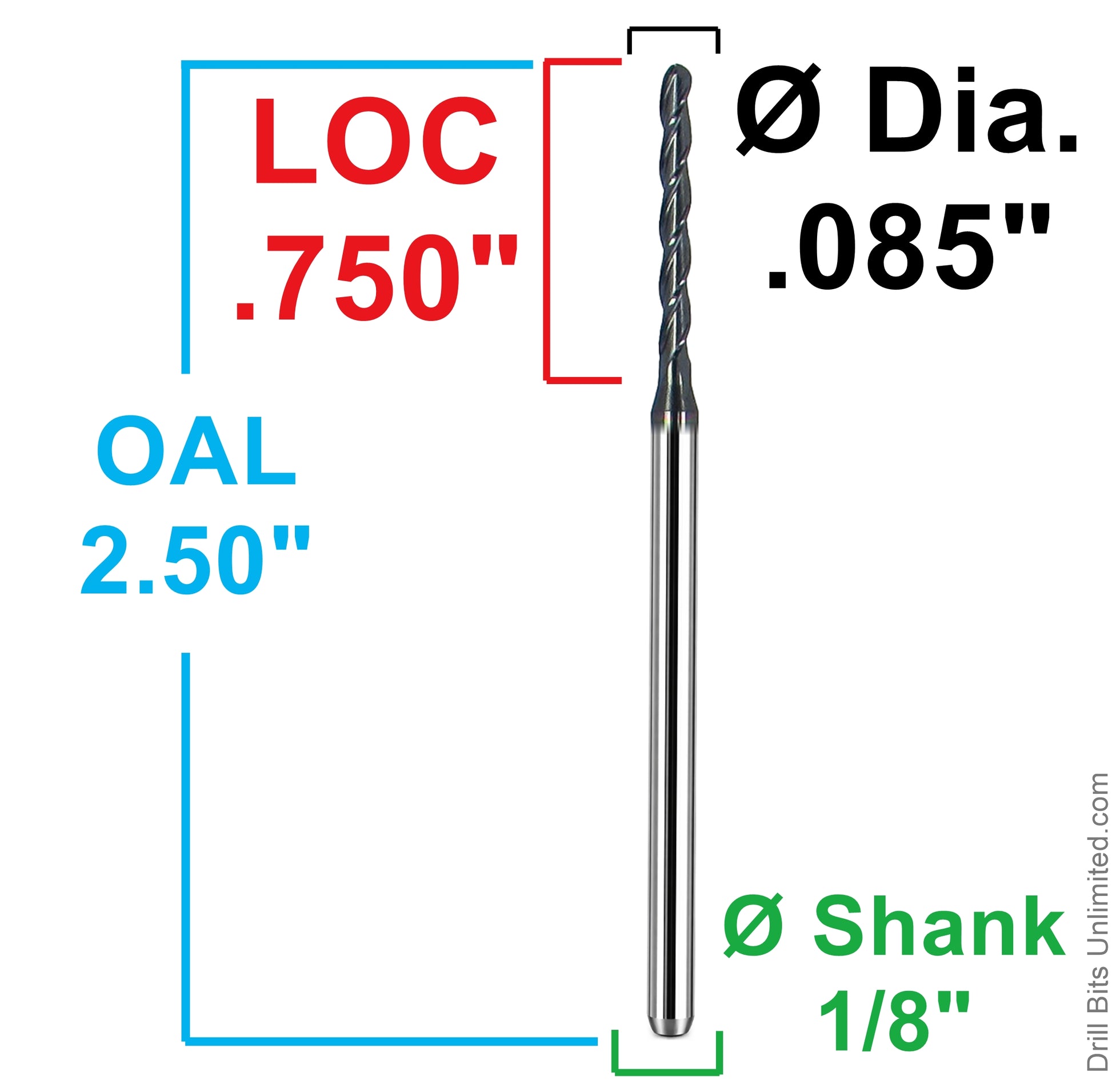

Specifications
| Tool Type | Ball End Mill |
| Diameter | 0.0850" |
| Flutes | 3 |
| Material | Solid Carbide |
| Coating | AlTiN |
| Helix Angle | 30° |
| Length of Cut | 0.7500" |
| Overall Length | 2.5000" |
| Shank Diameter | 0.1250" |
| Cutting Direction | Right Hand |
| Cutting Type | Center Cutting |
| Compatible Materials | Steel, Stainless Steel, Cast Iron, Superalloys |
| Non-Ferrous Compatibility | No |
| Country of Origin | United States |
