0.0900" x .270" LOC 4-Flute Ball Nose Carbide End Mill, Extended Reach ,1/8" Shank | K151
0.0900" x .270" LOC 4-Flute Ball Nose Carbide End Mill, Extended Reach ,1/8" Shank | K151
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

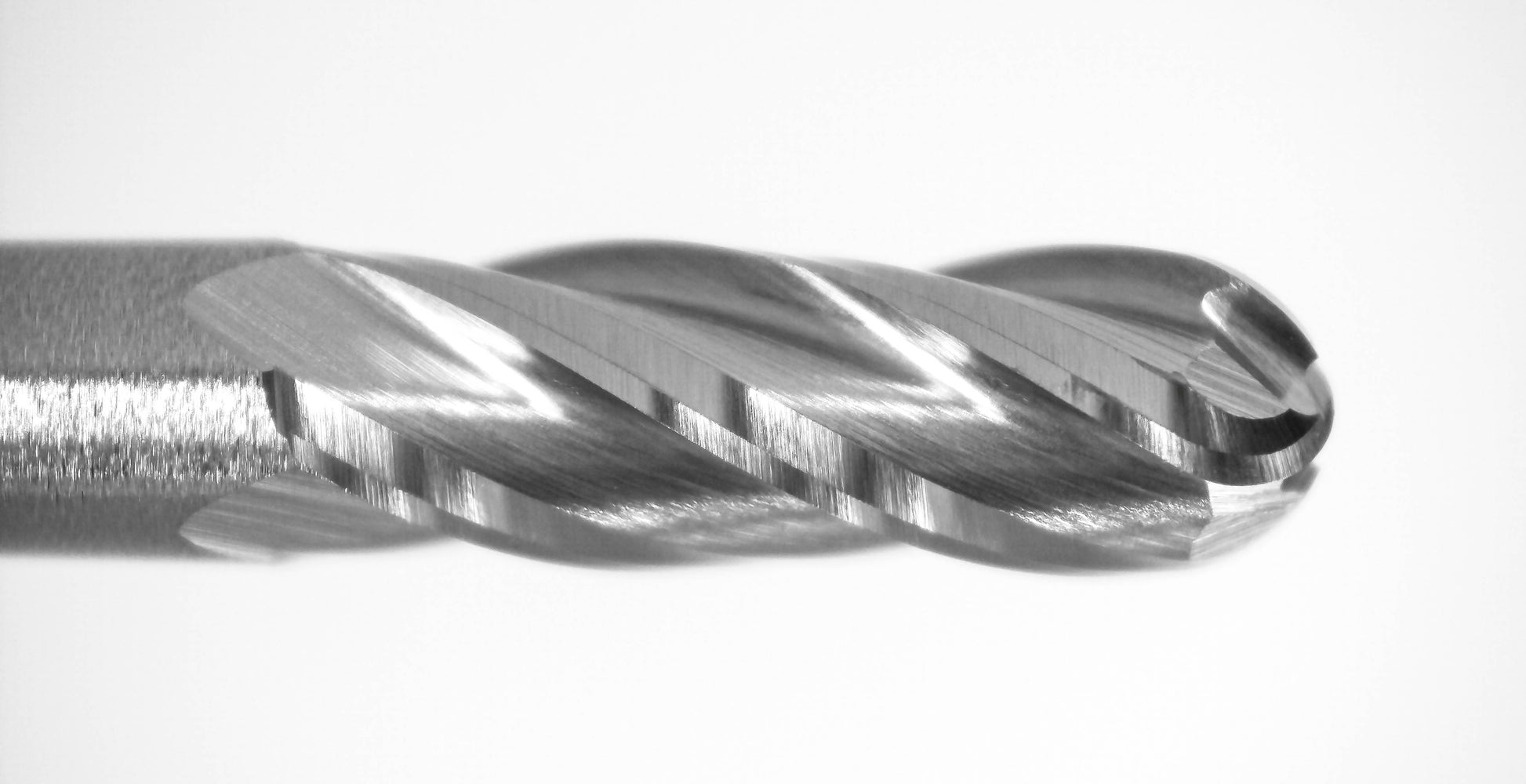

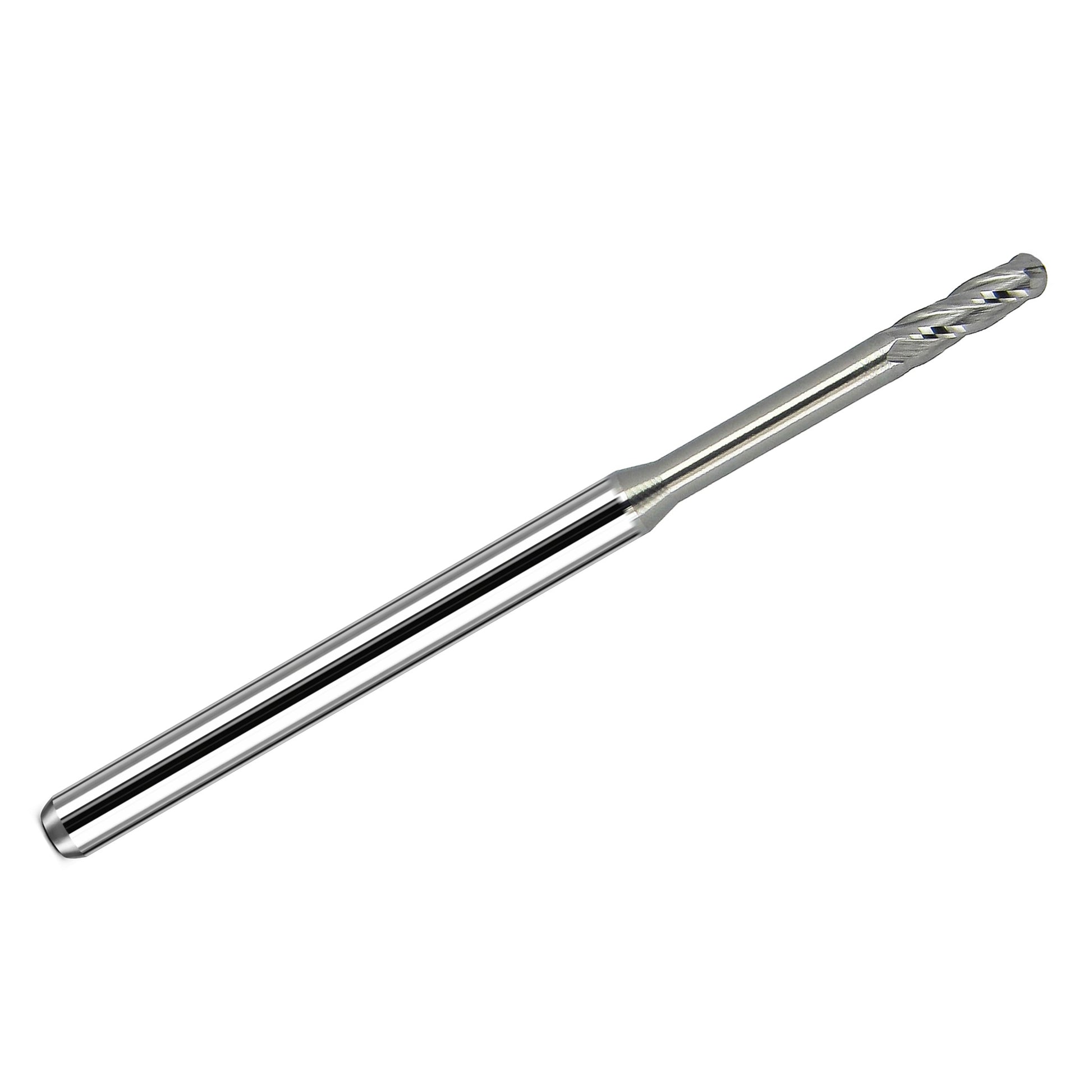

This 0.0900" 4-flute extended reach ball nose end mill is made from solid carbide and features a bright uncoated finish for precision miniature milling applications. The extended reach neck design provides improved access in deeper or restricted areas while maintaining a compact 1/8" shank.
This tool has a 0.0900" cutting diameter, 0.270" length of cut, 0.750" neck length, and 1-1/2" overall length. The 4-flute ball nose geometry is suitable for miniature contouring and profiling in steels, stainless steels, cast iron, hardened materials, and super alloys.
Manufacturer: Kyocera
Series: 1845
Manufacturer Part Number: 1845-0900.750
Alternate Format: 18450900750
Country of Origin: United States
| Item | Ball Nose End Mill |
| Cutting Diameter | 0.0900" (2.29mm) |
| Length of Cut | 0.2700" (6.86mm) |
| Neck Length | 0.7500" (19.05mm) |
| Overall Length | 1.5000" (38.10mm) |
| Shank Diameter | 1/8" (3.175mm) |
| Number of Flutes | 4 |
| End Style | Ball Nose |
| Cutting Direction | Right Hand |
| Helix Angle | 30 Degrees |
| Cutting Type | Center Cutting |
| Tool Material | Carbide |
| Grade | Micro Grain Carbide |
| Finish | Bright (Uncoated) |
| Application | Roughing/Finishing |
| Made in USA | Yes |
