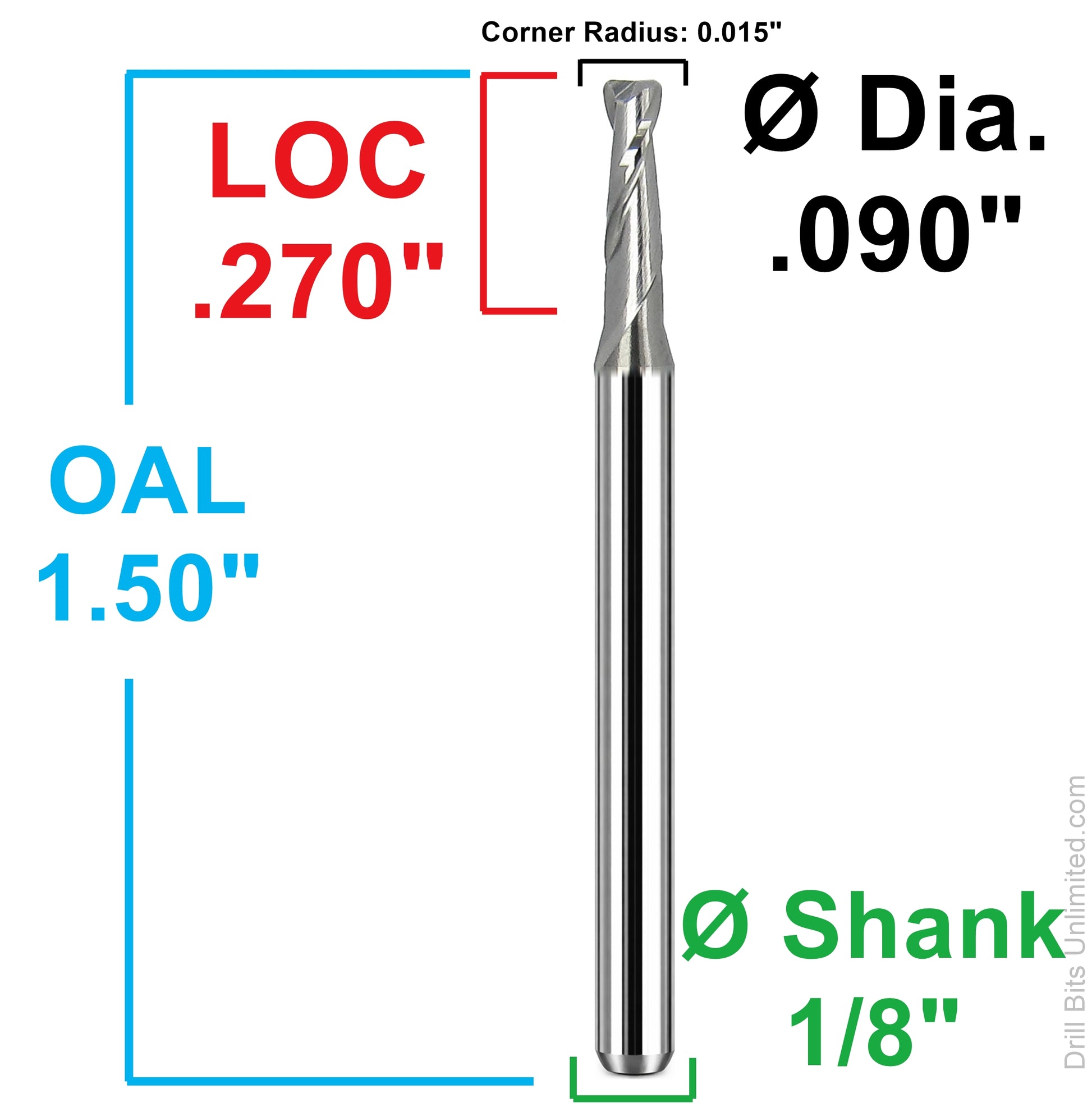

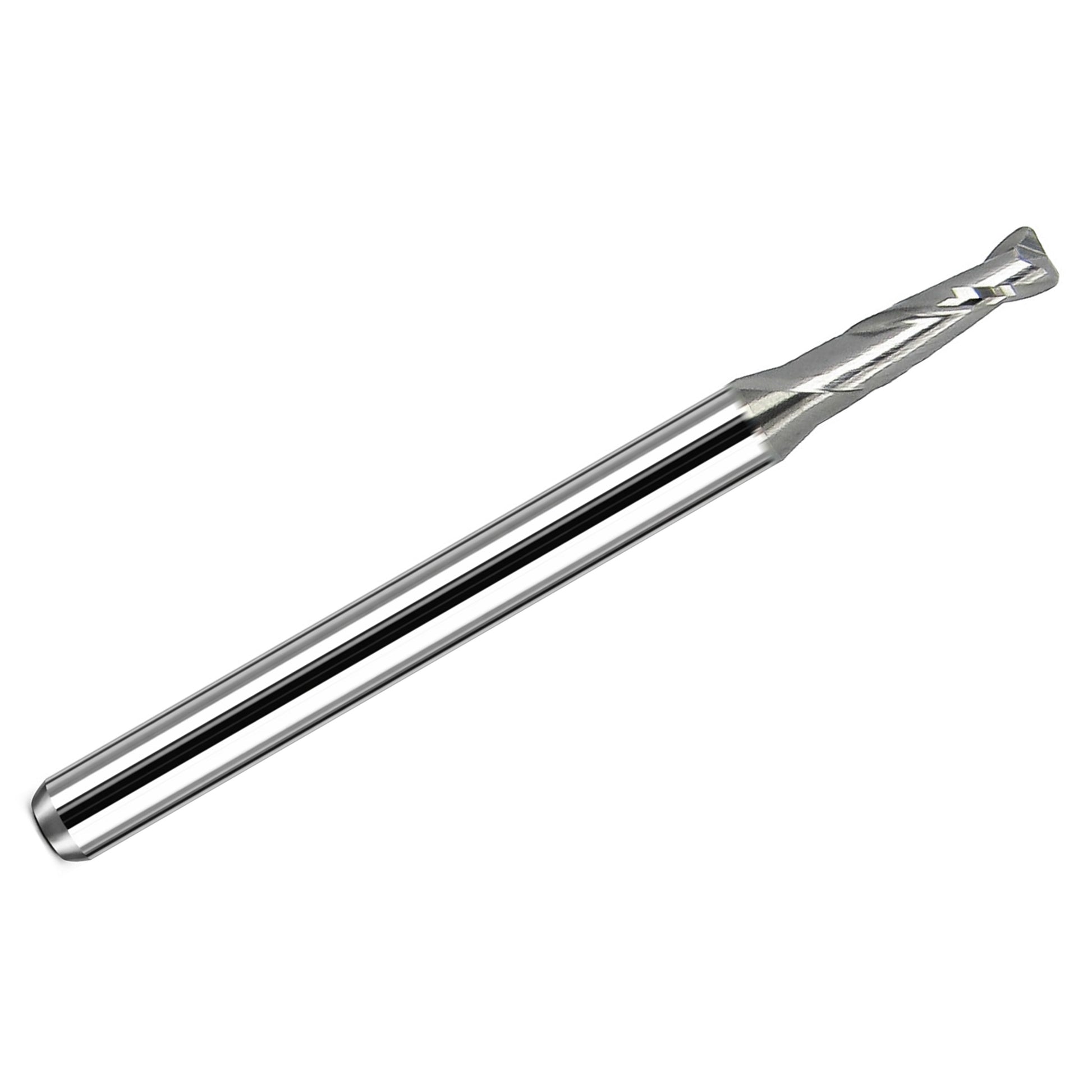

0.0900" x .270" LOC 2-Flute Corner Radius 0.015" Radius Carbide End Mill, 1/8" Shank | K183

This .0900" 2-flute corner radius carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision CNC milling applications where a sharp cutting edge and clean finish are important.

This tool is part of the Kyocera Series 1613 standard-length corner radius end mill line. The .015" corner radius helps strengthen the cutting edge compared to a sharp square corner while still allowing accurate shoulder and profile milling.

With its 2-flute geometry and 30° helix, this tool is well suited for profiling, slotting, contouring, and finish milling where a small corner radius is preferred. Because it is bright (uncoated), it is especially useful where coating is not required and a sharp edge is preferred.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1613-0900.270CR

Country of Origin: United States

Typical Applications

• Profiling and contouring
• Shoulder milling with improved edge strength
• Finish milling
• Precision CNC machining
• General-purpose milling with a small corner radius

Benefits

• Corner radius strengthens the cutting edge versus a sharp corner
• 2 flutes provide efficient chip evacuation
• Bright uncoated finish for sharp cutting performance
• Sub-micron carbide supports edge retention and precision
• 30° helix promotes smooth cutting action

Specifications

👉 View End Mill Feed & Speed Calculator
