0.0900" x .750" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K154
0.0900" x .750" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K154
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

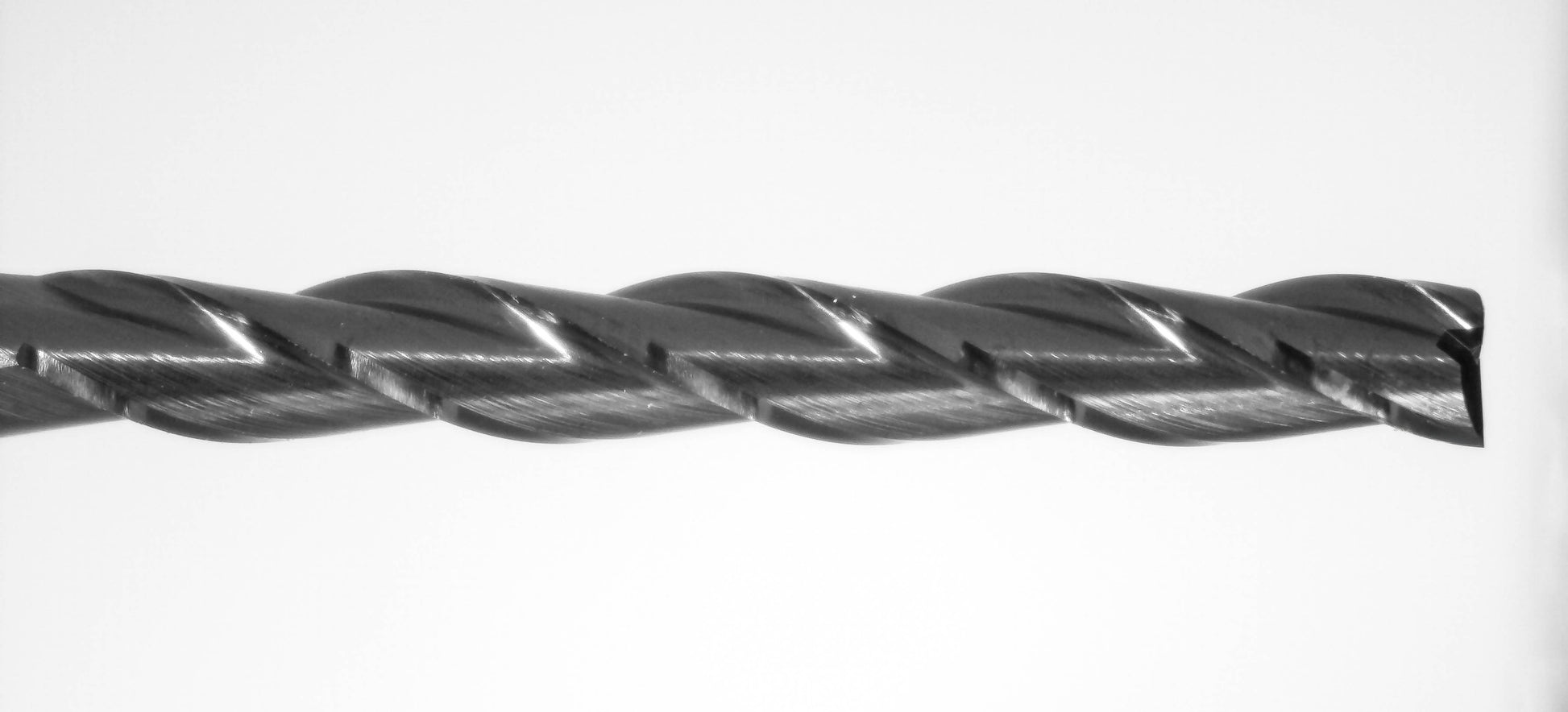

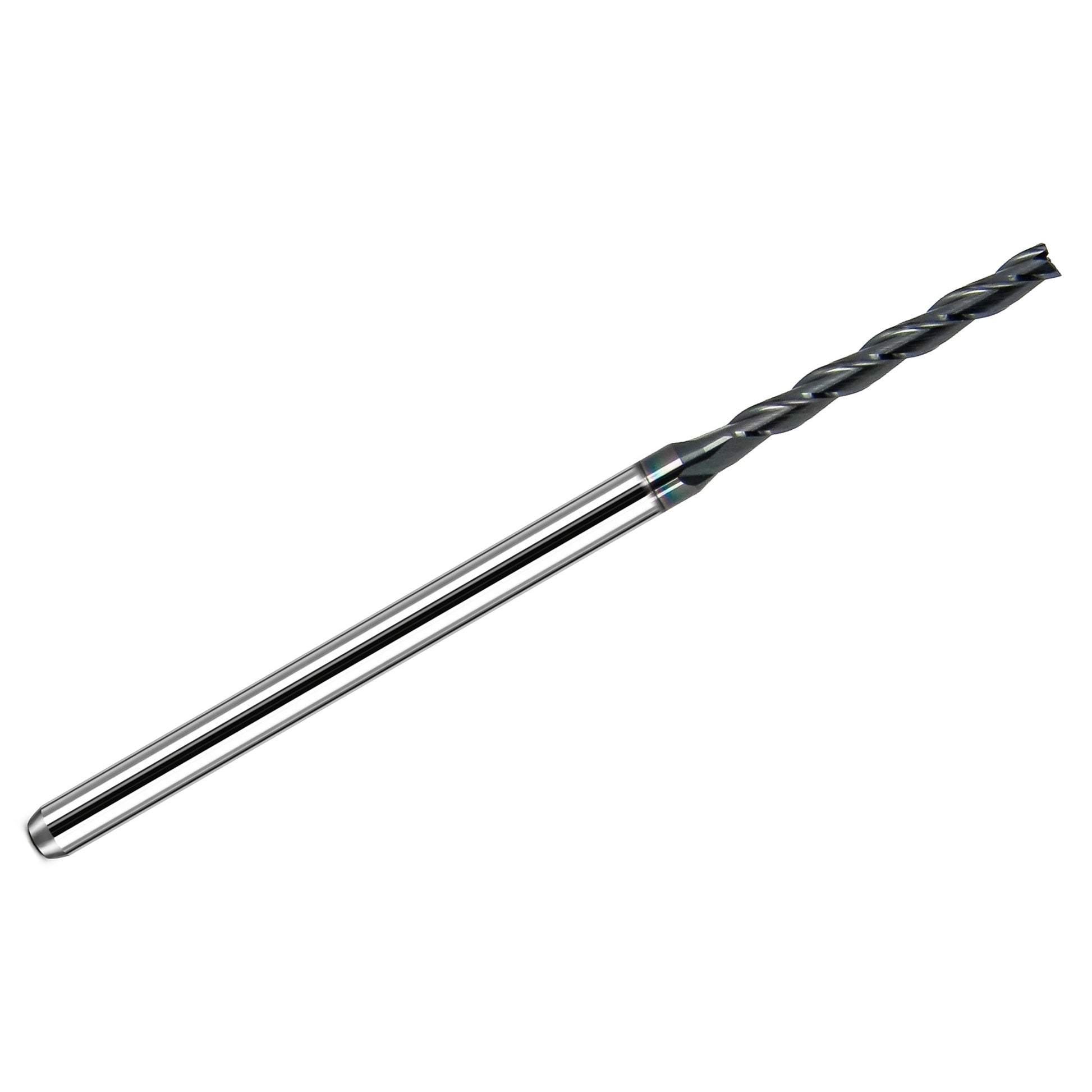

This .0900" 3-flute square end carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.
Square end mills are ideal for slotting, profiling, side milling, and general-purpose machining. The flat cutting end produces sharp corners and clean wall finishes, making this tool a strong choice for both roughing and finishing operations.
Because this tool has an AlTiN-coated finish, it is better suited for more demanding machining conditions where added heat resistance and improved wear life are important. This tool is well suited for steel, stainless steel, cast iron, hardened materials, and super alloys.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1710-0900L750
Country of Origin: United States
Typical Applications
- Slotting and side milling
- Profiling and contouring
- General-purpose CNC machining
- Roughing and finishing operations
- Machining steel, stainless, cast iron, and super alloys
Benefits
- Square end geometry for flat-bottom cuts and sharp corners
- 3 flutes provide a balance of strength and chip control
- AlTiN coating improves heat resistance and wear life
- Micro-grain carbide supports edge retention and rigidity
- Center cutting design allows plunge milling capability

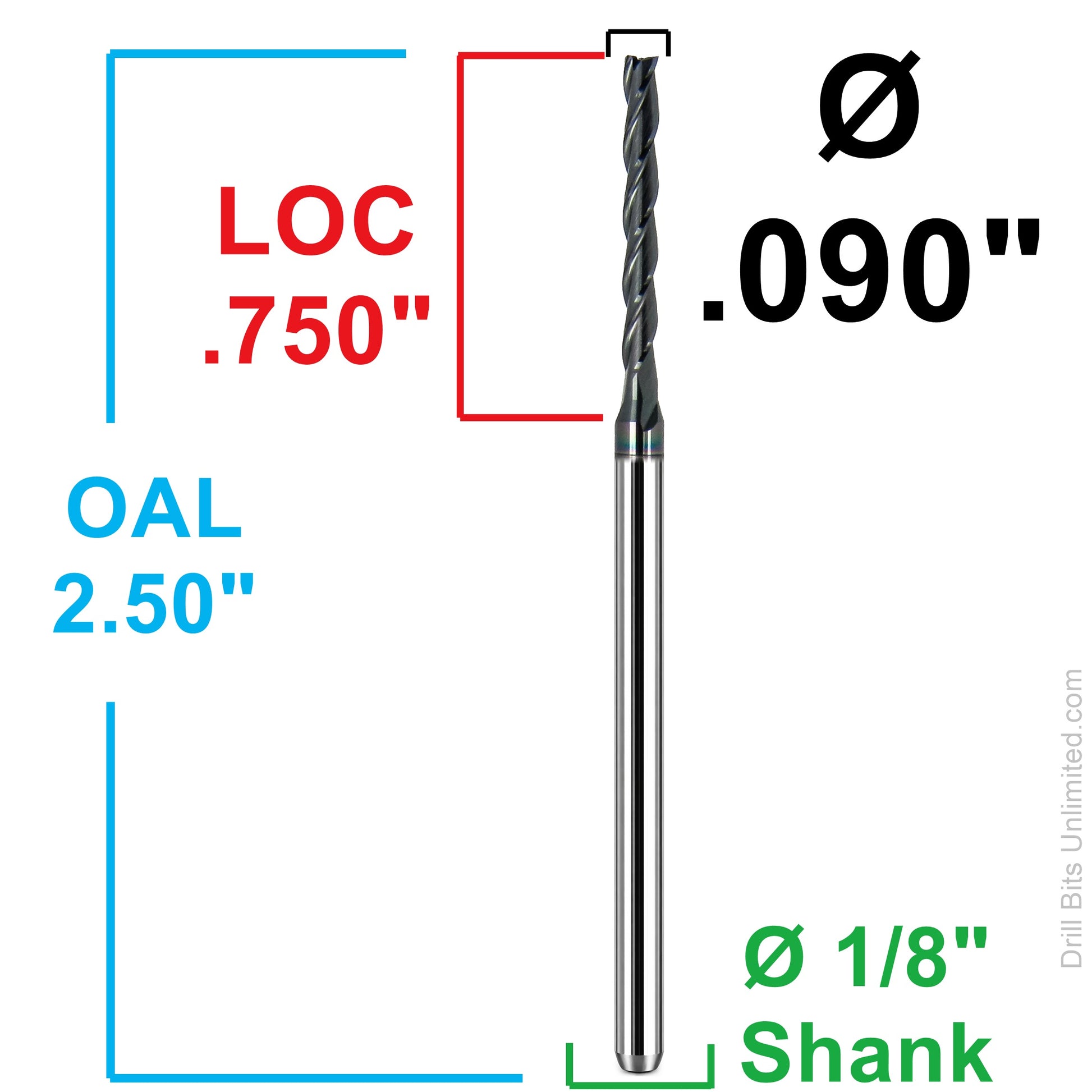

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| Series | 1710 |
| Milling Diameter | 0.0900" |
| Length of Cut (LOC) | 0.7500" |
| Overall Length | 2.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened Material (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
