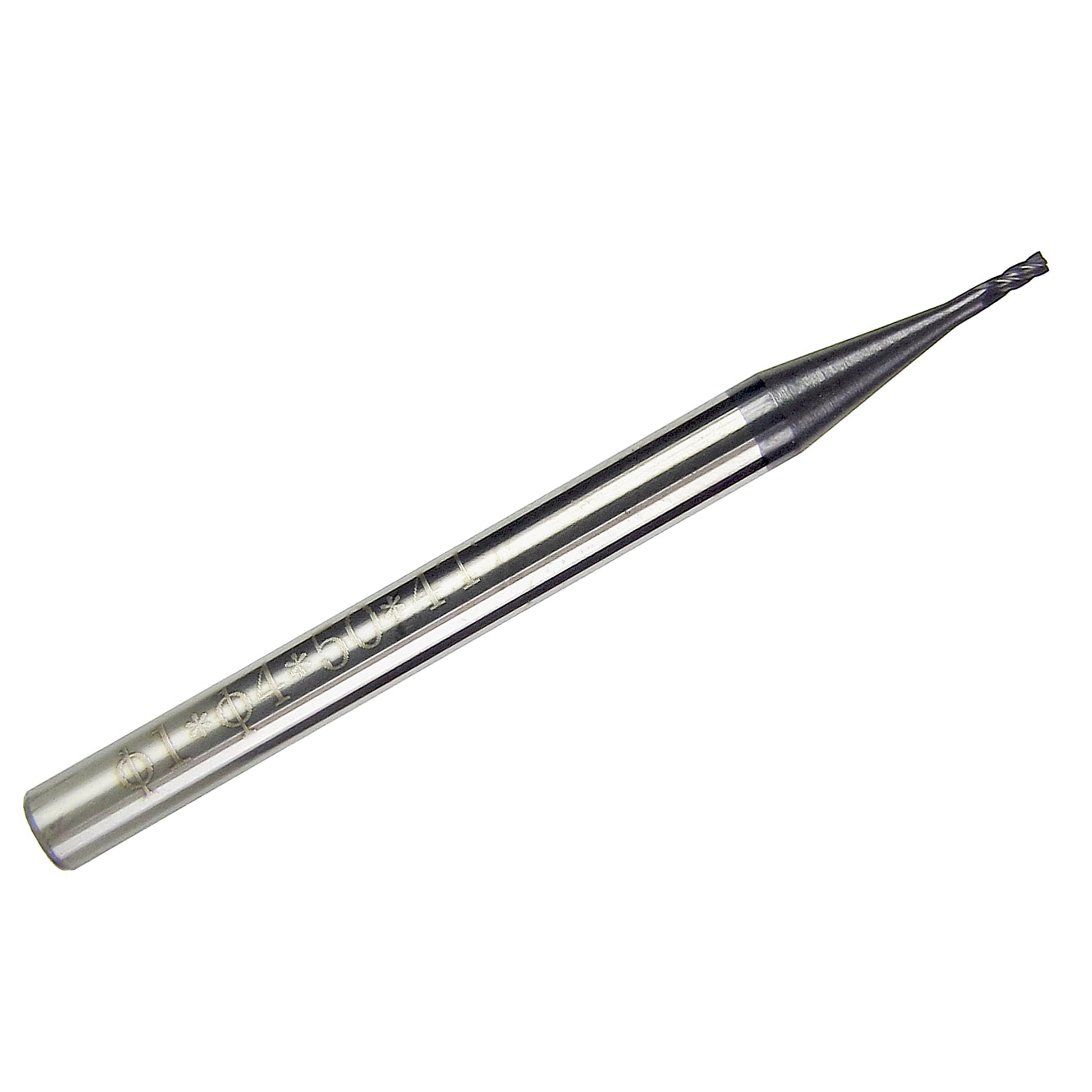

• 1.00mm 4-flute carbide square end mill with 3mm LOC, 3mm shank, and 2 inch overall length
1 3

Drill Bits Unlimited

0.0394" / 1.00mm x 3mm LOC 4-Flute Nitride-Coated Carbide End Mill, Square End, 3mm LOC, 3mm Shank M4-100

0.0394" / 1.00mm x 3mm LOC 4-Flute Nitride-Coated Carbide End Mill, Square End, 3mm LOC, 3mm Shank M4-100

$10.95 USD
$10.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 10% off
100 + 15% off

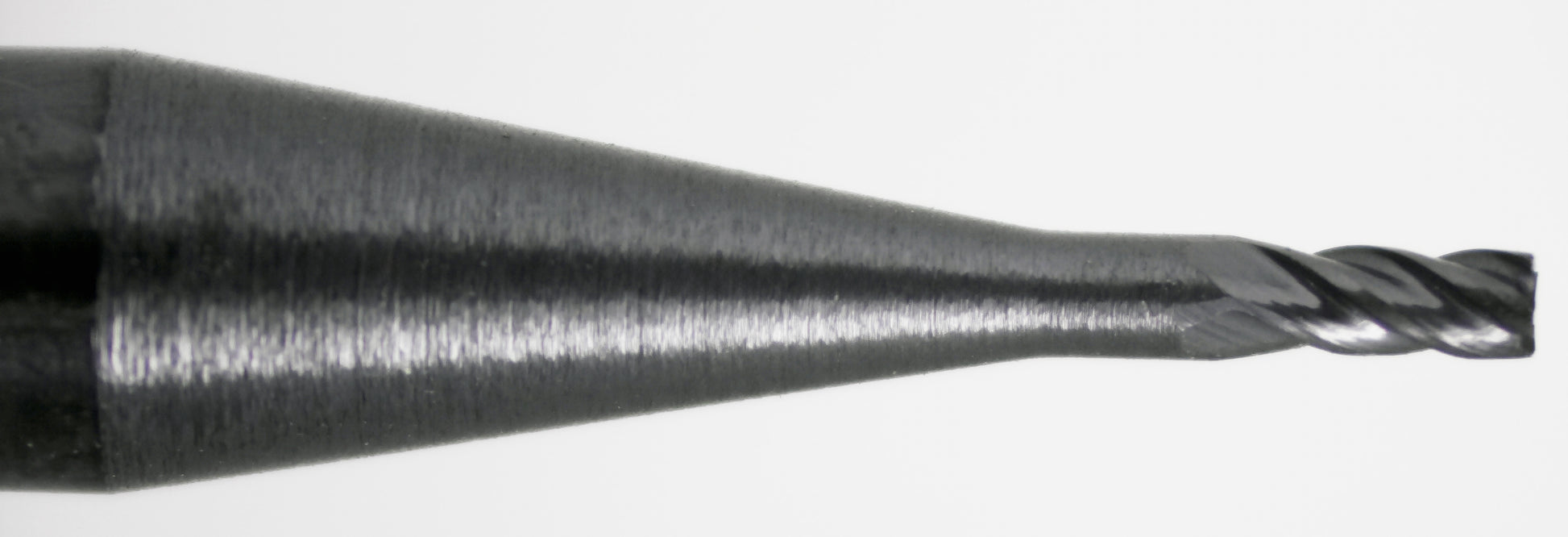

This 1.00mm 4-flute solid carbide micro end mill features a square end, center-cutting geometry, and a nitrogen-treated / nitride-coated finish. The short 3mm length of cut helps improve rigidity for precision micro milling, profiling, finishing, and small-detail CNC work.

The 4-flute design is well suited for finishing passes, light profiling, and small-feature machining where a clean flat-bottom cut is needed. The nitrogen-treated / nitride-coated finish helps improve surface hardness and wear resistance compared with a plain bright finish. Because this is a 1.00mm micro end mill, use conservative speeds, feeds, shallow cuts, and a rigid CNC setup, especially when cutting harder or ferrous materials.

  • Tool type: Solid carbide micro end mill
  • Cutting diameter: 1.00mm / 0.0394"
  • Flutes: 4
  • End style: Square end
  • Finish / coating: Nitrogen-treated / nitride-coated finish
  • Helix angle: 30°
  • Length of cut: 3mm / 0.118"
  • Shank diameter: 3mm
  • Overall length: 2.00"
  • Cutting type: Center cutting
  • Cutting direction: Right hand
  • Flute direction: Right hand / up cut

Typical Applications

  • Precision CNC micro milling
  • Small-detail profiling and finishing
  • Flat-bottom pocketing and contour work
  • Soft metals and non-ferrous materials
  • Plastics, wax, and fine-detail machining
  • Light-duty ferrous metal work only with proper setup

Benefits

  • 1.00mm cutting diameter is useful for very small features, fine details, and precision micro machining.
  • 4-flute geometry supports smoother finishing and improved edge support in suitable materials.
  • Square-end design is useful for flat-bottom pockets, profiles, and detail cuts.
  • Center-cutting geometry allows ramping and controlled plunge-style entry when used properly.
  • Short 3mm LOC helps improve rigidity compared with longer-reach micro end mills.
  • 3mm shank provides a larger holding diameter than the cutting diameter for improved support.
  • Nitrogen-treated / nitride-coated finish helps improve surface hardness and wear resistance compared with a plain bright finish.

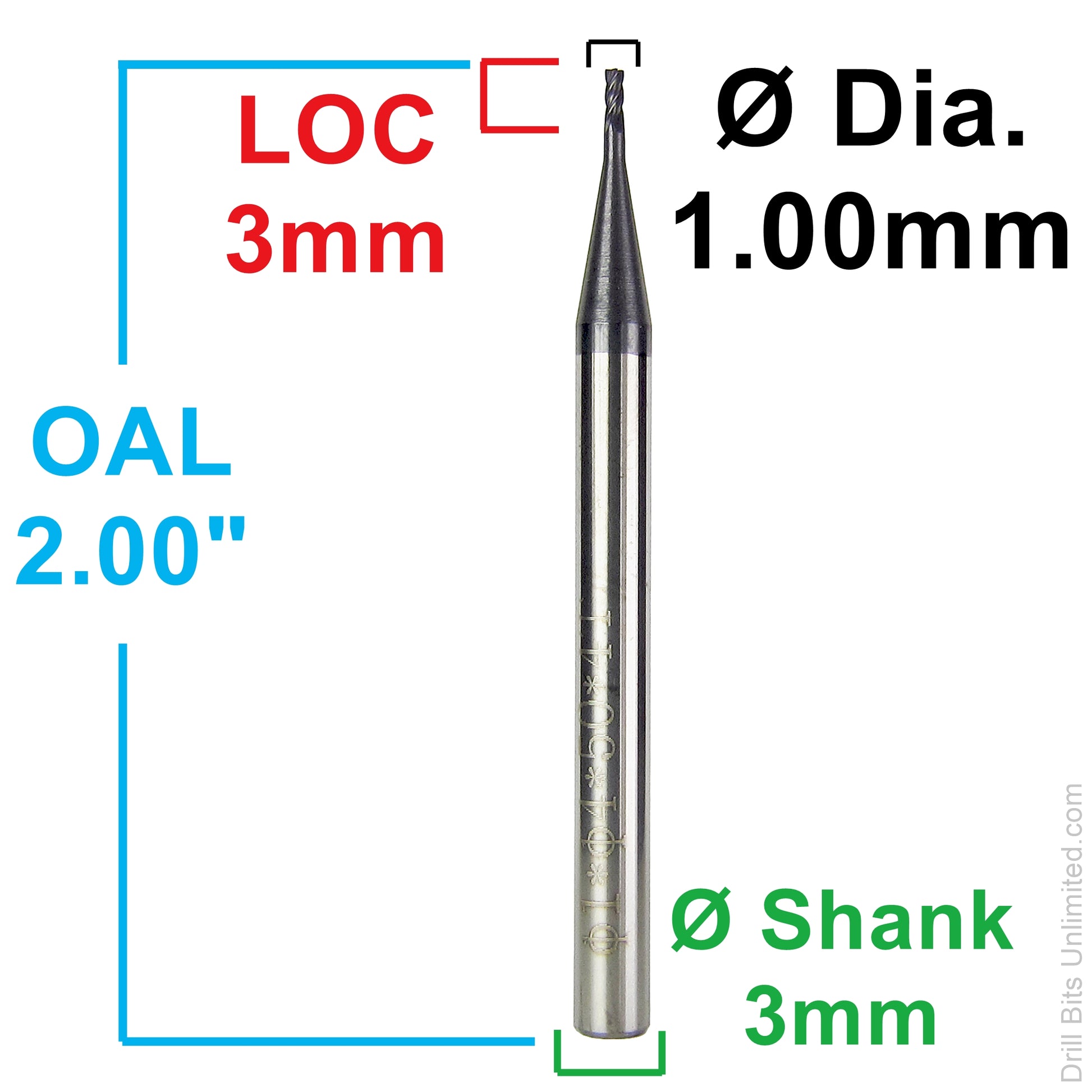

Specifications

Tool Type Square End Mill
Cutting Diameter 1.00mm / 0.0394"
Length of Cut (LOC) 3mm / 0.118"
Overall Length 2.00"
Shank Diameter 3mm
Number of Flutes 4
End Style Square End
Helix Angle 30°
Material Solid Tungsten Carbide
Finish / Coating Nitrogen-Treated / Nitride-Coated Finish
Cutting Type Center Cutting
Cutting Direction Right Hand
Flute Direction Right Hand / Up Cut
Primary Application Micro milling, finishing, profiling, soft metals, plastics, wax, and fine-detail work
Steel / Ferrous Use Light cuts only with proper speeds, feeds, shallow depth of cut, and a rigid setup
Need help choosing starting speeds and feeds?
Use our carbide end mill feed and speed calculator as a starting point for setting up your cut.

Former SKU / item number: M206
