0.0625" (1/16") 30° 2-Flute Spiral V-Engraver Solid Carbide 1/8" Shank 1.50" OAL Made in USA

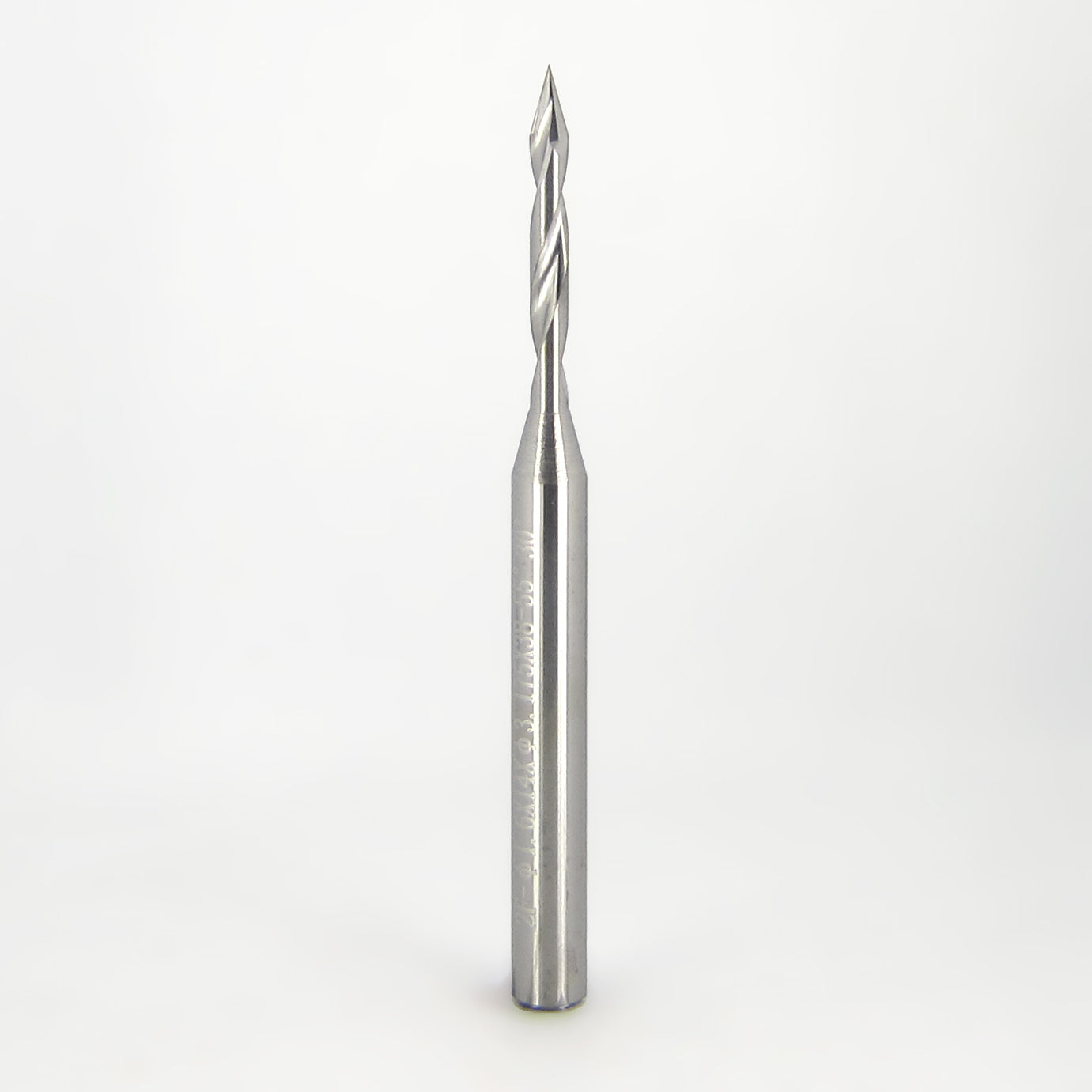

1/16" (0.0625") 30° 2-Flute Spiral Solid Carbide V-Engraver – Made in USA

This 30° solid carbide V-engraving tool features a 2-flute spiral cutting geometry, designed for fine-detail engraving and precision work. Made in the USA, it delivers smooth cutting action and improved chip evacuation compared to standard straight-edge V-bits.

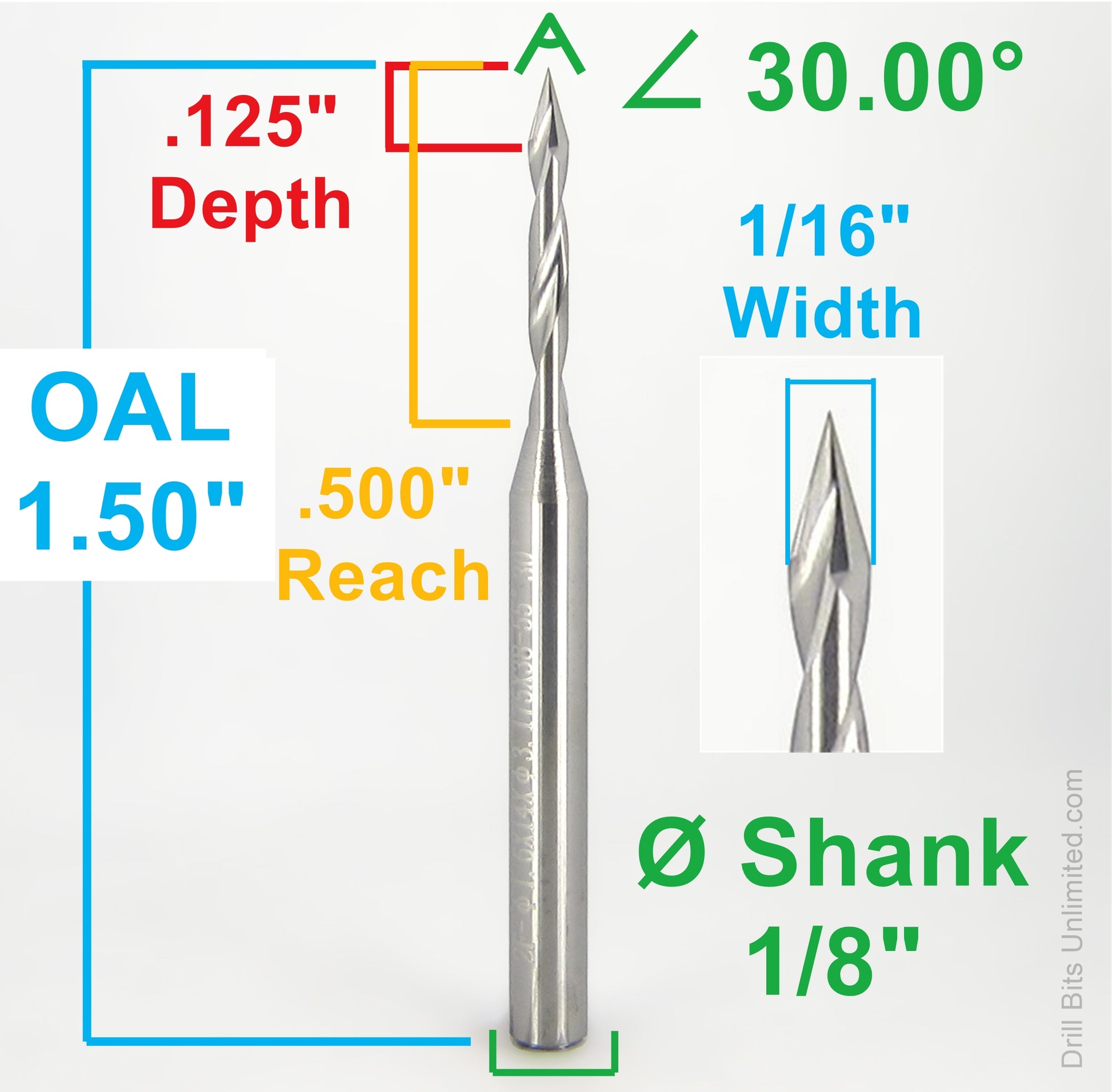

• Tip Width: 1/16" (0.0625")
• Included Angle: 30°
• Cutting Depth: 0.125"
• Reach: 0.500"
• Overall Length (OAL): 1.50"
• Shank Diameter: 1/8" (3.175mm)
• Flutes: 2 (Spiral)
• Material: Solid Carbide
• Origin: Made in USA
• Quantity: Sold Individually

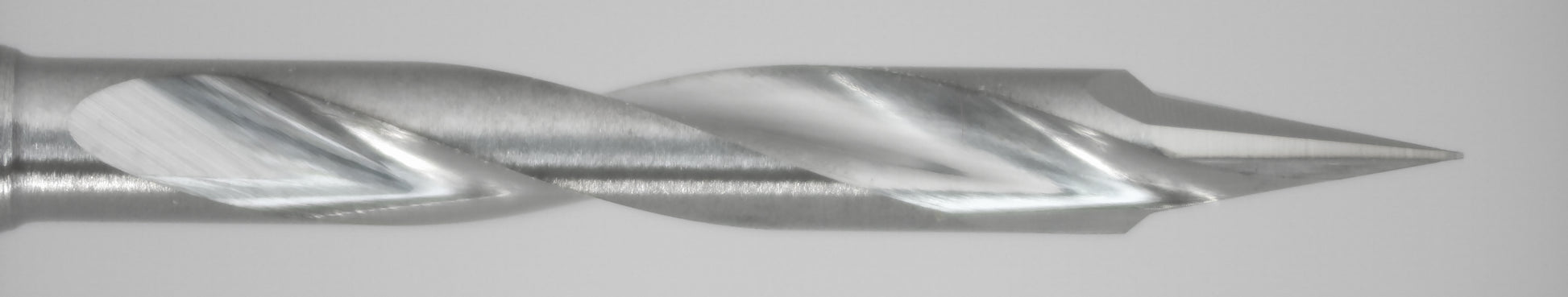

The 30° angle produces finer, sharper engraving lines, making it ideal for detailed lettering, intricate designs, and precision marking. The spiral flute design reduces cutting forces and improves chip evacuation, resulting in cleaner cuts and reduced heat buildup in plastics and wood.

Common Applications:

• Fine detail engraving
• Small text and intricate designs
• Plastic and acrylic engraving (reduced melting)
• Wood engraving and sign making
• Light aluminum engraving

⚠️ Note: Due to the sharper angle, this tool is best suited for lighter passes and fine-detail work to prevent tip wear or breakage.
