0.0625" (1/16") 3-Flute Ball Nose Carbide End Mill, AlTiN, 1/8" Shank, Extended Reach 1755-0625L500 – K017
0.0625" (1/16") 3-Flute Ball Nose Carbide End Mill, AlTiN, 1/8" Shank, Extended Reach 1755-0625L500 – K017
Couldn't load pickup availability

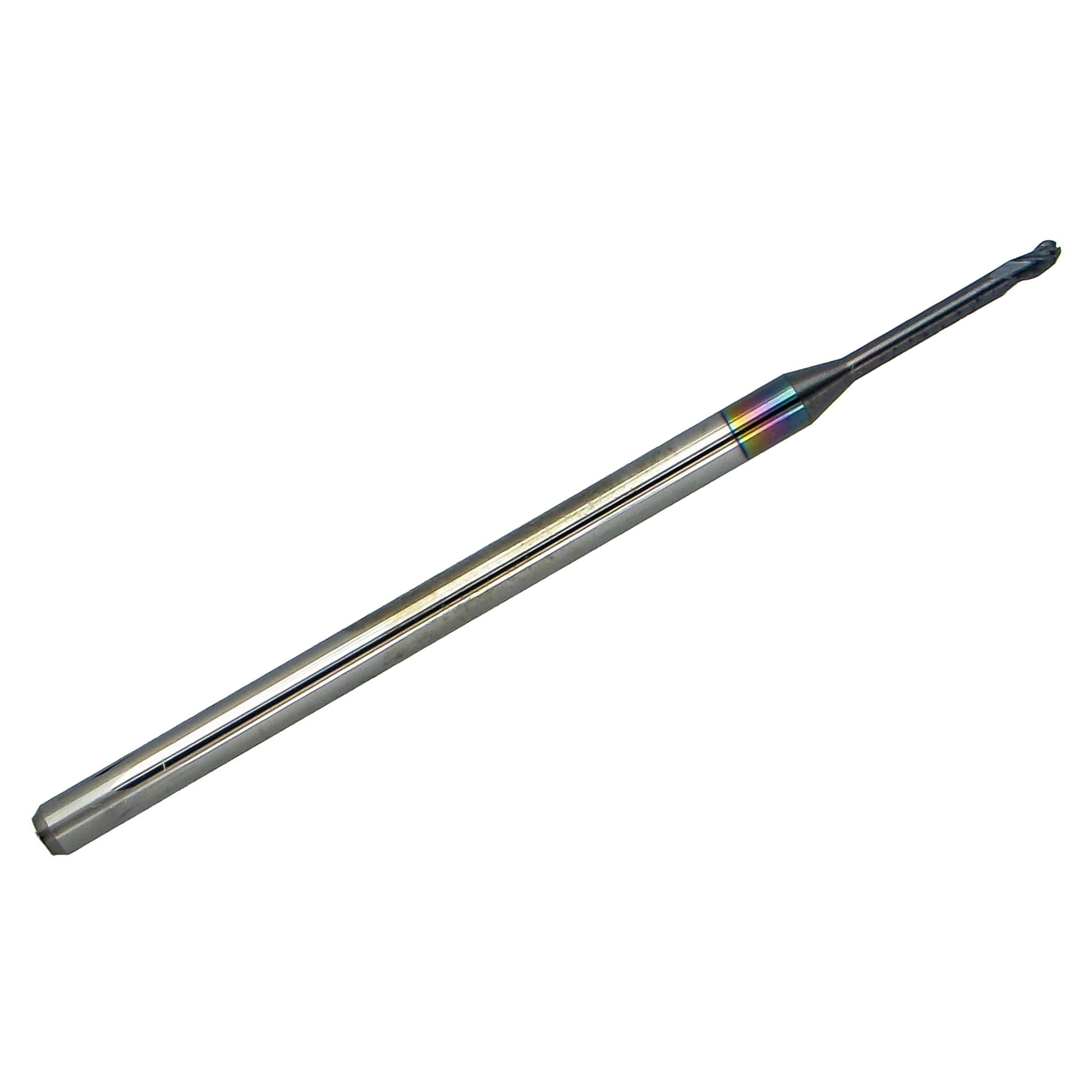

This 1/16" (.0625") 3-flute ball nose solid carbide end mill features a durable AlTiN coating designed for high-performance milling in difficult materials. The ball nose geometry allows smooth 3D contouring and profiling while producing excellent surface finishes.
Made in the USA, this precision ground micro-grain carbide end mill offers excellent rigidity and wear resistance when machining steel, stainless steel, hardened alloys, cast iron, and super alloys.
The extended reach neck design provides additional clearance for deep or difficult-to-reach features while maintaining cutting stability.
Ball nose end mills are commonly used for 3D contour milling, mold and die machining, surface finishing, and complex CNC toolpaths.
Manufacturer Part Number: 1755-0625L500
Alternate Format: 17550625L500
Benefits
- Ball nose geometry ideal for 3D contouring and profiling
- 3-flute design balances strength and chip evacuation
- AlTiN coating improves heat resistance and tool life
- Extended neck reach for deep or restricted features
- Precision ground micro-grain carbide construction
- Made in the USA

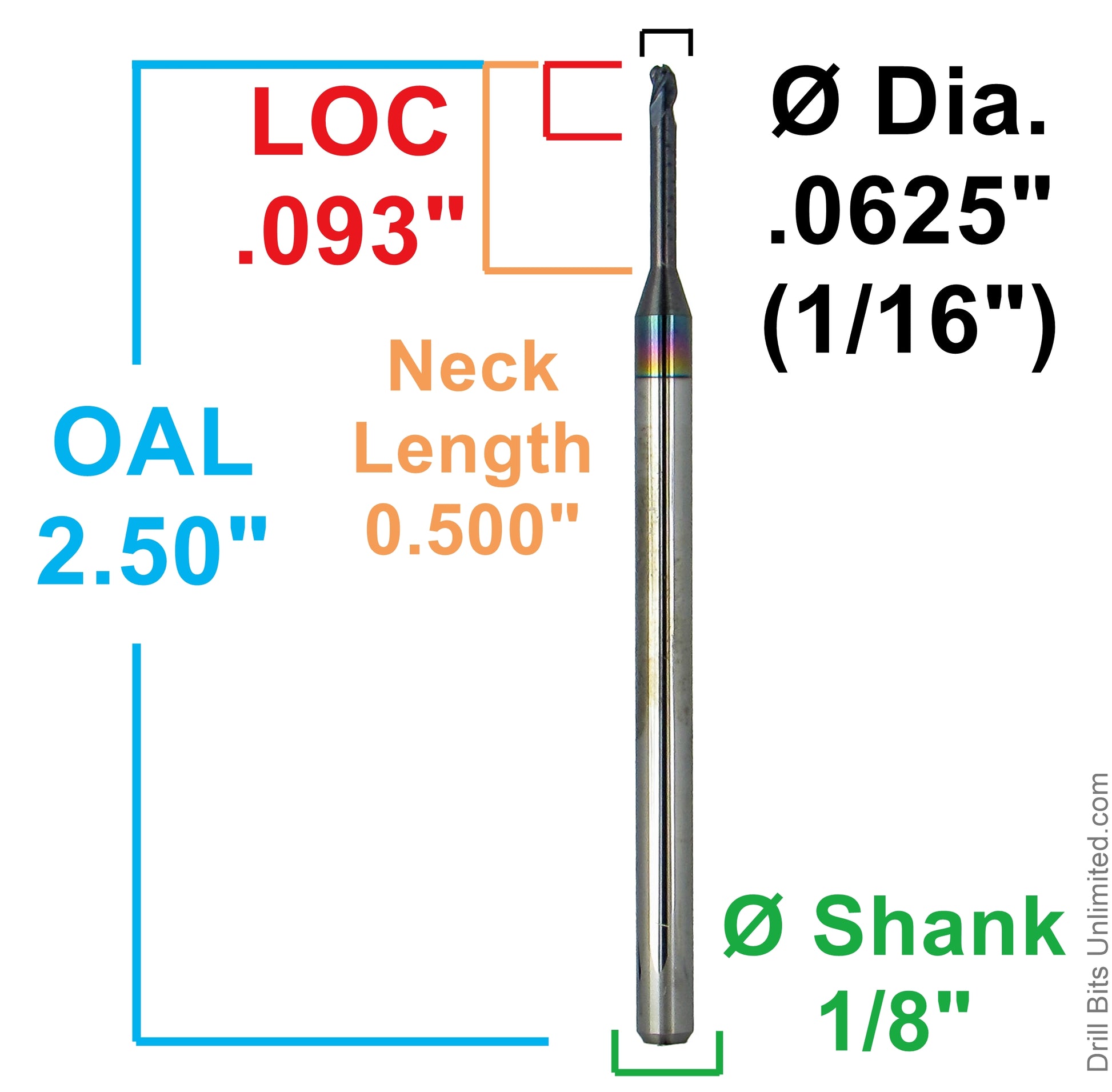

| Tool Type | Ball Nose Carbide End Mill |
| Milling Diameter | 0.0625" (1/16") |
| Flutes | 3 |
| Material | Solid Micro-Grain Carbide |
| Coating | AlTiN |
| Helix Angle | 30° |
| Length of Cut (LOC) | 0.093" |
| Neck Length | 0.500" |
| Overall Length (OAL) | 2.500" |
| Shank Diameter | 1/8" (0.125") |
| Cut Direction | Right Hand |
| Cutting Type | Center Cutting |
| End Type | Single End |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
