1/16" Single Flute Solid Carbide End Mill – Plastic & Aluminum, 1/8" Shank

End style: Square End.

1/16" Single Flute Solid Carbide End Mill

Precision ground 1/16" single flute solid carbide end mill designed for CNC machining of plastics and non-ferrous metals.

Single flute geometry improves chip evacuation and reduces heat buildup compared to multi-flute tools, making it well suited for softer materials.

Applications

• Plastics (Acrylic, ABS, HDPE, Polycarbonate)
• Aluminum
• Brass
• Soft non-ferrous materials
• CNC routers & mills

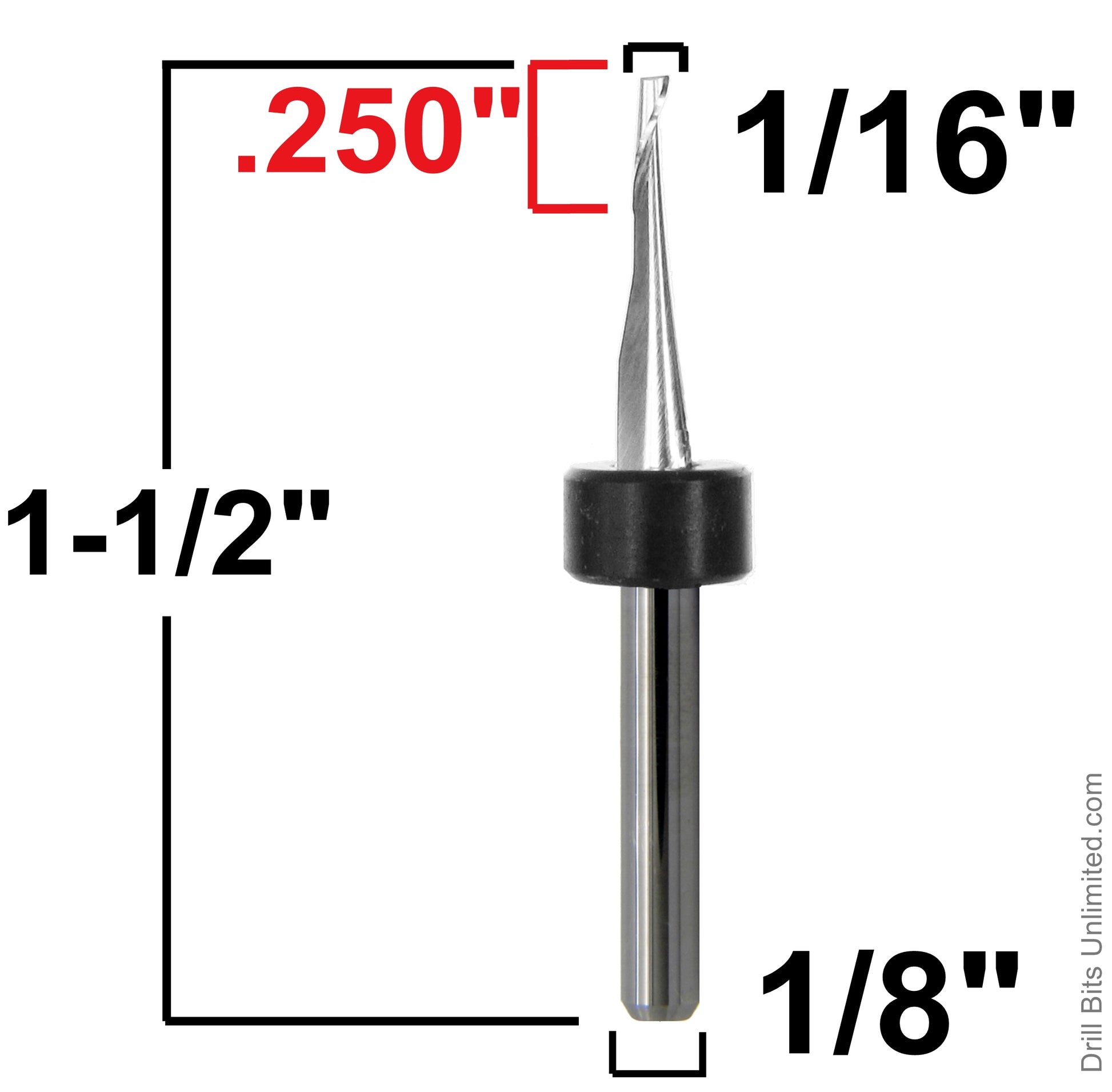

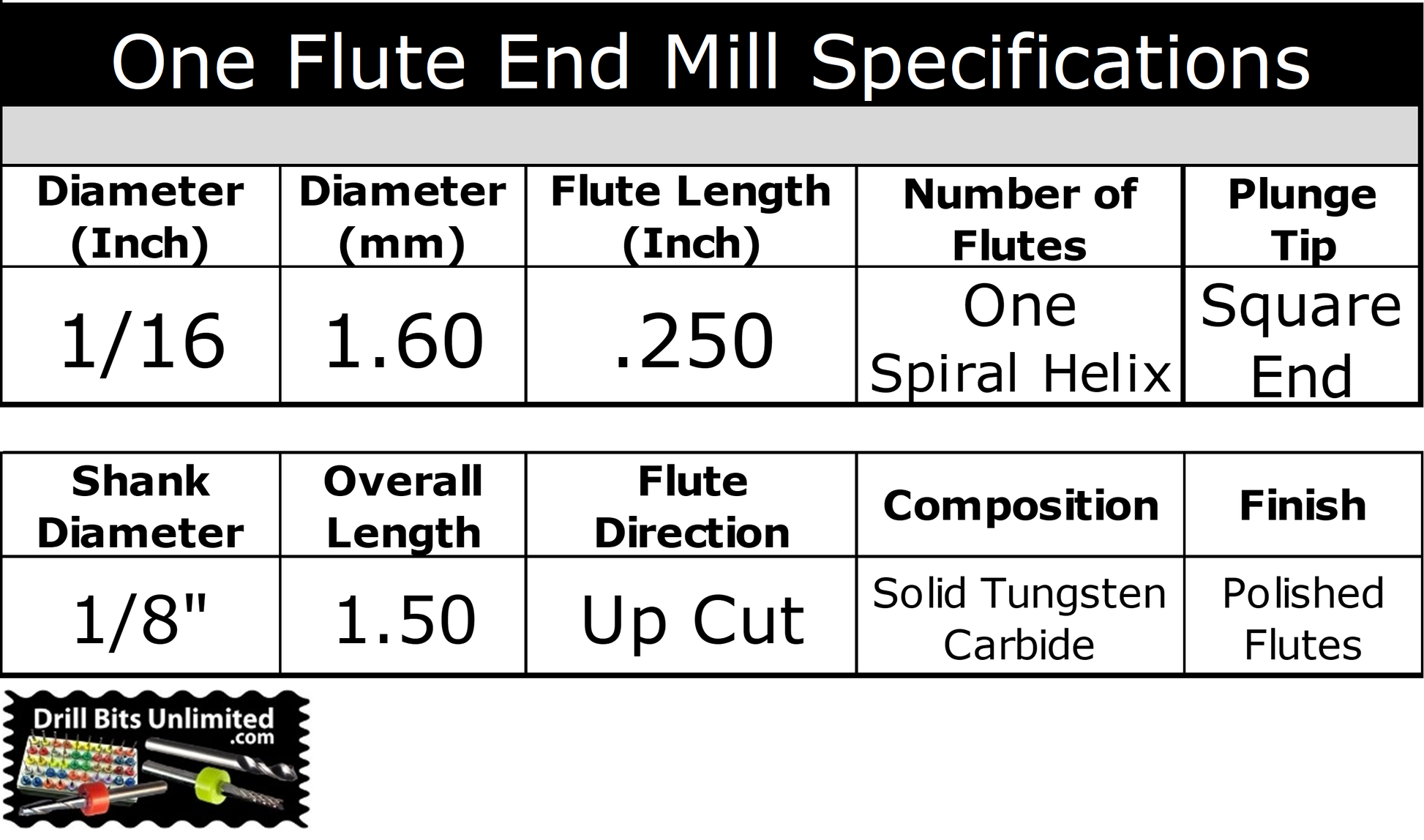

Specifications

• Cutting Diameter: 1/16" (0.0625")
• Flutes: 1 (Single Spiral Flute)
• Shank Diameter: 1/8"
• Cutting Length: .250"
• Overall Length: 1.5"
• End Type: Square End
• Material: Solid Carbide
• Cutting Direction: Right Hand

Why Single Flute?

Single flute cutters:

• Provide efficient chip evacuation
• Reduce material recutting
• Help manage heat in softer materials
• Allow higher feed rates in certain applications

Use proper speeds and feeds for best performance.
