0.0625" (1/16") x .093" LOC DLC Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K030
0.0625" (1/16") x .093" LOC DLC Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K030
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

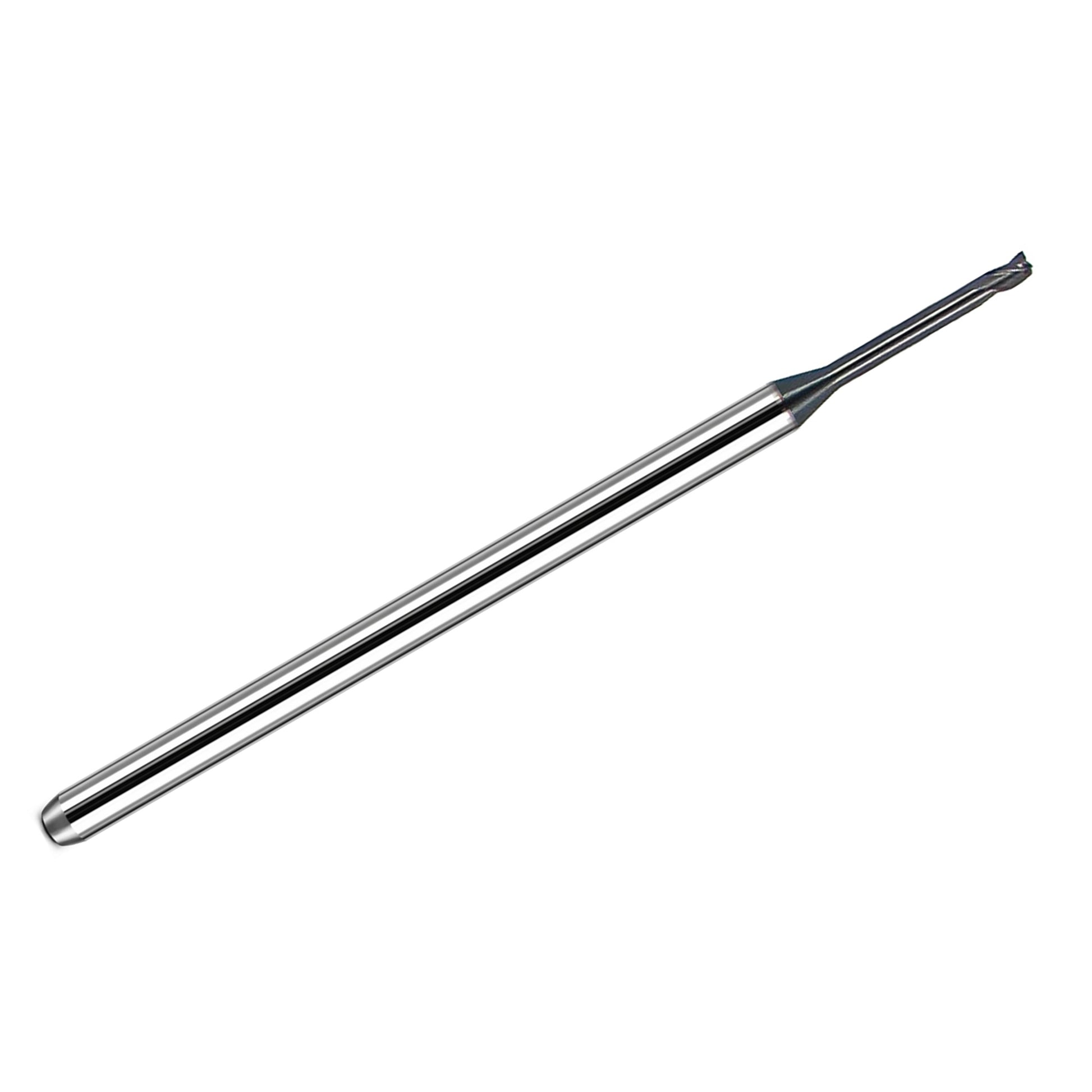

This 1/16" (0.0625") 3-flute square end carbide end mill features a DLC (Diamond-Like Carbon) coating and an extended reach design for precision machining of plastics, aluminum, graphite, and composite materials.

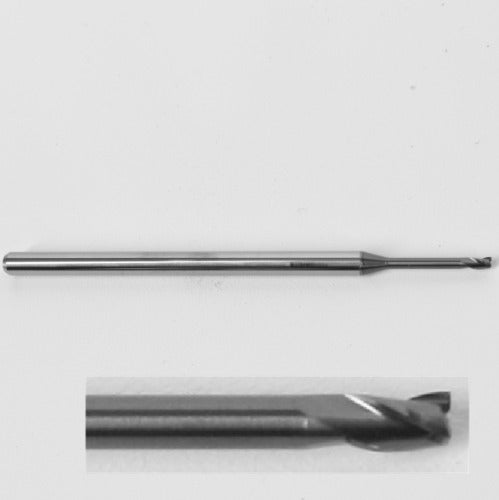

The 3-flute geometry provides an excellent balance between chip evacuation and rigidity, making it ideal for high-speed machining of non-ferrous materials and micro milling operations.
The DLC coating reduces friction and built-up edge, improving tool life and surface finish when machining aluminum and other sticky materials.
Manufacturer: Kyocera
Manufacturer Part Number: 1742-0625D500
Country of Origin: United States
Typical Applications
- Micro CNC milling
- Aluminum machining
- Plastics and acrylics
- Graphite machining
- Composite materials
- Precision slotting and profiling
Benefits
- Square end geometry for sharp internal corners
- 3 flutes balance chip evacuation and strength
- DLC coating reduces friction and built-up edge
- Extended reach allows machining deeper features
- Solid micro-grain carbide for rigidity and durability

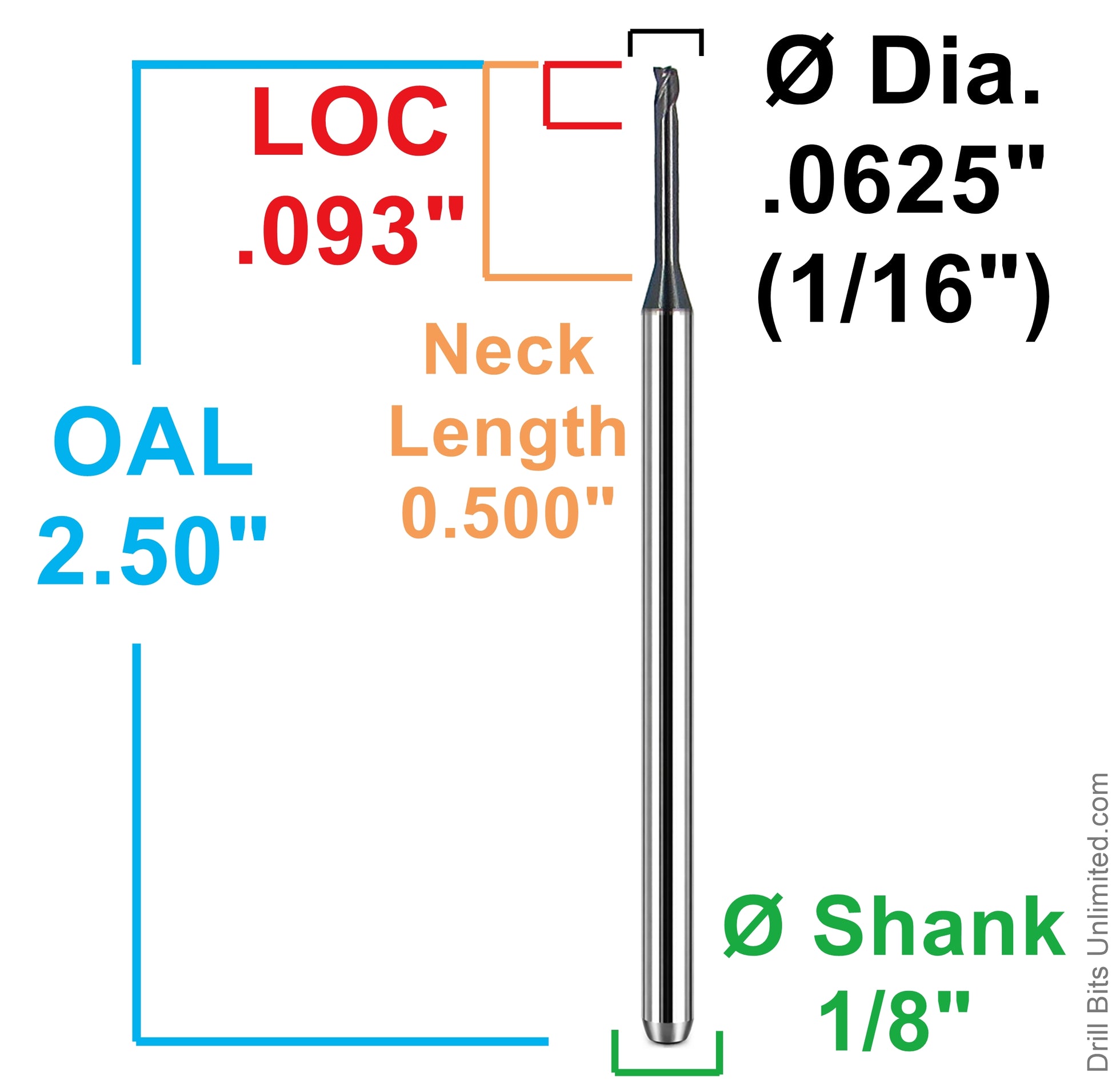

Specifications
| Tool Type | Square End Mill |
| Diameter | 0.0625" (1/16") |
| Flutes | 3 |
| Helix Angle | 30° |
| Length of Cut | 0.093" |
| Neck Length | 0.500" |
| Neck Diameter | 0.0587" |
| Overall Length | 2.500" |
| Shank Diameter | 0.125" |
| Material | Micro Grain Carbide |
| Coating | DLC (Diamond-Like Carbon) |
| Cutting Direction | Right Hand |
| Cutting Style | Center Cutting |
| Compatible Materials | Aluminum, plastics, composites, graphite, non-ferrous materials |
| Country of Origin | United States |
