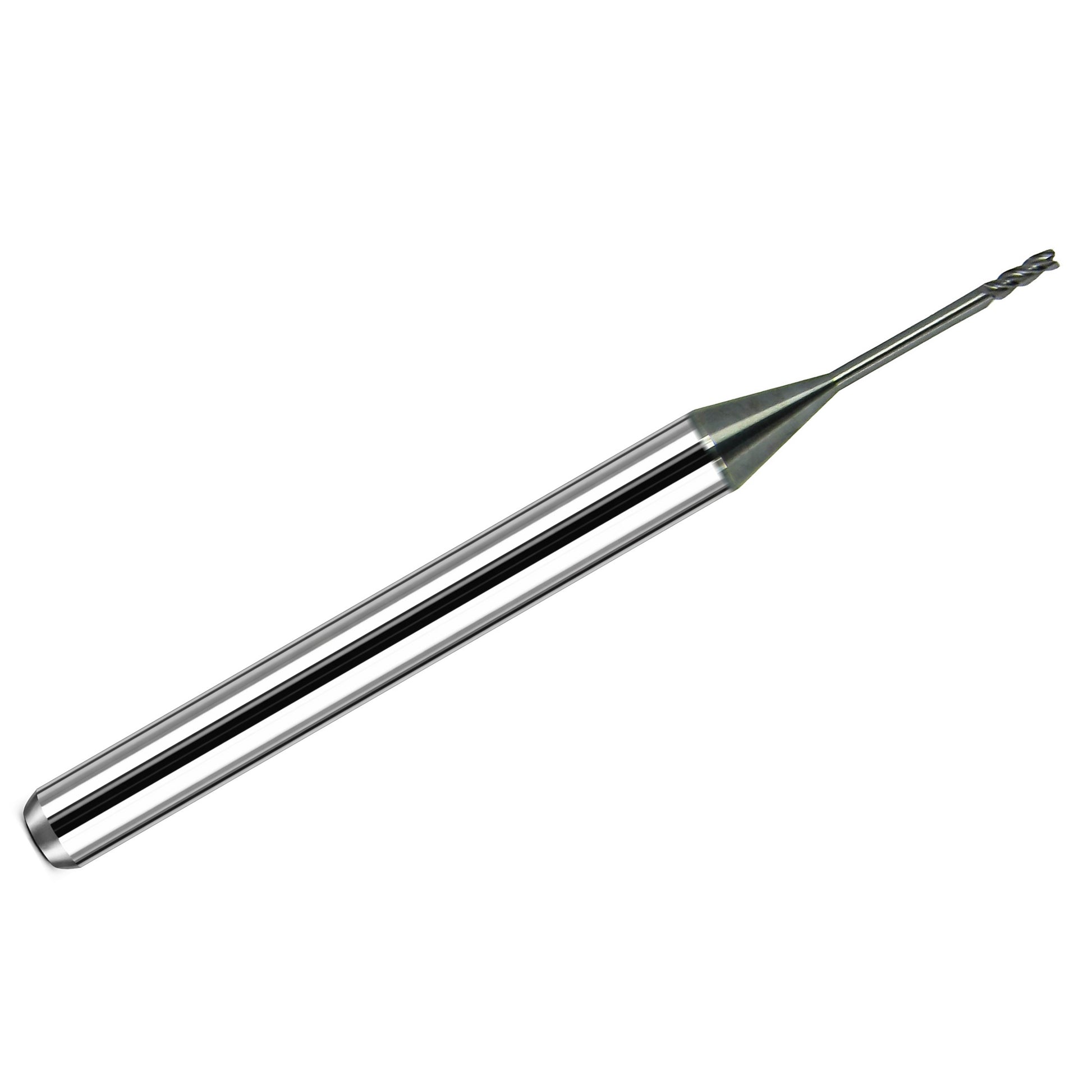

• Kyocera 1.50mm 3-flute corner radius carbide end mill with AX coating, reduced neck, and 6mm shank, made in USA

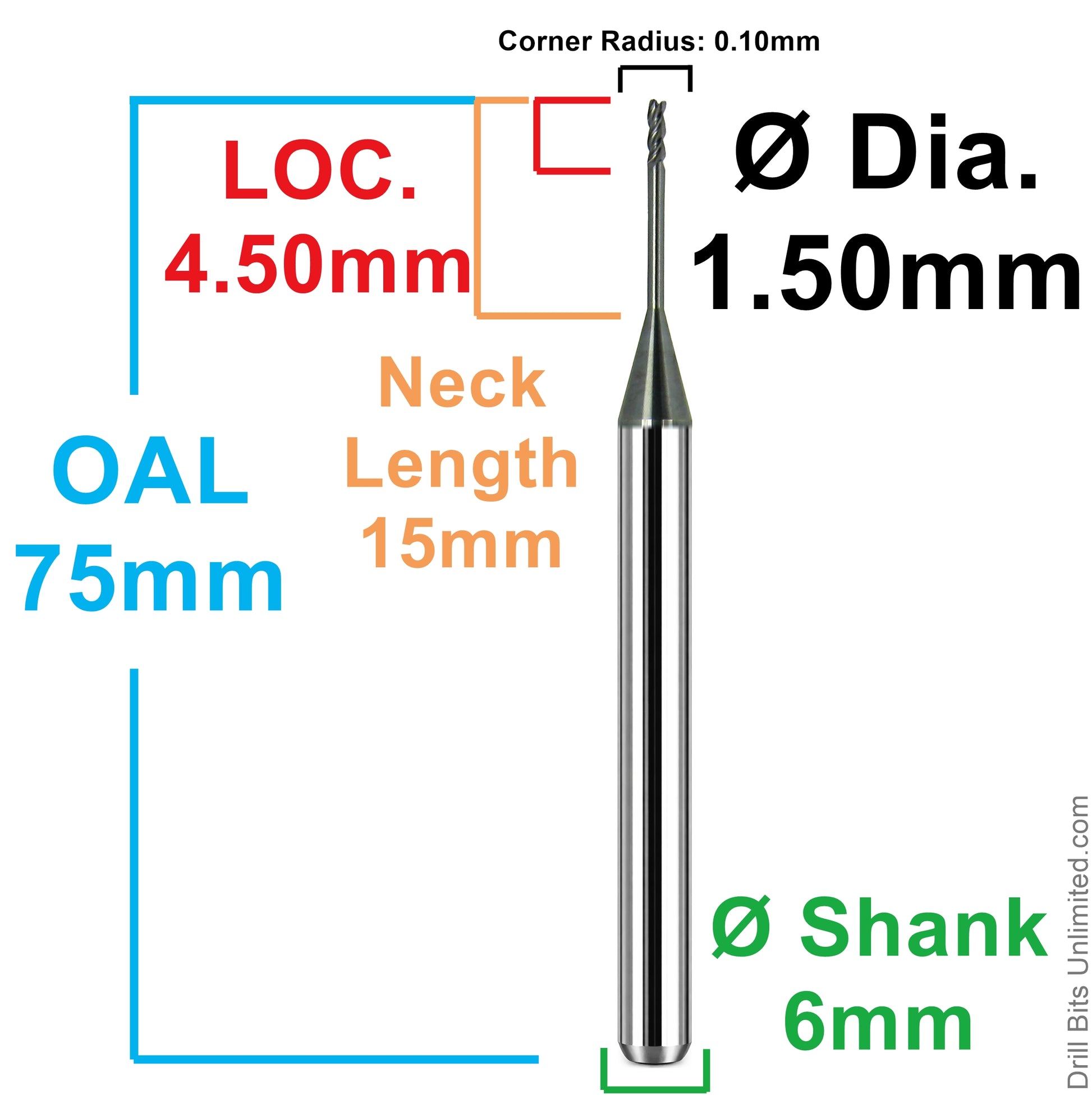

  • Dimensional drawing of Kyocera T0591O177ECR1 corner radius end mill showing 1.50mm diameter, 4.50mm LOC, 15mm neck length, 75mm overall length, 6mm shank, and 0.10mm corner radius
1 2

Drill Bits Unlimted

0.0591" (1.5mm) x 4.50mm LOC TITAN-AX 3-Flute Corner Radius Carbide End Mill, 6mm Shank | K195

0.0591" (1.5mm) x 4.50mm LOC TITAN-AX 3-Flute Corner Radius Carbide End Mill, 6mm Shank | K195

$20.95 USD
$20.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

This 1.50mm 3-flute corner radius carbide end mill is manufactured by Kyocera and features the advanced AX high-performance coating on a sub-micron grain solid carbide substrate for demanding precision CNC milling applications.

This tool is part of the Kyocera TITAN-AX / TITAN-AXM line and features a long reach reduced-neck design with reinforced shank for improved access and rigidity in deep or restricted features. The 0.10mm corner radius strengthens the cutting edge versus a sharp corner while still allowing accurate profile and shoulder milling.

With its 3-flute design, variable helix geometry, and AX coating, this tool is built for high-performance milling in a wide range of materials while helping improve stability, finish quality, and tool life.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: T0591O177ECR1

Country of Origin: United States

Typical Applications

  • Long reach profiling and contouring
  • Reduced-neck milling in restricted features
  • Shoulder milling with improved edge strength
  • Precision CNC machining
  • High-performance milling in difficult materials

Benefits

  • Long reach reduced-neck design improves access in deep features
  • Reinforced shank helps improve rigidity
  • 0.10mm corner radius strengthens the cutting edge
  • AX coating improves wear resistance and cutting performance
  • Variable helix design helps reduce vibration and improve finish quality

Specifications

Manufacturer Kyocera
Tool Type Corner Radius End Mill
Series TITAN-AX / TITAN-AXM
Milling Diameter 1.50mm
Decimal Equivalent 0.0591"
Corner Radius 0.10mm
Length of Cut (LOC) 4.50mm
Neck Length 15.00mm
Overall Length 75.00mm
Shank Diameter 6.00mm
Number of Flutes 3
Helix Style Variable Helix
Material Sub-Micron Grain Solid Carbide
Finish AX Coated
Cutting Direction Right Hand
Design Long Reach Reduced Neck with Reinforced Shank
Application Profiling / Contouring / High-Performance Milling
Steel (P) Compatibility Yes
Stainless (M) Compatibility Yes
Cast Iron (K) Compatibility Yes
Hardened Material (H) Compatibility Yes
Non-Ferrous (N) Compatibility Yes
Super Alloy (S) Compatibility Yes
Country of Origin United States
