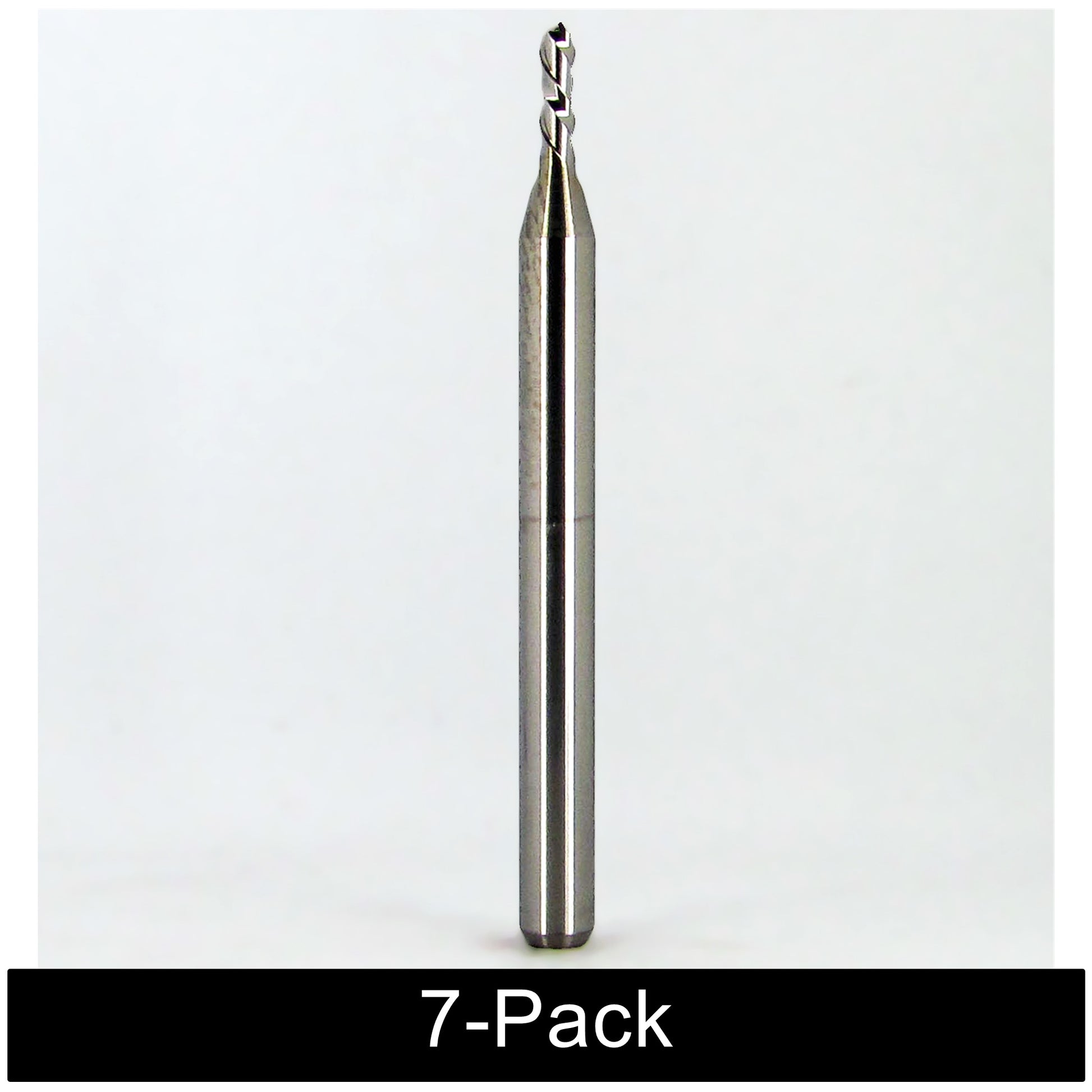

1.5mm (.059") 2-Flute Downcut Fish Tail End Mill – 4.5mm LOC – 1/8" Shank – 1.50" OAL – Union Tool Japan – 7 Pack

1.5mm (.059") 2-Flute Downcut Solid Carbide End Mills – 4.5mm LOC – 1/8" Shank – 1.50" OAL – Union Tool Japan (7 Pack)

These high-quality solid carbide end mills from Union Tool feature a 2-flute downcut spiral geometry designed for clean top-edge finishes and controlled chip evacuation in softer materials.

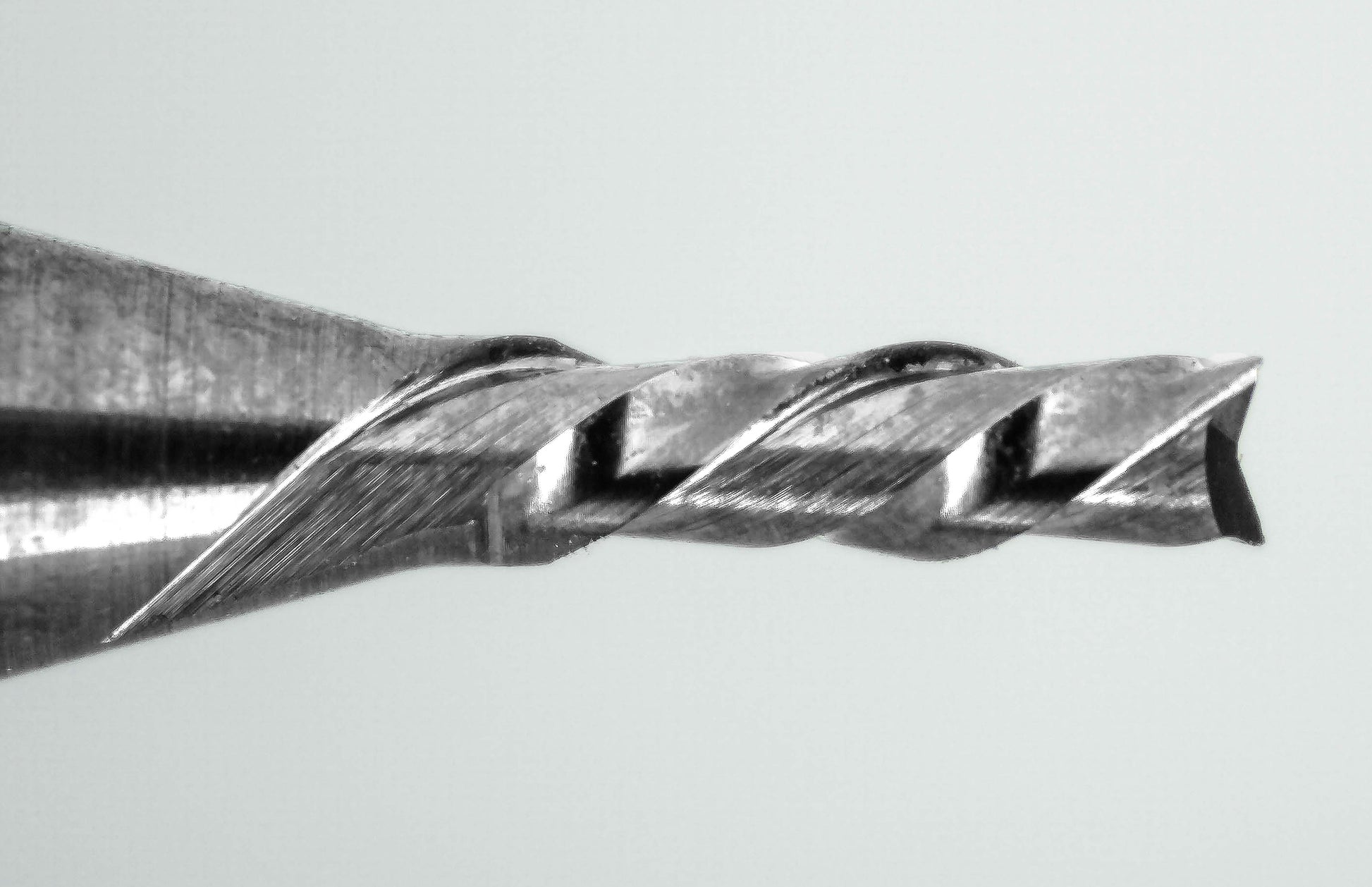

The downcut design forces chips downward into the cut, helping prevent lifting, fraying, or chipping on the top surface—making these ideal for plastics, laminates, and wood applications. The fish tail tip geometry allows for smoother entry into the material and reduces chipping compared to standard flat or drill-point tips.

• Diameter: 1.5mm (.059")
• Length of Cut (LOC): 4.5mm
• Overall Length: 1.50"
• Shank Diameter: 1/8" (3.175mm)
• Flutes: 2
• Cut Direction: Downcut
• Tip Geometry: Fish Tail
• Material: Solid Carbide
• Manufacturer: Union Tool
• Country of Origin: Japan
• Quantity: 7 Pieces

Common Applications:

• Plastics and acrylic cutting
• Wood and composite routing
• PCB and laminate materials
• Applications requiring clean top-edge finish
• Detail milling and slotting operations
