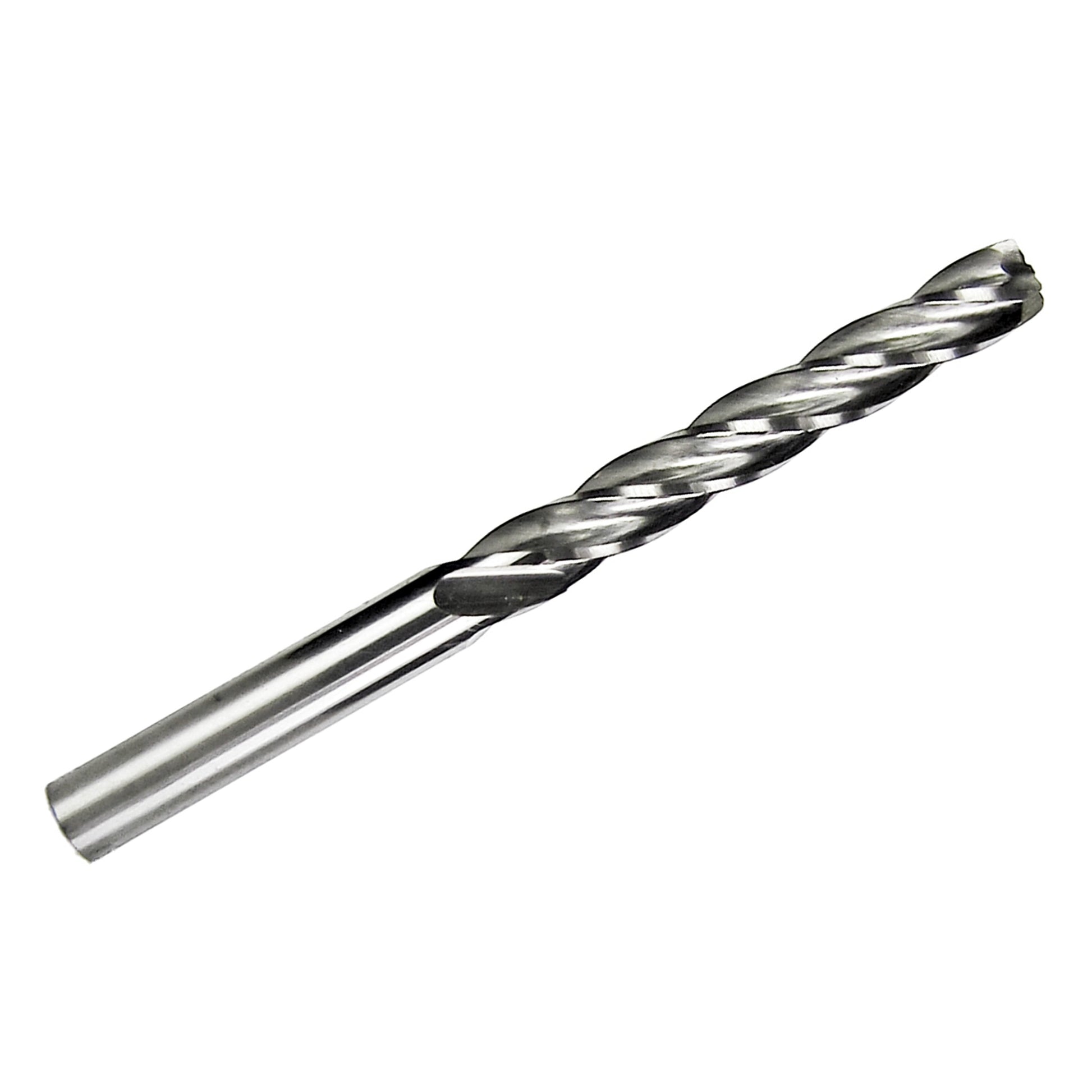

0.1250" (1/8") x .870" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | M4-140

This 1/8" 4-flute solid carbide end mill features a square end, center-cutting geometry, and a bright uncoated finish. The 0.870" length of cut provides extended reach for profiling, slotting, pocketing, and general CNC milling where a longer cutting length is needed.

The 4-flute design provides a strong cutting edge layout for finishing and light milling operations. This uncoated carbide end mill is best suited for non-ferrous metals, plastics, composites, and controlled light-duty milling setups. When used in steel or harder materials, use conservative speeds, feeds, shallow cuts, and a rigid machine setup.

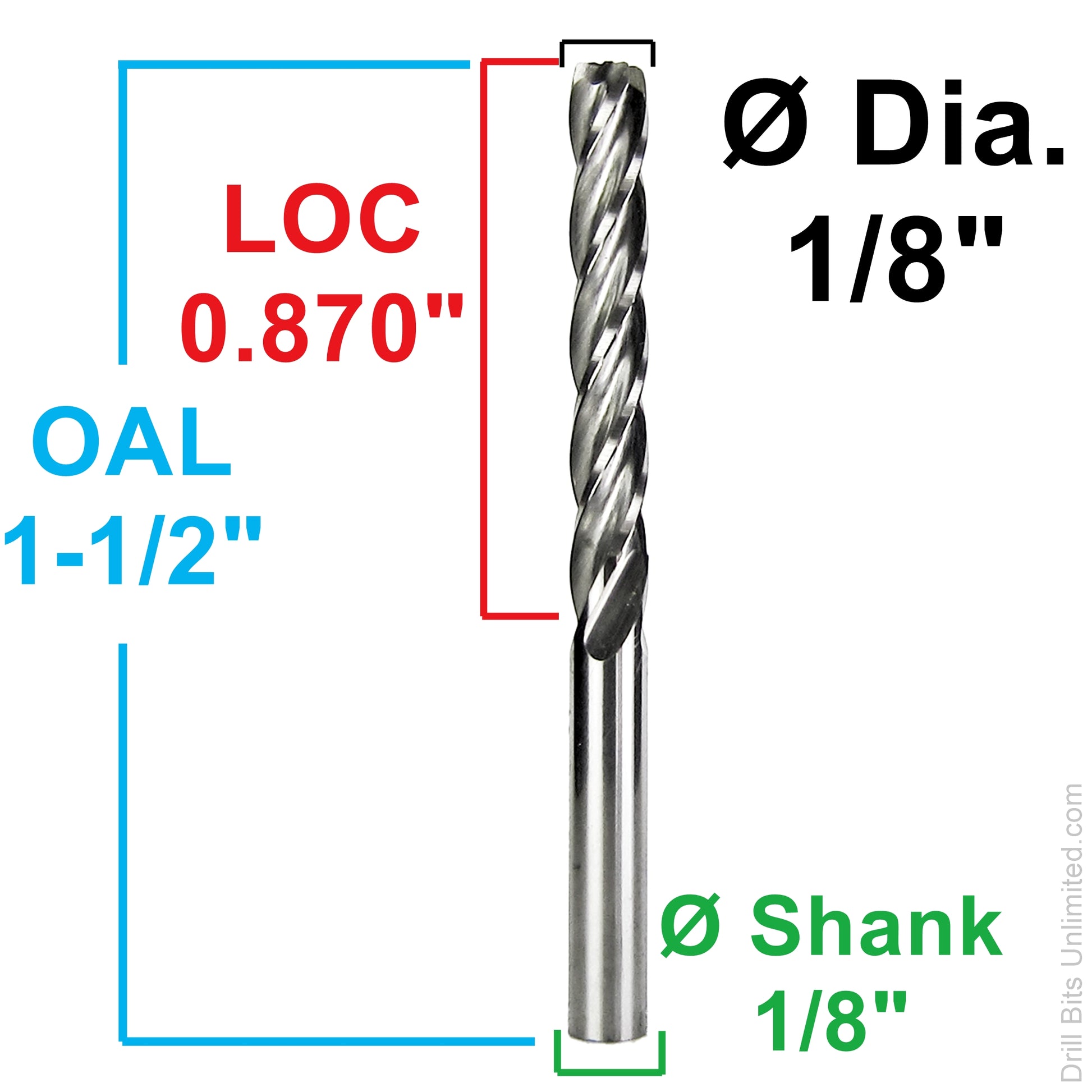

• Tool type: Solid carbide end mill
• Cutting diameter: 1/8" / 0.125"
• Flutes: 4
• End style: Square end
• Finish: Bright / uncoated
• Helix angle: 30°
• Length of cut: 0.870"
• Shank diameter: 1/8" / 0.125"
• Overall length: 1-1/2"
• Cutting type: Center cutting
• Cutting direction: Right hand

Typical Applications

• Precision CNC milling
• Slotting and profiling
• Flat-bottom pocketing and contour work
• Aluminum and other non-ferrous metal machining
• Plastic and composite machining
• Light-duty finishing and general-purpose milling

Benefits

• Solid carbide construction provides good rigidity and wear resistance compared with high-speed steel tools.
• 4-flute geometry helps improve surface finish and tool stability in suitable materials.
• Square-end design is useful for flat-bottom pockets, profiles, and general milling work.
• Center-cutting geometry allows ramping and plunge-style entry when used with proper setup.
• 0.870" LOC provides added reach for deeper profiles and longer side-cutting applications.
• Bright uncoated finish is a practical choice for non-ferrous materials, plastics, and general shop use.

Specifications

Former SKU / item number: M183
