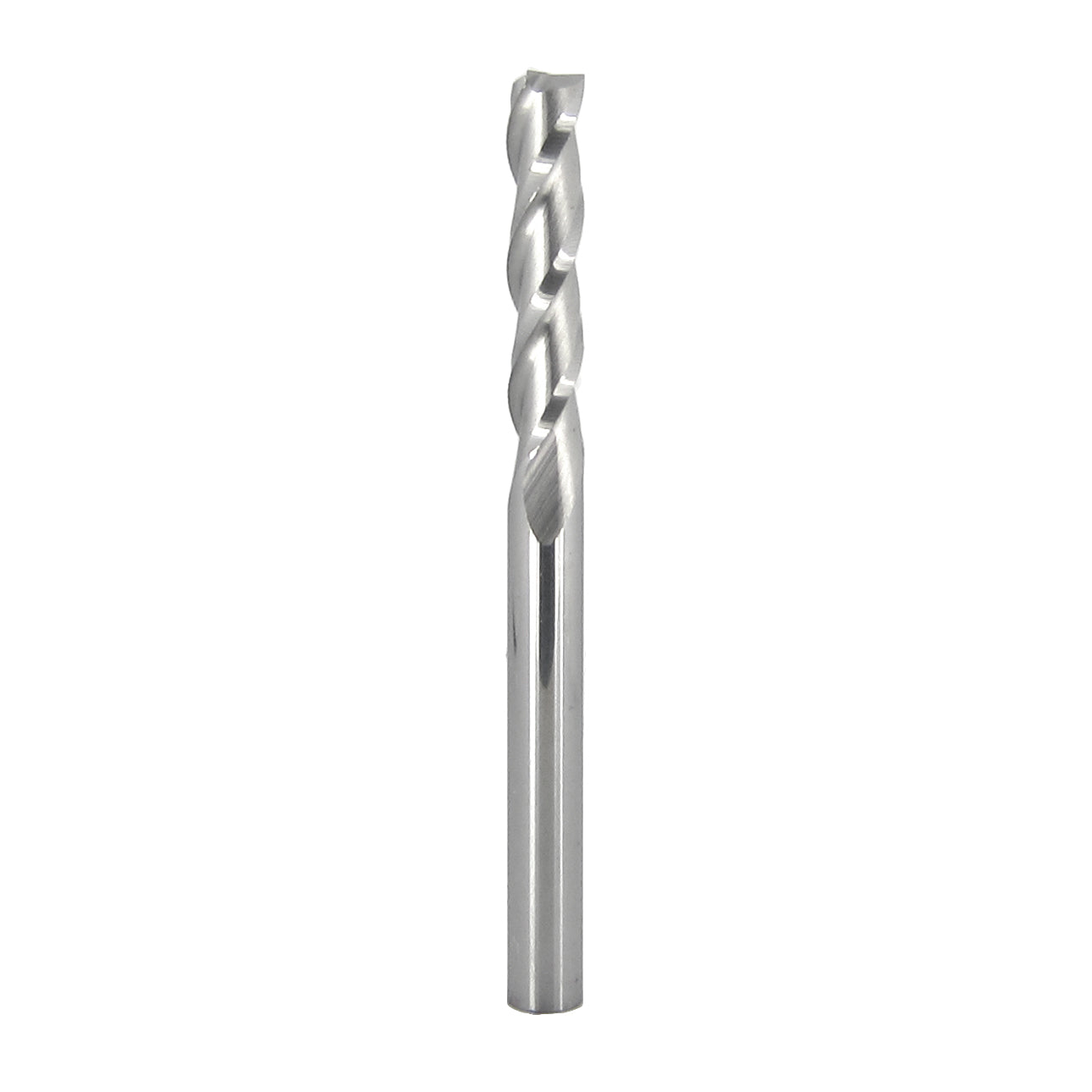

0.125" (1/8") 3-Flute Square End Mill Solid Carbide 0.600" LOC 1/8" Shank 1.50" OAL

1/8" (0.125") 3-Flute Square End Mill – Solid Carbide

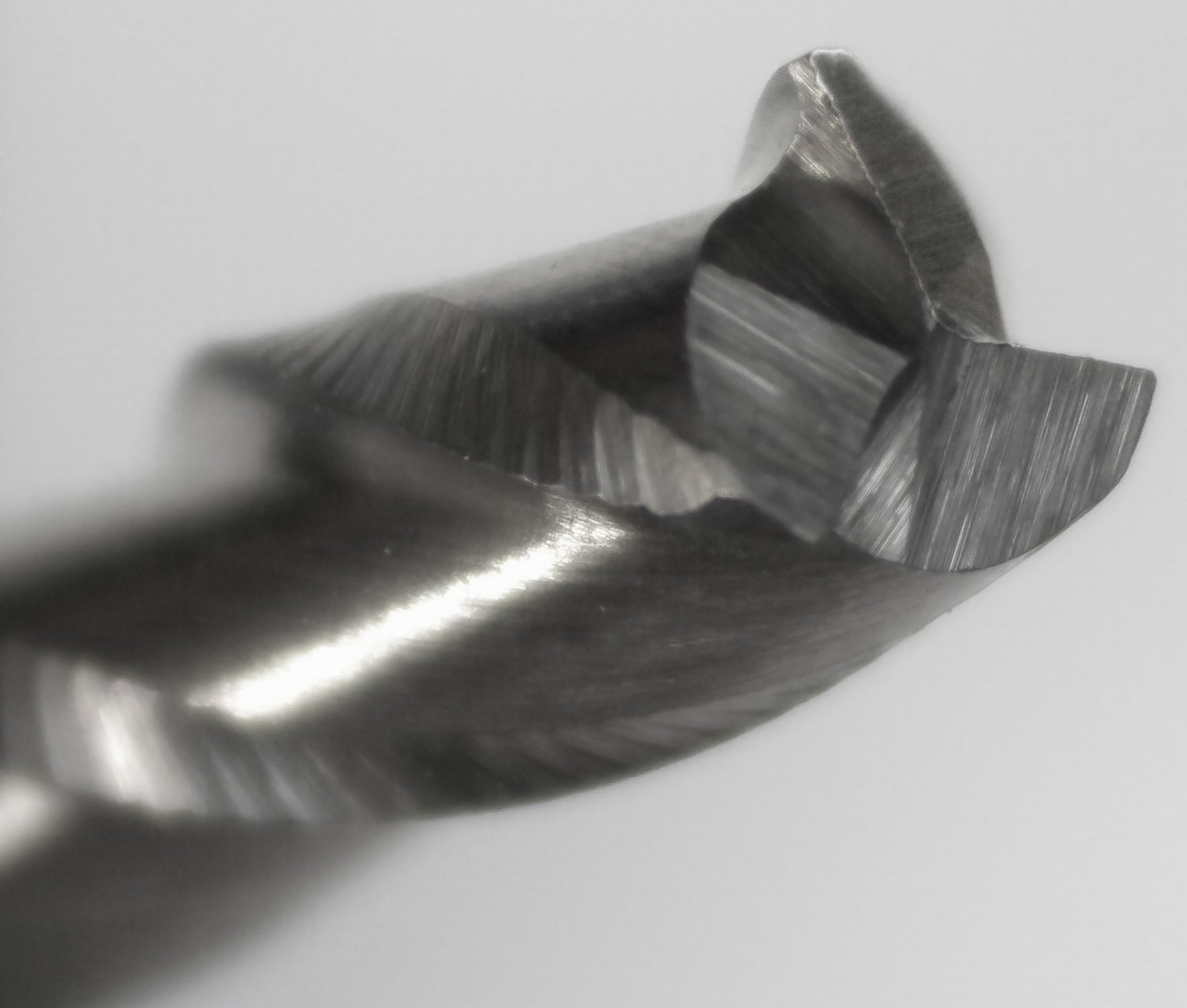

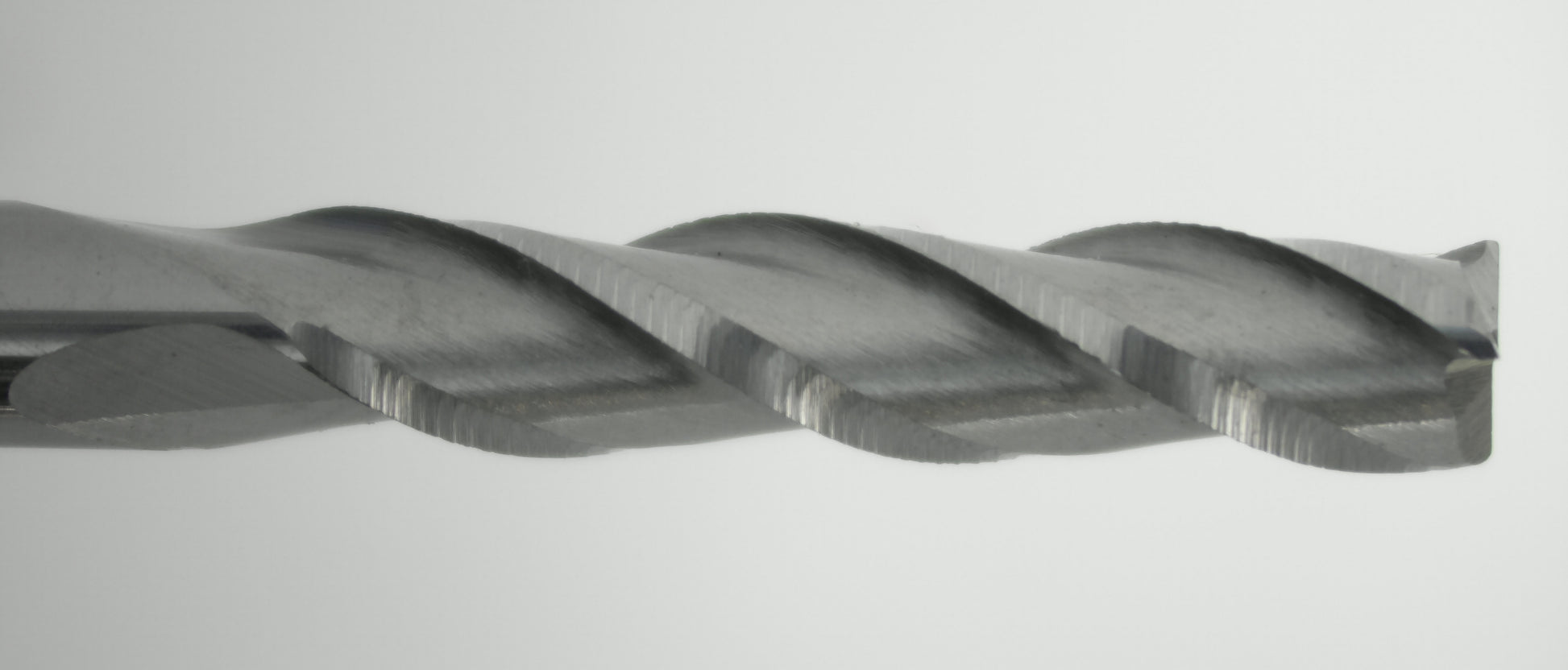

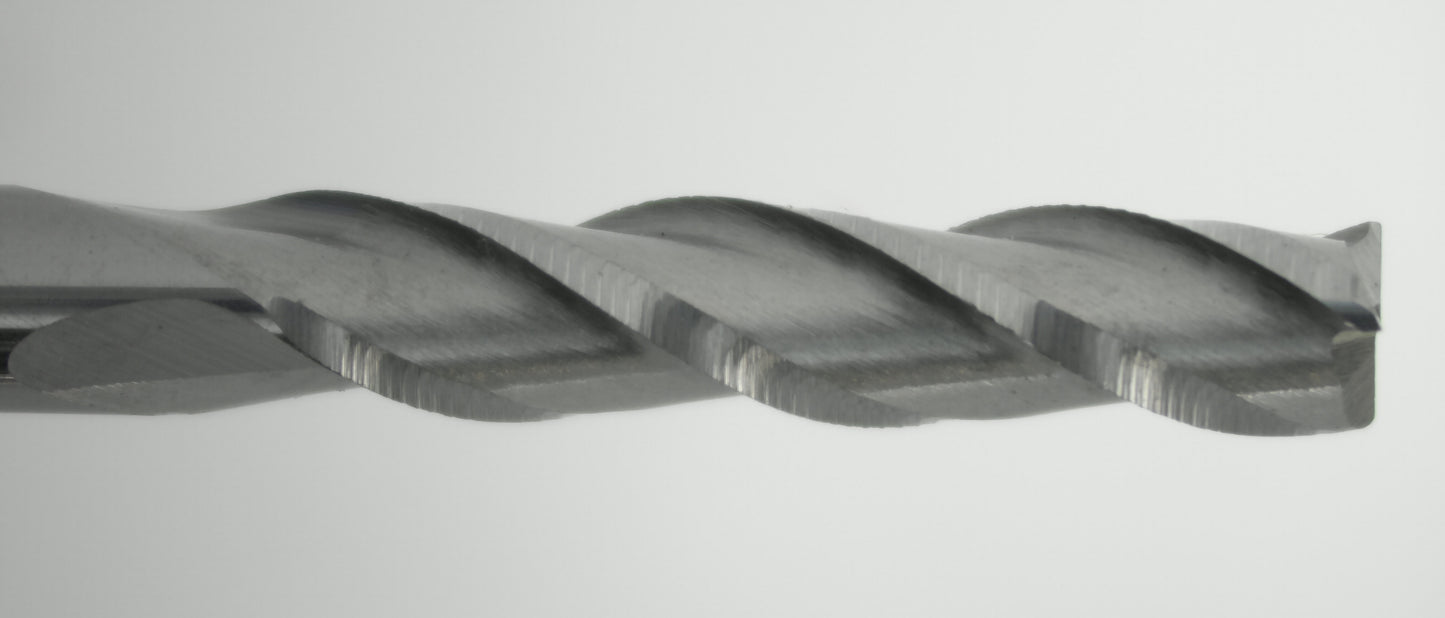

This solid carbide 3-flute end mill is designed for efficient material removal and smooth cutting performance across a range of materials. The 3-flute geometry offers an excellent balance between chip evacuation and tool strength, making it especially effective for aluminum and non-ferrous materials.

• Diameter: 1/8" (0.125")
• Length of Cut (LOC): 0.600"
• Overall Length (OAL): 1.50"
• Shank Diameter: 1/8" (3.175mm)
• Flutes: 3 (Spiral)
• End Type: Square End
• Material: Solid Carbide
• Quantity: Sold Individually

The 3-flute design allows for higher feed rates than 2-flute tools while maintaining good chip clearance, making it ideal for efficient machining in aluminum, plastics, and other non-ferrous materials.

Common Applications:

• Aluminum milling
• Plastics and acrylic machining
• Slotting and profiling
• General-purpose CNC milling
• Light steel applications (with proper speeds/feeds)

⚠️ Note: For best performance, use appropriate feeds and speeds and ensure proper chip evacuation, especially in deeper cuts.
