0.125" (1/8") O-Flute Single Flute End Mill TiN Coated Solid Carbide 10mm LOC 1/8" Shank 1.50" OAL
0.125" (1/8") O-Flute Single Flute End Mill TiN Coated Solid Carbide 10mm LOC 1/8" Shank 1.50" OAL
Limited stock – this item will not be restocked once sold out.
Couldn't load pickup availability

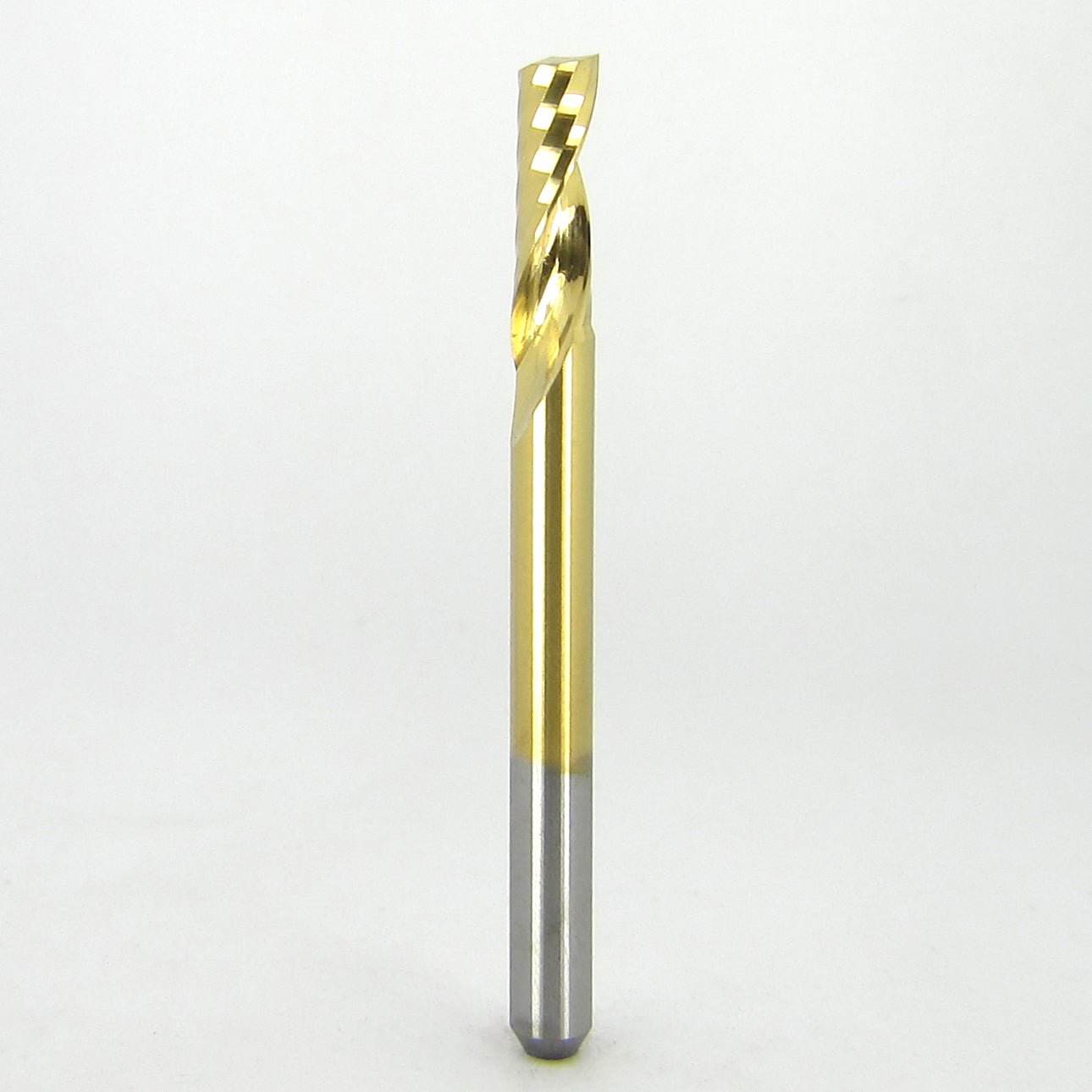

1/8" (0.125") O-Flute Single Flute End Mill – TiN Coated Solid Carbide

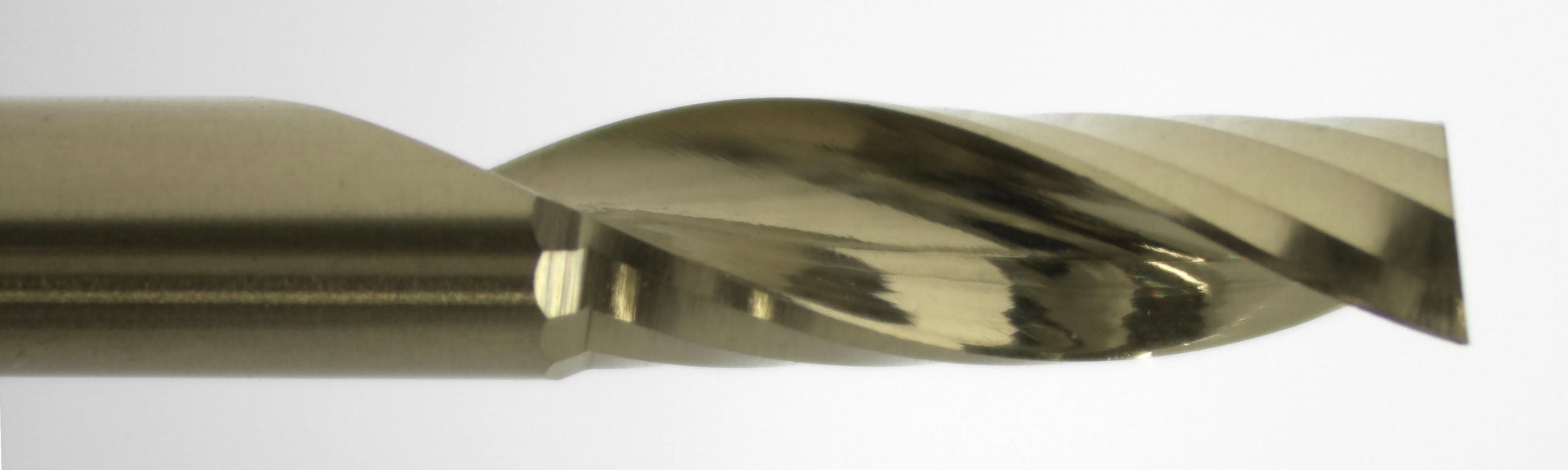

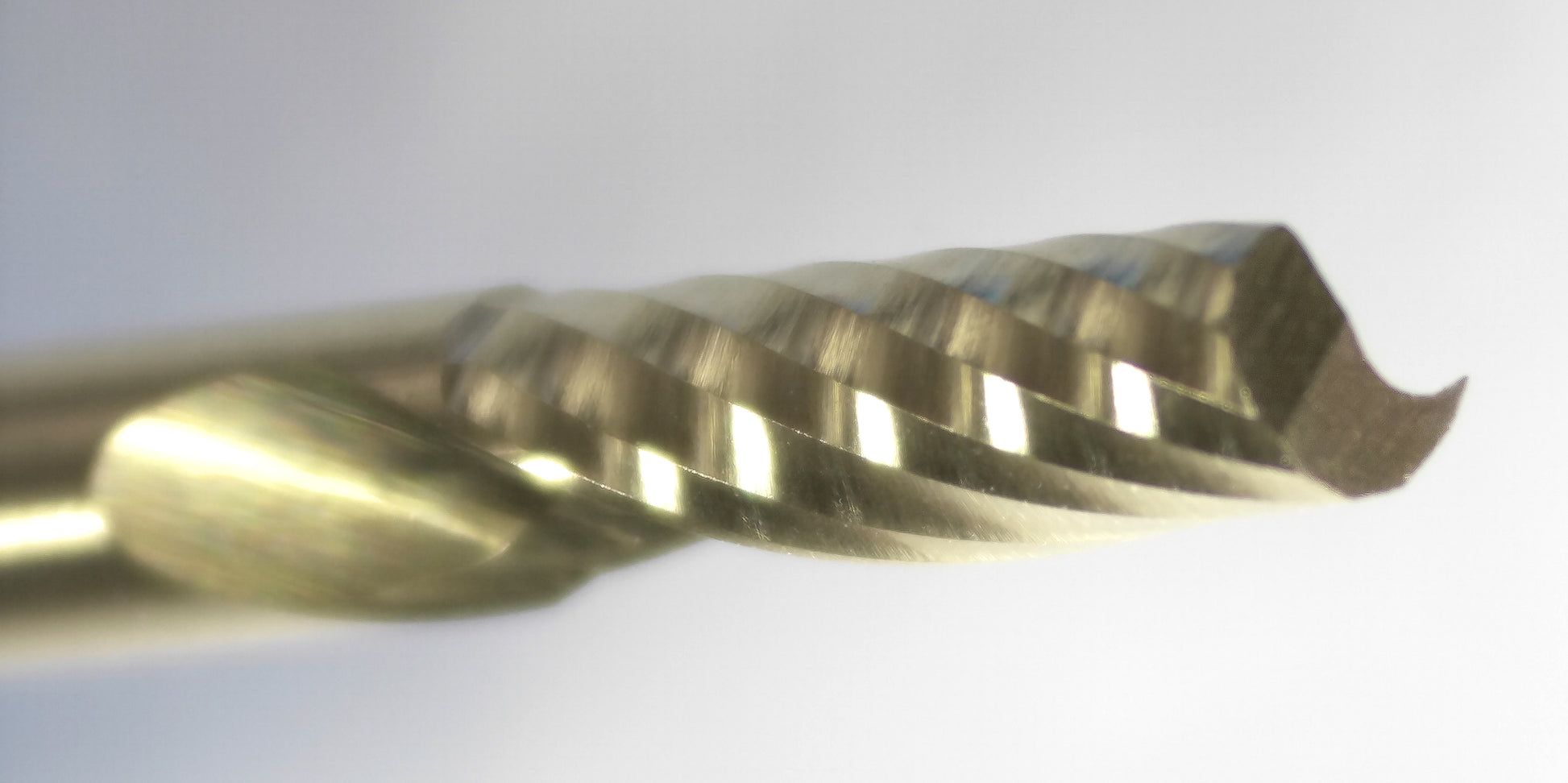

This solid carbide O-flute end mill features a single flute design optimized for superior chip evacuation in plastics and soft materials. The polished flute combined with a titanium nitride (TiN) coating helps reduce friction and improve tool life.
- Diameter: 1/8" (0.125")
- Length of Cut (LOC): 10mm (~0.400")
- Overall Length (OAL): 1.50"
- Shank Diameter: 1/8" (3.175mm)
- Flutes: 1 (O-Flute)
- End Type: Square End
- Coating: Titanium Nitride (TiN)
- Material: Solid Carbide
- Quantity: Sold Individually
The O-flute geometry is specifically designed to prevent chip re-cutting and melting in plastics by producing large, clean chips and allowing efficient evacuation at high spindle speeds.
Common Applications:
- Acrylic and plastics (ABS, PVC, polycarbonate)
- Soft materials and composites
- Sign making and engraving
- High-speed CNC routing
⚠️ Note: Not recommended for steel. For best results, use high RPM and appropriate feed rates to maintain clean chip formation and avoid melting.
