0.1250" (1/8") x .670" LOC TiN-Coated 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-185
0.1250" (1/8") x .670" LOC TiN-Coated 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-185
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 9% off |
| 100 + | 10% off |
Couldn't load pickup availability
0.1250" (1/8") x .670" LOC TiN-Coated 2-Flute Square End Carbide End Mill, 1/8" Shank – M2-185

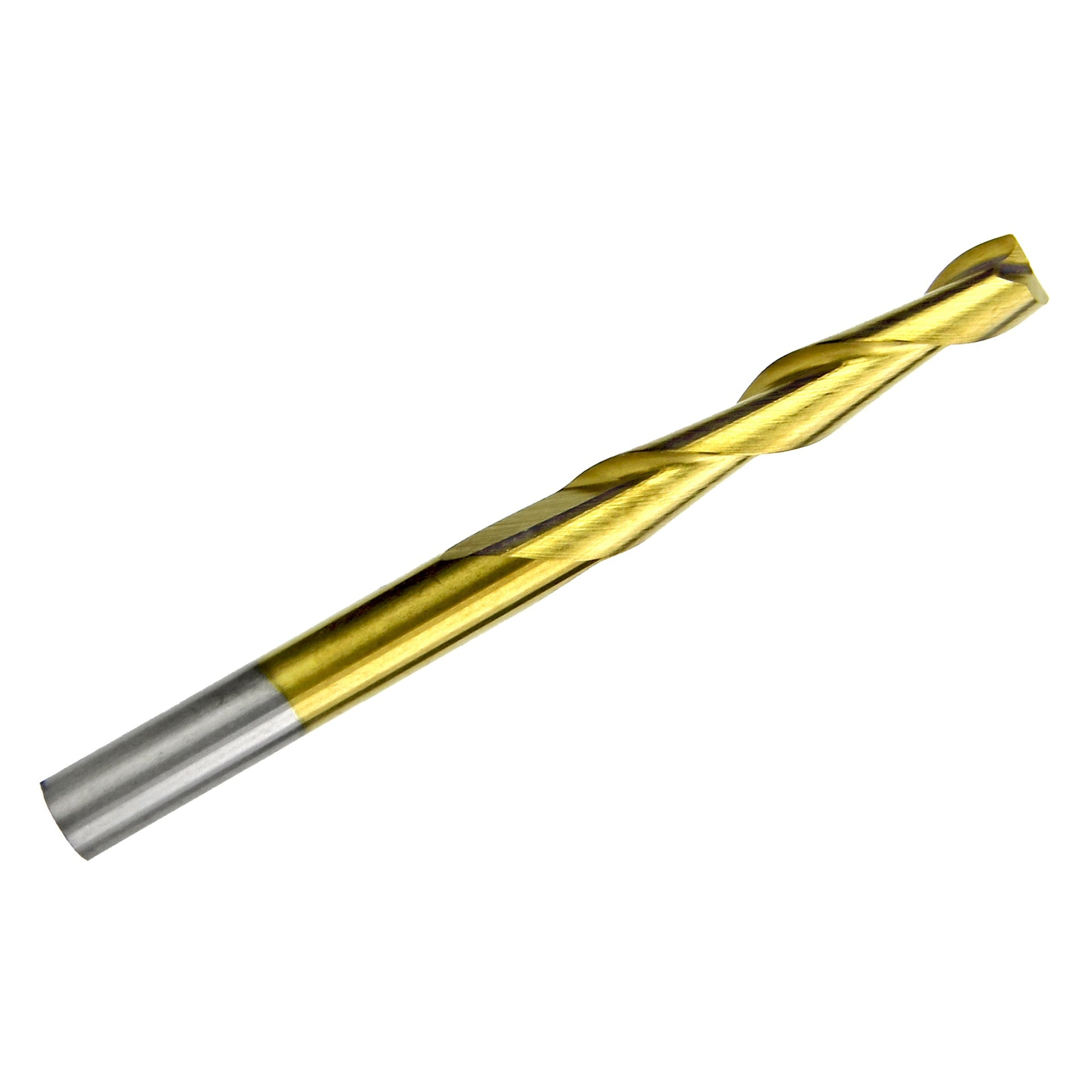

This TiN-coated solid carbide end mill features a 0.1250" (1/8" / 3.175mm) cutting diameter, .670" length of cut, 2-flute square end geometry, 1.50" overall length, and a standard 1/8" shank. It is designed for CNC milling, slotting, profiling, pocketing, and precision routing applications.
The titanium nitride (TiN) coating provides a hard, wear-resistant cutting surface that can help extend tool life in suitable materials and cutting conditions. The 2-flute up-cut spiral geometry supports chip evacuation during machining.
With a .670" flute length, this cutter provides more cutting reach than shorter 1/8" end mills. It is useful for machining deeper profiles, taller workpieces, and features requiring additional flute engagement. The square end geometry is suitable for flat-bottom slots, pockets, and precision contouring.
Solid tungsten carbide construction provides rigidity and wear resistance. This cutter can be used in suitable woods, plastics, composites, and non-ferrous metals when appropriate feeds, speeds, chip removal, and workholding are maintained.
Common Applications
- CNC milling and precision routing
- Slotting, profiling, and pocketing
- Deeper profiles requiring a .670" cutting length
- Wood and engineered wood machining
- Plastic and acrylic machining
- Suitable aluminum, brass, and other non-ferrous metals
- Composite materials with appropriate cutting conditions
- Prototype, hobby CNC, and light production work
Benefits
- TiN coating provides a hard, wear-resistant cutting surface
- .670" length of cut offers additional cutting reach
- 2-flute spiral geometry provides chip clearance
- Up-cut design helps carry chips upward during cutting
- Square end geometry supports slots, profiles, pockets, and flat-bottom features
- Solid carbide construction provides rigidity and dimensional stability
- Standard 1/8" shank fits compatible CNC collets and precision toolholders

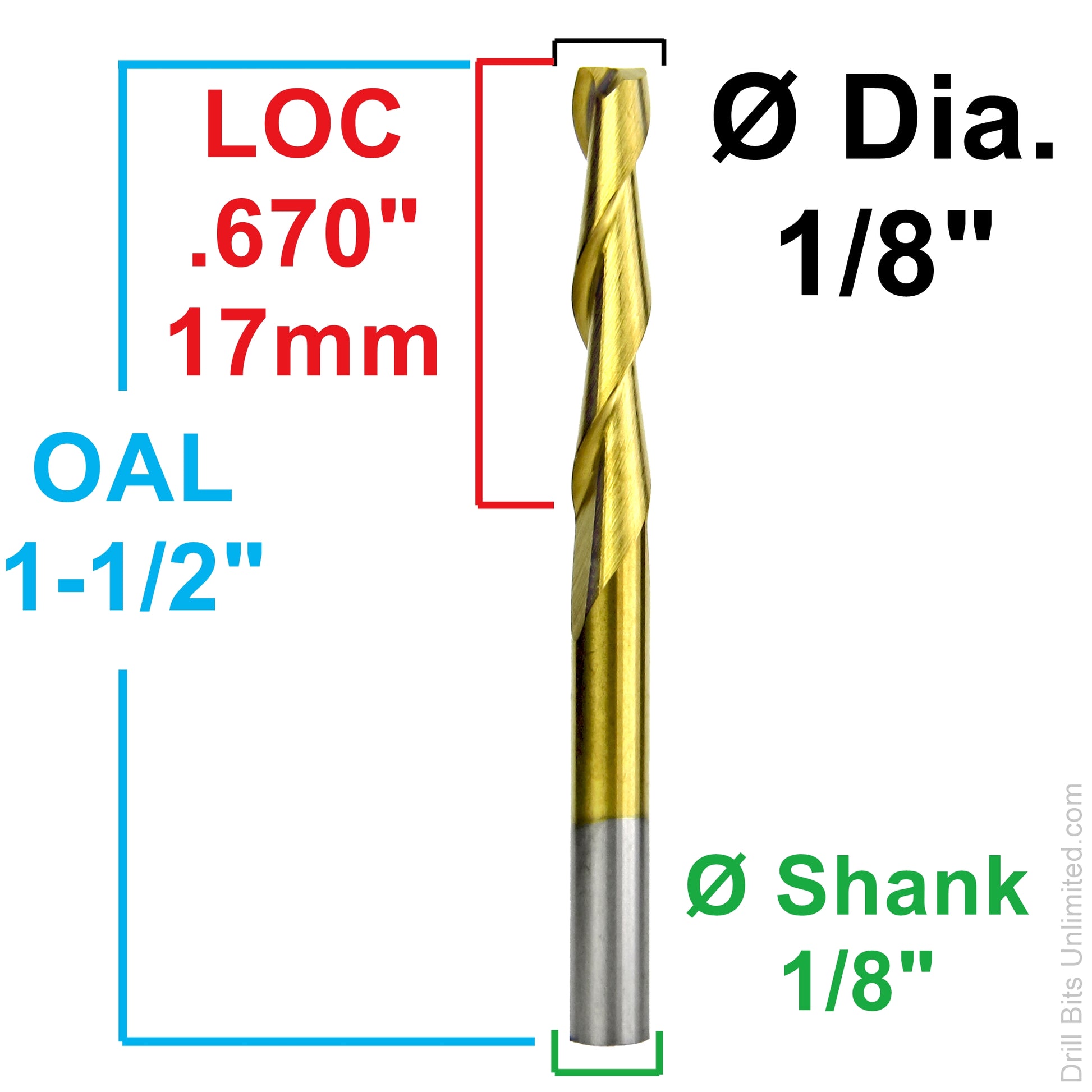

Specifications
| SKU | M2-185 |
|---|---|
| Tool Type | Solid Carbide End Mill |
| Condition | New |
| Cutting Diameter | 0.1250" / 1/8" / 3.175mm |
| Length of Cut / Flute Length | .670" / approximately 17mm |
| Overall Length | 1.50" |
| Shank Diameter | 1/8" / 3.175mm |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| End Style | Square End |
| Cut Direction | Up Cut |
| Material | Solid Tungsten Carbide |
| Finish / Coating | Titanium Nitride (TiN) |
Cutting Considerations
The extended .670" flute length provides additional reach but also increases the potential for tool deflection compared with shorter 1/8" cutters. Use rigid workholding, appropriate feeds and speeds, controlled depth of cut, and effective chip evacuation. The suitability of TiN coating depends on the workpiece material and cutting conditions.
See our carbide end mill feed and speed calculator →
Shop our 2-flute end mills →
Former SKU / item number: M146B
