0.1250" (1/8") x .472" LOC 2-Flute Square End Carbide End Mill, 1/8" Shank | M116

0.1250" (1/8") x .472" LOC 2-Flute Square End Carbide End Mill, 1/8" Shank | M116

Regular price $6.49 USD
Regular price Sale price $6.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

0.1250" (1/8") x .472" LOC 2-Flute Square End Solid Carbide End Mill, Up Cut, 1/8" Shank – M116

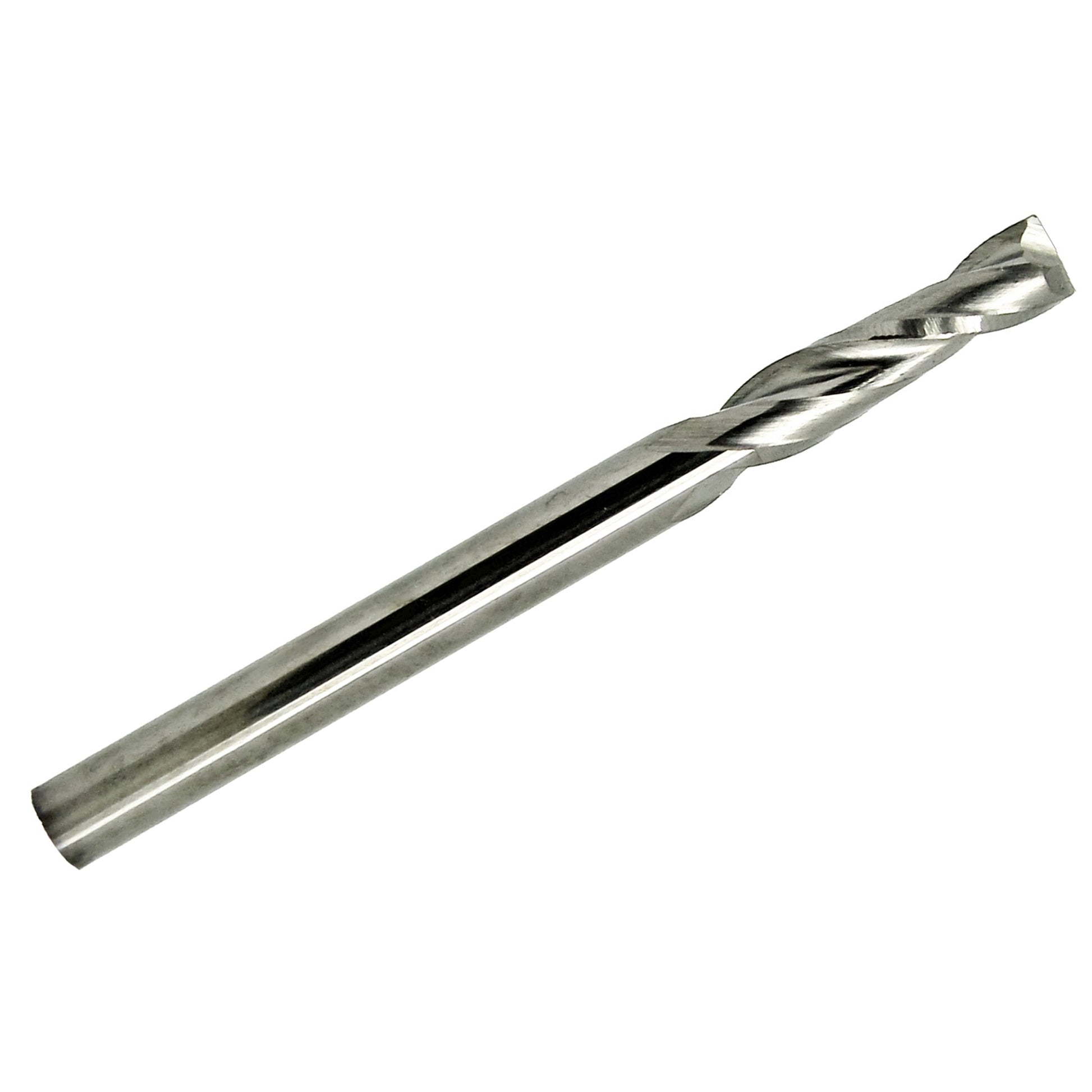

This 1/8" solid carbide 2-flute square end mill features a .1250" (3.175mm) cutting diameter, .472" (approximately 12mm) length of cut, 1.50" overall length, and a standard 1/8" shank. Its uncoated, up-cut spiral design makes it a versatile choice for general CNC milling, routing, slotting, profiling, and contouring.

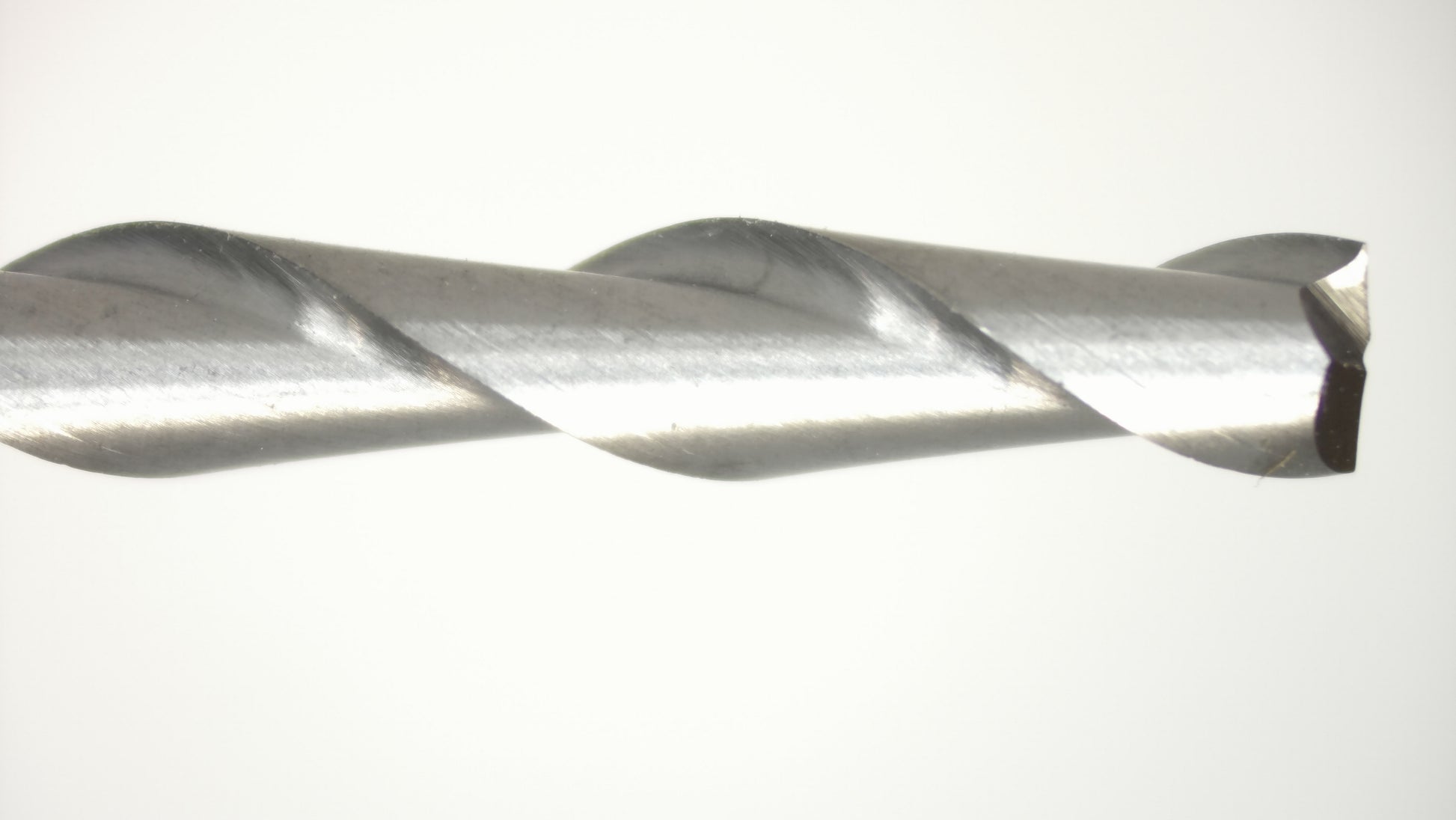

The 2-flute spiral geometry provides chip clearance while maintaining cutting edge strength. Its up-cut flute direction helps lift chips away from the cutting area, reducing recutting when suitable feeds, speeds, and chip removal are maintained.

The .472" cutting length offers useful reach for deeper profiles and slots compared with short-flute end mills of the same diameter. Solid carbide construction provides rigidity and wear resistance for precision cutting, although appropriate cutting engagement and machine stability remain important.

This tool is suitable for general machining of wood, MDF, plastics, acrylic, suitable composites, and soft non-ferrous metals such as aluminum and brass when the correct cutting parameters and workholding are used.

Common Applications

  • CNC milling and routing
  • Slotting, profiling, and contour cutting
  • Wood and MDF routing
  • Plastic and acrylic machining
  • Aluminum, brass, and other suitable soft non-ferrous metals
  • Light-duty composite cutting
  • Flat-bottom pockets and detailed features
  • Prototype, hobby, and general workshop applications

Features and Benefits

  • Solid tungsten carbide: Provides rigidity and wear resistance.
  • 2-flute spiral design: Balances chip clearance and cutting strength.
  • Up-cut geometry: Helps lift chips away from the cutting area.
  • .472" length of cut: Provides additional cutting reach for profiles and slots.
  • Square end: Suitable for flat-bottom cuts, pockets, and profiling.
  • Center cutting: Supports controlled plunge-style entry when used with appropriate machining parameters.
  • 1/8" shank: Fits compatible compact CNC routers, mills, and precision collets.
  • Uncoated finish: A practical choice for general-purpose machining.

Specifications

SKU M116
Tool Type Solid Carbide End Mill
Condition New

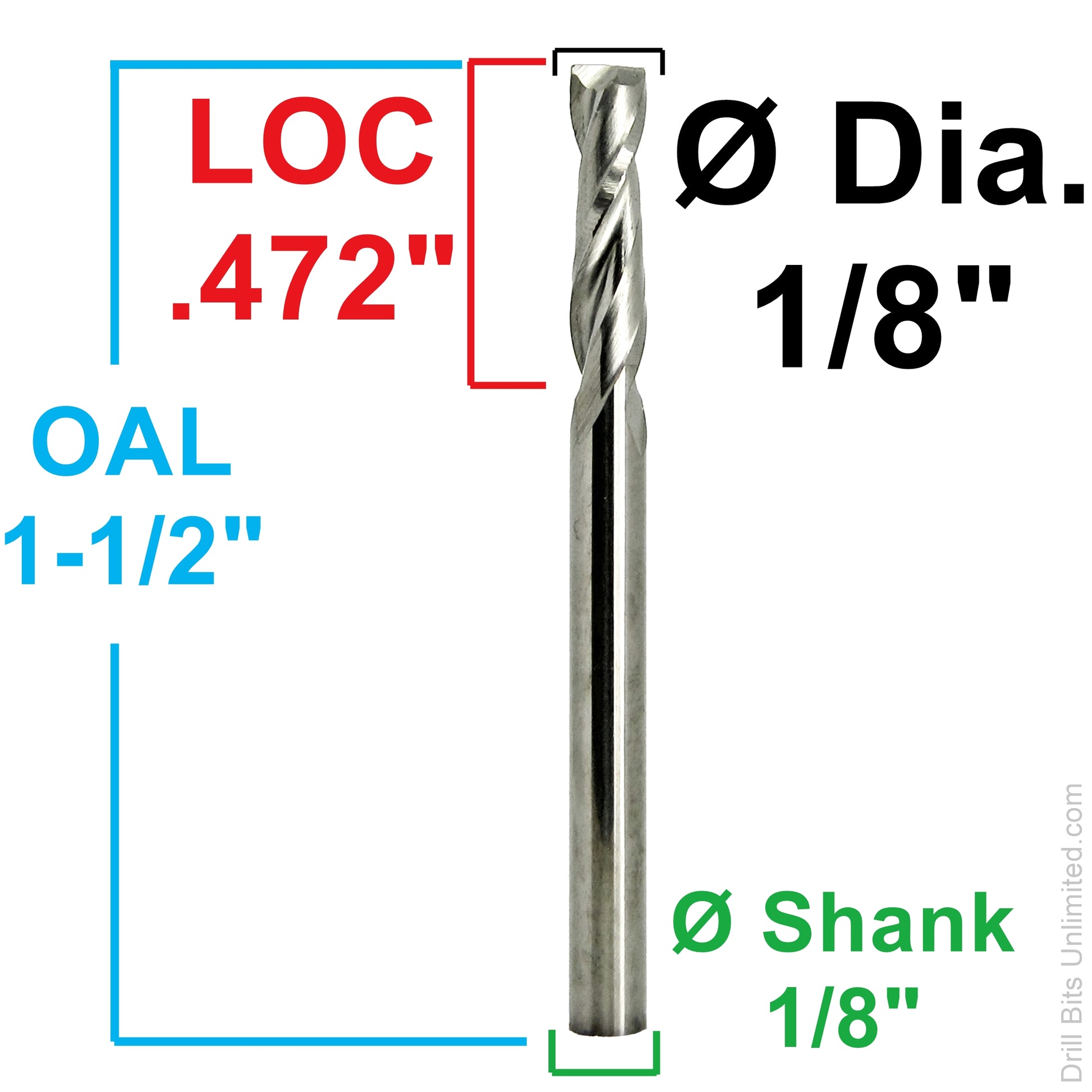

Cutting Diameter .1250" / 1/8" / 3.175mm
Length of Cut / Flute Length .472" (approx. 12mm)
Overall Length 1.50" (38.10mm)
Shank Diameter 1/8" (3.175mm)
Number of Flutes 2
End Style Square End
Flute Type Spiral
Flute Direction Up Cut
Center Cutting Yes
Material Solid Tungsten Carbide
Finish / Coating Uncoated / Bright

Machining Considerations

For best results, use a rigid toolholding setup, minimize spindle runout, and select cutting parameters appropriate for the material. The longer .472" cutting section provides additional reach but requires consideration of tool deflection, especially during full-width slotting or machining harder materials.
