0.1250" (1/8") x .670" LOC 2-Flute Drill Point HSS End Mill, 1/8" Shank | M115

0.1250" (1/8") x .670" LOC 2-Flute Drill Point Carbide End Mill, 1/8" Shank – M115

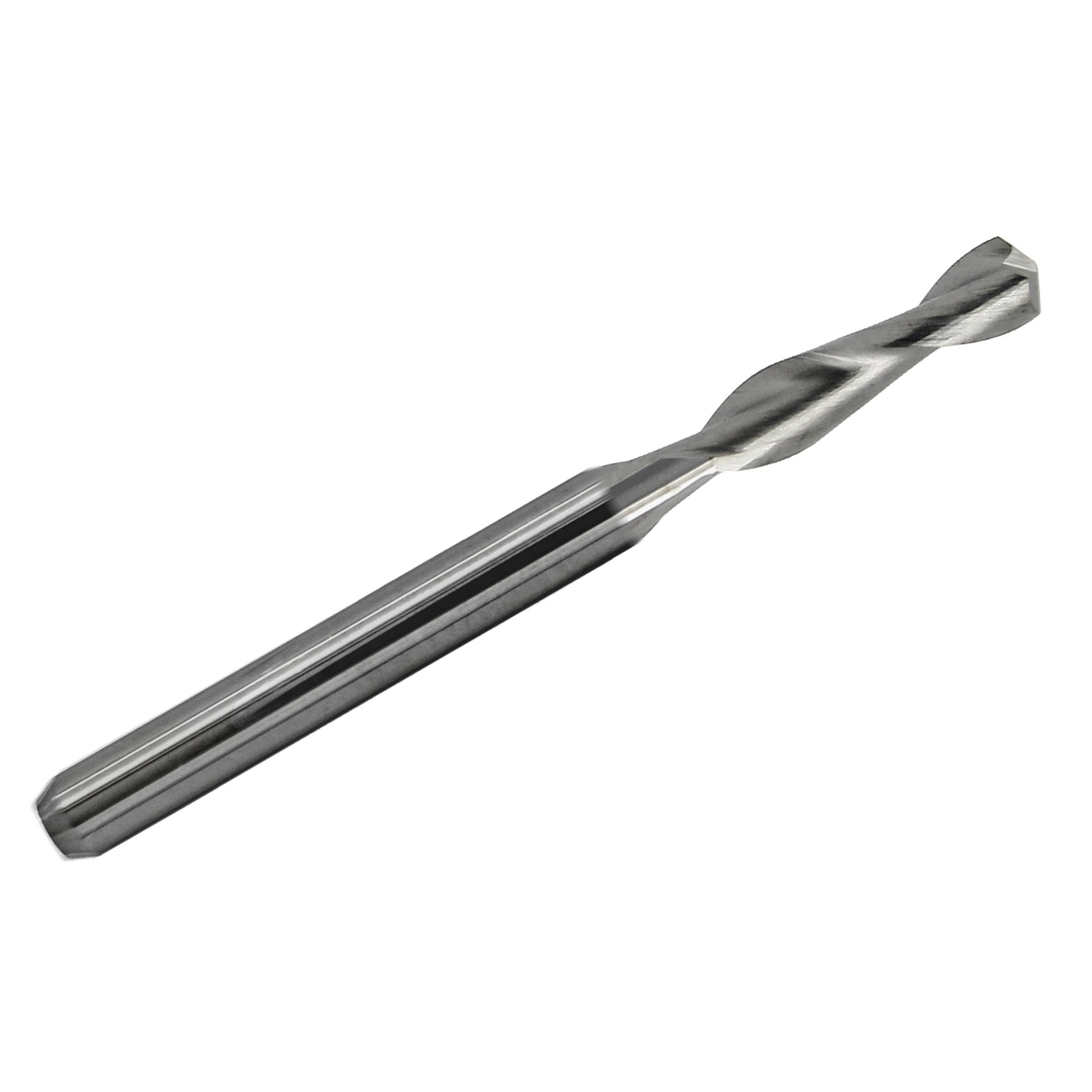

This general-purpose solid carbide end mill features a 0.1250" (1/8") cutting diameter, .670" length of cut, 2-flute spiral geometry, drill point tip, 1.50" overall length, and a standard 1/8" shank. It is suited for CNC milling, routing, slotting, profiling, and general cutting in appropriate materials.

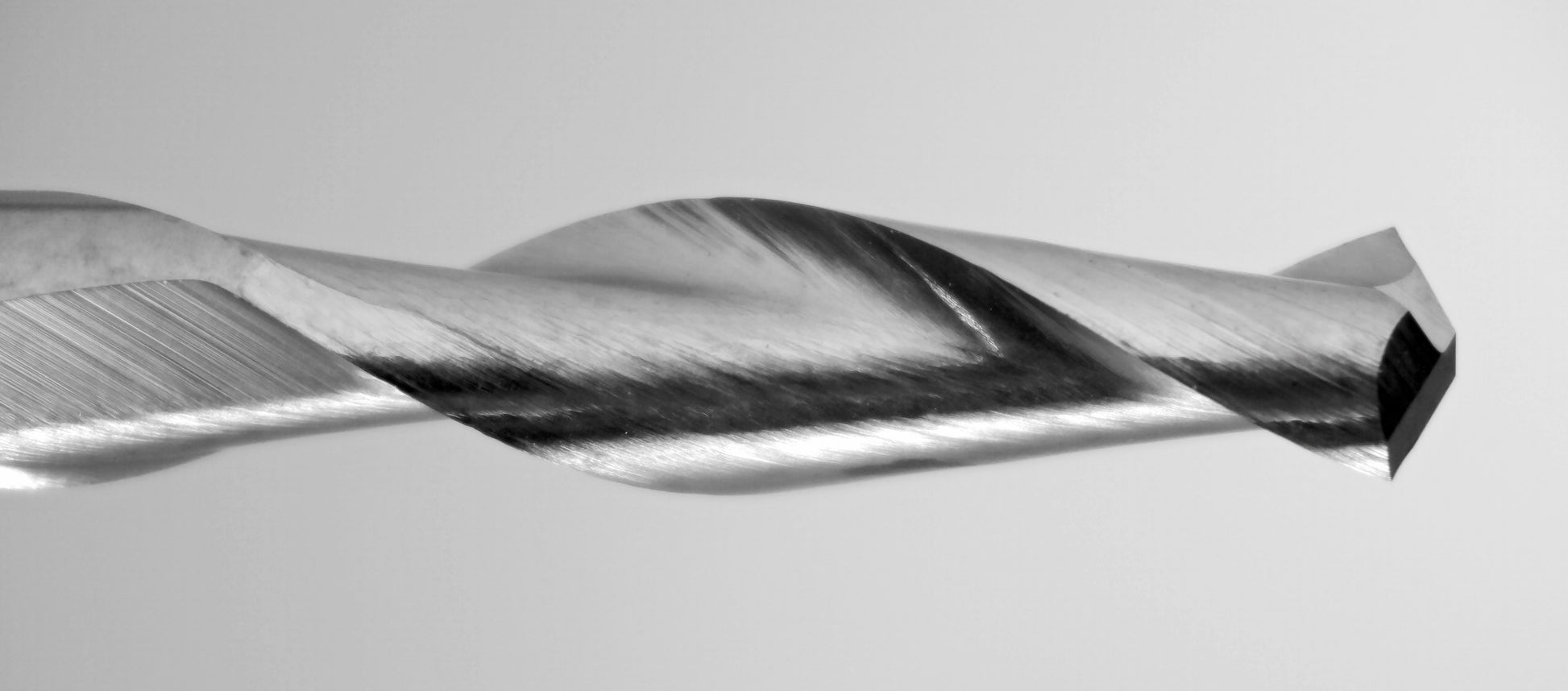

The 2-flute up-cut spiral design helps clear chips from the cut while maintaining a practical balance of chip clearance and cutting strength. The drill point tip can help with plunge-style entry when used properly, but it does not leave the same flat-bottom finish as a square end mill.

Solid tungsten carbide construction provides better rigidity and wear resistance than HSS tooling. This is a practical value option for hobby, prototype, and general shop use where a standard 1/8" carbide cutter with extra flute reach is needed.

Common Applications

• General CNC milling and routing
• Wood routing and detail cutting
• Plastic and acrylic machining
• Foam cutting
• Composite material cutting
• Aluminum and suitable soft-metal machining
• Slotting, profiling, and contouring
• Prototype, hobby, and small-shop work

Benefits

• Solid carbide construction provides rigidity and wear resistance
• 2-flute spiral geometry supports chip evacuation in many general CNC applications
• Up-cut design helps pull chips up and away from the cut
• Drill point tip can help with plunge-style entry when used properly
• .670" LOC provides extended cutting reach for deeper profiles and slots
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications

Tip note: This tool has a drill point tip. For flat-bottom pockets or square-bottom slots, choose a square end mill instead.
