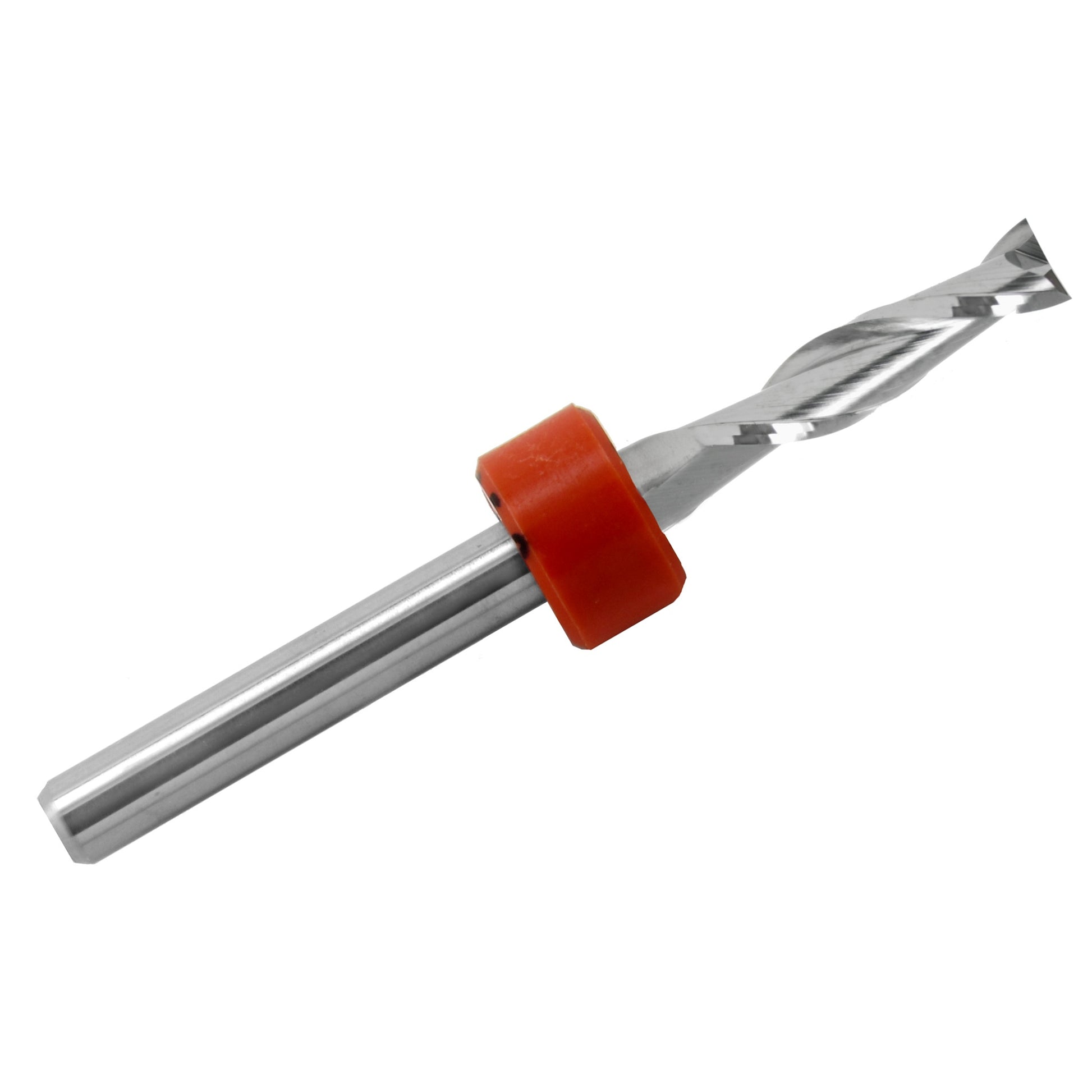

0.1250" (1/8", 3.175mm) x .500" LOC 2-Flute Up-Cut Square End Carbide End Mill, 1/8" Shank | M117

0.1250" (1/8", 3.175mm) x .500" LOC 2-Flute Up-Cut Square End Carbide End Mill, 1/8" Shank | M117

Regular price $8.99 USD
Regular price Sale price $8.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

1/8" (.1250", 3.175mm) 2-Flute Up-Cut Square End Carbide End Mill – M117

This Kyocera solid carbide precision end mill features a 1/8" (.1250" / 3.175mm) cutting diameter, .500" length of cut, 2-flute up-cut square end geometry, 1.50" overall length, and a standard 1/8" shank. It is designed for precision CNC milling, slotting, profiling, pocketing, and detailed routing applications.

Manufactured by Kyocera under part number 1600.1250.500, this precision cutter combines a 1/8" cutting diameter with a half-inch flute length for applications requiring additional cutting reach.

The 2-flute up-cut spiral geometry helps move chips upward and away from the cutting area. This is particularly useful for slotting, profiling, and pocketing applications where effective chip removal is important.

The .500" length of cut provides useful reach for deeper slots, contours, and pockets. The square end geometry is suitable for machining flat-bottom features and straight-sided profiles.

Solid tungsten carbide construction provides rigidity and wear resistance, while polished flutes offer smooth cutting surfaces that support chip flow. This end mill can be used for CNC machining in plastics, acrylic, wood, MDF, fiberglass, composites, and selected soft non-ferrous metals such as aluminum, brass, and copper when appropriate machining parameters are maintained.

Common Applications

  • Precision CNC milling and routing
  • Slotting, profiling, and contouring
  • Small pockets and flat-bottom features
  • Plastic and acrylic machining
  • Wood and MDF routing
  • PCB and circuit board machining
  • Fiberglass, FR-4, G10, and composite machining with suitable cutting conditions
  • Selected soft non-ferrous metals, including aluminum, brass, and copper
  • Prototype, hobby CNC, and light production machining

Features & Benefits

  • 1/8" (.1250") cutting diameter: Common CNC end mill size for precision slotting, profiling, and routing.
  • Kyocera solid carbide construction: Provides rigidity and wear resistance for precision machining.
  • .500" length of cut: Provides additional cutting reach for slots, profiles, and pockets requiring greater depth.
  • 2-flute geometry: Provides two cutting edges with room for chip evacuation.
  • Up-cut spiral flutes: Help direct chips upward and away from the cutting area.
  • Square end: Suitable for slotting, profiling, pocketing, and flat-bottom cuts.
  • Polished flutes: Provide smooth cutting surfaces and support chip flow.
  • 1/8" shank: Fits appropriate precision CNC collets and toolholders.

Specifications

Manufacturer Kyocera
Manufacturer Part Number 1600.1250.500
SKU M117
Tool Type Solid Carbide Precision End Mill
Condition New
Cutting Diameter 1/8" / .1250" / 3.175mm
Length of Cut / Flute Length .500"
Flutes 2
End Style Square End
Cut Direction Up Cut
Overall Length 1.50"
Shank Diameter 1/8" (3.175mm)
Material Solid Tungsten Carbide
Finish Polished Flutes

Important Machining Considerations

The 1/8" cutting diameter and .500" flute length provide useful reach for machining deeper slots and profiles. However, appropriate machining conditions remain important. Use rigid workholding, precision toolholding, minimal spindle runout, suitable spindle speeds, conservative cutting depths, and carefully selected feed rates.

The up-cut spiral helps clear chips from the cutting area, but excessive tool engagement, chip accumulation, or deflection can lead to poor finishes or premature tool breakage.

Need help choosing starting settings?

See our carbide end mill feed and speed calculator →

Looking for more 2-flute carbide end mills?

Explore additional diameters and flute lengths in our 2-Flute Carbide End Mills Collection →
