0.1250" (1/8") x 1.70" LOC Extra-Long 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-210

0.1250" (1/8") x 1.70" LOC Extra-Long 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-210

Regular price $9.99 USD
Regular price Sale price $9.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

0.1250" (1/8") x 1.70" LOC Extra-Long 2-Flute Square End Carbide End Mill, 1/8" Shank – M2-210

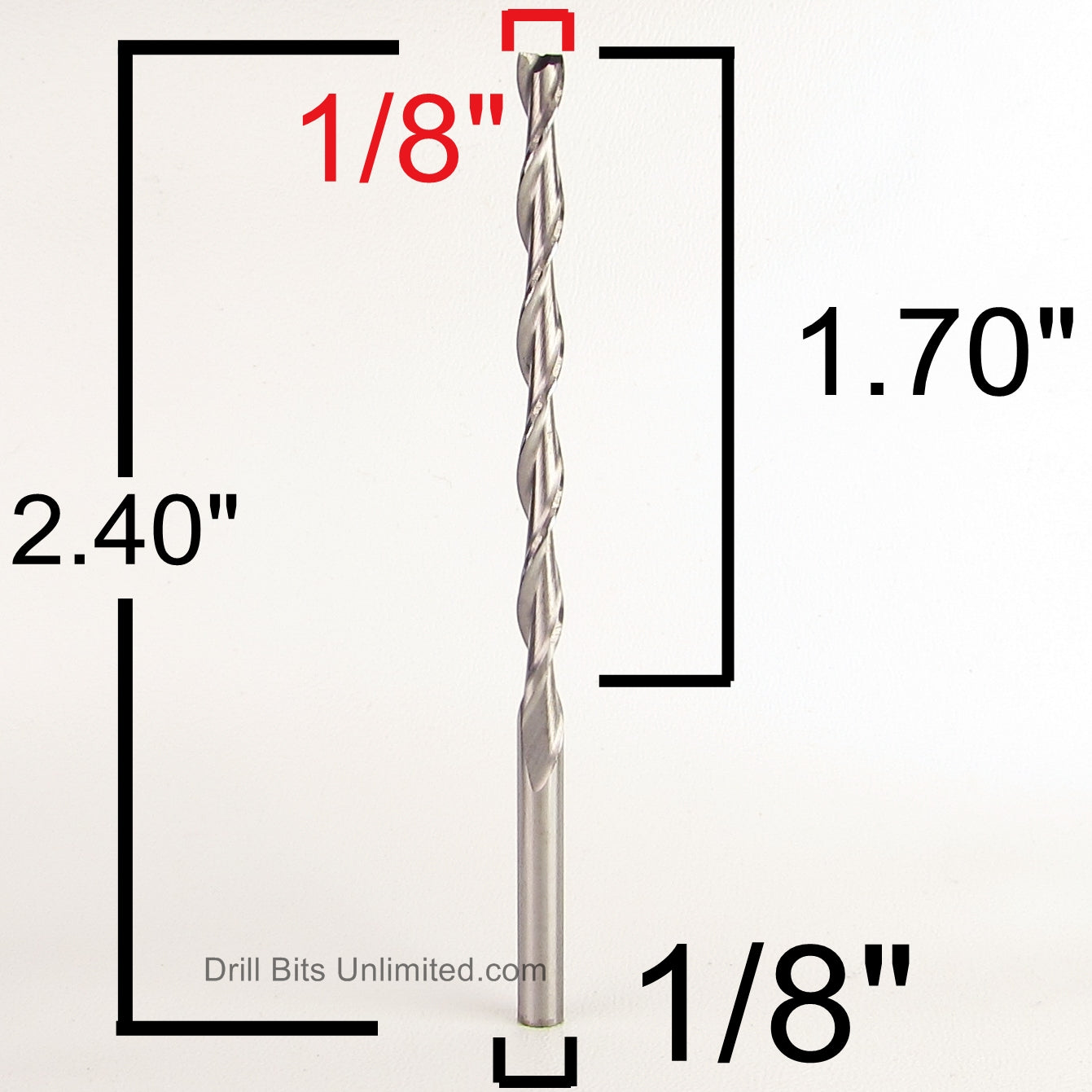

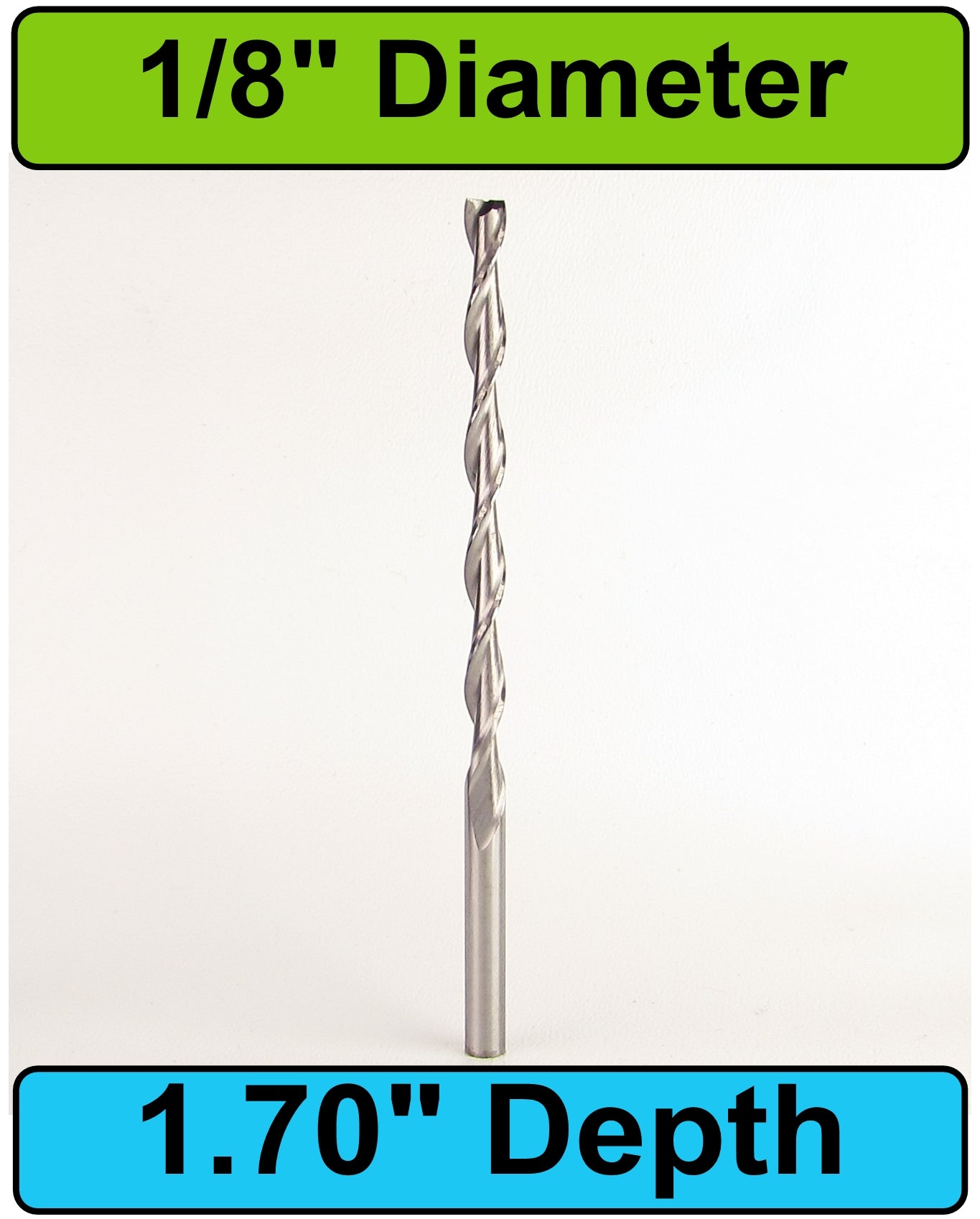

This extra-long-flute solid carbide end mill features a 0.1250" (1/8" / 3.175mm) cutting diameter, an extended 1.70" length of cut, 2-flute square end geometry, 2.40" overall length, and a standard 1/8" shank. It is intended for specialized CNC milling and routing applications requiring an unusually long cutting section.

The 2-flute up-cut spiral design helps carry chips upward during machining. The extended flute length makes this tool useful for deep profiling, cutting tall or thick workpieces, and reaching features that cannot be machined with conventional short-flute end mills.

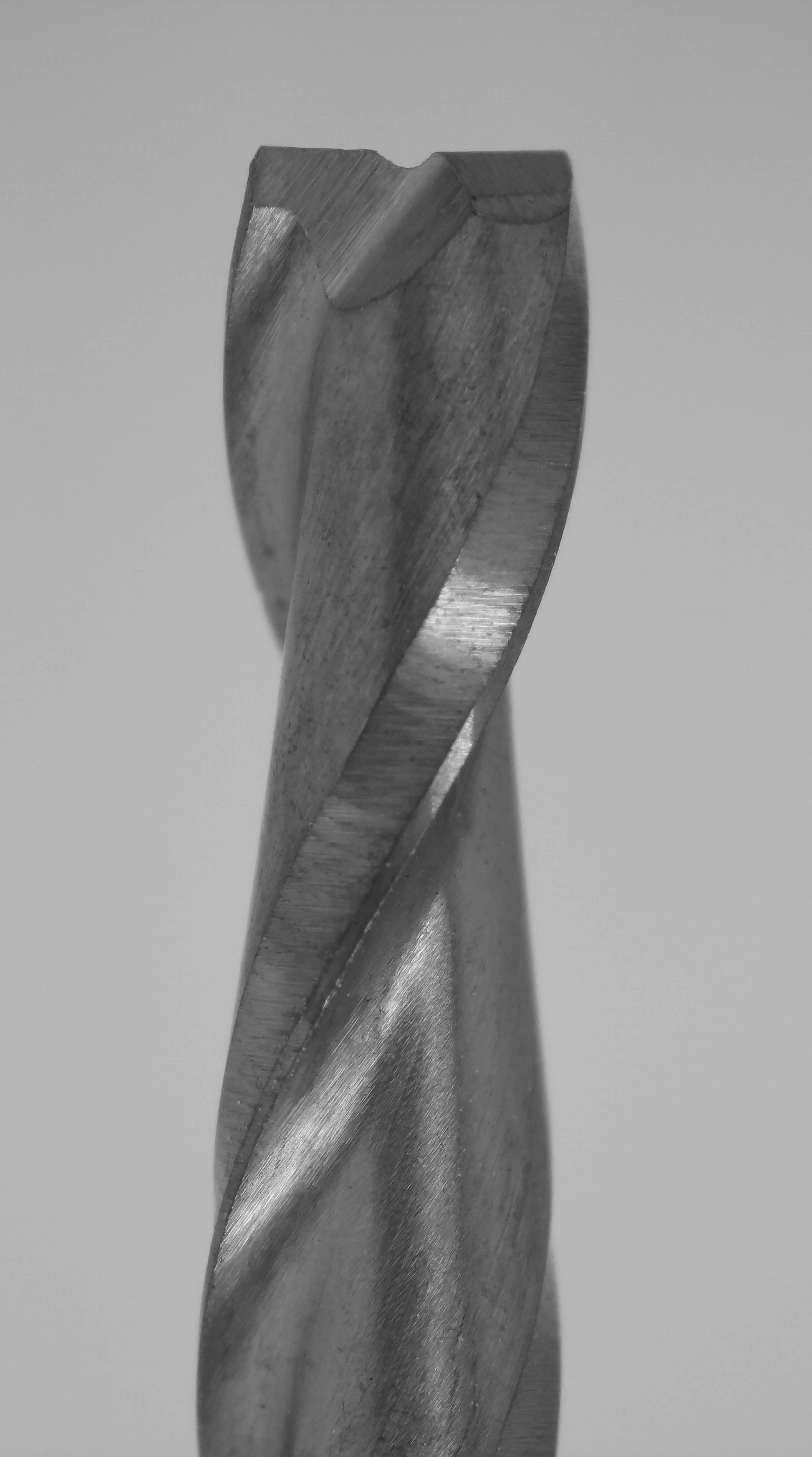

Manufactured from solid tungsten carbide with polished flutes, this end mill provides wear resistance and a precision cutting geometry. It may be used in wood, plastics, foam, and suitable composite or non-ferrous materials when appropriate cutting conditions, workholding, and chip evacuation are maintained.

Common Applications

  • Deep CNC profiling and contouring
  • Cutting thick wood and engineered wood components
  • Machining tall or deep features
  • Plastic, acrylic, and foam machining
  • Specialty routing and prototype fabrication
  • Deep side milling where an extended cutting edge is required
  • Suitable composite materials with appropriate cutting parameters

Benefits

  • Extra-long 1.70" flute length for specialized deep-cutting applications
  • 2-flute spiral design supports chip evacuation
  • Up-cut geometry helps lift chips from the cutting area
  • Square end geometry for profiling, slotting, and flat-bottom features
  • Solid carbide construction provides wear resistance
  • Polished flutes support smoother chip flow
  • Standard 1/8" shank fits compatible precision collets and toolholders

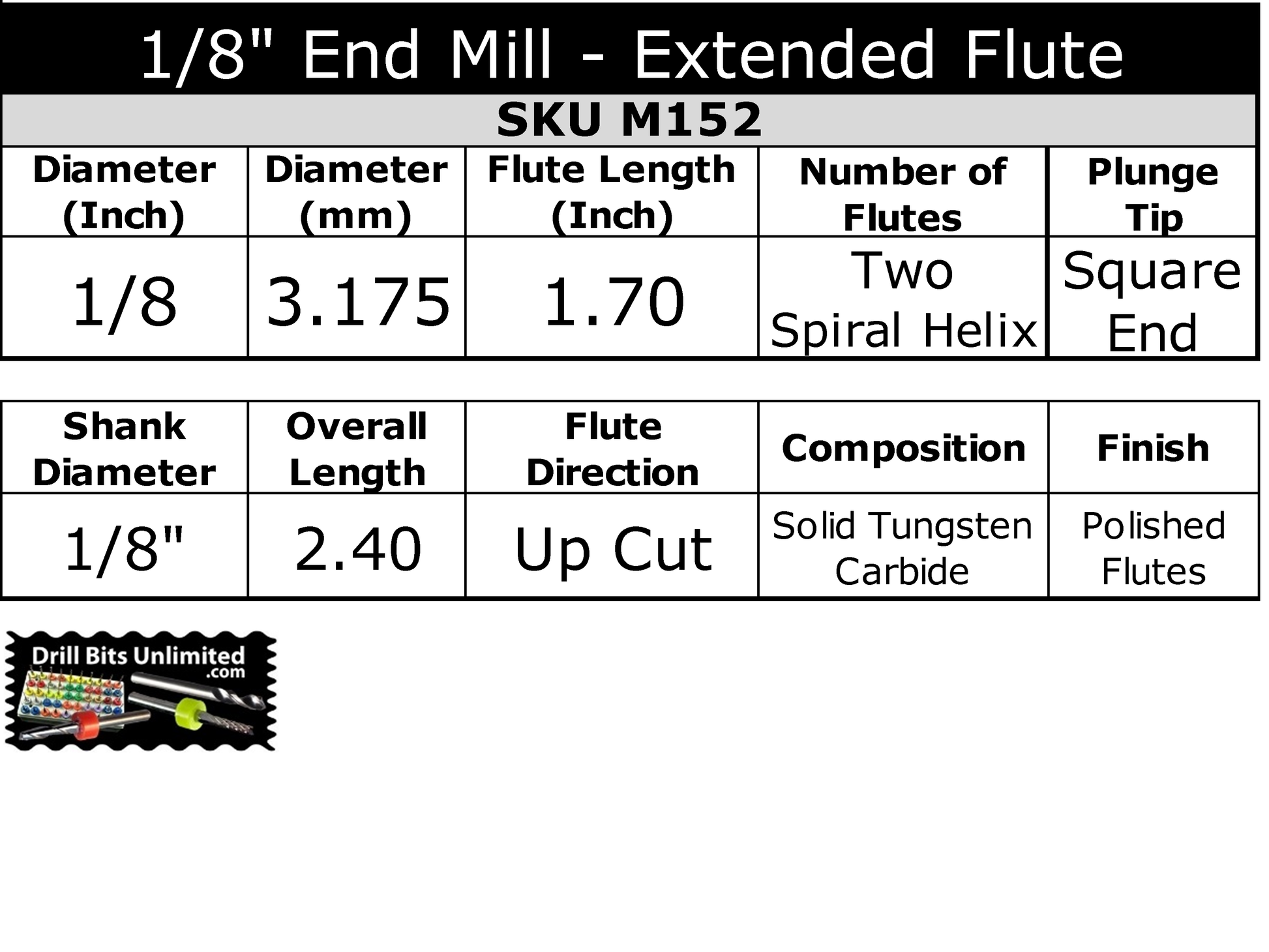

Specifications

SKU M2-210
Former SKU / Item Number M152
Tool Type Extra-Long-Flute Solid Carbide End Mill
Condition New
Cutting Diameter 0.1250" / 1/8" / 3.175mm
Length of Cut / Flute Length 1.70"
Overall Length 2.40"
Shank Diameter 1/8" / 3.175mm
Flutes 2
End Style Square End
Flute Type Spiral
Flute Direction Up Cut
Material Solid Tungsten Carbide
Finish Polished Flutes
Manufacturer Not Specified

Extra-Long-Flute Tool Considerations

Important: The 1.70" flute length is exceptionally long relative to the 1/8" cutting diameter. This increases the risk of tool deflection, chatter, and breakage, particularly during heavy side cutting. Use rigid workholding, light cuts, appropriate feeds and speeds, and effective chip removal. Avoid excessive radial engagement and full-depth slotting unless supported by the machine, material, and cutting conditions.

Need help choosing starting settings?
See our carbide end mill feed and speed calculator →
Looking for more 2-flute carbide end mills?
Shop our 2-flute end mills →
