0.1250" (1/8") x .867" LOC 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-190

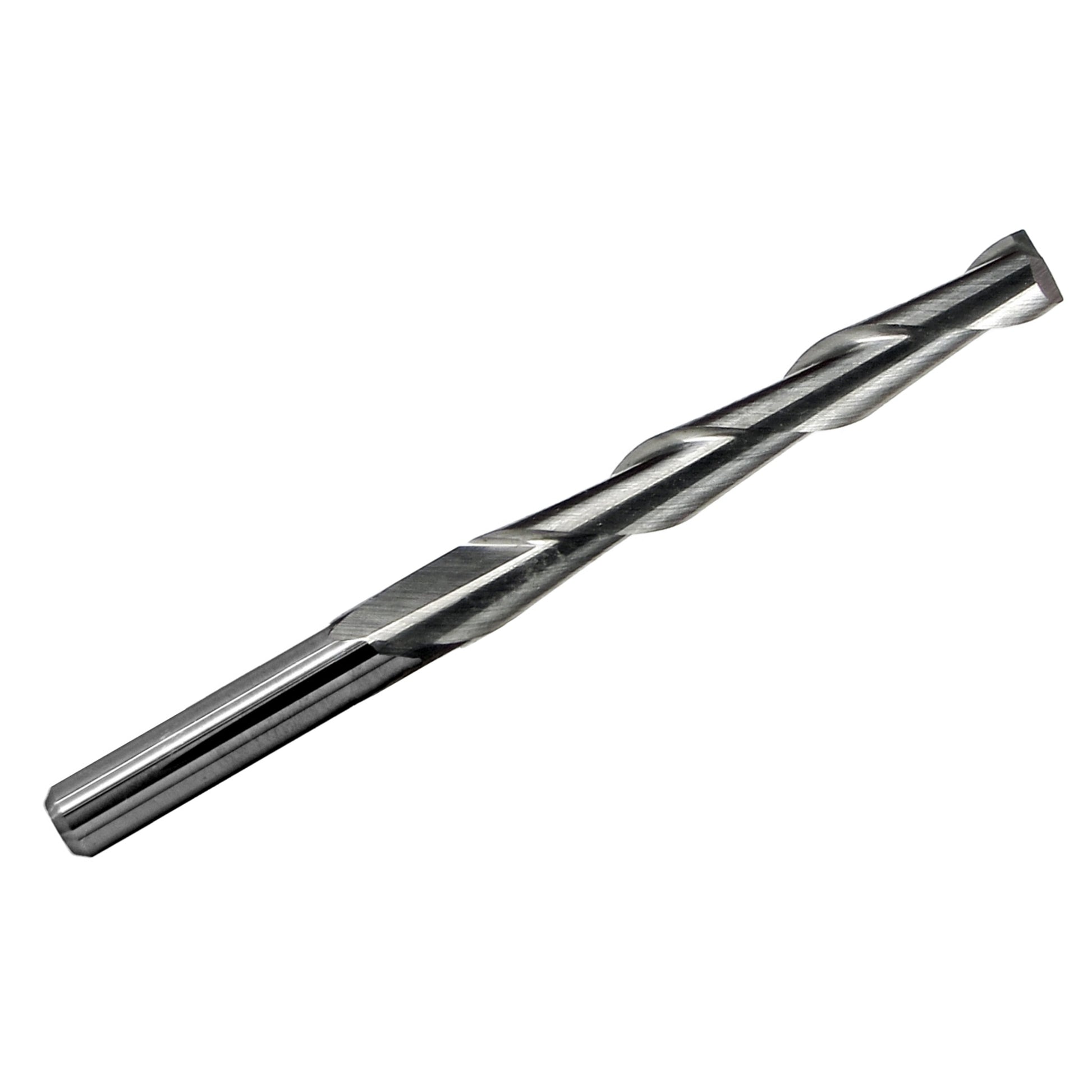

0.1250" (1/8") x .867" LOC 2-Flute Square End Solid Carbide End Mill, Up Cut, 1/8" Shank – M2-190

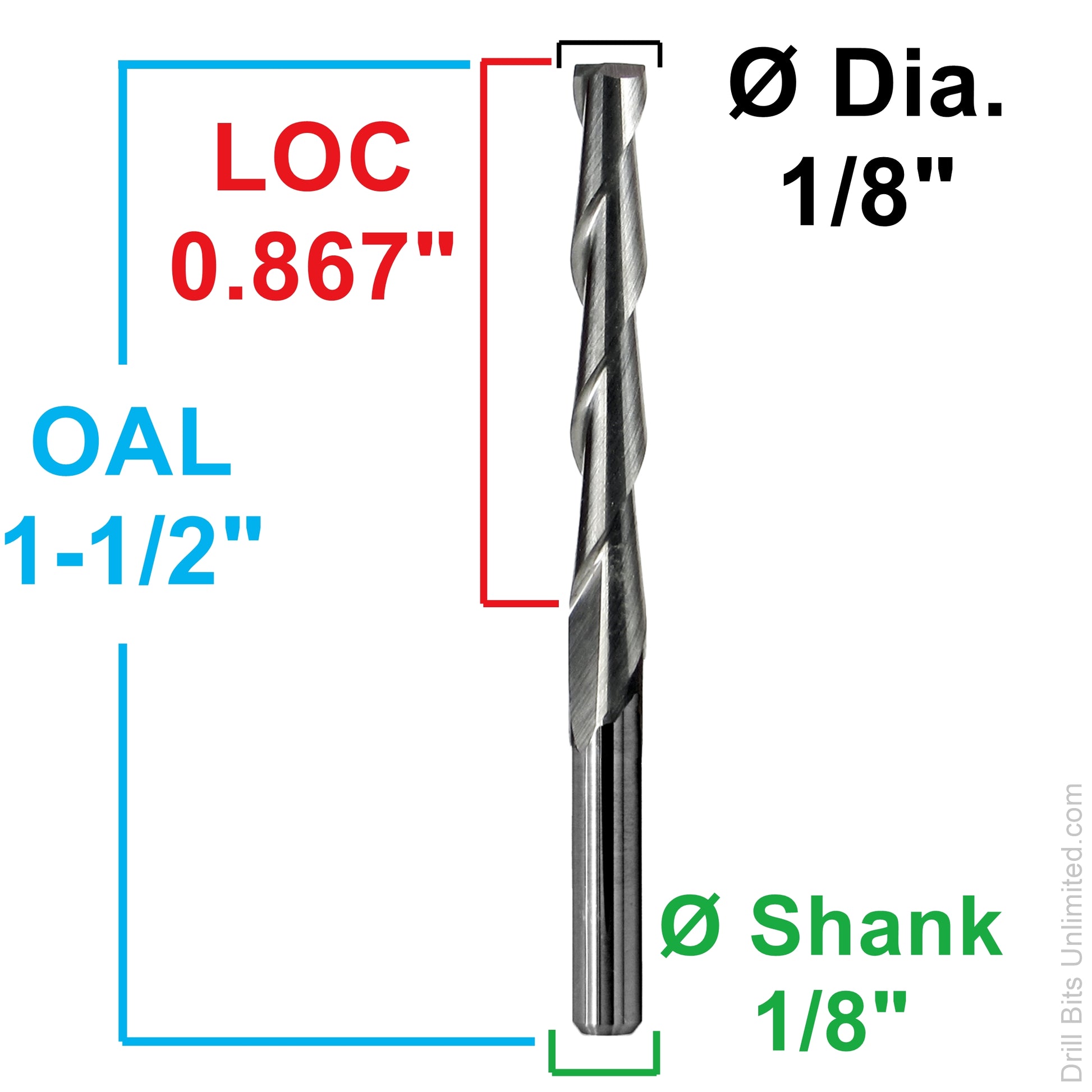

This extended-flute 1/8" solid carbide end mill features a .1250" (3.175mm) cutting diameter, .867" (approximately 22mm) length of cut, 2-flute square end geometry, 1.50" overall length, and a standard 1/8" shank. Its long cutting section is designed for CNC applications requiring more flute reach than conventional short-length end mills.

The 2-flute up-cut spiral geometry helps lift chips away from the cutting area during milling, slotting, profiling, and contouring. This tool can be used for appropriately controlled cutting in wood, MDF, plastics, acrylic, suitable composites, and soft non-ferrous metals such as aluminum and brass.

With a .867" length of cut, M2-190 offers considerably more cutting reach than shorter 1/8" end mills. This is useful for thicker workpieces, deeper profiles, and narrow features that require a longer cutting edge. However, the extended flute length makes the tool more susceptible to deflection and breakage under excessive side loading.

The solid tungsten carbide construction provides wear resistance and rigidity, while the square end supports flat-bottom cutting, slotting, and profiling. Center-cutting geometry permits controlled plunge-style entry when suitable cutting parameters are used.

Common Applications

• Extended-depth CNC profiling and contouring
• Deep, narrow slots requiring additional flute length
• Routing thicker wood and engineered wood materials
• Plastic and acrylic machining
• Precision cutting of suitable composite materials
• Light milling in aluminum, brass, and other soft non-ferrous metals
• Flat-bottom pockets and recessed features
• Prototype, hobby, and specialized CNC routing work

Features and Benefits

• Extended .867" length of cut: Provides additional cutting reach for deeper features and thicker workpieces.
• 1/8" cutting diameter: Suitable for narrow profiles, slots, and detailed CNC work.
• 2-flute design: Provides chip clearance while maintaining cutting edge strength.
• Up-cut spiral: Helps lift chips away from the cutting area.
• Square end: Suitable for flat-bottom pockets, profiles, and slots.
• Center cutting: Allows controlled plunge-style entry when appropriate.
• Solid carbide: Provides wear resistance for precision machining.
• Standard 1/8" shank: Fits compatible precision CNC collets and toolholders.

Specifications

Important: Extended-Flute Cutting Considerations

The .867" LOC is the available cutting length, not a recommended depth per pass. This relatively long flute section can deflect under side loading, particularly during full-width slotting or metal machining.

For best results, use rigid workholding, minimize spindle runout, maintain effective chip removal, and use conservative cutting engagement appropriate for the material. Avoid excessive unsupported tool extension and heavy cuts.

Choosing the Right Flute Length

For applications requiring less cutting reach, our M116 1/8" carbide end mill with .472" LOC offers a shorter cutting section that may be preferable for reducing deflection. Choose M2-190 when the additional flute length is genuinely required.
