Drill Bits Unlimited
10.30mm (0.4055") Kyocera ORION Carbide Drill Bit TiAlN – 165-4094AG2047 K044
10.30mm (0.4055") Kyocera ORION Carbide Drill Bit TiAlN – 165-4094AG2047 K044
Regular price
$86.95 USD
Regular price
Sale price
$86.95 USD
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

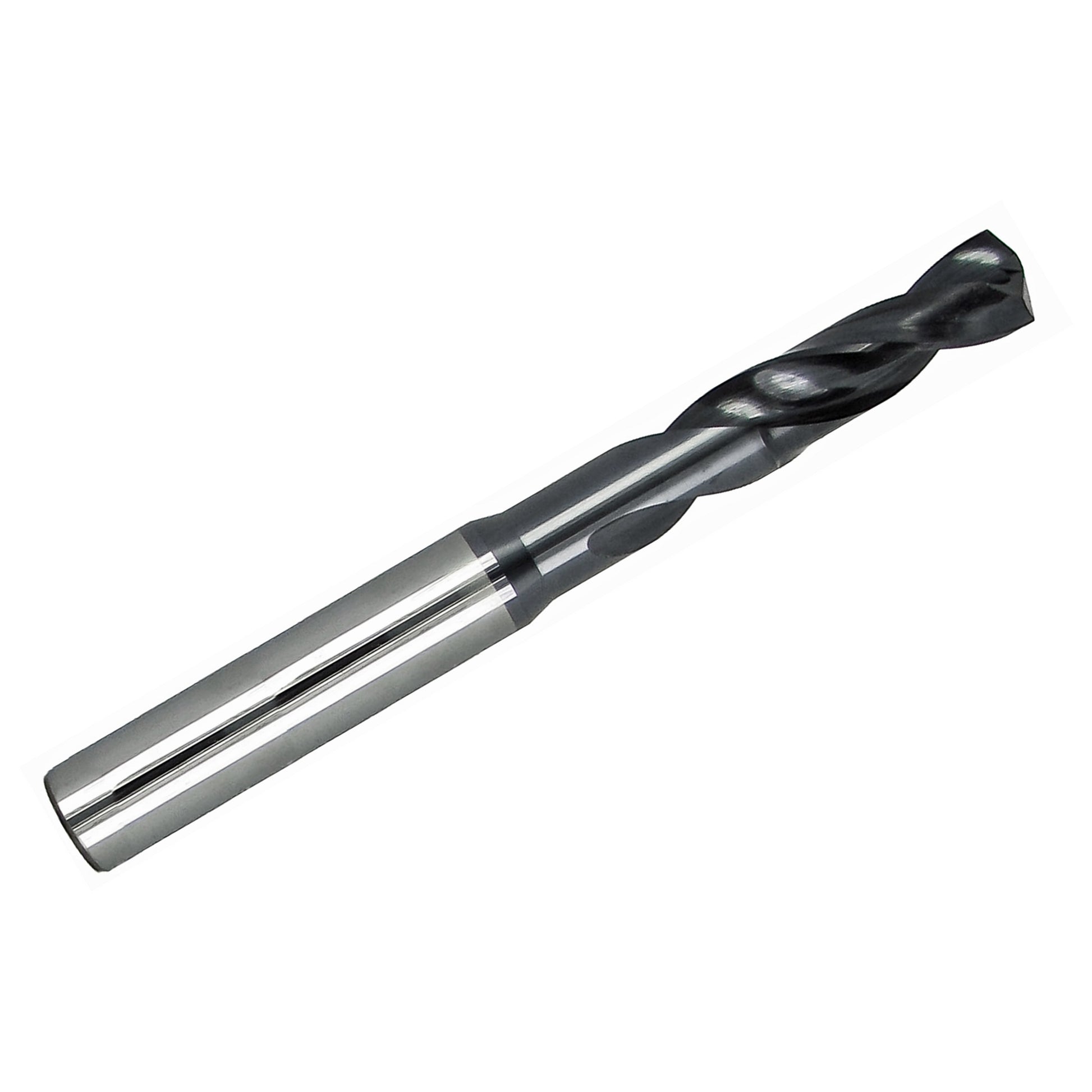

10.30mm (0.4055") solid carbide drill bit manufactured by Kyocera USA, part number 165-4094AG2047. This ORION high-performance screw machine length drill features a TiAlN coating for increased wear resistance and heat protection when drilling steel and other metals. The rigid 3xD design improves hole accuracy and tool life in CNC and manual machining applications.

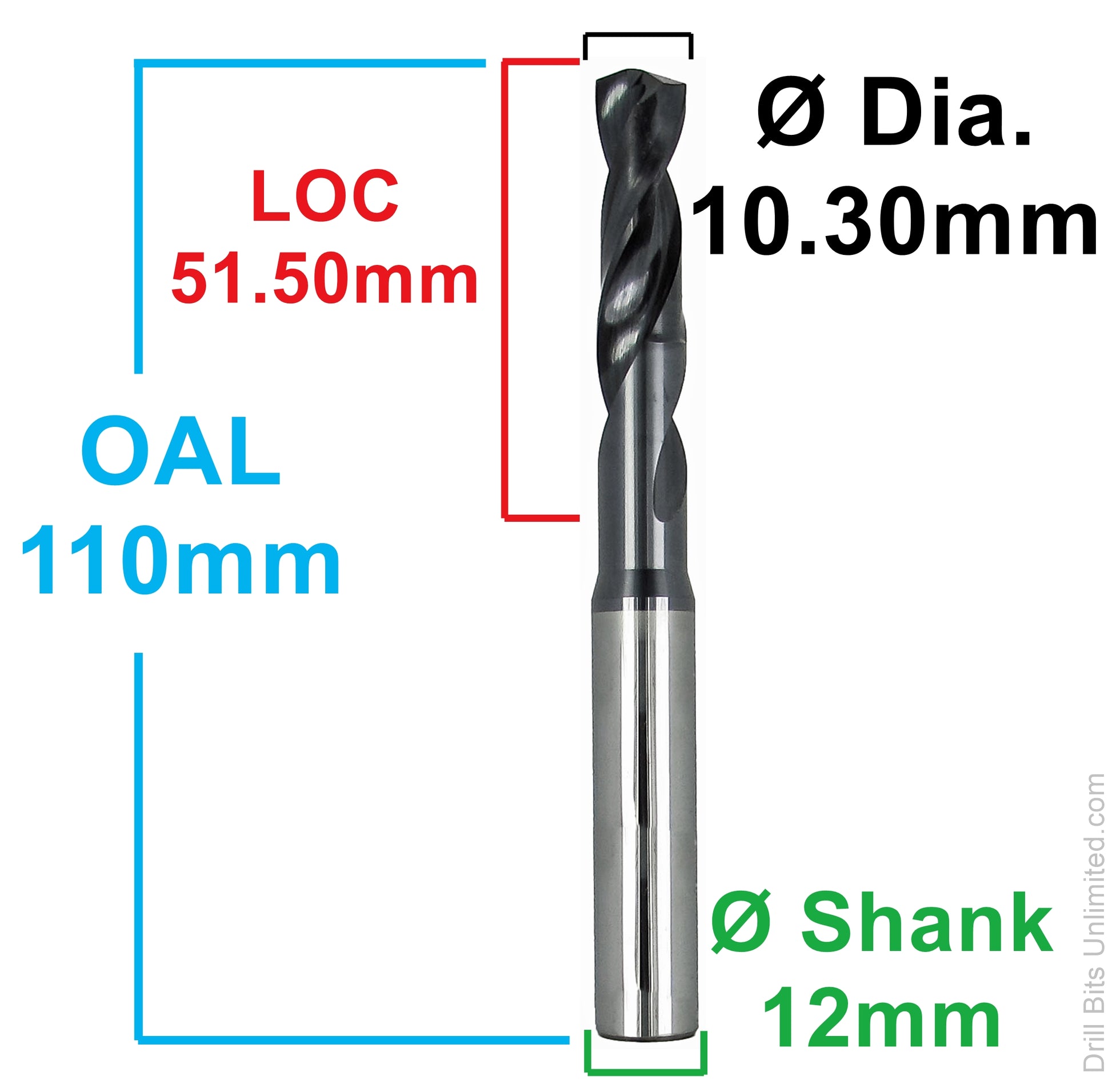

Key Specifications:
- Manufacturer: Kyocera USA
- Series: ORION
- Part Number: 165-4094AG2047
- Diameter: 10.30mm (0.4055")
- Flute Length (LOC): 51.50mm
- Overall Length: 110mm
- Shank Diameter: 12mm
- Flutes: 2
- Coating: TiAlN
- Point Angle: 142°
- Depth Ratio: 3xD
| Drill Bit Material: Solid Carbide | Coolant Through: No |
| Drill Bit Finish: TiAlN | Depth:Dia. Ratio: 3xD |
| Overall Length: 110.00mm | Grade: Micrograin |
| Application: Metalworking | Drill Bit Size: 10.30mm |
| List Number: 165 | Flute Type: Spiral |
| Cutting Direction: Right Hand | Drill Bit Point Angle: 142 Degrees |
| Shank Type: Straight | Number of Flutes: 2 |
| Point Type: 6 Facet | Drill Bit Dimension Type: Metric |
| Item: Screw Machine Length Drill Bit | Shank Dia.: 12.00mm |
| Decimal Equivalent: 0.4055 | Sizes Included: 10.30mm |
| Flute Length: 51.50mm | Depth x Dia. Ratio: 3xD |
| Coolant Fed: Non-Coolant Through | Country of Origin (subject to change): United States |
