10-Piece NEW Kyocera Carbide End Mill Set – .020"–.125", 2-Flute Square, 1/8" Shank – EM3

10-Piece NEW Kyocera Solid Carbide End Mill Variety Set – EM3

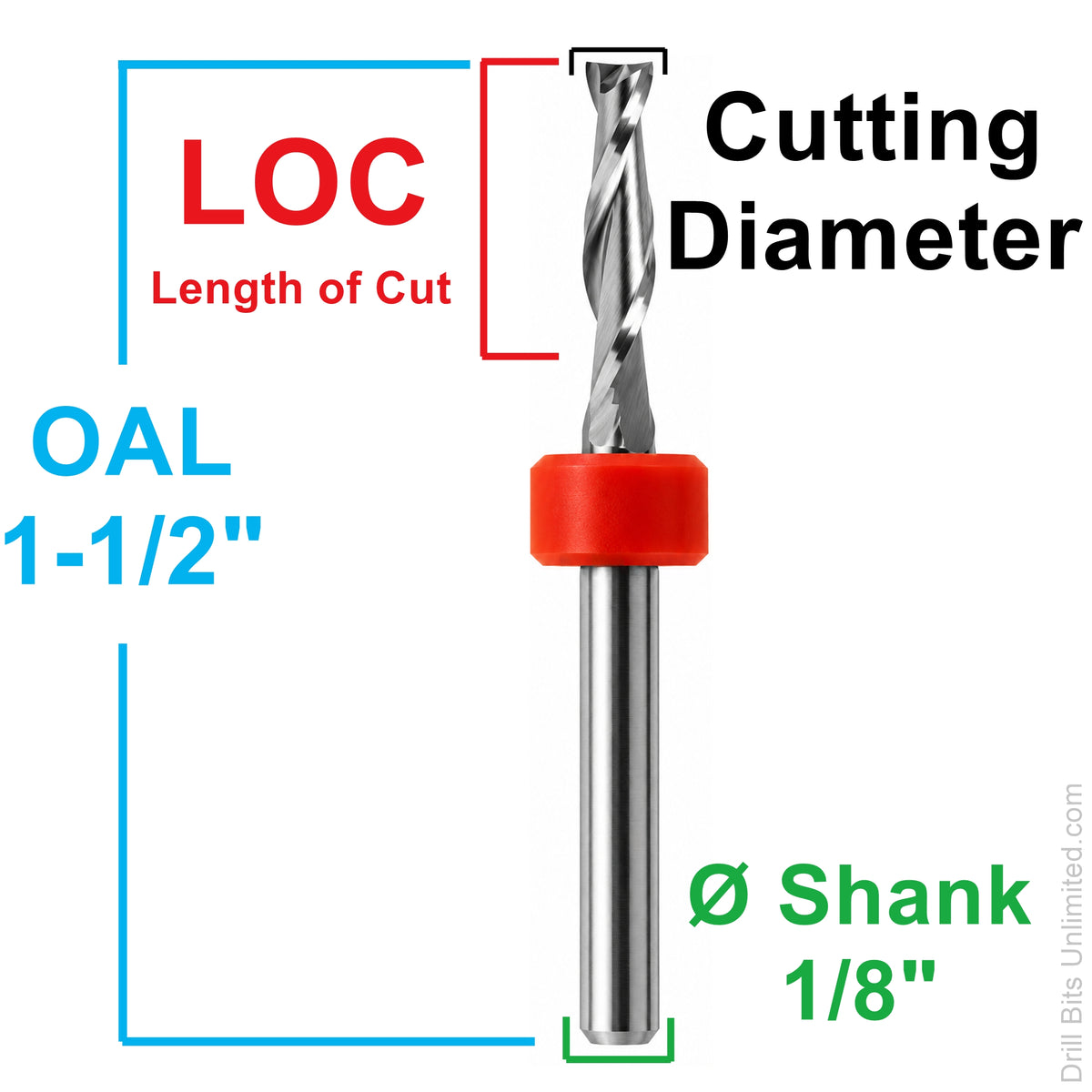

This 10-piece Kyocera solid carbide end mill variety set includes 10 different cutting diameters ranging from .0197" (0.50mm) to .1250" (3.175mm). Each tool features a 2-flute, square-end cutting geometry and a standard 1/8" (3.175mm) shank.

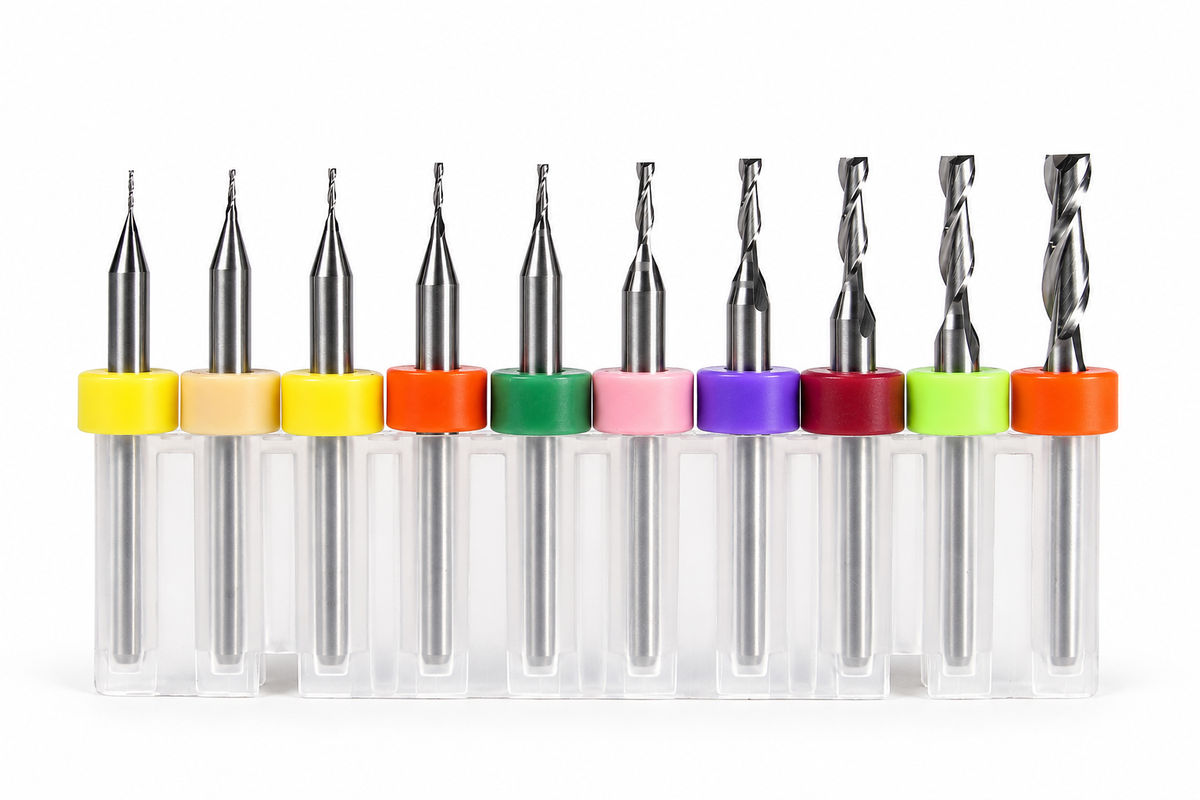

The EM3 assortment contains ten new, USA-made Kyocera carbide end mills, with one tool of each cutting diameter. It provides a broad selection of precision cutting sizes in a convenient 10-piece set, eliminating the need to purchase each diameter individually.

10 Different Cutting Diameters

From small micro end mills to a full 1/8" cutting diameter, this assortment offers a practical range of sizes for precision CNC machining, prototyping, miniature components, model making, and other machining applications.

Each end mill has a flute length matched to its individual cutting diameter. Smaller tools are suited to fine-detail operations, while larger diameters provide options for wider slots, profiles, and other appropriately sized features.

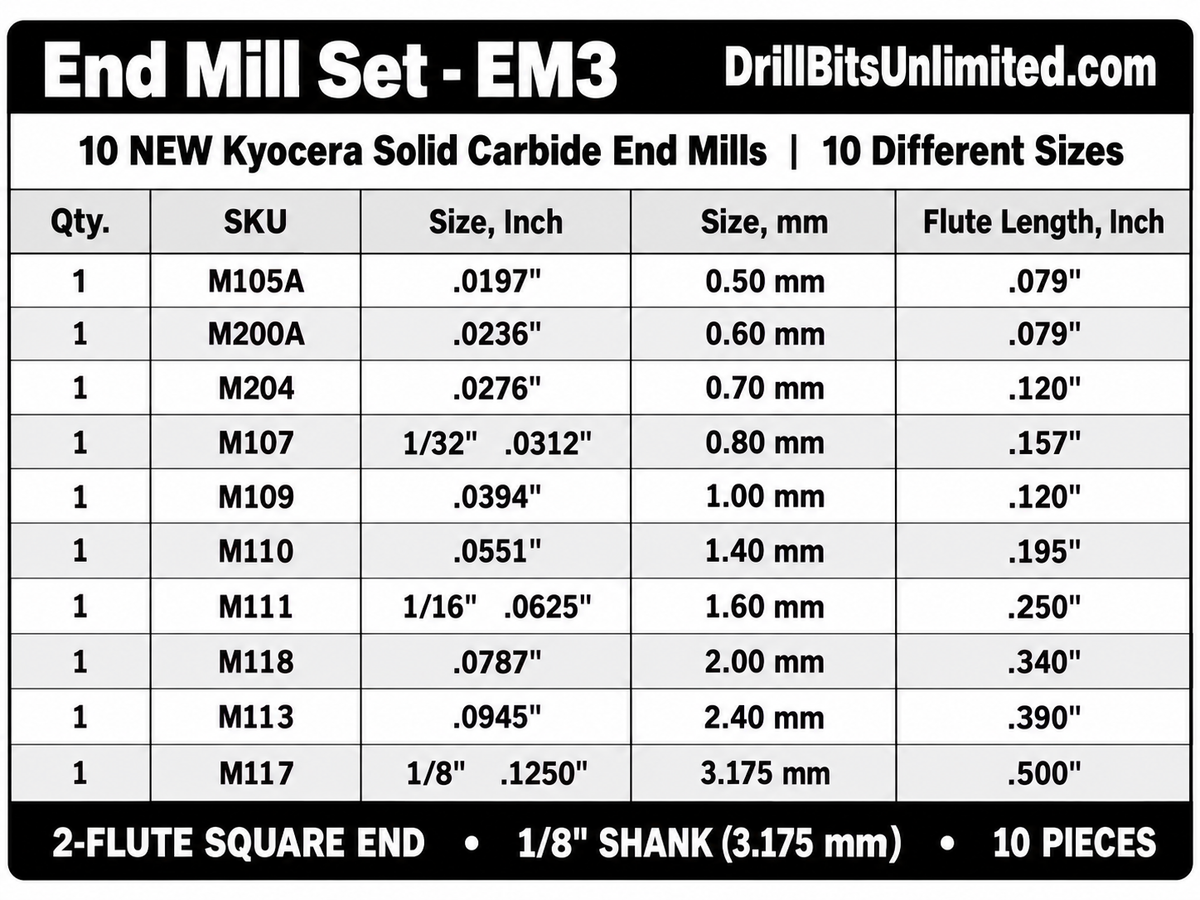

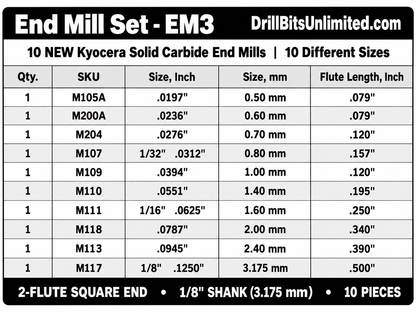

Included End Mill Sizes

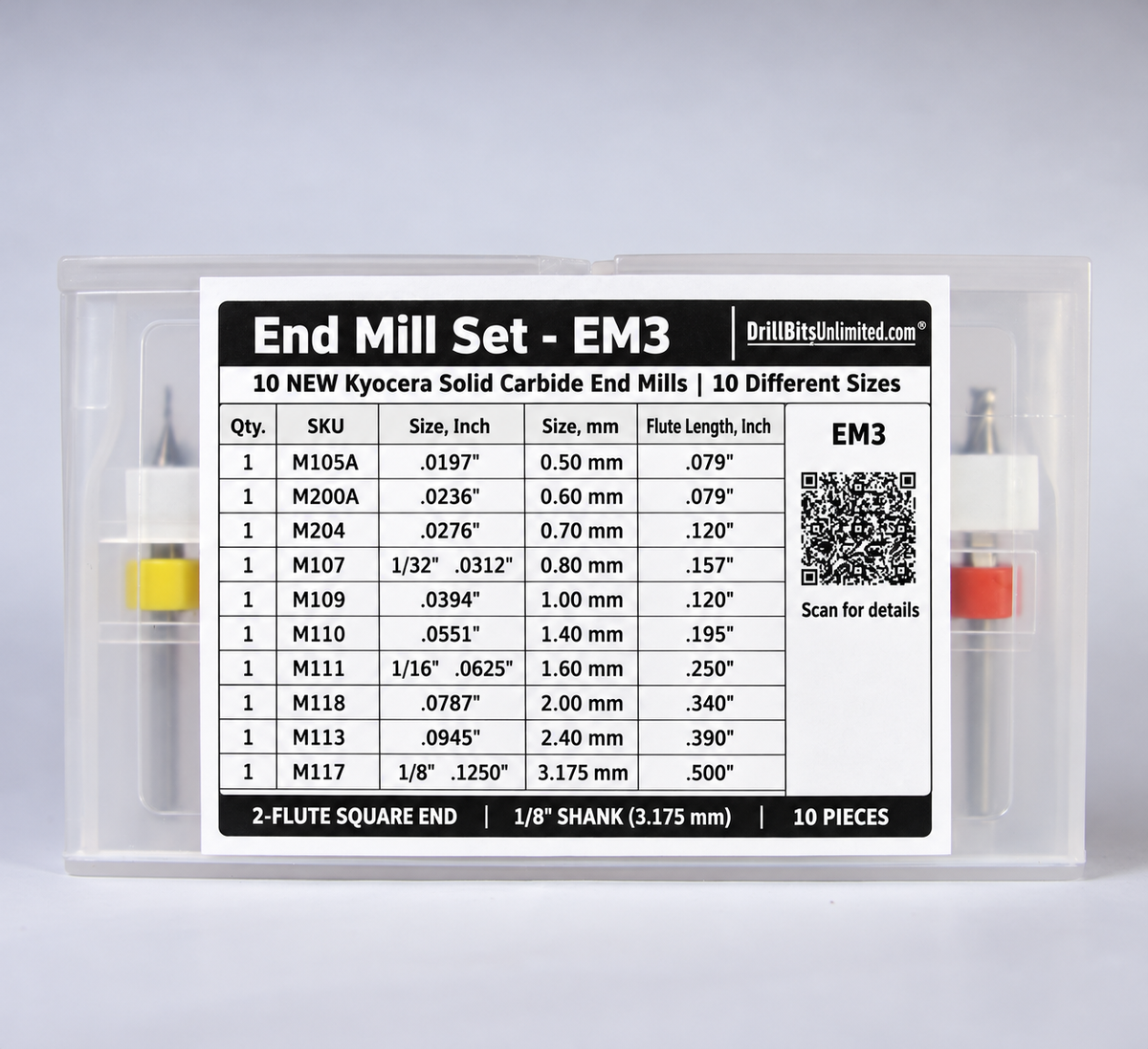

Set contents: 10 new solid carbide end mills in 10 different cutting diameters.

Specifications

• Manufacturer: Kyocera
• Country of manufacture: USA
• Tool material: Solid carbide
• Cutting geometry: 2-flute, square end
• Shank diameter: 1/8" (3.175mm)
• Cutting diameter range: .0200" to .1250" (0.50–3.175mm)
• Flute lengths: .079" to .500", depending on size
• Condition: New
• Quantity: 10 pieces, 1 of each size
• Set SKU: EM3

Typical Applications

These solid carbide square-end mills are useful for precision CNC milling, slotting, profiling, prototyping, model making, and machining compatible plastics, nonferrous metals, and other suitable materials.

Choose spindle speeds, feed rates, and cutting depths appropriate for the tool diameter, workpiece material, and machine rigidity. Smaller-diameter tools require particular attention to spindle runout and tool deflection.

Prefer a Lower-Cost Used Assortment?

For an economical alternative, see our MV2 10-Piece Used Carbide End Mill Variety Set, which also includes ten different cutting diameters.
