0.1150" x .345" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K076
0.1150" x .345" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K076
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

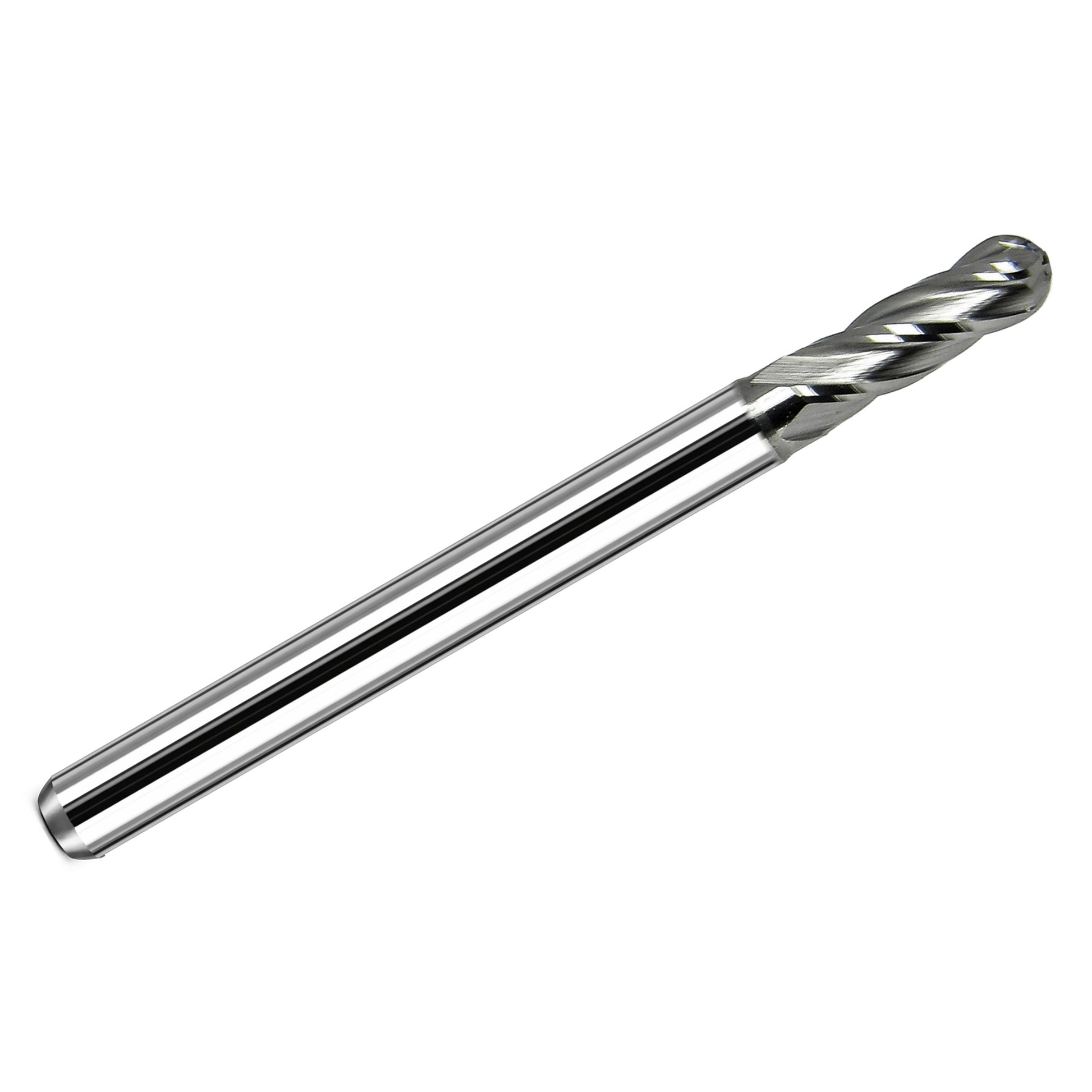

This 0.115" (2.92mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide to provide strength, rigidity, and long tool life in precision CNC machining applications.
These professional cutting tools are manufactured in the United States and are designed for precision machining where consistent geometry, durability, and reliable performance are required.

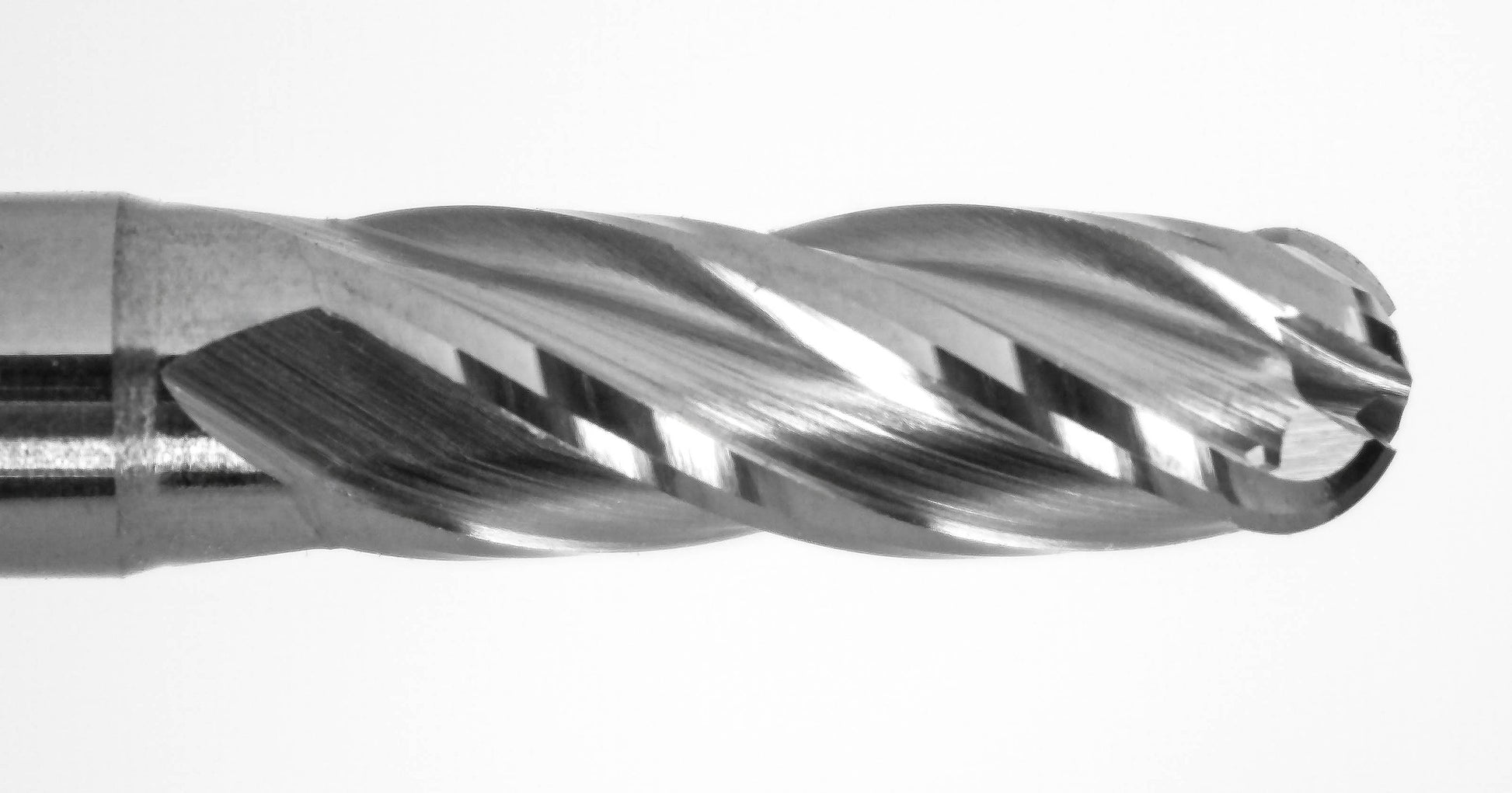

Ball nose end mills are designed for 3D contouring, mold work, and precision finishing. The rounded cutting tip produces smooth transitions on curved surfaces and fine detail features while maintaining excellent surface finish.
The bright (uncoated) finish performs well in aluminum, plastics, and other non-ferrous materials. The 4-flute geometry increases rigidity and improves finish quality during finishing passes.
Manufacturer: Kyocera
Manufacturer Part Number: 1825-1150.345
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die finishing
- Precision CNC machining
- Aluminum machining
- Plastic and composite machining
Benefits
- Ball nose geometry for smooth 3D machining
- Micro-grain carbide for excellent durability
- 4 flutes increase rigidity and surface finish quality
- Center-cutting design allows plunge milling
- Bright finish ideal for non-ferrous materials
Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1825 |

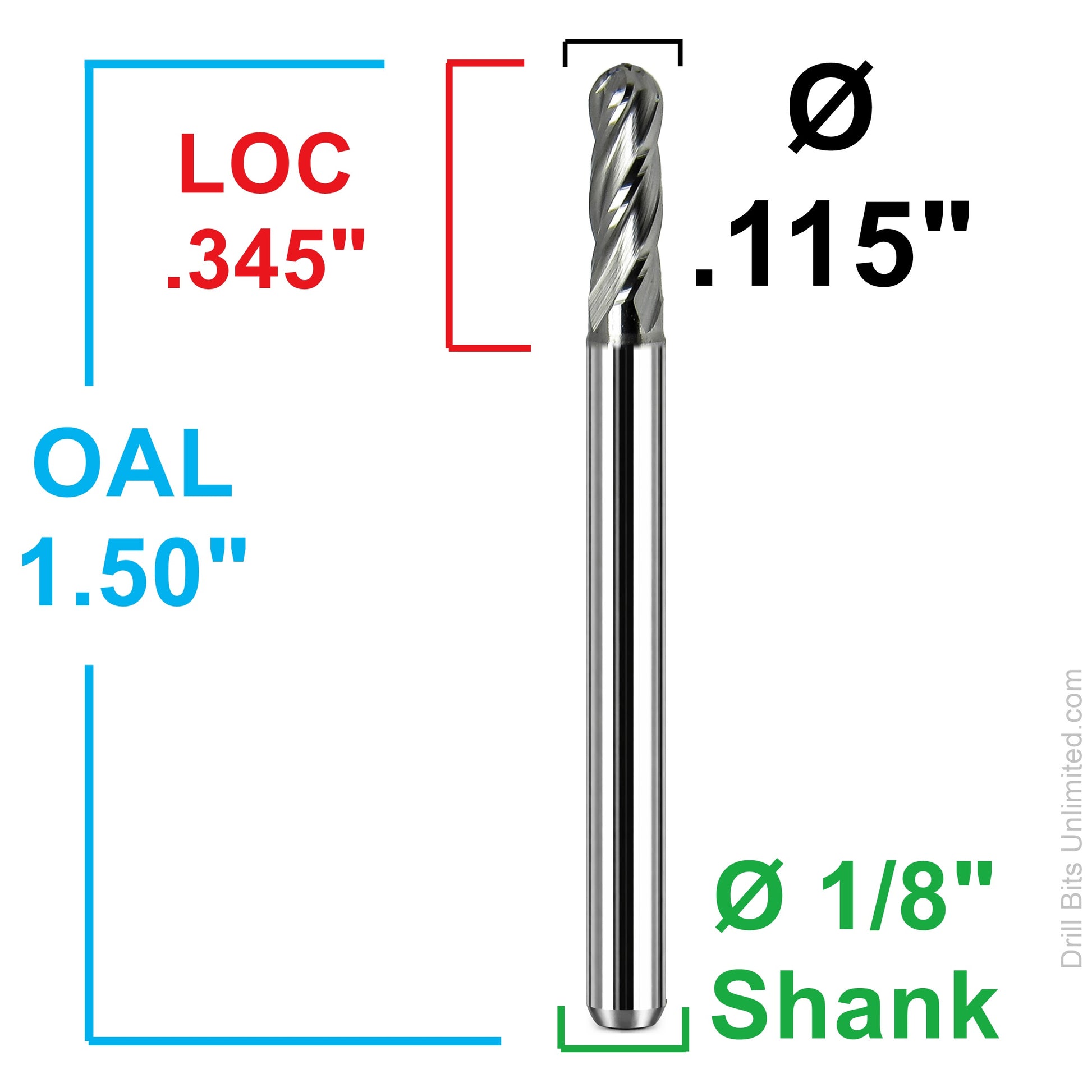

| Milling Diameter | 0.1150" |
| Length of Cut (LOC) | 0.3450" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non-Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Country of Origin | United States |
