0.1150" x .173" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | K148
0.1150" x .173" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | K148
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

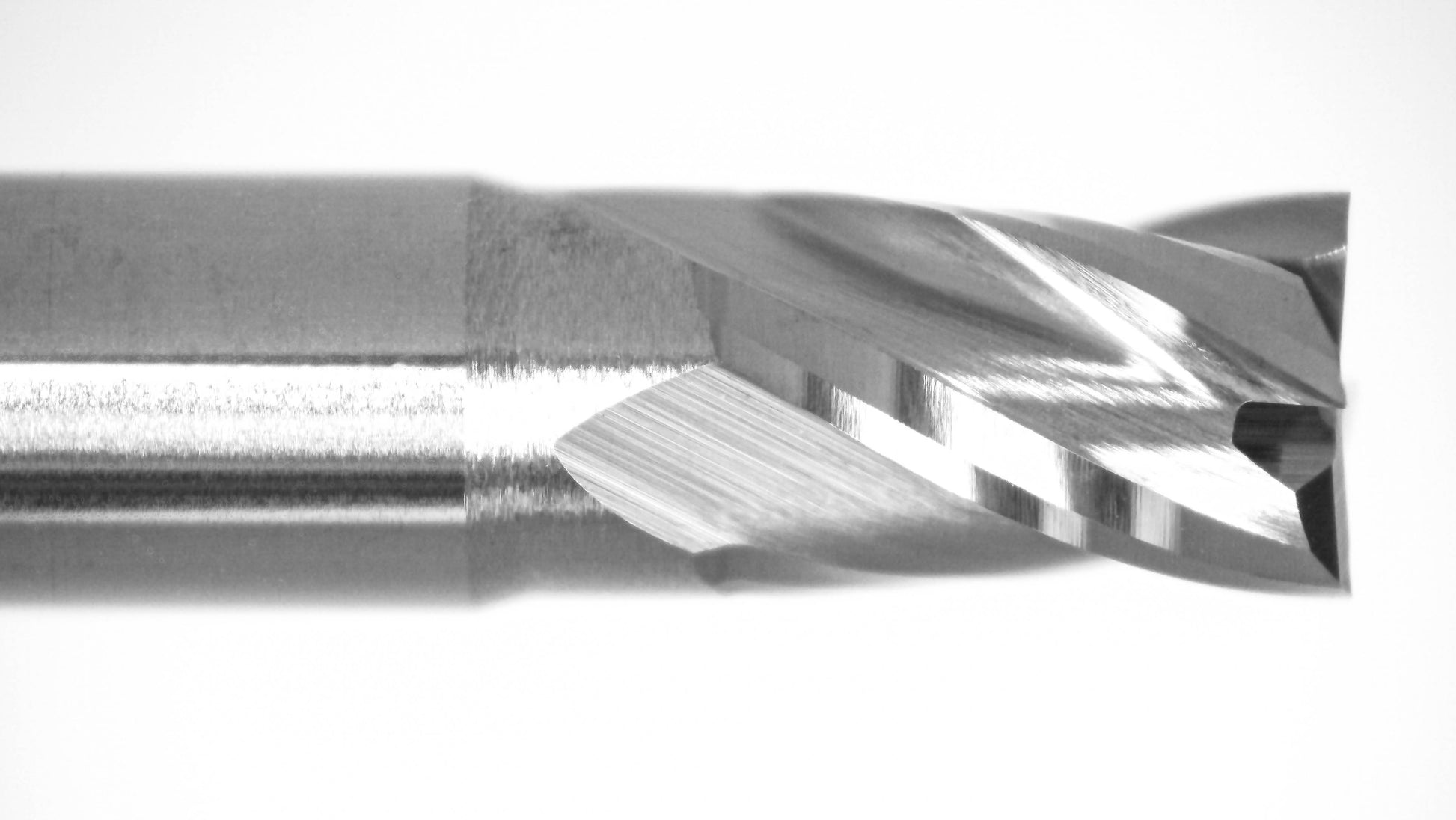

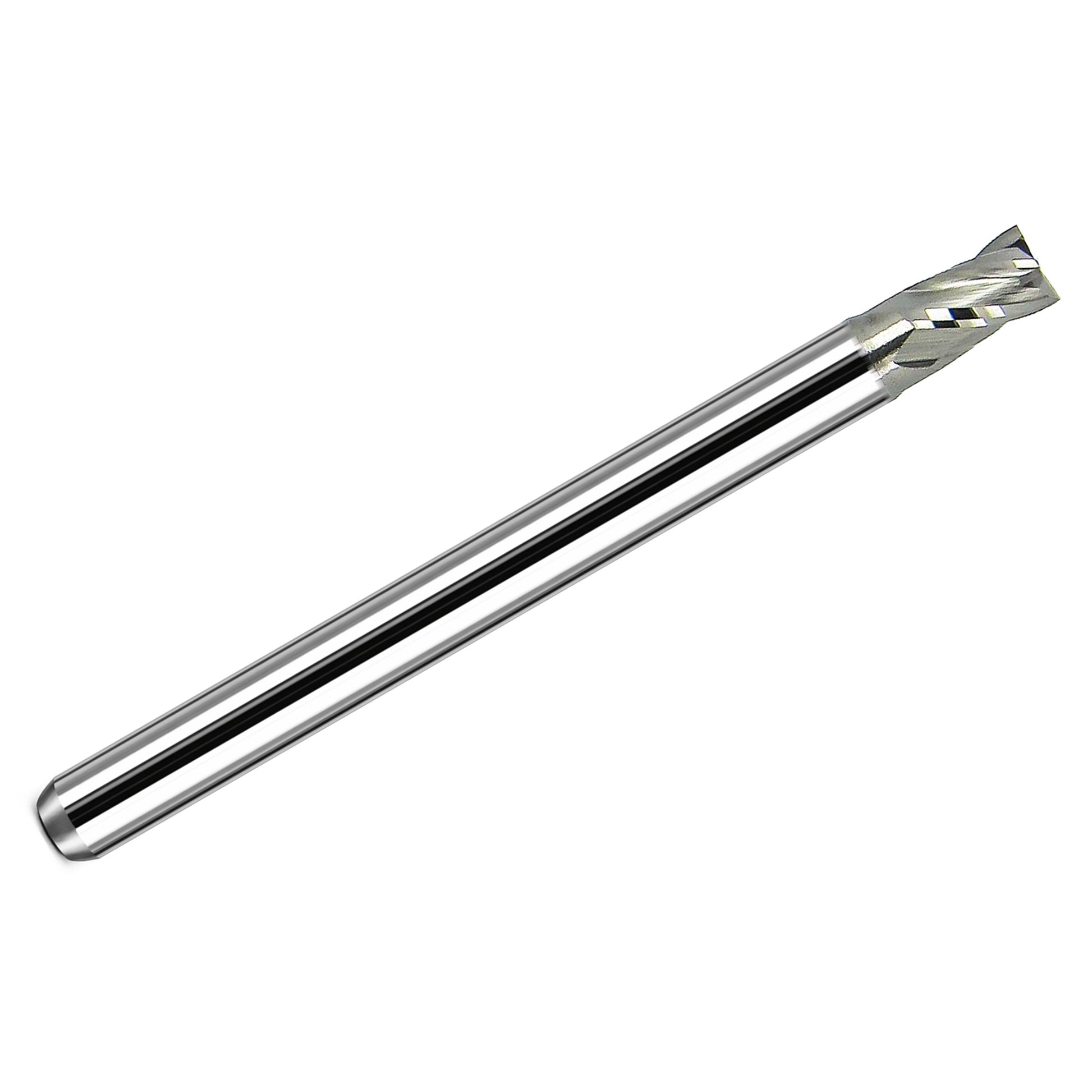

This .1150" solid carbide 4-flute stub square end mill features a bright uncoated finish and center-cutting geometry for precision miniature diameter end milling. The short 0.173" length of cut and rigid 1/8" shank help improve stability in small-diameter machining applications.
Made in the USA, this stub-length square end mill has a 1.500" overall length, 30° helix angle, and right-hand cut, making it well suited for high-precision milling where tool rigidity and control are important.
Manufacturer: Kyocera
Series: 1820
Manufacturer Part Number: 1820-1150.173
Alternate Format: 18201150173

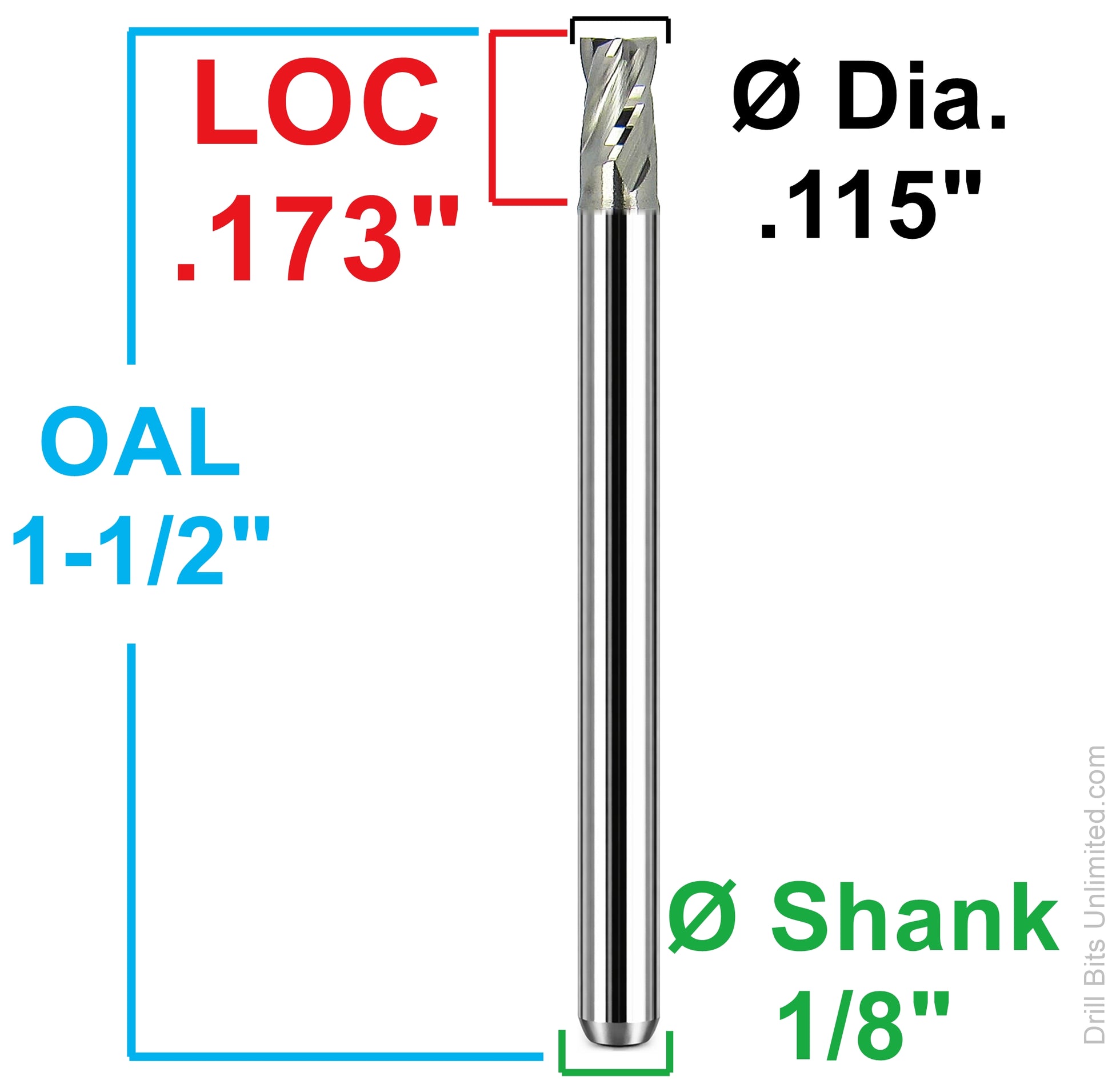

| Milling Diameter | 0.1150" |
| Material | Solid Carbide |
| Finish | Bright (Uncoated) |
| End Style | Square End |
| Flutes | 4 |
| Length of Cut | 0.1730" |
| Overall Length | 1.500" |
| Shank Diameter | 1/8" |
| Cutting Direction | Right Hand |
| Helix Angle | 30° |
| Cutting Type | Center Cutting |
| Single/Double End | Single End |
| Length Type | Stub Length |
| Measurement System | Decimal Inch |
| Application | Miniature Diameter End Milling |
| Compatibility | Non-Ferrous Materials, Super Alloys |
| Country of Origin | United States |
