0.1150" x .345" LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K182
0.1150" x .345" LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K182
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 3% off |
| 25 + | 5% off |
| 50 + | 8% off |
| 100 + | 10% off |
Couldn't load pickup availability

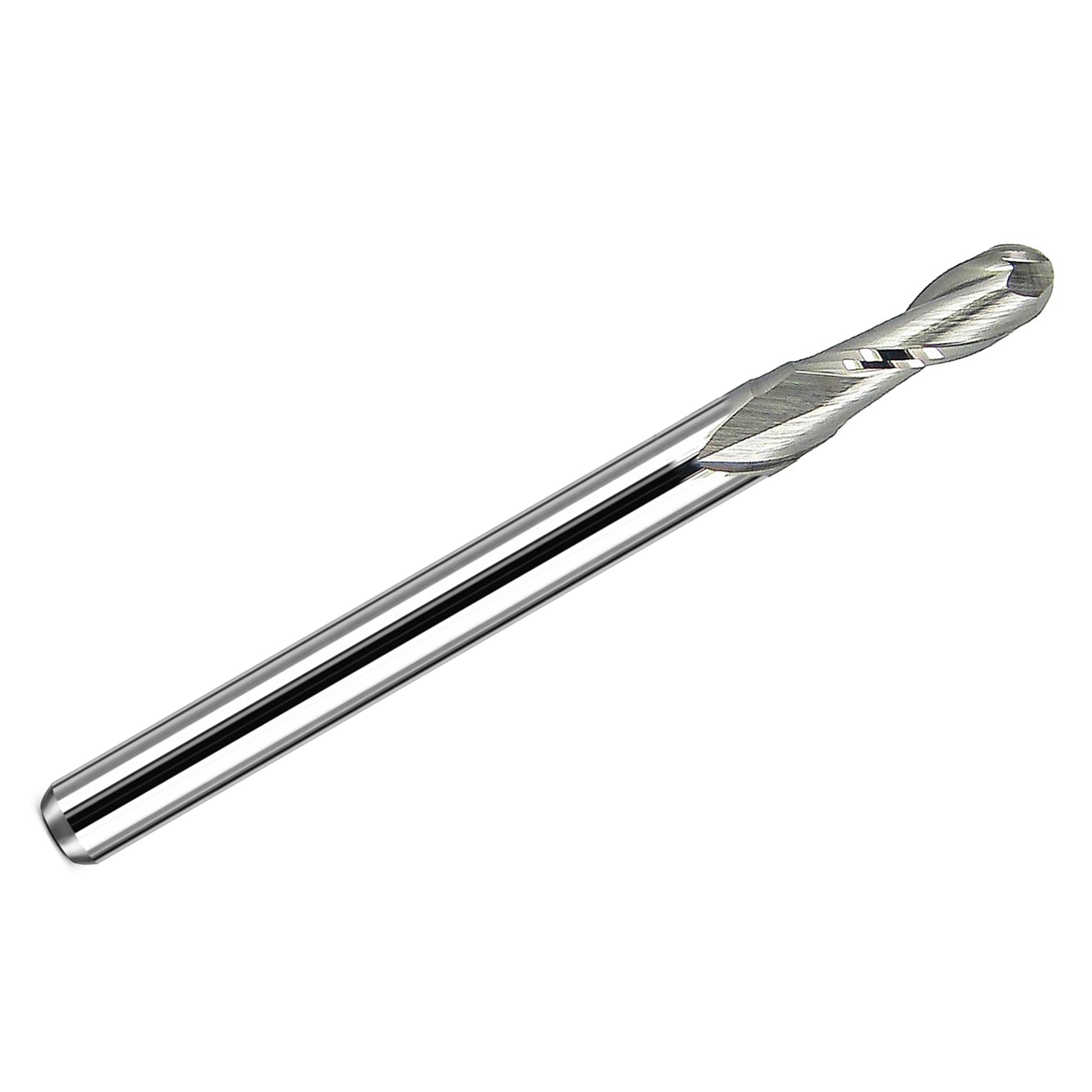

This .1150" 2-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision CNC milling applications where a sharp cutting edge and smooth surface finish are important.
This tool is part of the Kyocera Series 1625 standard-length ball nose end mill line and is designed for 3D contouring, profiling, detail work, and finish milling. The ball nose tip helps produce smooth blends on curved surfaces and fine machined features.
Because this tool has a bright (uncoated) finish, it is best suited where coating is not required and where a sharp, precise cutting edge is preferred. This tool is especially well suited for non-ferrous materials and other precision finishing applications.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1625-1150.345
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profiling and finishing
- Fine-detail CNC machining
- Precision micro-machining
- Ball nose milling in non-ferrous materials
Benefits
- Ball nose geometry for smooth contouring and profiling
- 2 flutes provide efficient chip evacuation
- Bright uncoated finish for sharp cutting performance
- Sub-micron carbide supports edge retention and precision
- 30° helix promotes smooth cutting action
Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1625 |

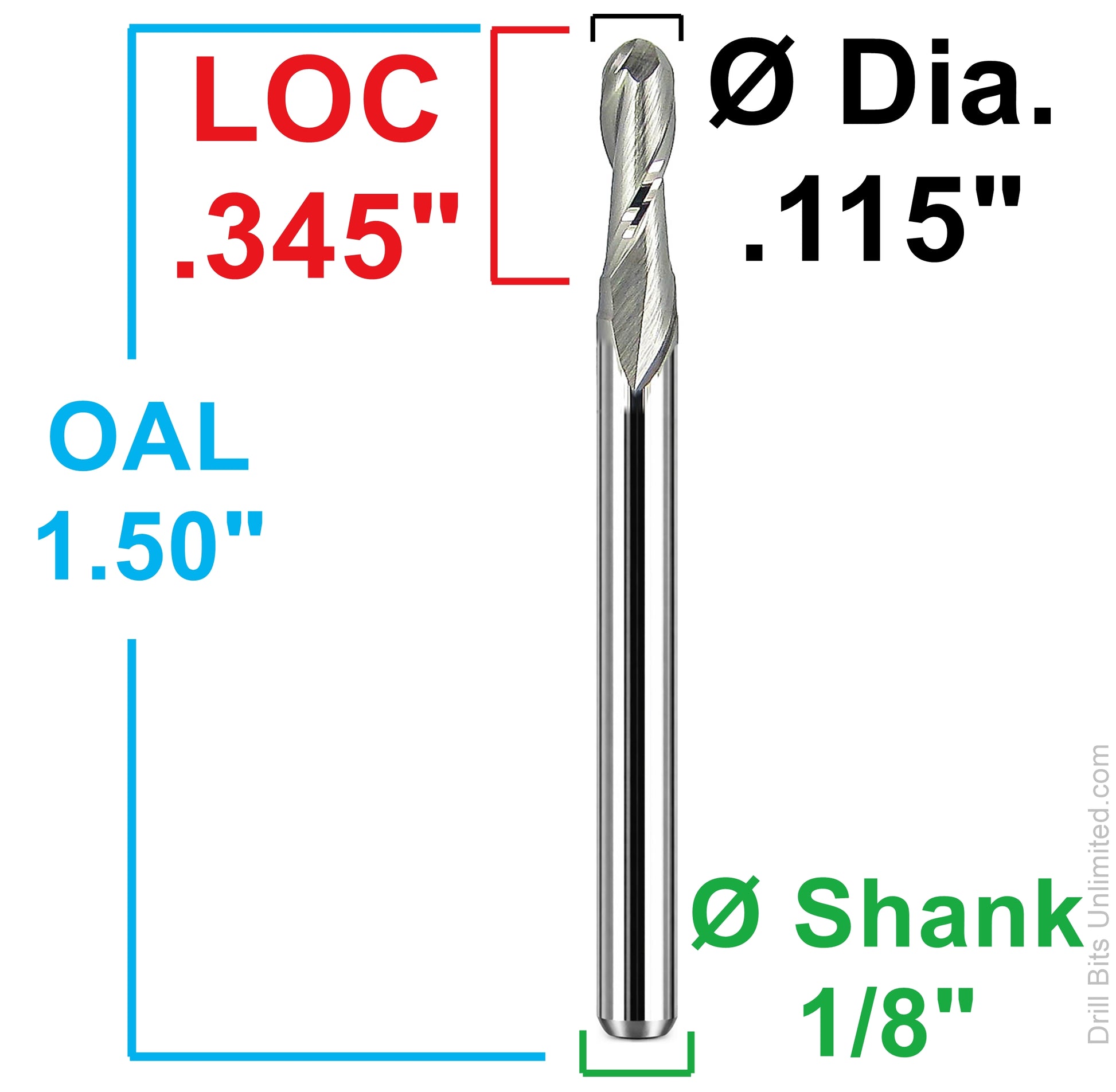

| Milling Diameter | 0.1150" |
| Length of Cut (LOC) | 0.3450" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 2 |
| Helix Angle | 30° |
| Material | Sub-Micron Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Profiling / Contouring / Finishing |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened Material (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Non-Ferrous (N) Compatibility | Yes |
| Country of Origin | United States |
