120° Carbide Chamfer Mill, 3mm Shank, 2-Flute, 2.00" OAL | CM107
120° Carbide Chamfer Mill, 3mm Shank, 2-Flute, 2.00" OAL | CM107
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 8% off |
| 50 + | 12% off |
| 100 + | 14% off |
Couldn't load pickup availability

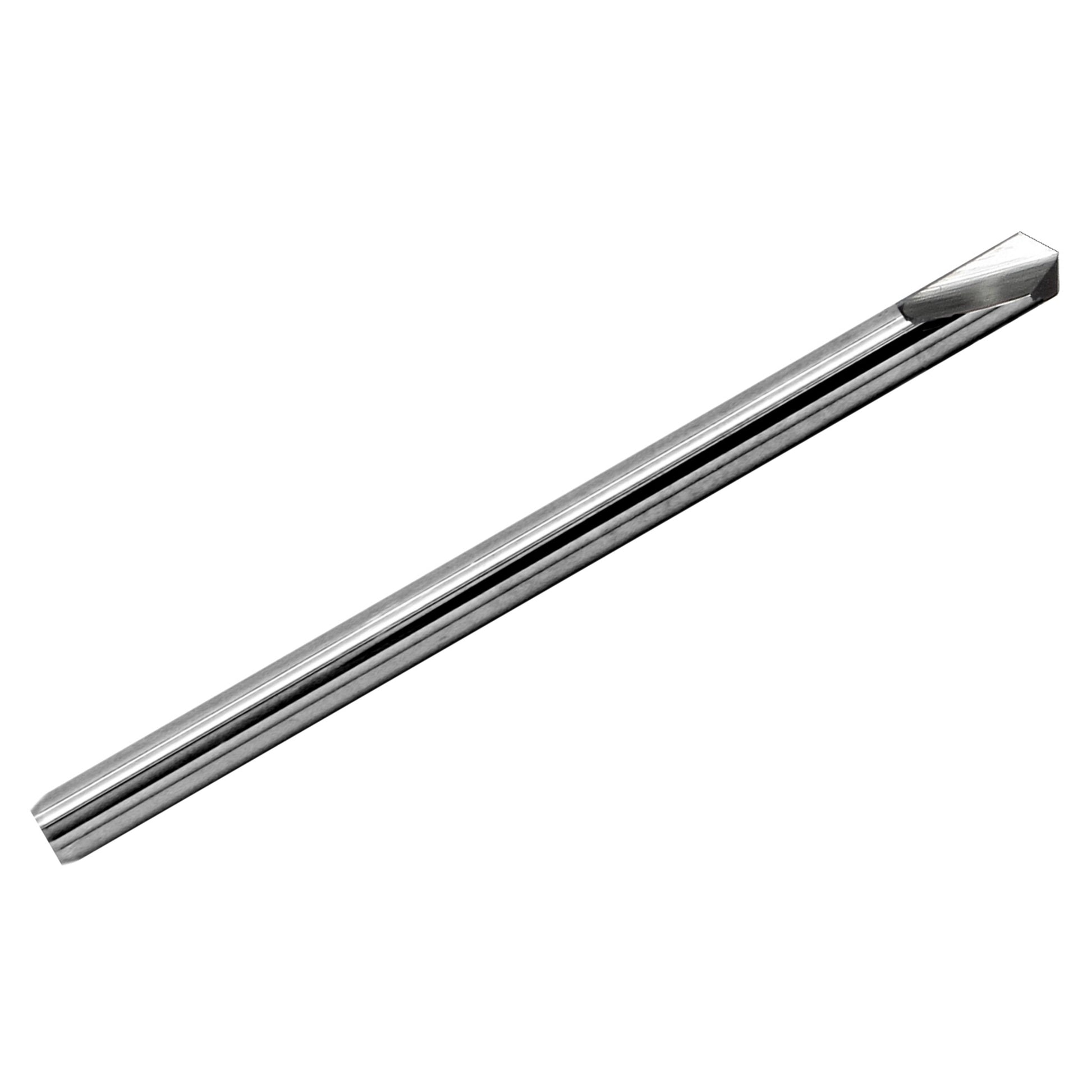

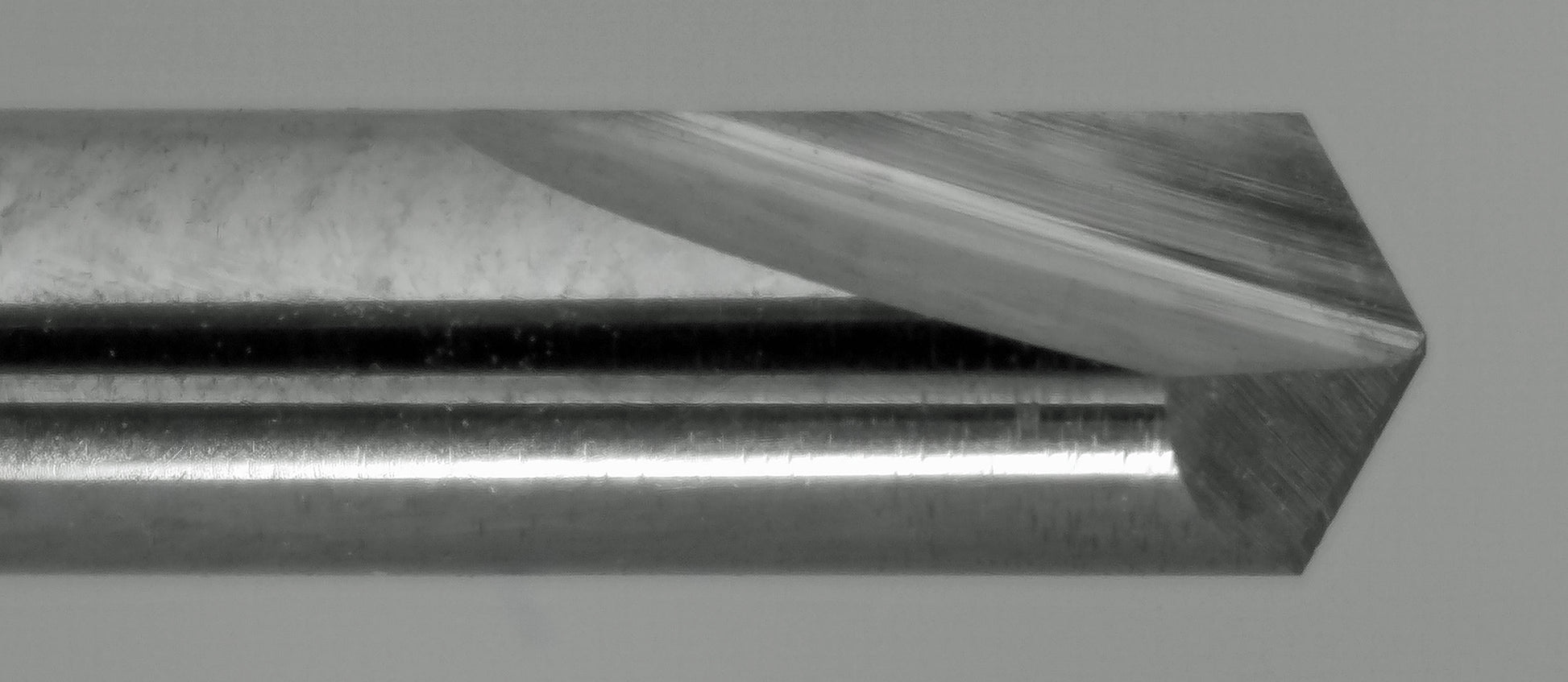

120° carbide chamfer mill for small-part chamfering, edge breaking, deburring, light countersinking, and spotting-style work. The 2-flute uncoated carbide design is useful for clean chamfers on small holes, slots, narrow grooves, and machined edges.

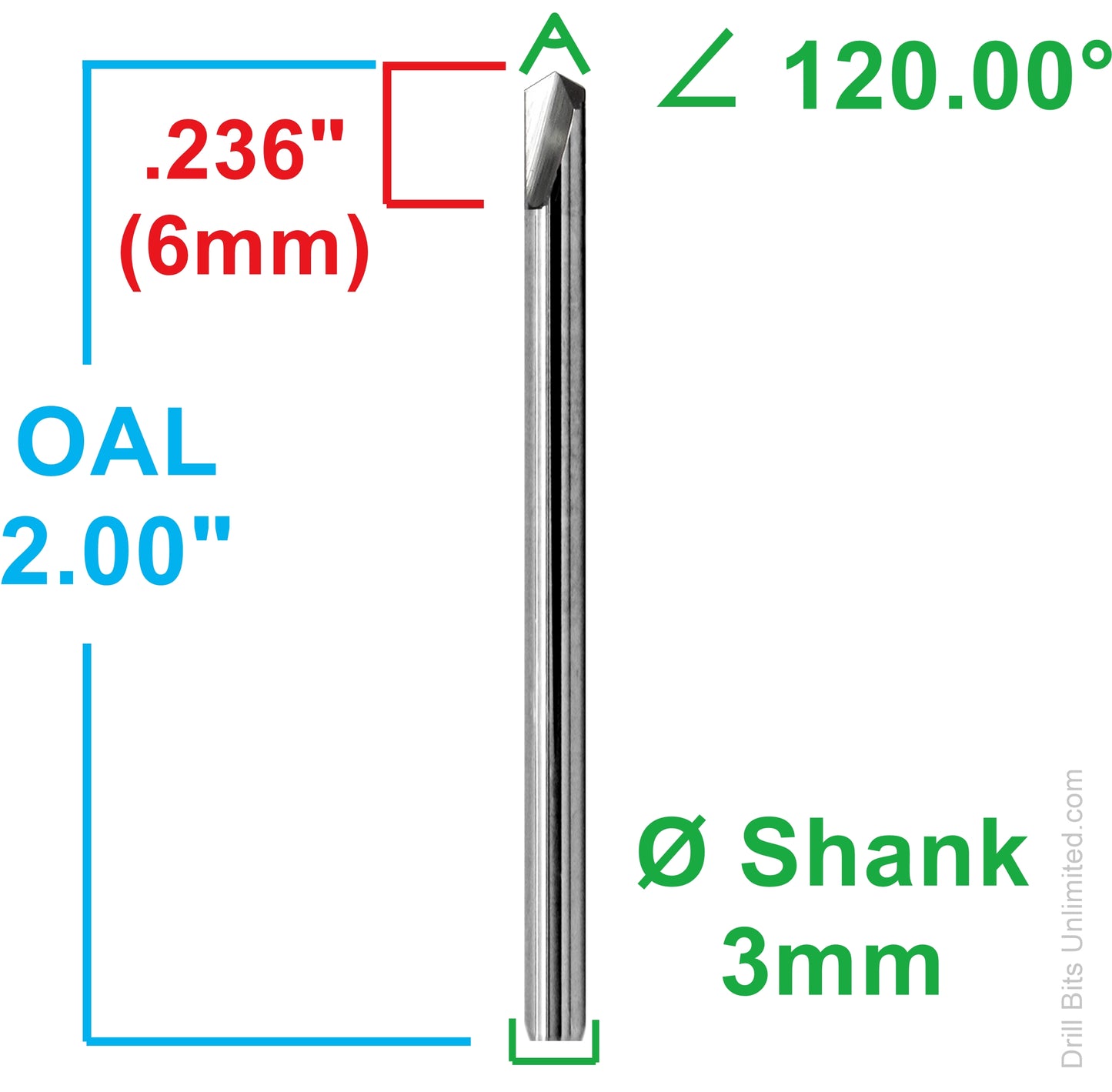

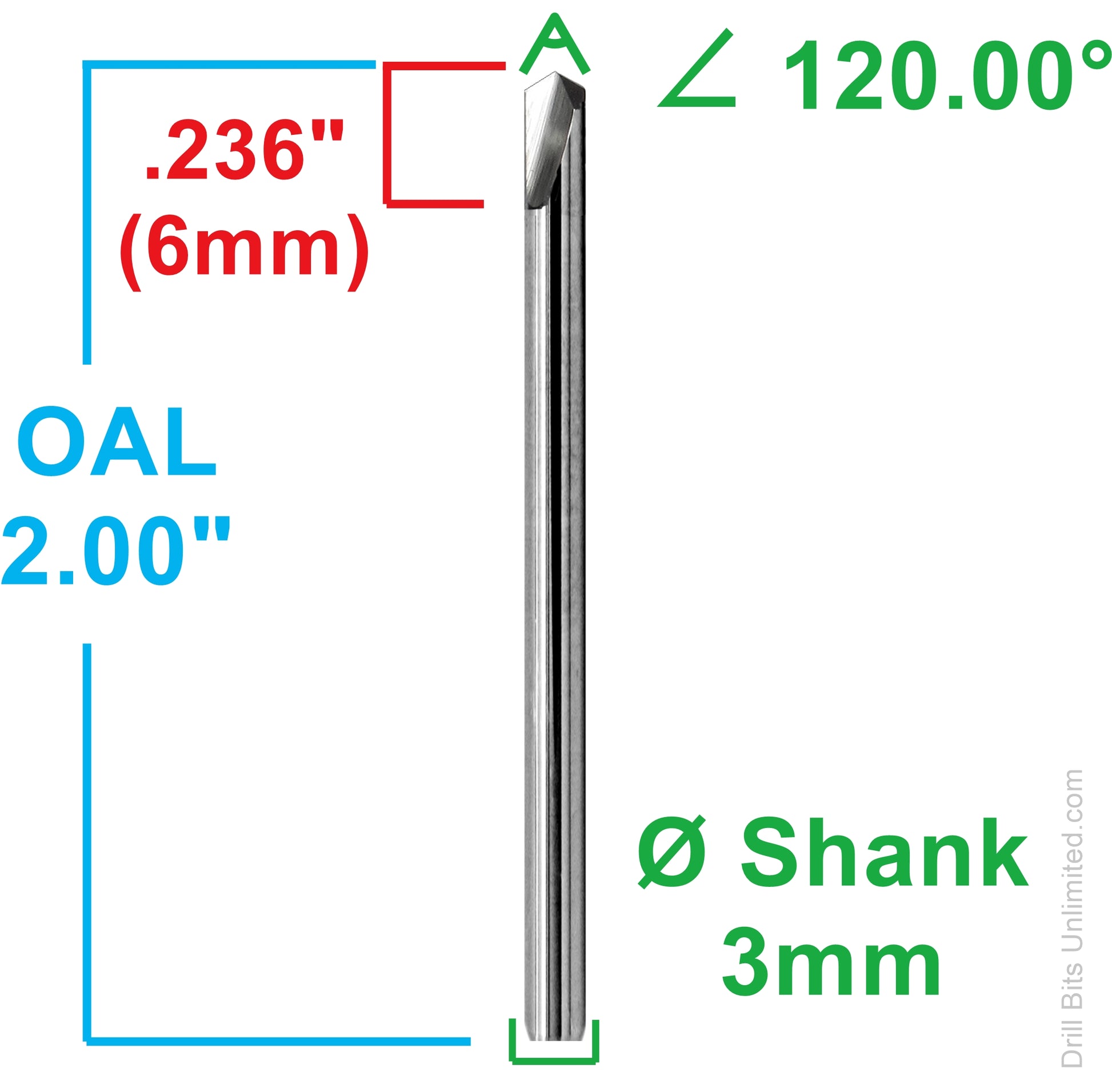

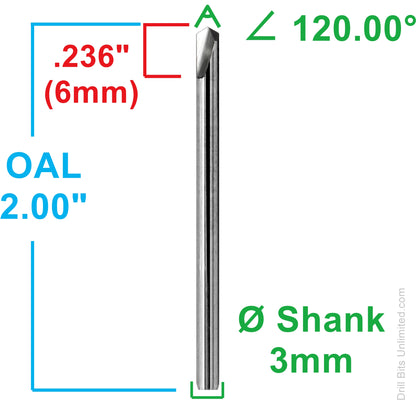

This tool has a 3.00mm shank, 120° chamfer angle, 2 flutes, approximately .236" / 6mm length of cut, and 2.00" overall length. It is a good choice when a small, precise chamfer is needed without using a larger countersink or general-purpose deburring tool.
Common Uses
- Chamfering small holes and machined edges
- Deburring narrow slots, grooves, and openings
- Creating a small 120° bevel or edge break
- Light countersinking and spotting-style work
- General precision machining, CNC work, and small-part finishing
Specifications
| Chamfer Angle | 120° |
| Shank Diameter | 3.00mm |
| Flutes | 2 |
| Approx. Length of Cut | .236" / 6mm |
| Overall Length | 2.00" |
| Material | Solid carbide |
| Coating | Uncoated |
| SKU | CM107 |
Note: This is a small precision chamfering tool. Use appropriate speeds, feeds, workholding, and runout control for carbide tooling.
