Drill Bits Unlimited

0.1250" (1/8") x .500" LOC TiN Coated 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-160

0.1250" (1/8") x .500" LOC TiN Coated 2-Flute Square End Carbide End Mill, 1/8" Shank | M2-160

Regular price $7.99 USD
Regular price Sale price $7.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

0.1250" (1/8") x .500" LOC TiN-Coated 2-Flute Square End Carbide End Mill, 1/8" Shank – M2-160

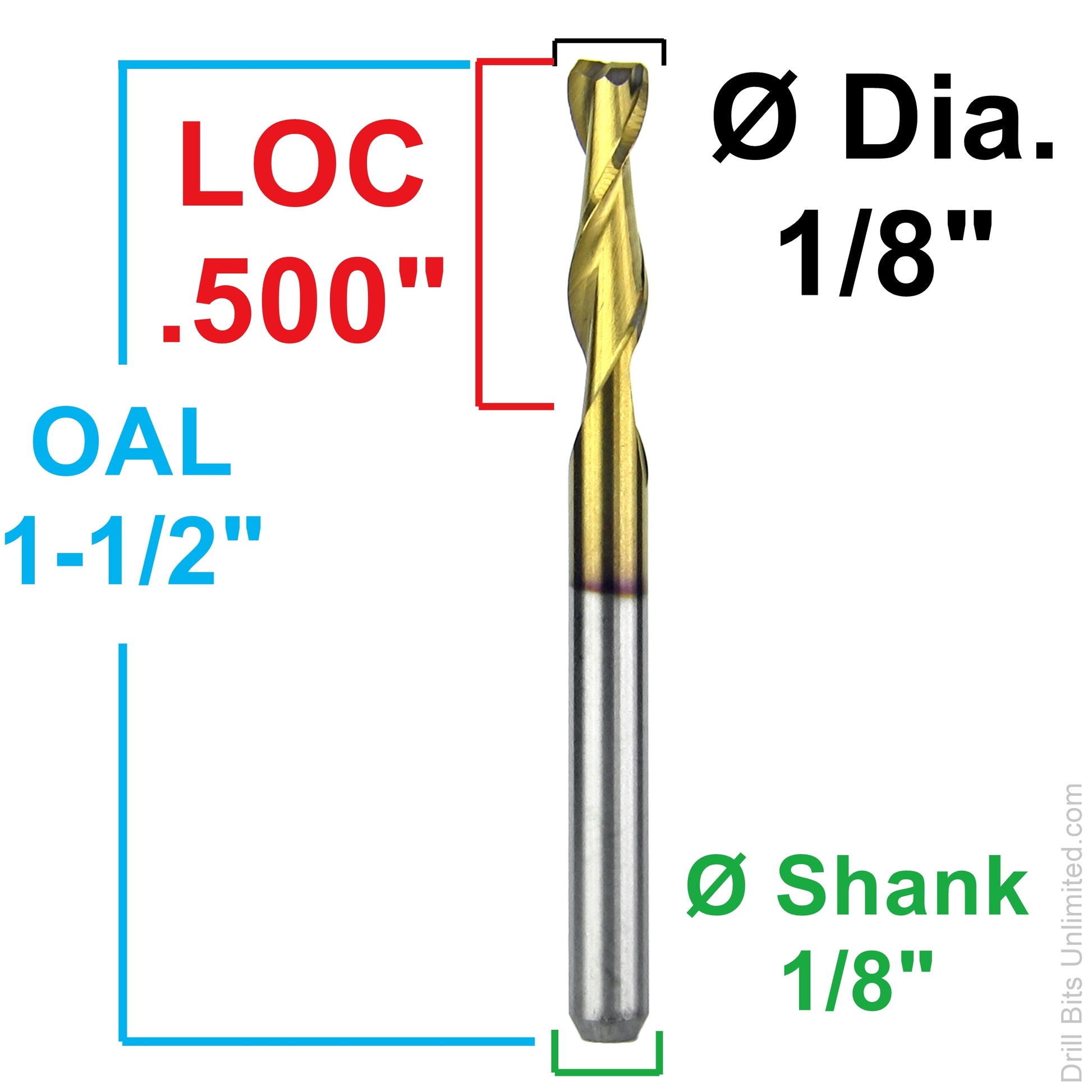

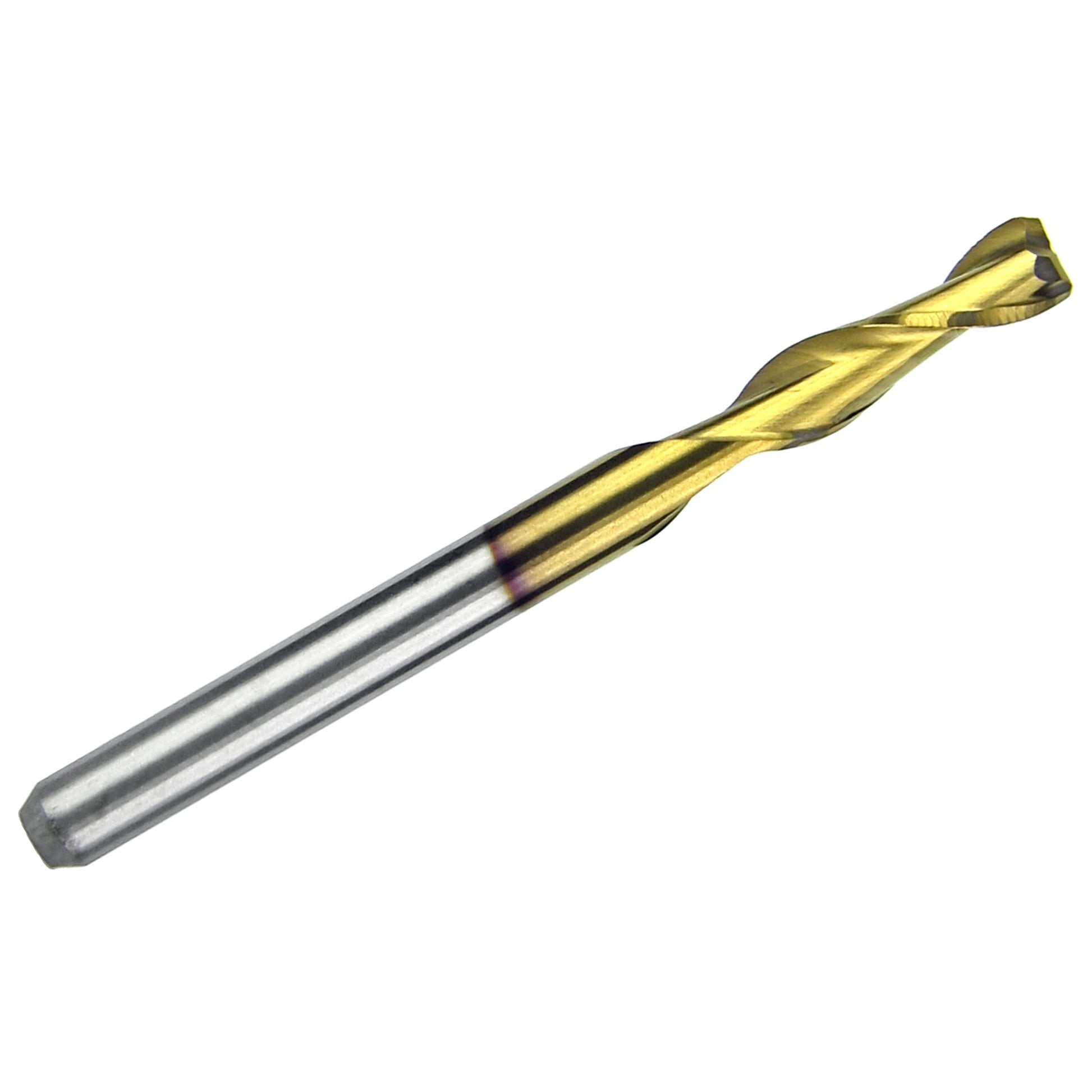

This solid carbide square end mill features a 0.1250" (1/8" / 3.175mm) cutting diameter, .500" length of cut, 2-flute spiral geometry, titanium nitride (TiN) coating, 1.50" overall length, and a standard 1/8" shank. It is designed for CNC milling, slotting, profiling, pocketing, and general precision cutting in suitable materials.

The 2-flute up-cut spiral design helps evacuate chips upward during machining. The square end cutting profile is useful for creating straight-sided slots, pockets, contours, and flat-bottom features.

The gold-colored TiN coating provides a hard, wear-resistant surface that can help reduce friction and cutting-edge wear compared with uncoated carbide in appropriate applications. Solid tungsten carbide construction offers rigidity and wear resistance for precision CNC machining.

This tool can be used for general CNC work in wood, plastics, acrylic, composites, and suitable non-ferrous metals such as brass and aluminum when appropriate cutting parameters, workholding, and chip evacuation are used.

Common Applications

  • CNC milling and precision routing
  • Slotting, profiling, and contouring
  • Flat-bottom pockets and recessed features
  • Wood and engineered wood machining
  • Plastic and acrylic cutting
  • Brass and suitable soft non-ferrous metal machining
  • Composite and fiberglass machining with appropriate dust control
  • Prototype work, hobby CNC, and light production applications

Benefits

  • TiN coating provides a hard, wear-resistant cutting surface
  • 2-flute design balances chip clearance and cutting strength
  • Up-cut spiral geometry helps move chips away from the cutting area
  • Square end profile is suitable for slots, pockets, profiles, and flat-bottom cuts
  • .500" LOC provides practical cutting reach for general CNC applications
  • Solid carbide construction offers rigidity and dimensional stability
  • Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications

SKU M2-160
Former SKU / Item Number M146
Tool Type Solid Carbide End Mill
Condition New
Cutting Diameter 0.1250" / 1/8" / 3.175mm
Length of Cut / Flute Length .500"
Flutes 2
Flute Type Spiral
End Style Square End
Flute Direction Up Cut
Overall Length 1.50"
Shank Diameter 1/8" (3.175mm)
Material Solid Tungsten Carbide
Finish / Coating Titanium Nitride (TiN) Coated

TiN Coating and Machining Considerations

Titanium nitride provides a hard coating that can improve wear resistance in appropriate machining applications. Actual tool life depends on the workpiece material, cutting speed, feed rate, workholding, and chip evacuation. For materials prone to chip adhesion, including some aluminum alloys, select cutting parameters and lubrication carefully.

Need help choosing starting settings?
See our carbide end mill feed and speed calculator →
Looking for more 2-flute carbide end mills?
Explore additional diameters, coatings, and flute lengths in our 2-flute end mills collection →

Returns

Returns are accepted within 30 days of delivery for unused items in resalable condition. Original shipping charges are non-refundable unless the return is due to our error. Late, bulk, used, clearance, or special-order returns may be limited or subject to approval. See our Refund Policy for full details.
