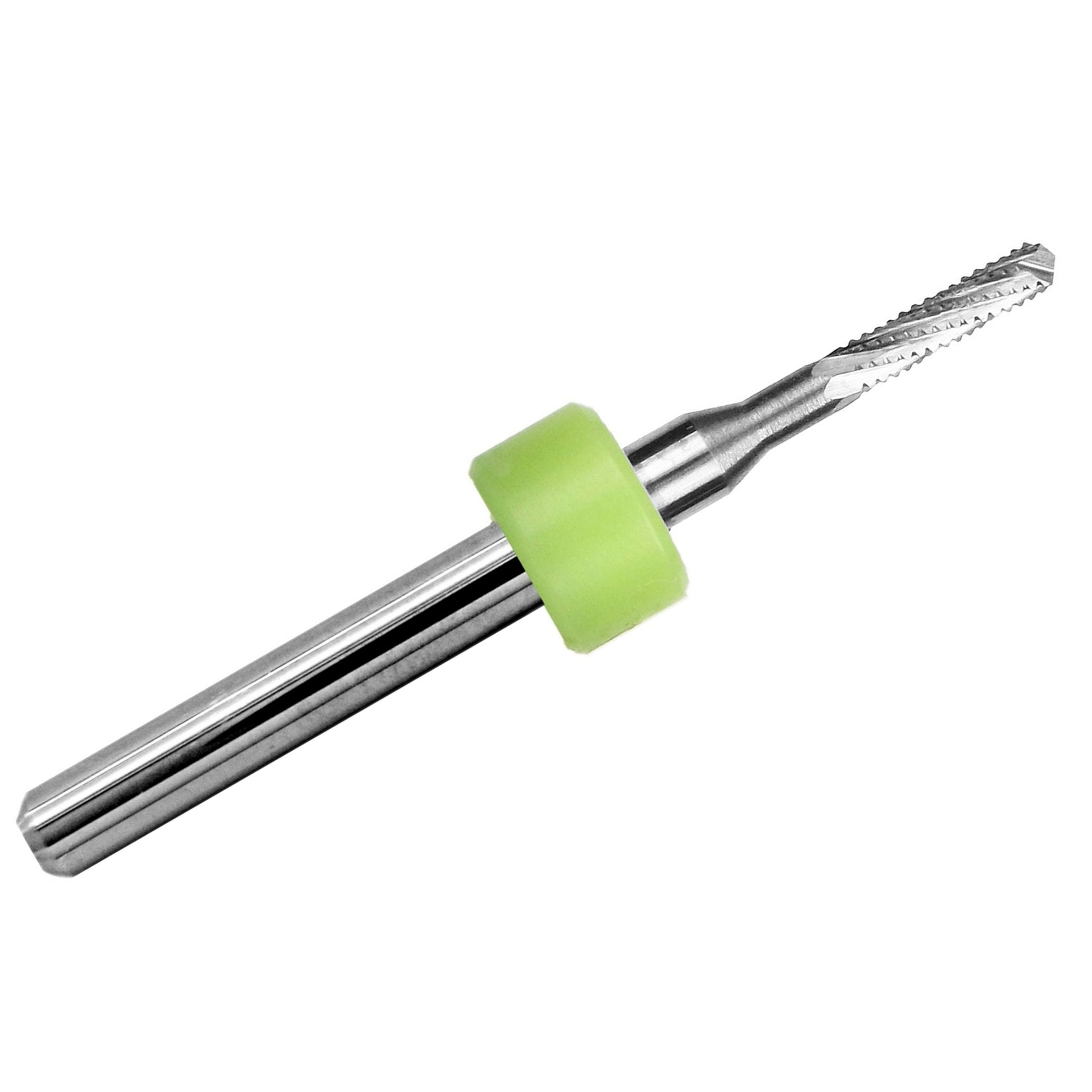

0.0709" (1.80mm) Kyocera Chip Breaker PCB Router, .300" LOC, Drill Point, Up-Cut, 1/8" Shank | R162

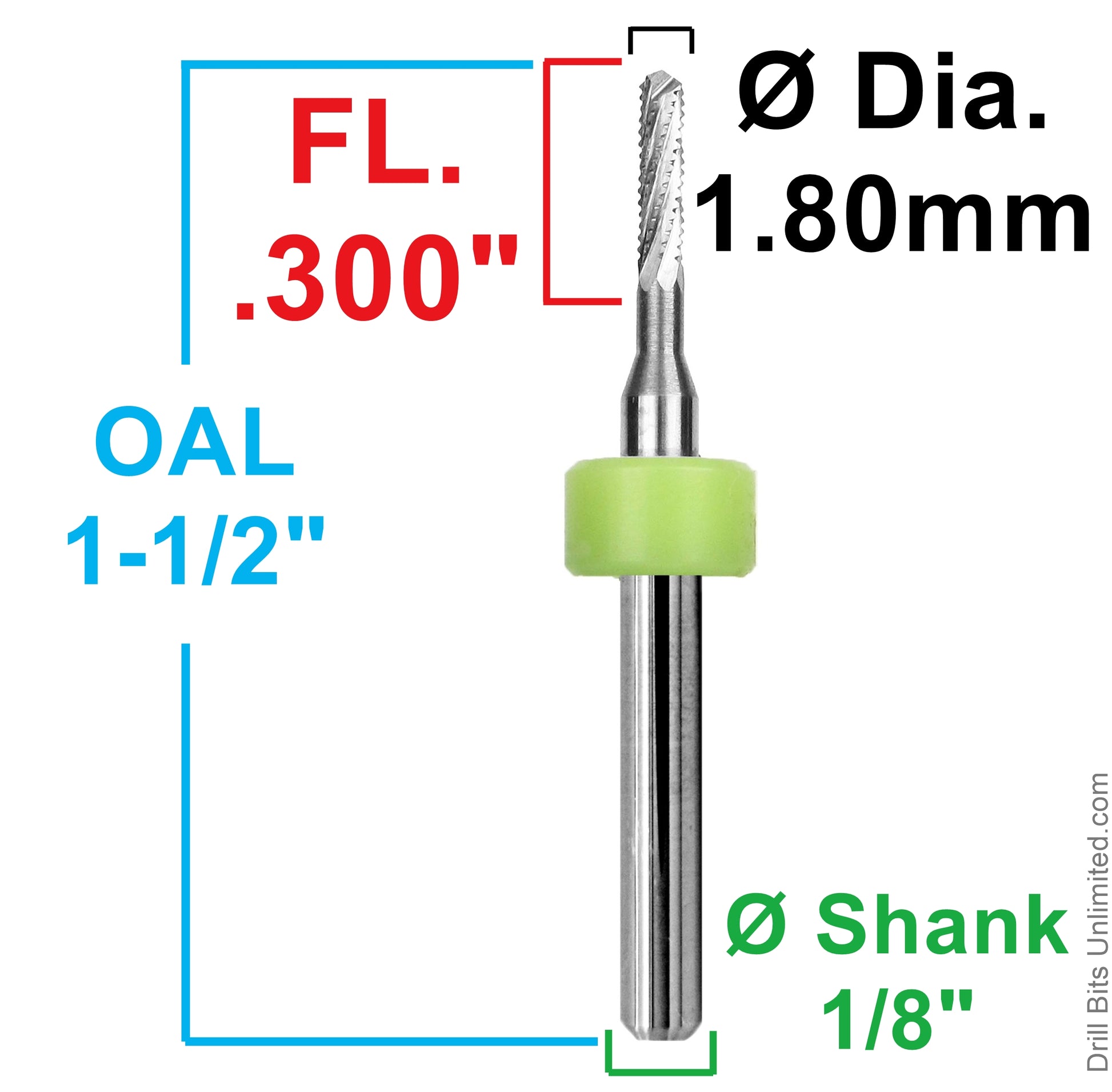

This Kyocera 1.80mm (.0709") chip breaker carbide PCB router features a .300" (7.62mm) length of cut, drill-point tip, up-cut spiral, 1/8" shank, and 1.50" overall length. Made from solid tungsten carbide, it is designed for precision routing of FR-4, G10, fiberglass, phenolic laminates, and other rigid composite materials.

The spiral chip breaker geometry uses interrupted cutting edges to break chips into smaller fragments. Combined with the up-cut spiral, this helps promote efficient chip evacuation and reduce debris accumulation during routing.

Chip Breaker Geometry and Drill-Point Tip

• Spiral chip breaker: Helps control chip formation and reduce debris buildup.
• Up-cut spiral: Directs chips upward and away from the cutting zone.

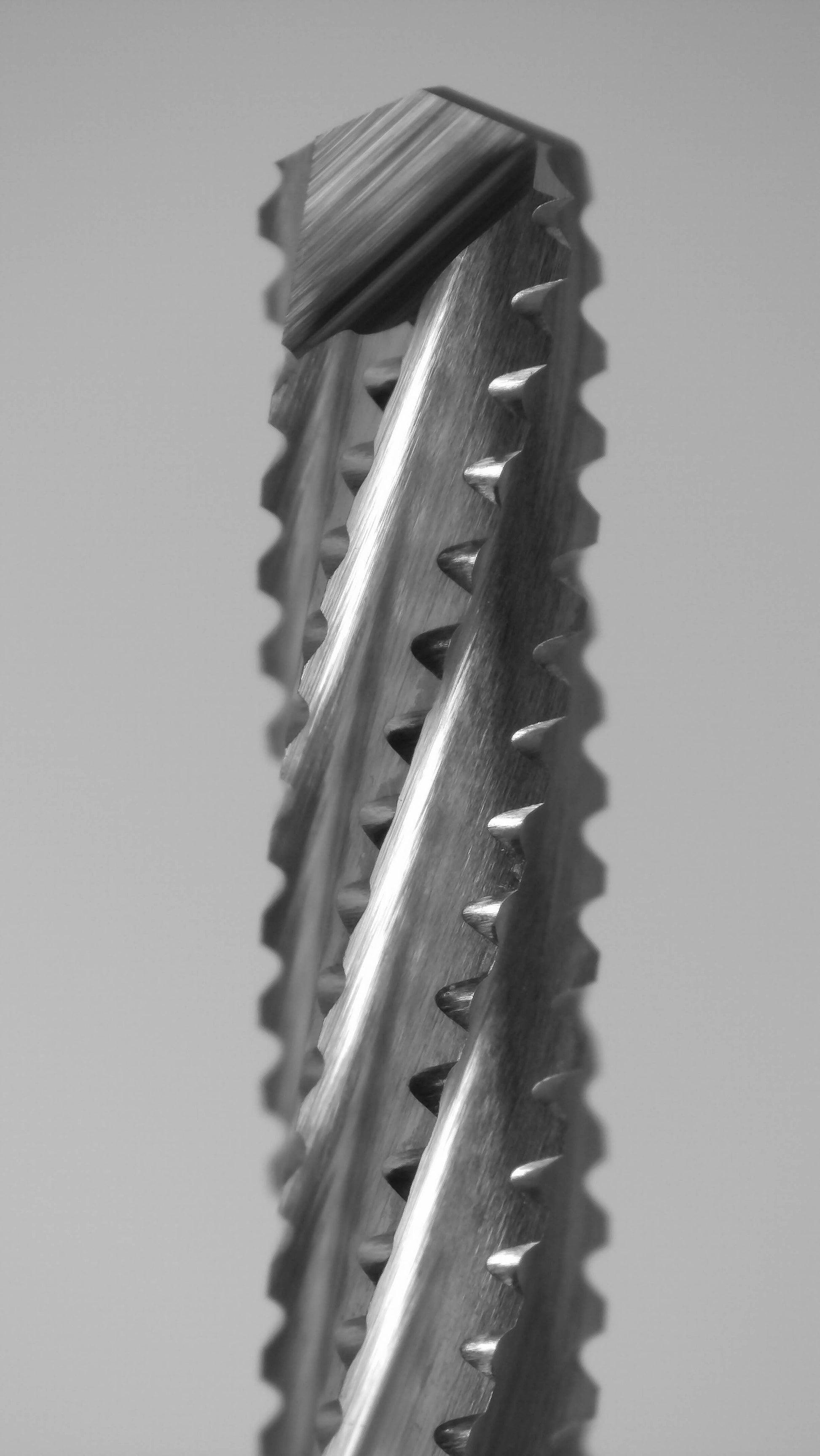

• Drill-point tip: Provides pointed entry geometry for controlled plunging under appropriate cutting conditions.
• .300" LOC: Provides 7.62mm of cutting length for board profiling, slots, and routing rigid composite materials.
• Solid carbide: Provides rigidity and wear resistance when machining abrasive laminates.

The drill-point configuration is useful for routing operations requiring controlled entry into the workpiece. Use suitable plunge feeds, rigid workholding, and minimal spindle runout to help prevent tool damage.

For a fish-tail alternative at the same diameter, consider our R161 1.80mm Chip Breaker Router, which features a .315" LOC.

Not sure which router geometry is best for your application? Compare Chip Breaker vs. Diamond Flute PCB Routers →

Typical Applications

• PCB outline routing and circuit board profiling
• FR-4 and G10 fiberglass laminates
• Phenolic laminate cutting
• Precision slots and internal PCB contours
• Routing rigid fiberglass and composite sheets
• Controlled plunge-entry applications

Carbon fiber and highly abrasive materials: Extended machining of abrasive composites may accelerate wear on uncoated carbide. For demanding production applications, consider a suitable diamond-coated router.

Explore Diamond-Coated Routers →

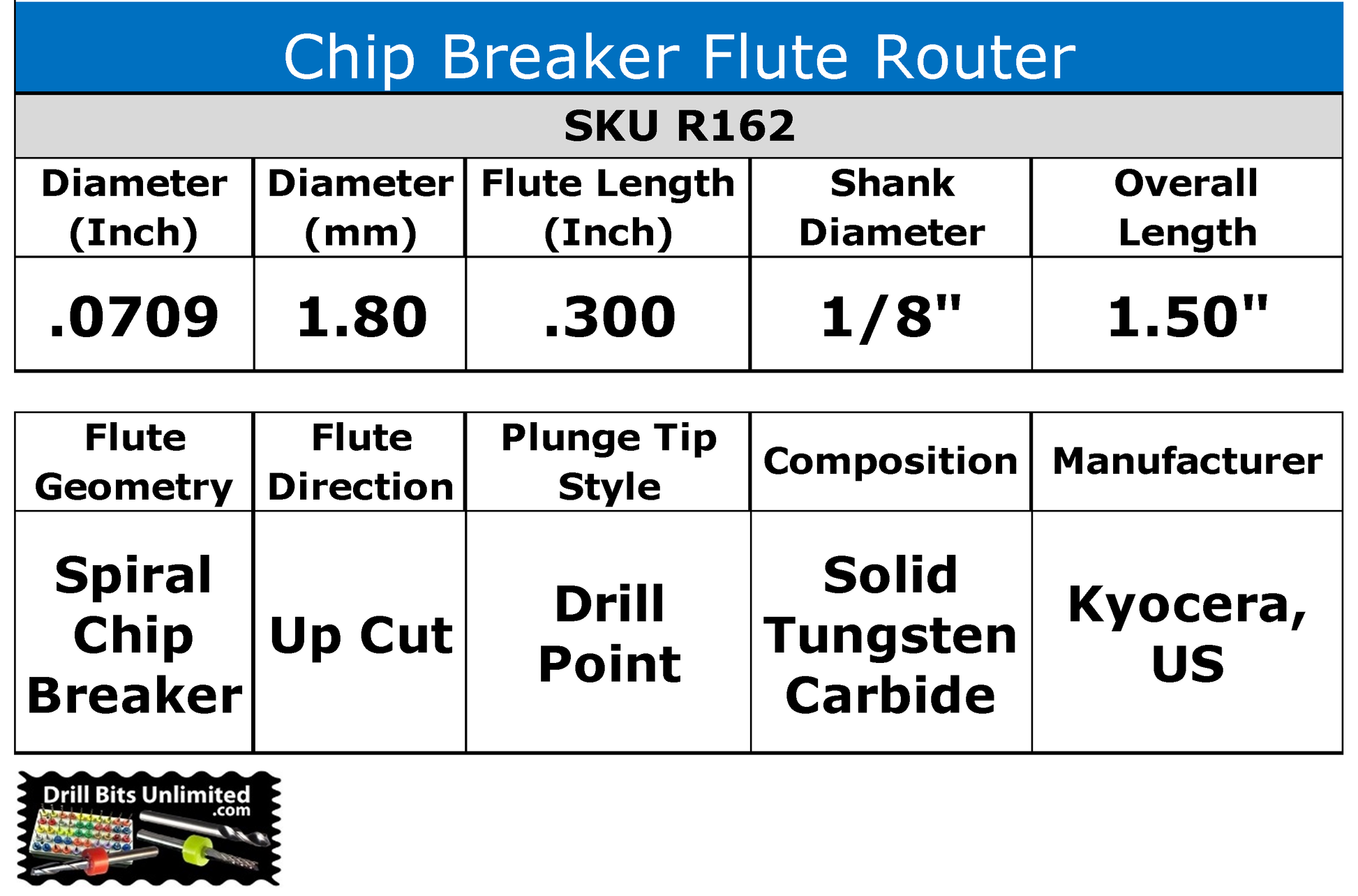

Specifications

Feeds, Speeds and Tool Handling

See our Chip Breaker Router Feed & Speed Chart → for general machining guidance.

Adjust machining parameters for the material, cutting engagement, spindle runout, and workholding. Avoid aggressive plunging and excessive lateral loading.

Sold individually. Price is per router bit.
