0.0394" (1.00mm) x .118" (3mm) LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | MB-160

0.0394" (1.00mm) x .118" (3mm) LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | MB-160

Regular price $8.95 USD
Regular price Sale price $8.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

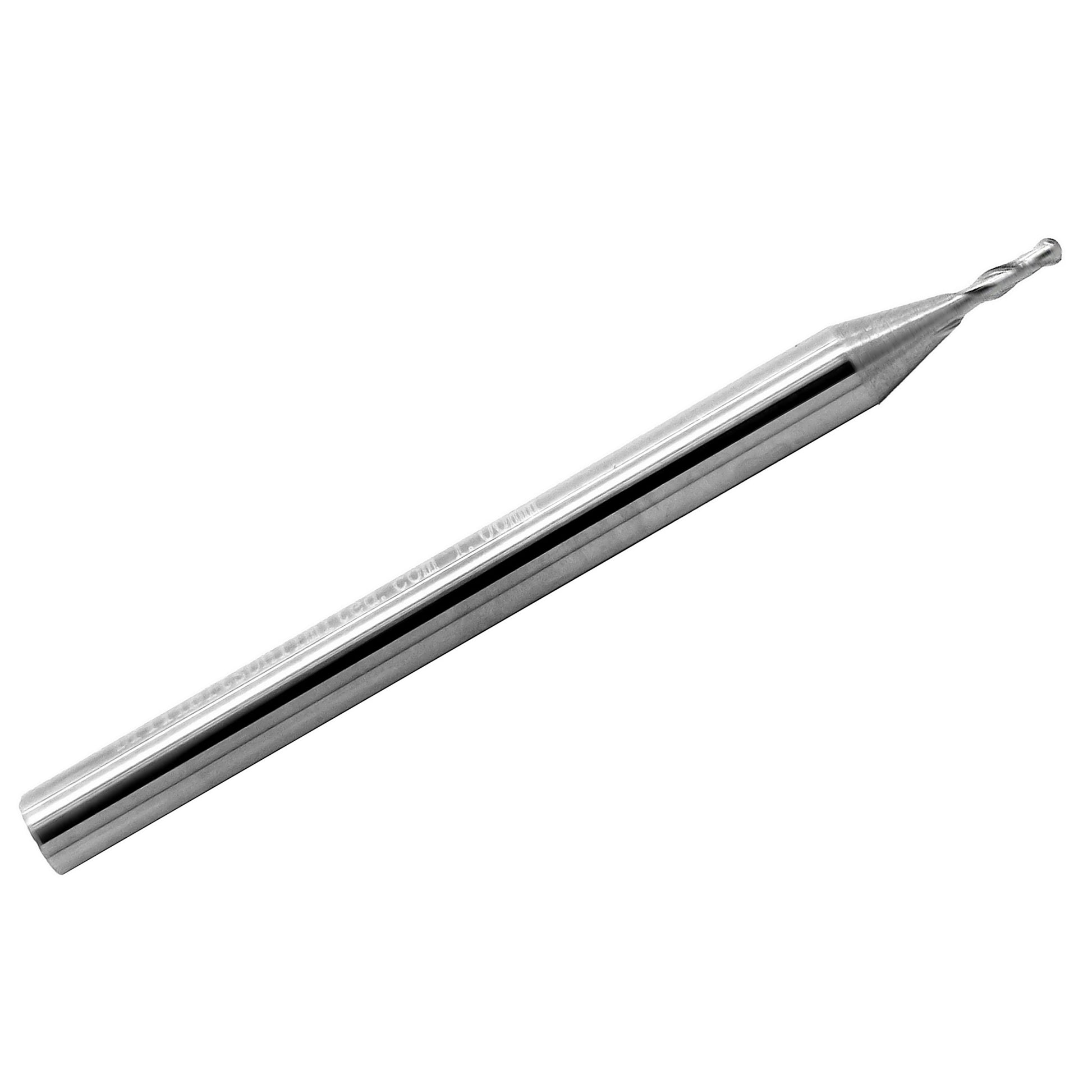

1.00mm (.0394") 2-Flute Ball Nose Solid Carbide End Mill – MB-160

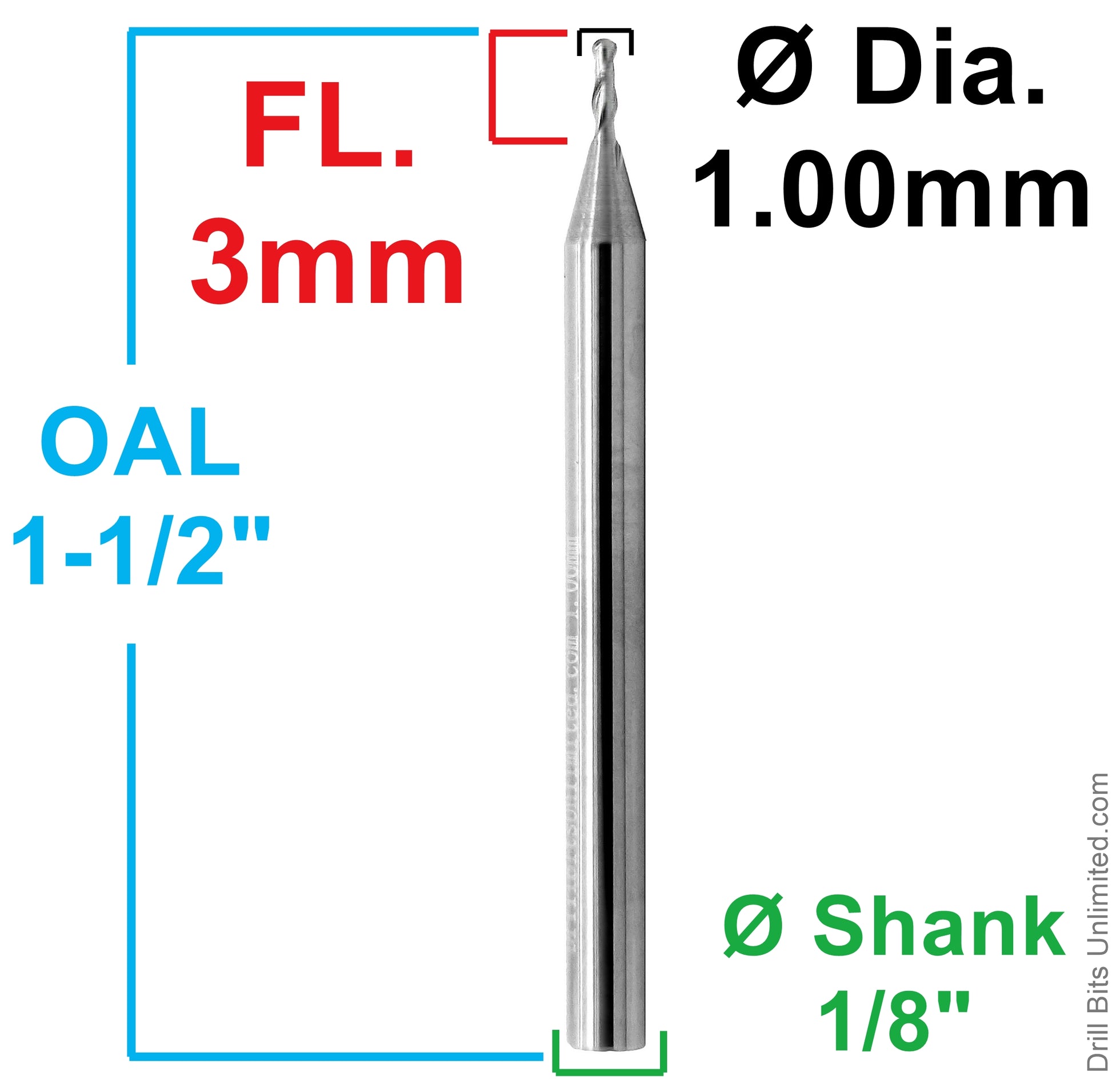

This 1.00mm (.0394") 2-flute ball nose solid carbide end mill features a 3mm (.118") length of cut, 30° spiral helix, 1.50" overall length, and standard 1/8" shank. Its uncoated carbide cutting edges are well suited for precision CNC contouring, 3D profiling, and fine-detail machining.

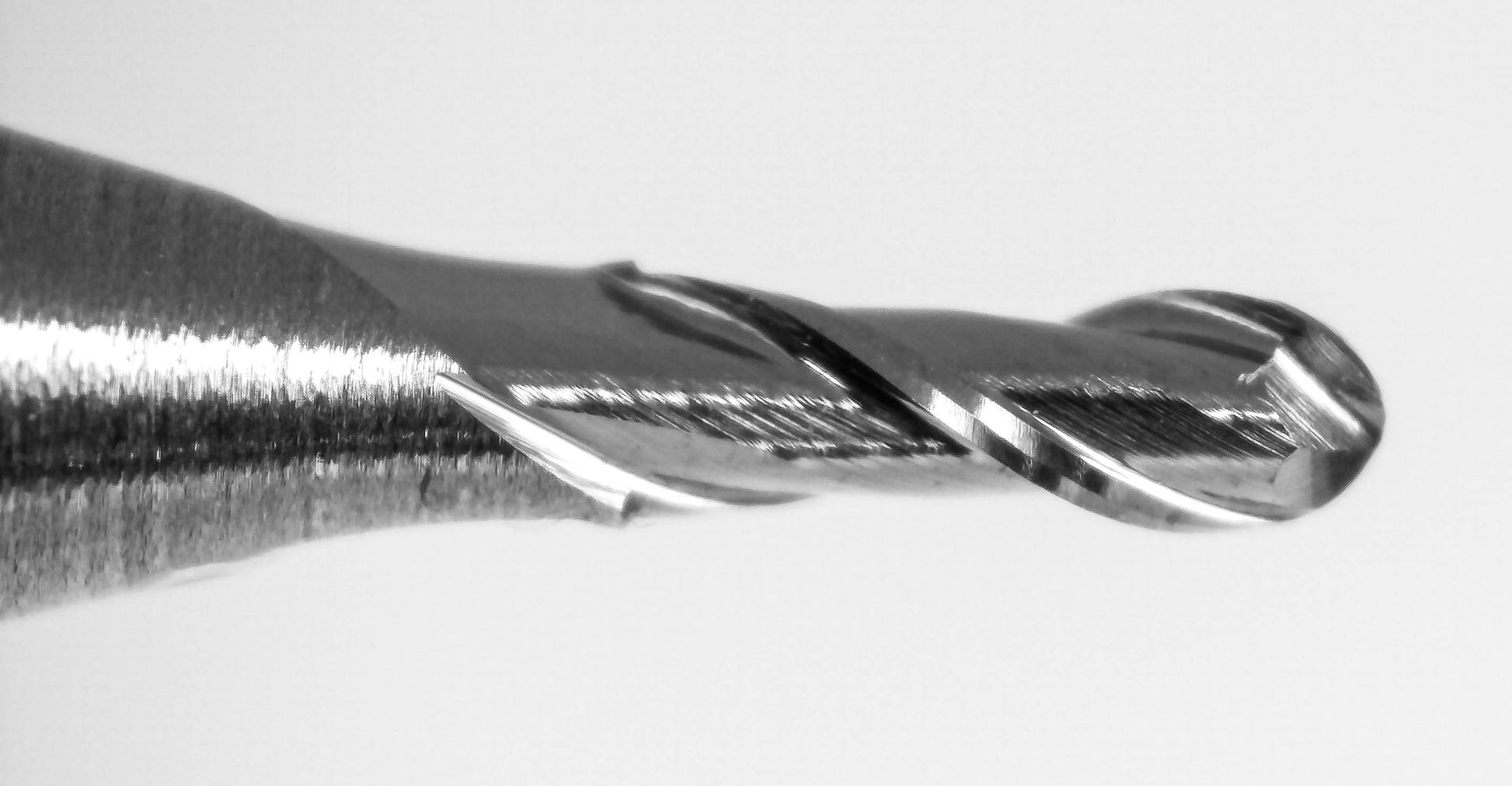

The ball nose cutting end has a nominal 0.50mm radius and is designed for producing curved surfaces, rounded profiles, sculpted features, and smooth three-dimensional contours. This geometry is especially useful for miniature molds, models, relief carving, and detailed CNC finishing.

The 2-flute, right-hand up-cut spiral helps evacuate chips while providing cutting-edge support for small-diameter machining. Its uncoated solid carbide construction makes it a practical choice for machining aluminum, brass, plastics, acrylic, wood, and suitable composites when appropriate cutting parameters are used.

Common Applications

  • Precision 3D CNC contouring and finishing
  • Micro milling and fine-detail profiling
  • Small molds, models, and radiused features
  • Relief carving and sculpted surfaces
  • Aluminum, brass, and other suitable non-ferrous metals
  • Plastic, acrylic, and polycarbonate machining
  • Wood detail cutting and miniature carving
  • Prototype components, instrument making, and hobby CNC projects

Features & Benefits

  • 1.00mm cutting diameter: Suitable for fine-detail CNC machining and intricate features.
  • R0.50mm ball nose: Produces curved profiles, radiused features, and 3D contours.
  • 3mm LOC: Provides cutting reach for detailed profiling and shallow 3D machining.
  • 2-flute geometry: Provides chip clearance and cutting-edge support.
  • 30° up-cut spiral: Helps evacuate chips during machining.
  • Uncoated carbide: Suitable for many non-ferrous materials and plastics.
  • Center cutting: Supports appropriate plunging and ramping operations.
  • 1/8" shank: Fits many compact CNC routers and precision toolholders.

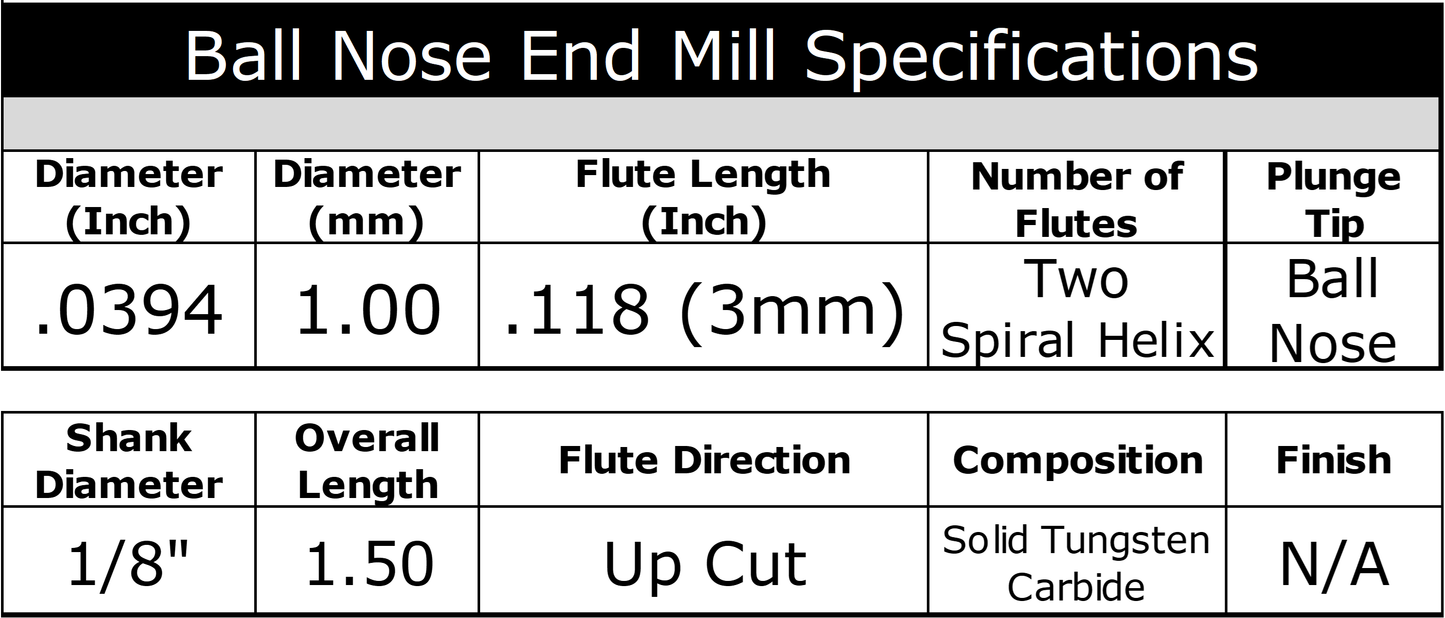

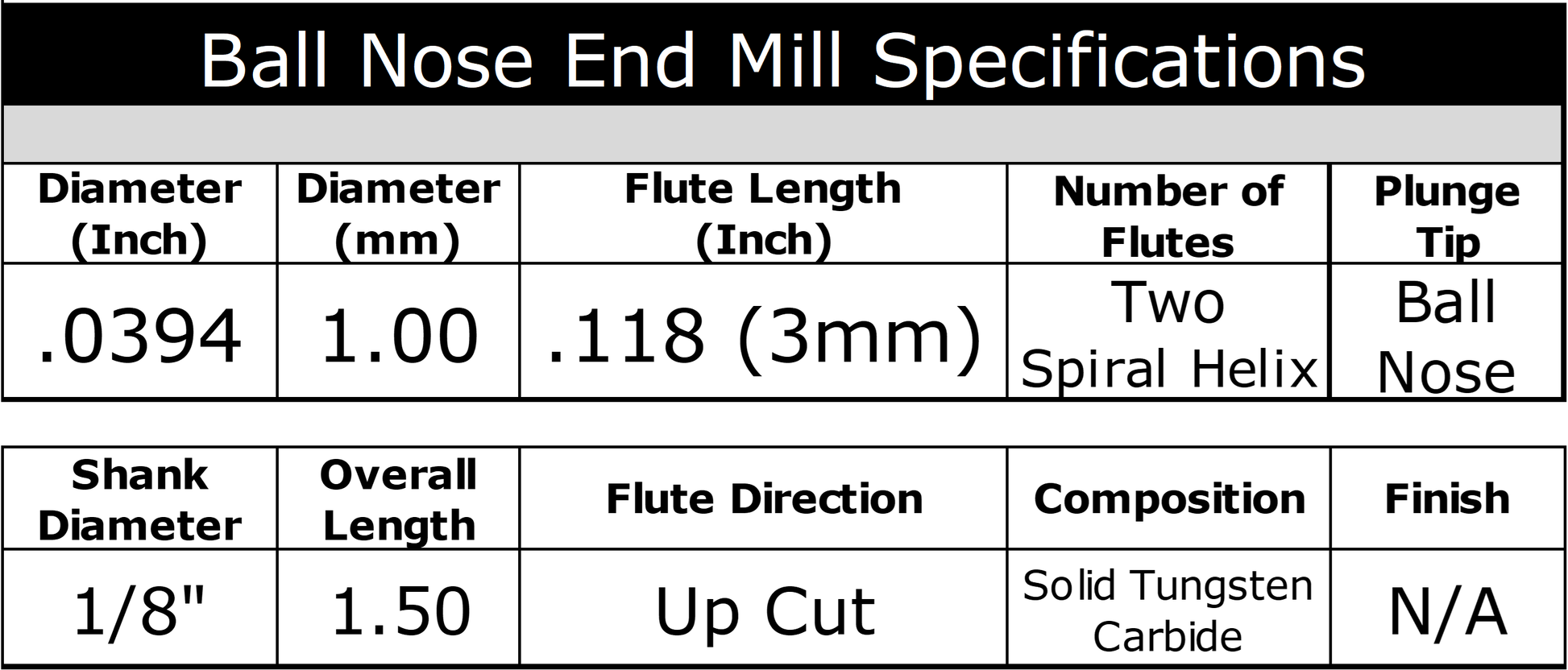

Specifications

SKU MB-160
Tool Type Solid Carbide Ball Nose End Mill
Condition New
Cutting Diameter 1.00mm (.0394")
Ball Radius R0.50mm (nominal)
Length of Cut / Flute Length 3.00mm (.118")
Overall Length 1.50"
Shank Diameter 1/8" (3.175mm)
Number of Flutes 2
End Style Ball Nose
Cutting Direction Right Hand
Flute Direction Right-Hand Helix / Up Cut
Helix Angle 30°
Center Cutting Yes
Material Solid Tungsten Carbide
Finish / Coating Uncoated

Precision 3D Machining Considerations

With a cutting diameter of only 1.00mm, this tool requires accurate toolholding, minimal spindle runout, rigid workholding, and appropriate cutting speeds and feeds. Use controlled stepover and cutting depth to reduce deflection and the risk of tool breakage.

For 3D contouring and finishing, surface quality depends on the programmed stepover, cutting engagement, and workpiece material. The ball nose geometry is particularly useful for achieving smooth transitions across curved surfaces.

Need help choosing starting settings?

See our carbide end mill feed and speed calculator →

Looking for more ball nose carbide end mills?

Explore other diameters, flute lengths, and coatings in our Ball Nose End Mills Collection →
