1.00mm (.0394") x .400" LOC Carbide PCB Drill – 20mm LPKF Ring – 1 or 5 Pack
1.00mm (.0394") x .400" LOC Carbide PCB Drill – 20mm LPKF Ring – 1 or 5 Pack
Couldn't load pickup availability
Available individually for $4.95 or in a 5-pack for $21.95. Select your preferred pack size above.
0.0394" (1.00mm) x .400" Drill Depth Micro Carbide Drill Bit, 1/8" Shank – 20.00mm LPKF Ring

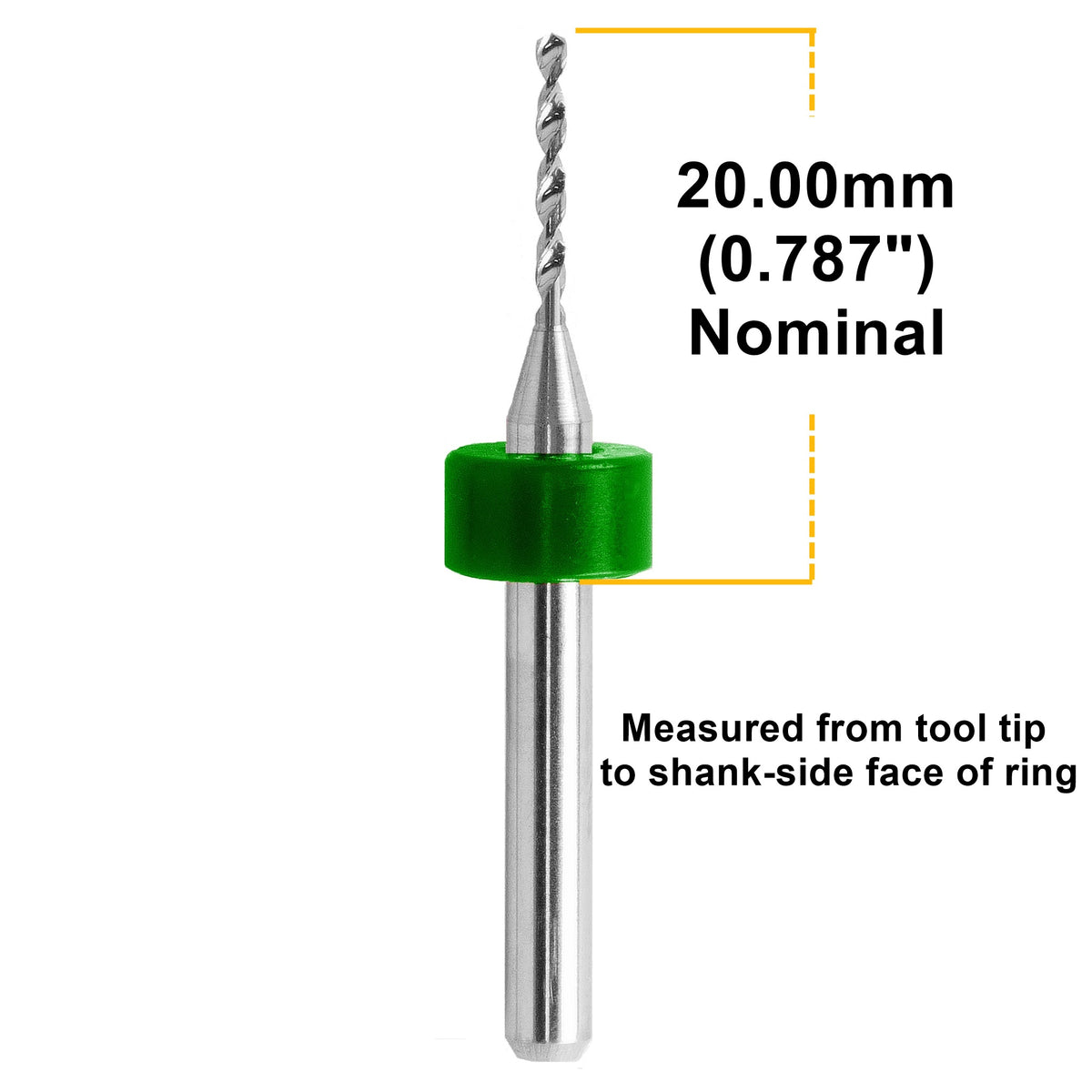

These new Kyocera carbide drill bits are supplied with the depth rings repositioned by Drill Bits Unlimited to a nominal 20.00mm (0.787") from the drill tip to the shank-side face of the ring. Please verify that your machine requires the 20.00mm ring position before ordering.

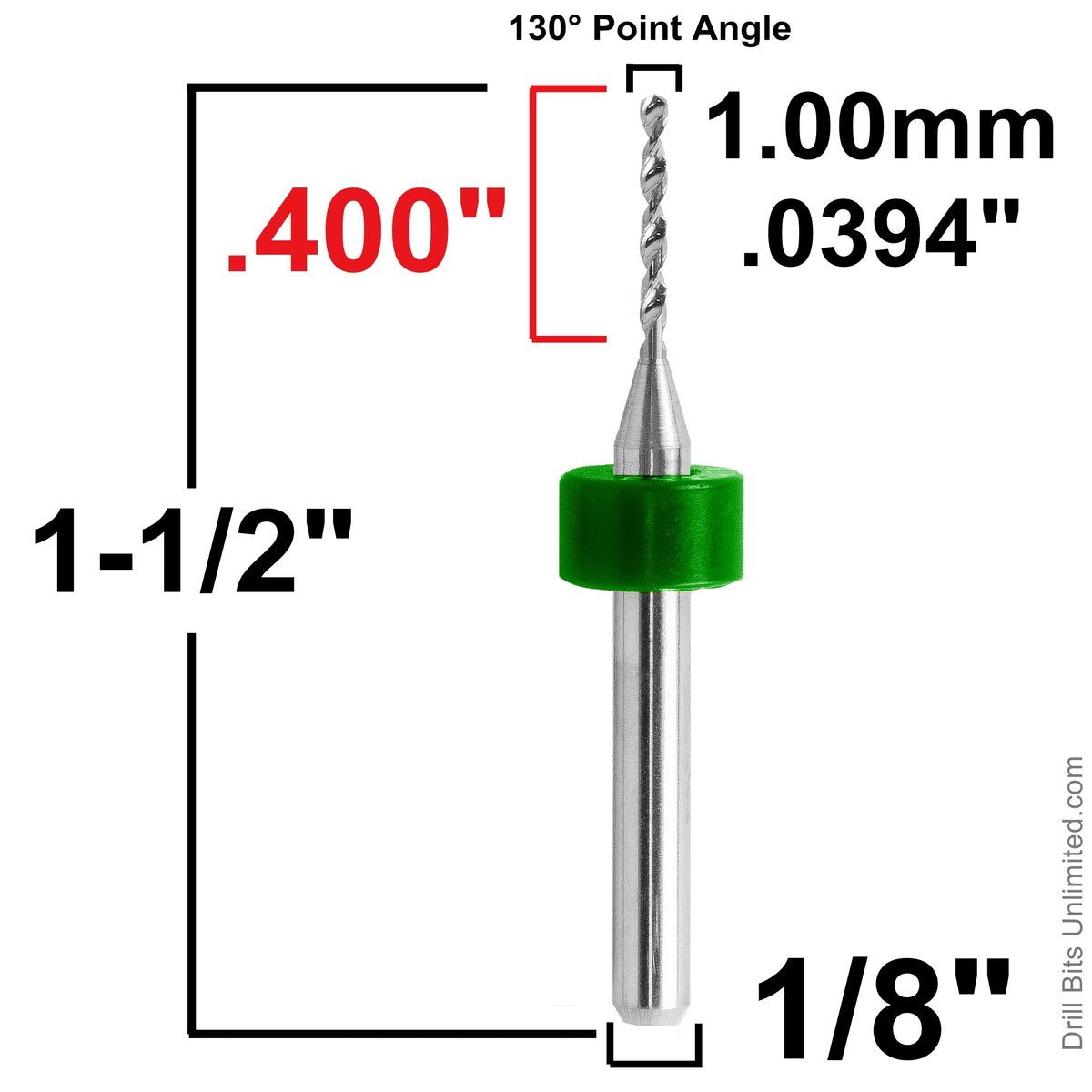

These new Kyocera precision solid carbide drill bits feature a 0.0394" (1.00mm) cutting diameter, .400" drill depth, 130° point angle, 1.50" overall length, and a standard 1/8" shank.
Designed for precision drilling applications, these micro carbide drills are suitable for PCB prototyping, fiberglass circuit boards, and other appropriate materials. Their solid carbide construction provides the rigidity and wear resistance needed for precision drilling.
The depth rings are manually repositioned to the nominal 20.00mm LPKF setting before shipment, providing an alternative to purchasing standard-ringed drills and adjusting them yourself.
Available Quantities
- 1 Piece: One new Kyocera carbide drill with the LPKF depth-ring setting.

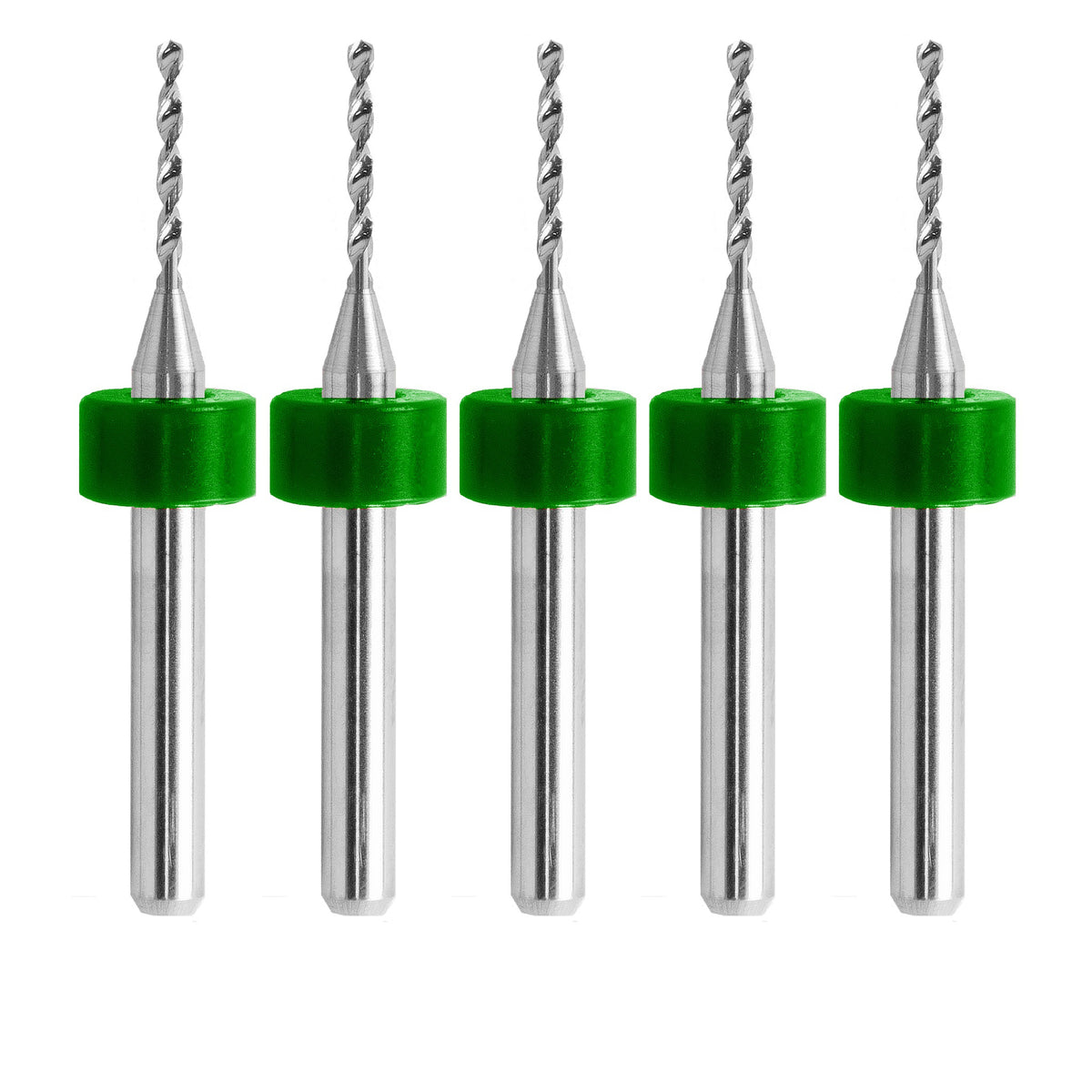

- 5-Pack: Five new Kyocera carbide drills, each with its depth ring repositioned to the nominal 20.00mm setting.
Common Applications
- PCB prototyping and circuit board drilling
- Precision drilling of FR-4 and G10 fiberglass laminates
- Compatible LPKF ProtoMat drilling applications
- Electronics prototyping and small-hole drilling
- Other suitable precision CNC drilling applications
Benefits
- New Kyocera solid carbide construction
- Depth rings repositioned to a nominal 20.00mm (0.787") setting
- Precision 1.00mm cutting diameter
- 130° drill point geometry
- .400" drill depth
- Standard 1/8" shank for compatible precision toolholders
- Available individually or in economical 5-packs
Specifications
| Manufacturer | Kyocera |
|---|---|
| Tool Type | Solid Carbide Micro Drill Bit |
| Condition | New |
| Drill Size | #61 / 1.00mm |
| Cutting Diameter | 0.0394" / 1.00mm |
| Drill Depth / Flute Length | .400" |
| Point Angle | 130° |
| Overall Length | 1.50" |
| Shank Diameter | 1/8" |
| Depth Ring Position | 20.00mm (0.787") nominal, measured from drill tip to shank-side face of ring |
| Material | Solid Tungsten Carbide |
| Available Quantities | 1 Piece or 5-Pack |
Compatibility note: These are third-party cutting tools and are not manufactured by or affiliated with LPKF. Please verify the required drill geometry, shank diameter, and depth-ring position for your particular machine before ordering.
