2.30mm (.0906") x .315" LOC Kyocera AlTiN Step-Flex Carbide Drill, 6mm Shank | TS-451-2086-20
2.30mm (.0906") x .315" LOC Kyocera AlTiN Step-Flex Carbide Drill, 6mm Shank | TS-451-2086-20
Limited stock – this item will not be restocked once sold out.
Couldn't load pickup availability

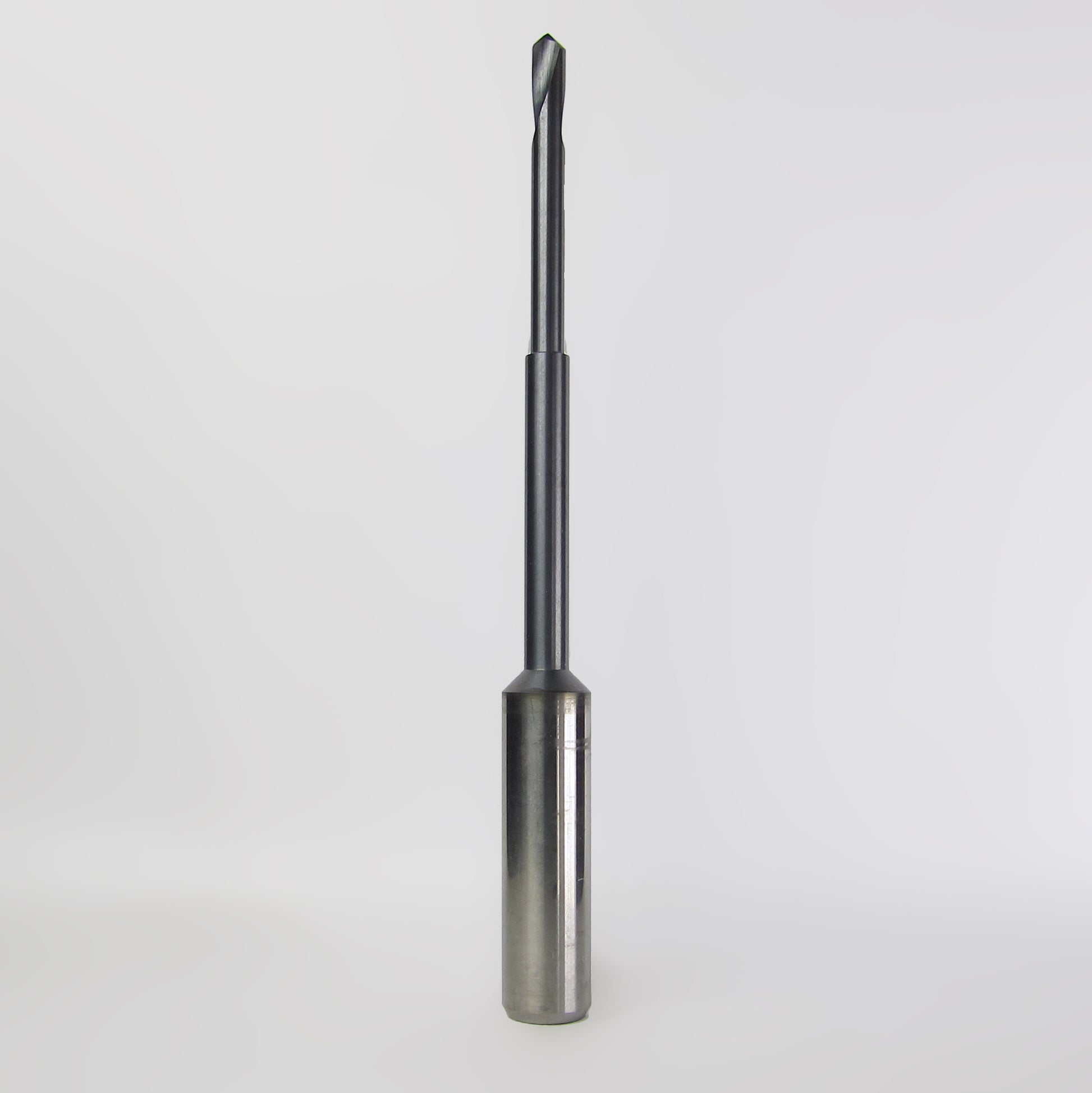

This Kyocera 2.30mm (.0906") Step-Flex carbide drill features an AlTiN coating, .315" length of cut, 3.00mm stepped neck/body diameter, 6mm shank, and 2.60" overall length. The box is marked TS-451-2086-20 2.30MM STEP-FLEX DRILL ALTIN.
The stepped tool design provides a reduced-diameter cutting section with a larger supporting neck/body section behind the cutting area. This style can provide added rigidity compared with a long straight reduced-diameter drill while still allowing clearance near the cutting end.
The AlTiN coating provides improved wear resistance and heat resistance compared with uncoated carbide, making this tool suitable for precision drilling applications where carbide rigidity and coating durability are important.
Because this appears to be a Kyocera special, OEM, or non-standard catalog tool, please review the photos and measured dimensions carefully before ordering.
Typical Applications
- Precision drilling applications requiring a 2.30mm carbide drill
- Applications where a stepped support section may help improve rigidity
- Use in appropriate CNC, production, or fixture-based drilling setups
Benefits
- Kyocera carbide tooling for precision drilling applications
- AlTiN coating for improved wear and heat resistance
- Step-flex design with larger support section behind the cutting area
- 6mm shank for use in compatible holders or collets

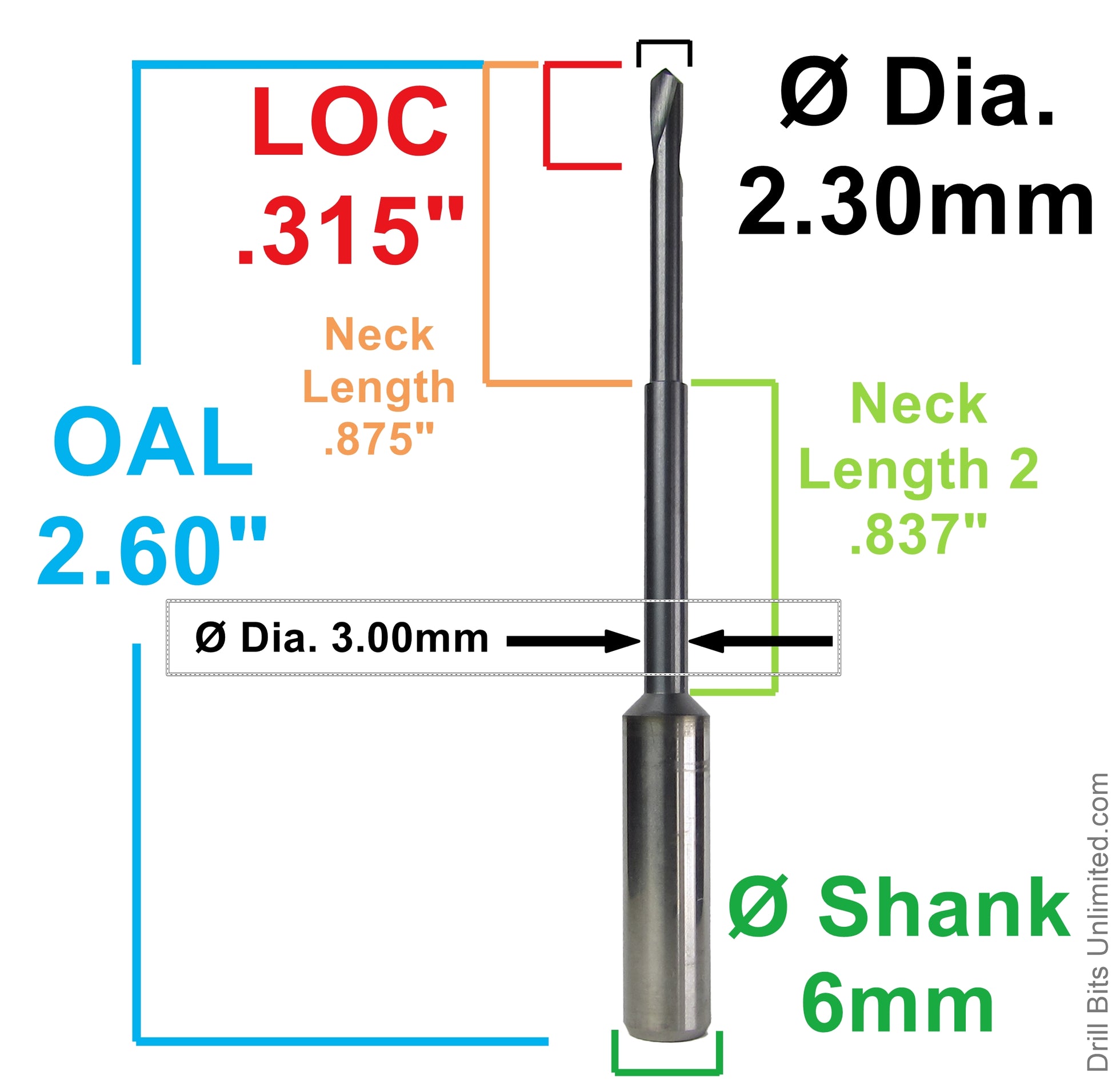

Specifications
| Manufacturer | Kyocera |
| Manufacturer Part Number | TS-451-2086-20 |
| Tool Type | Step-Flex Carbide Drill |
| Cutting Diameter | 2.30mm / .0906" |
| Length of Cut | .315" |
| Neck Length | .875" |
| Secondary Neck / Step Length | .837" |
| Step / Neck Diameter | 3.00mm |
| Shank Diameter | 6mm |
| Overall Length | 2.60" |
| Material | Solid Carbide |
| Coating | AlTiN |
| Condition | New old stock / unused surplus |
