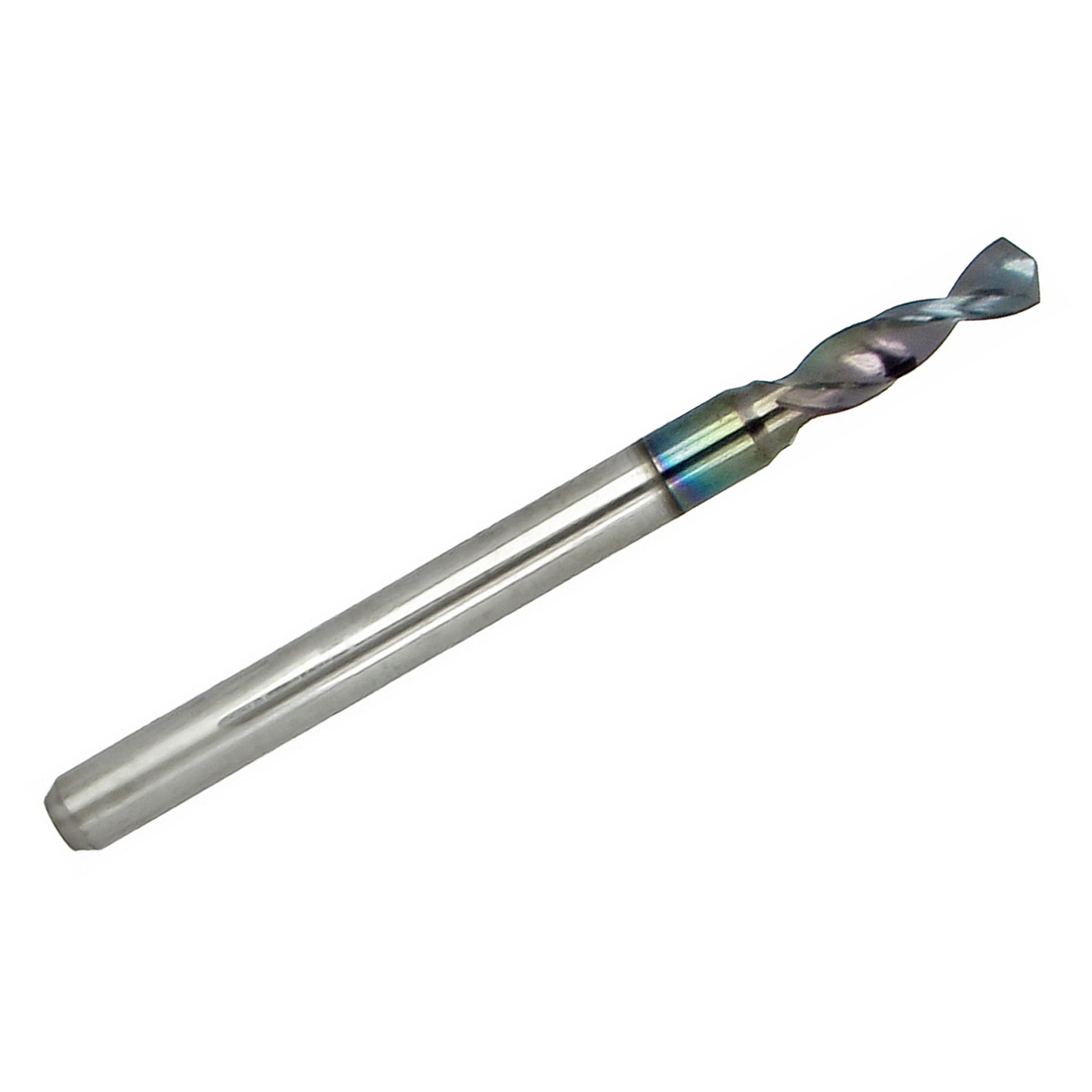

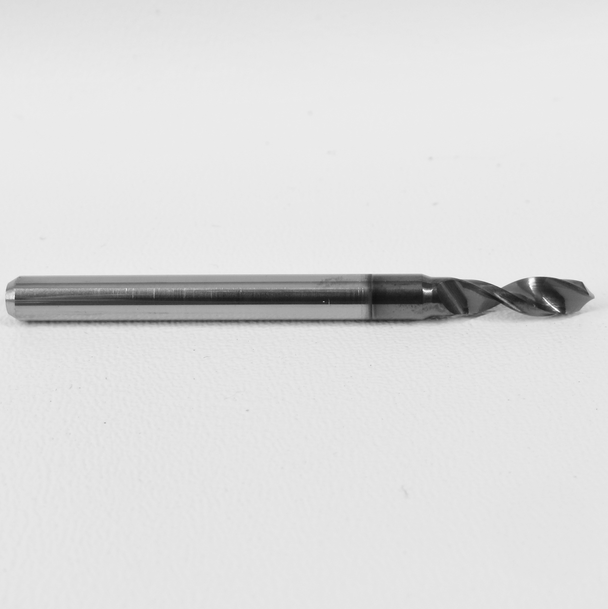

2.60mm Solid Carbide Micro Drill Bit – AlTiN Coated, 130° Point, Kyocera 226-1024L400
2.60mm Solid Carbide Micro Drill Bit – AlTiN Coated, 130° Point, Kyocera 226-1024L400
Couldn't load pickup availability
This 2.60mm solid carbide micro drill bit features a durable AlTiN coating for improved wear resistance and heat protection when drilling hard metals and abrasive materials. The 130° four-facet split point improves centering accuracy and reduces walking, making it ideal for precision machining operations and CNC drilling.
Designed for high performance in steel, stainless steel, titanium, copper alloys, cast iron, composites, and graphite, this micro-length carbide drill provides excellent rigidity and hole accuracy in demanding applications.
Manufacturer: Kyocera
Series: 226
Manufacturer Part Number: 226-1024L400
Alternate Format: 2261024L400
| Drill Diameter | 2.60mm (0.1024") |
| Material | Solid Micrograin Carbide |
| Coating | AlTiN |
| Point Angle | 130° Four-Facet Split Point |
| Flutes | 2 |
| Flute Length | 0.4000" |
| Overall Length | 38.00mm |
| Shank Diameter | 0.1181" |
| Cut Direction | Right Hand |
| Drill Length Class | Micro Length |
| Web Construction | Split / X-Thinned |
| Drilling Depth | 0.4000" |
| Drill Diameter Tolerance | +0.000mm / −0.008mm |
| Applications | Steel, Stainless Steel, Titanium, Cast Iron, Copper Alloys, Composites, CFRP, Graphite |
| Country of Origin | United States |
